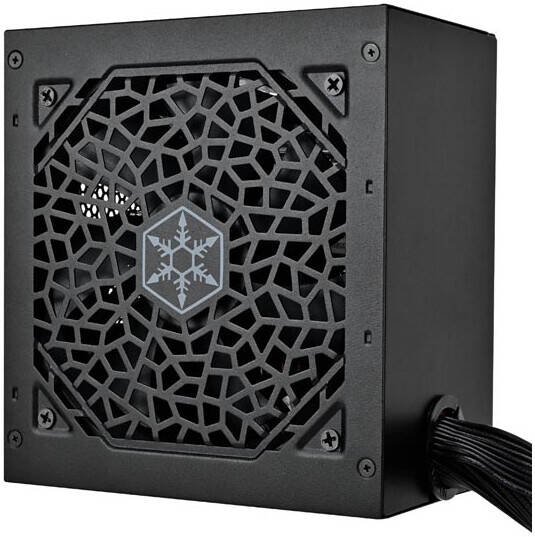

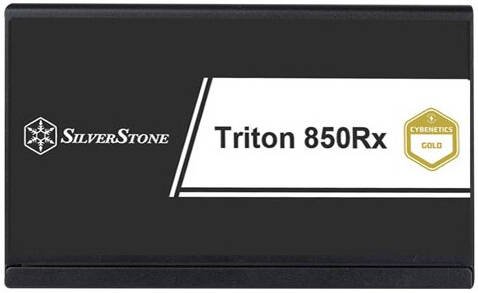

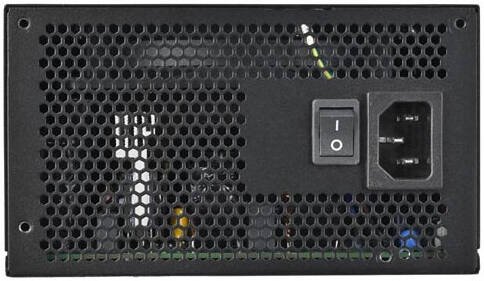

SilverStone Triton 850Rx Non Modular Power Supply, 850W Power, 80 Plus Gold Efficiency, 120mm ICB Bearing Fan, Active PFC, Japanese Electrolytic Capacitors, ATX Form Factor, Black
365,00 AED
- Supports 12V-2×6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion

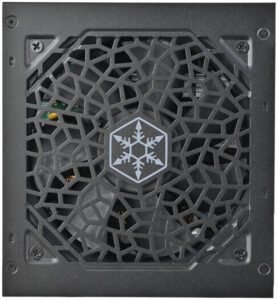

- Silent running 120mm ICB (Inside Cavity Bearing) cooling fan
- Black embossed cable design
- Main Japanese electrolytic capacitors
- High efficiency with Cybenetics Gold certification
- 24/7 continuous power output with 40℃ operating temperature
- Compact design with a 140mm depth for easy integration
| Product Specifications | |

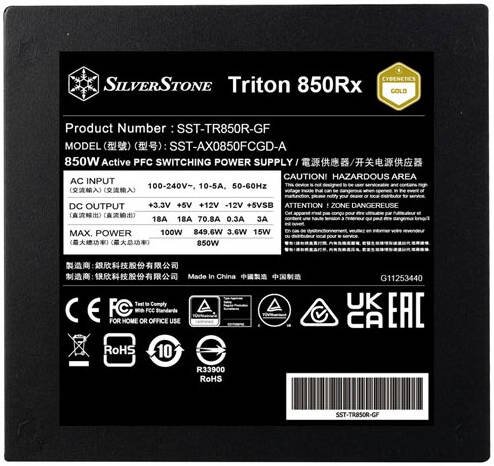

| Product No. | SST-TR850R-GF |
| Model (Safety Certification) | SST-AX0850FCGD-A |
| Color | Black (lead-free paint) |
| Max. DC Output | 850W |
| Power Density | 470.7 W/L |
| Load Range | |
| Output Rails | +3.3V / +5V / +12V / +5VSB / -12V |
| Max. Amps | 18A / 18A / 70.8A / 3.0A / 0.3A |
| Min. Amps | 0A / 0A / 0A / 0A / 0A |
| Range (%) | ±5% / ±5% / ±5% / ±5% / ±10% |
| Line Regulation (%) | ±1% across all |
| Ripple (mVp-p) | 50 / 50 / 120 / 50 / 120 |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 850W |
| Input | |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF >0.9 at full load) |
| Performance | |
| Efficiency | 87% ~ 89% overall efficiency |
| MTBF | 100,000 hours |
| Operating Temperature | 0°C ~ 40°C |
| Protection | OPP, OCP, OVP, SCP, UVP, OTP |
| Connectors | |
| Motherboard | 1 × 24/20-Pin |
| CPU | 2 × 8/4-Pin EPS / ATX 12V |
| PCIe | 5 × 8/6-Pin |
| 12V-2x6 | 1 × 12+4-Pin |
| SATA | 6 × SATA |
| Peripheral | 2 × 4-Pin |
| Cooling System | Single 120mm ICB Bearing Fan |
| Noise Level | 18 dBA minimum |
| Certification | Cybenetics Gold |
| Form Factor | ATX (PS2) |
| Dimensions | 150 × 86 × 140 mm (5.91" × 3.39" × 5.51") |
| Weight | 1.56 kg |
