SilverStone Triton 650Rx Non-Modular Power Supply, 650W Power, Cybenetics Gold Certified, Silent 120mm ICB Fan, Active PFC, ATX 12V 3.1 Compatible, Black

299,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports 12V-2×6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
  • Latest PCIe Gen 5 standard to support up to 2X power excursion

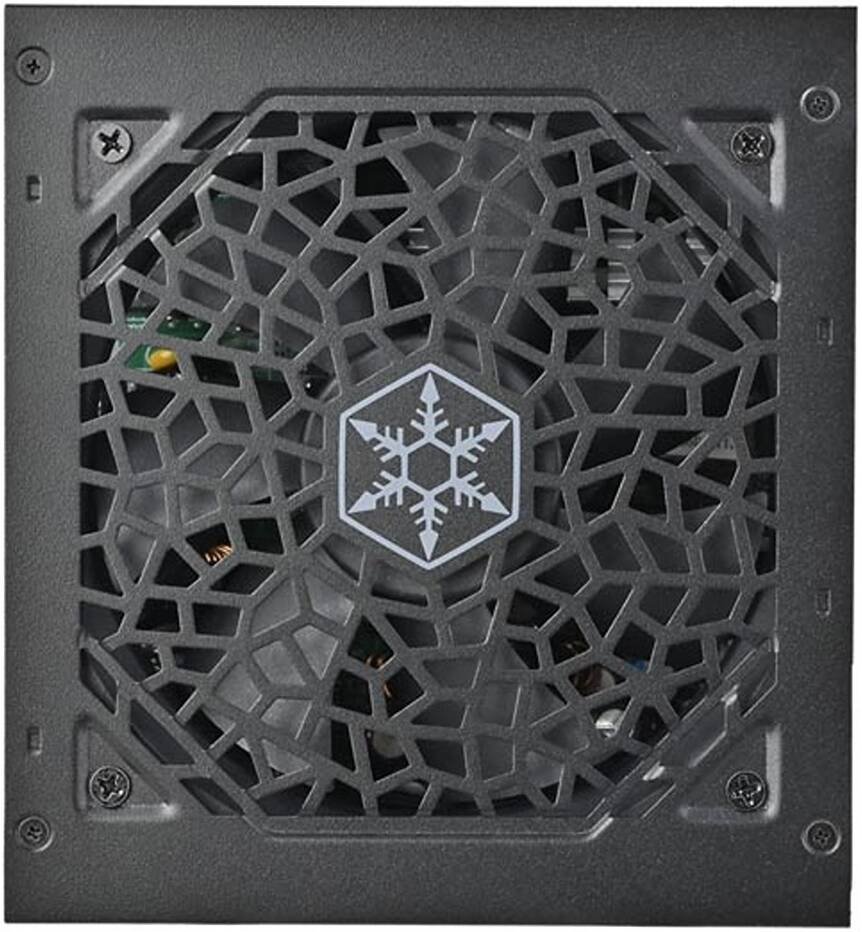

  • Silent running 120mm ICB cooling fan
  • Black embossed cable design
  • Main Japanese electrolytic capacitors
  • High efficiency with Cybenetics Gold certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Compact design with a 140mm depth for easy integration
Product No. SST-TR650R-GF
Model (Safety Cert.) SST-AX0650FCGD-A
Color Black (lead-free paint)
Max. DC Output 650W
Power Density 359.9W/L
Load Range (Output) +3.3V / +5V / +12V1 / +5VSB / -12V
Max. Amps 18A / 18A / 54.1A / 3.0A / 0.3A
Min. Amps 0A / 0A / 0A / 0A / 0A
Range (%) ±5% / ±5% / ±5% / ±5% / ±10%
Line Regulation (%) ±1% for all outputs
Ripple (mVp-p) 50 / 50 / 120 / 50 / 120
Combined +3.3V & +5V 100W
Combined +12V 649W
Input Voltage 90 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF > 0.9 at full load)
Efficiency 87% ~ 89% overall
MTBF 100,000 hours
Operating Temperature 0°C ~ 40°C
Protection OPP, OCP, OVP, SCP, UVP, OTP
Connectors 1× 24/20-pin MB2× 8/4-pin EPS/ATX12V1× 12+4-pin 12V-2x62× 8/6-pin PCIe6× SATA2× 4-pin Peripheral
Cooling System Single 120mm ICB bearing fan
Noise Level 18 dBA min.
Certification Cybenetics Gold
Form Factor ATX (PS2)
Dimensions (W×H×D) 150 × 86 × 140 mm (5.91" × 3.39" × 5.51")
Weight 1.48 kg
