SilverStone SX650-G Fully Modular Power Supply, 650W Power, 80 PLUS Gold Effieciency, Single 92mm FDB Silent Fan, Active PFC, Japanese Capacitors, SFX Form Factor, Black
525,00 AED
- Support standard SFX form factor

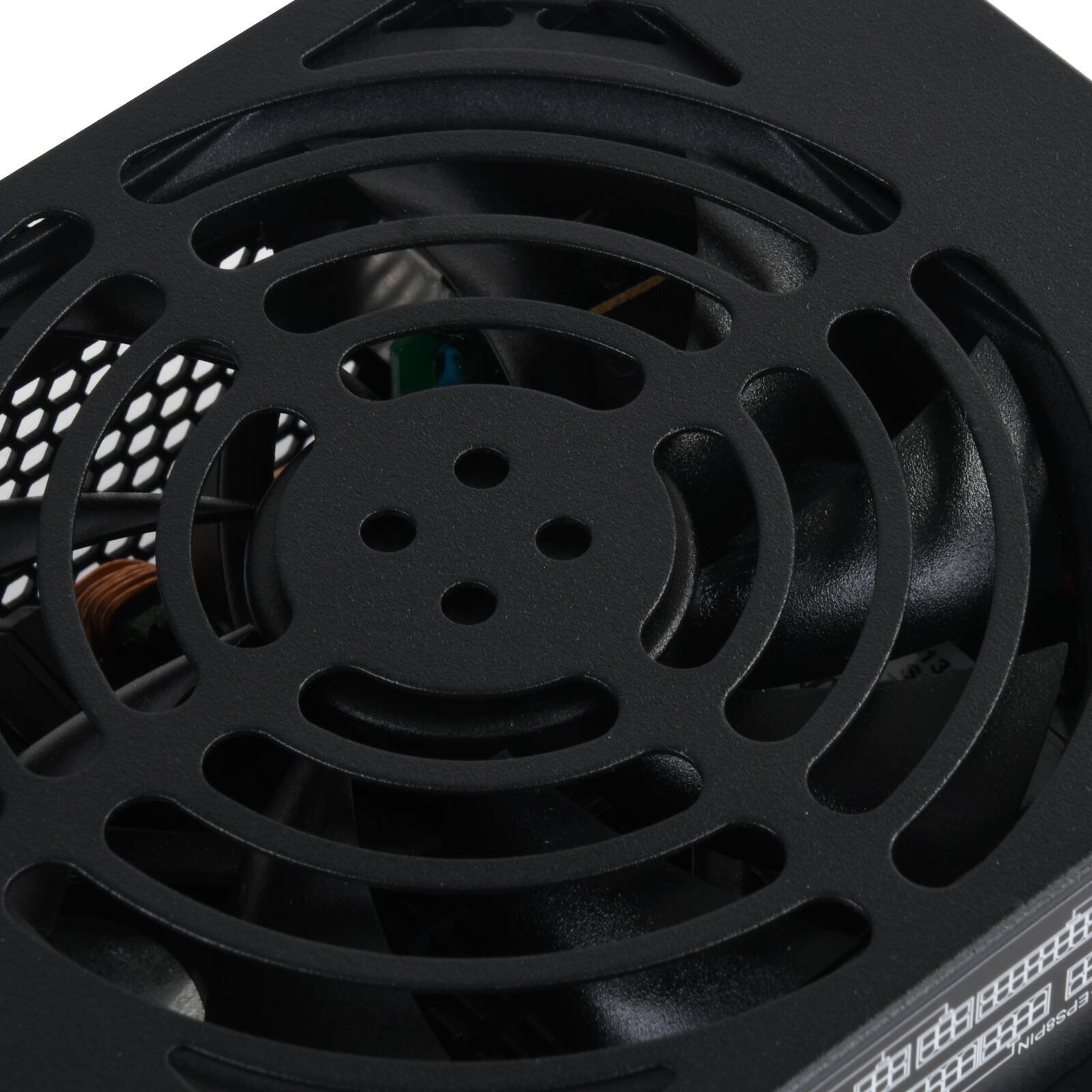

- Silent running 92mm FDB fan with 18 dBA minimum
- All Japanese capacitors
- High efficiency with 80 PLUS Gold certification
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- 100% modular cables
- All cables made with flexible flat arrays
- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.1)
| Product No. | SST-SX650-G |
| Color | Black (Lead-Free Paint) |
| Max. DC Output | 650W |
| Power Density | 819W per liter |
| Load Range | |
| +3.3V (Max/Min/Range) | 22A / 0A / ±3% |
| +5V (Max/Min/Range) | 22A / 0A / ±3% |
| +12V (Max/Min/Range) | 54.2A / 0A / ±3% |
| +5VSB (Max/Min/Range) | 2.5A / 0A / ±5% |
| -12V (Max/Min/Range) | 0.3A / 0A / ±10% |
| Line Regulation (%) | ±1% (all rails) |
| Ripple (mVp-p) | +3.3V: 50mV, +5V: 50mV, +12V: 120mV, +5VSB: 50mV, -12V: 120mV |
| Combined +3.3V & +5V | 110W |
| Combined +12V | 650W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF > 0.9 at full load) |
| Efficiency | 87% ~ 90% (20% to 100% loading) |
| MTBF | 100,000 hours |
| Operating Temperature | 0°C ~ 40°C |
| Protection | Over Current, Over Power, Over Voltage, Short Circuit, Under Voltage |

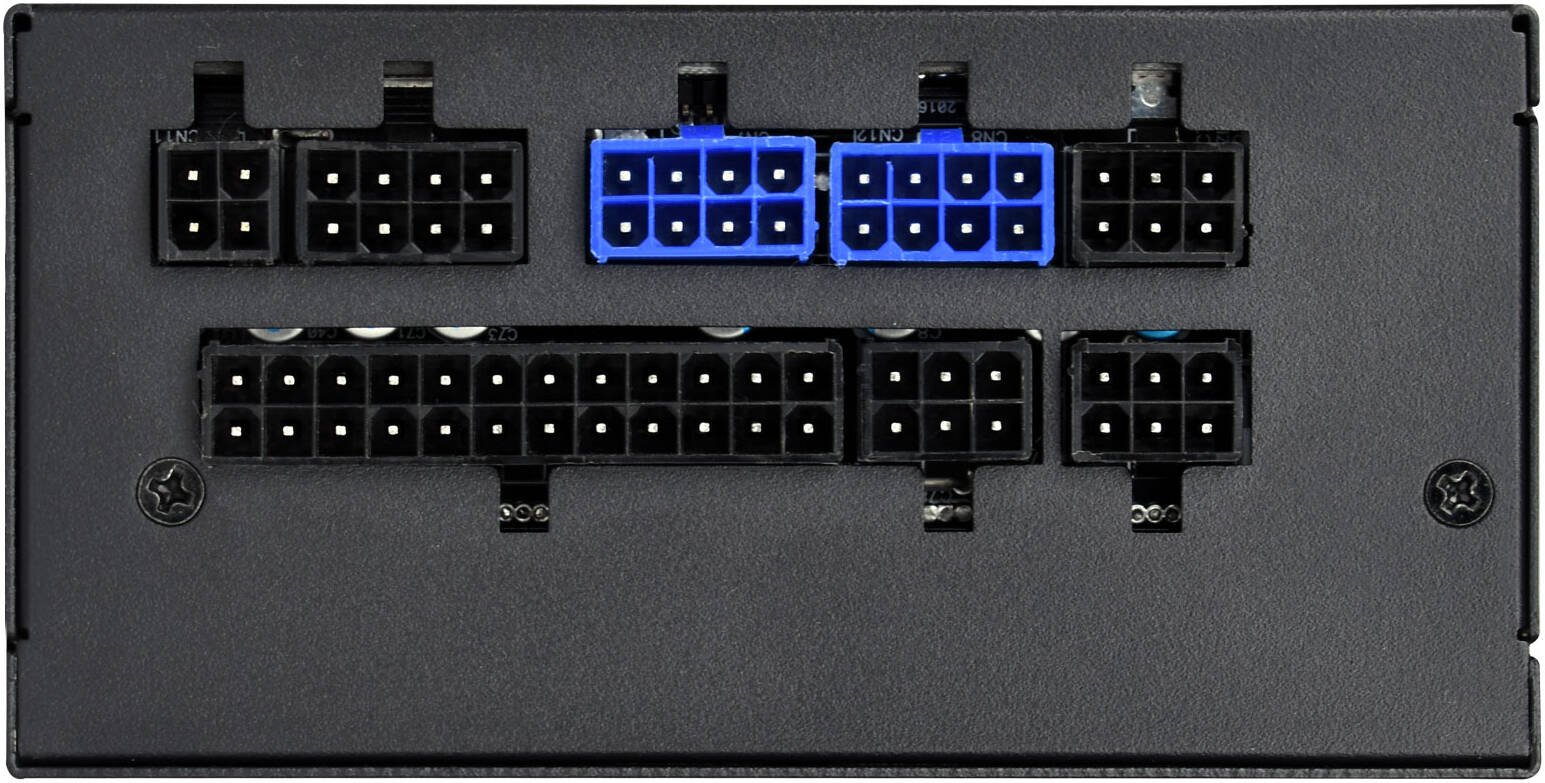

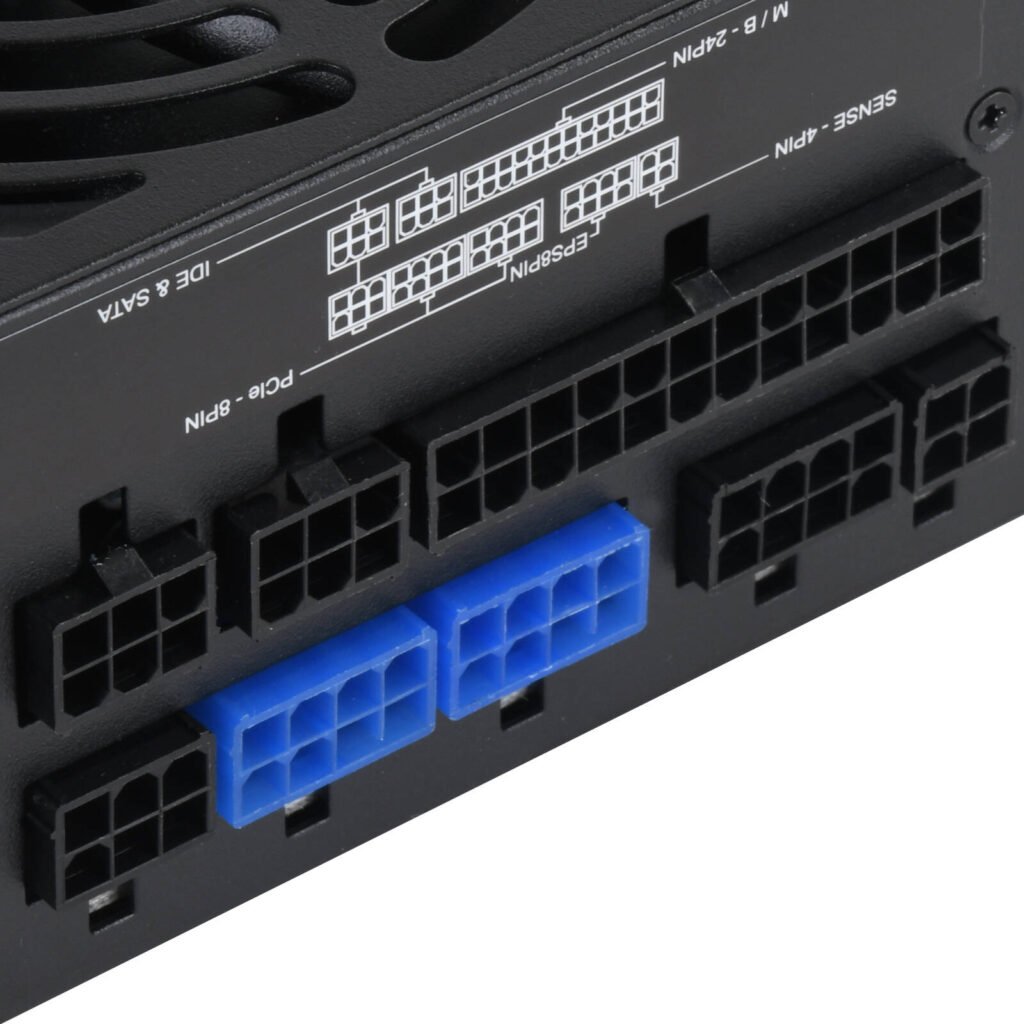

| Connectors (V1.1) | - 1 × 24/20-Pin MB (300mm) - 1 × 8-Pin EPS + 1 × 4+4-Pin ATX 12V (400mm/150mm) - 2 × 8/6-Pin PCIe (400mm / 150mm) - 2 × 8/6-Pin PCIe (550mm / 150mm) - 6 × SATA (“300mm/200mm/100mm” × 2) - 3 × 4-Pin Peripheral (300mm/200mm/200mm) - 1 × 4-Pin Floppy (100mm) |
| Cooling System | Single 92mm FDB silent fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Gold |
| Form Factor | SFX |
| Dimension | 125mm (W) × 63.5mm (H) × 100mm (D) |
| Weight | 1.36 kg |
| Other | GPU Support List |
