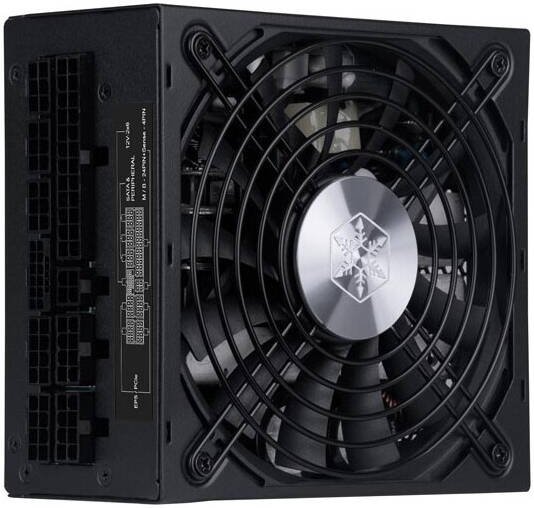

SilverStone Extreme 1200R Platinum Fully Modular Power Supply, 1200W Power, 80 Plus Platinum Efficiency, 120mm FDB Bearing Fan, Active PFC, Japanese Capacitors, SFX-L, Black

1.056,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • SFX-L form factor for Small Form Factor (SFF) ecosystem usage
  • Supports 12V-2×6 PCIe connector with SFX12V 4.1 and PCIe Gen 5 standard
  • 1200W continuous power output rated for 24/7 operation
  • Class-leading single +12V rail with 100A
  • High efficiency with Cybenetics Platinum certification

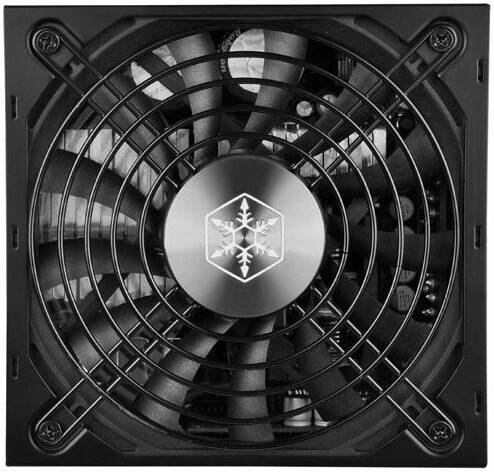

  • Silent running 120mm FDB fan with advanced semi-fanless operation
  • 24/7 continuous power output with 50℃ operating temperature
  • High quality construction with all Japanese capacitors
  • The modular cables features a newly crafted embossed wire design, streamlining the assembly process for users and enhancing overall system convenience
Product Information

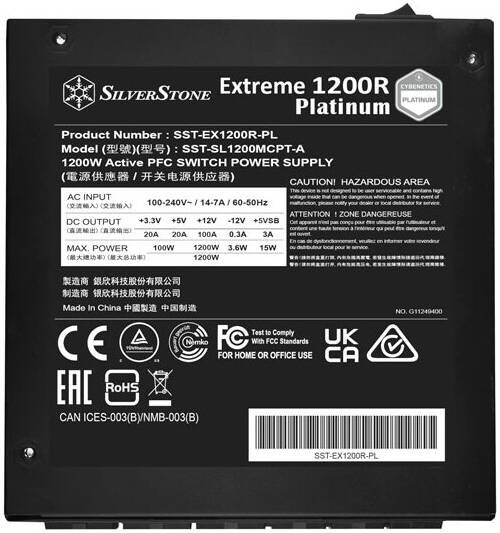

Product No. SST-EX1200R-PL
Model (Safety Certification) SST-SL1200MCPT-A
Color Black (lead-free paint)
Power
Max. DC Output 1,200W
Power Density 1163 W/L
Load Range
Output Rails +3.3V / +5V / +12V / +5VSB / -12V
Max. Amps 20A / 20A / 100A / 3.0A / 0.3A
Min. Amps 0A / 0A / 0A / 0A / 0A
Range (%) ±3% / ±3% / ±3% / ±5% / ±10%
Line Regulation (%) ±1% across all
Ripple (mVp-p) 40 / 40 / 80 / 40 / 80
Combined +3.3V & +5V 100W
Combined +12V 1,200W

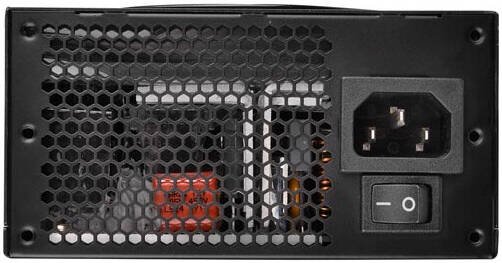

Input
Input Voltage 90 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF >0.9 at full load)
Performance
Efficiency 89% ~ 91% overall efficiency
MTBF 100,000 hours
Operating Temperature 0°C ~ 50°C
Protection OCP, OPP, OVP, SCP, OTP

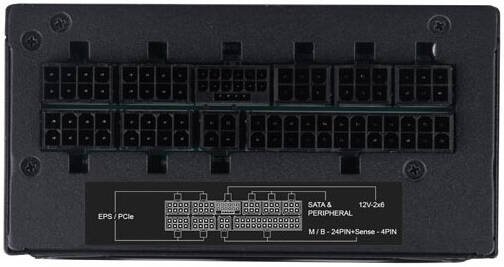

Connectors
Motherboard 1 × 24/20-Pin
CPU 2 × 8/4-Pin EPS / ATX 12V
PCIe 4 × 8/6-Pin
12V-2x6 1 × 12+4-Pin
SATA 8 × SATA
Peripheral 3 × 4-Pin
Floppy 1 × 4-Pin adapter
Cooling System Single 120mm FDB Bearing Fan
Noise Level 0 ~ 36 dBA
Certification Cybenetics Platinum
Form Factor SFX-L
Dimensions 125 × 63.5 × 130 mm (4.92" × 2.5" × 5.12")
Weight 2.09 kg
Other GPU Support List
