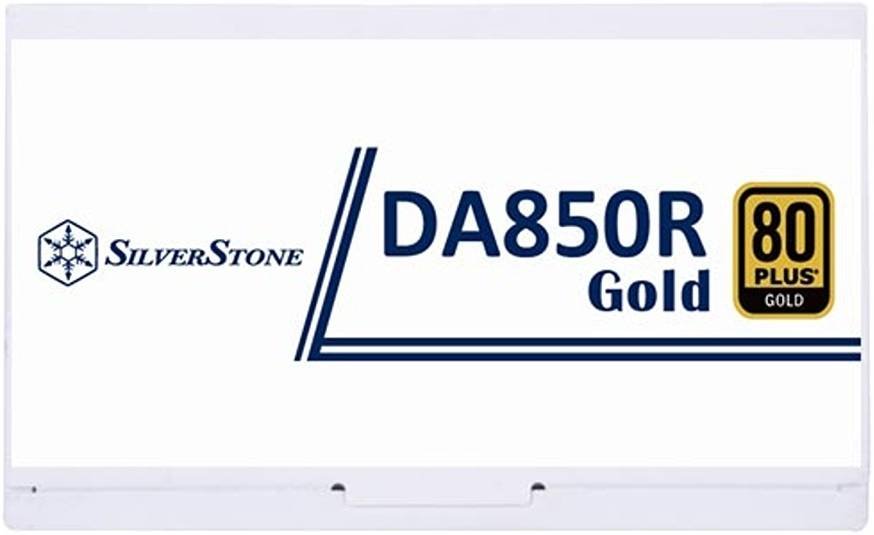

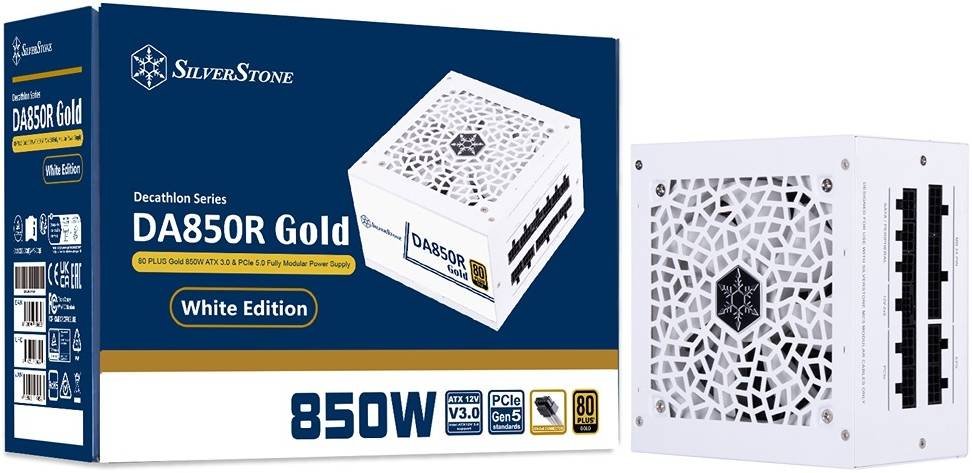

SilverStone DA850R Fully Modular Power Supply, 80 PLUS Gold, 850W ATX 3.0 & PCIe 5.0, Active PFC, Silent 120mm Fan, Advanced Protections, 12V-2×6 PCIe Connector, White

399,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
Color White (lead-free paint)
Max. DC Output 850W
Power Density 471W/L
Load Range

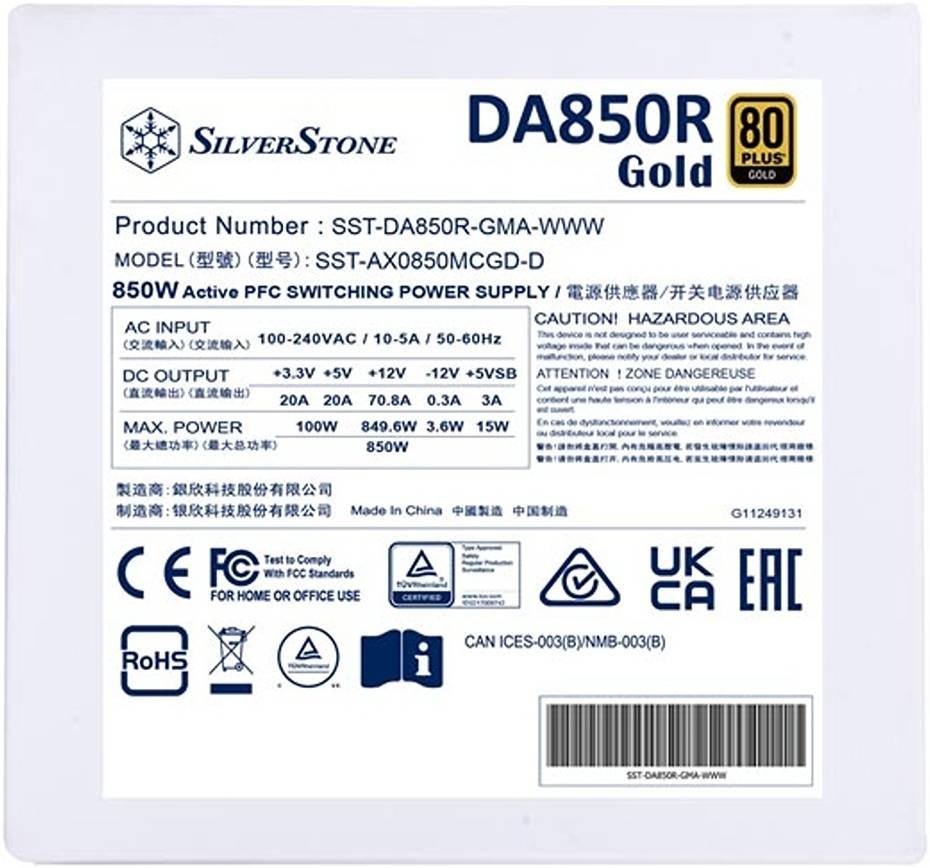

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 70.8A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5%-7% ±5% ±8%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V 100W
Combined +12V 850W
Input Voltage 90 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.9 at full load)
Efficiency ≥87% & <89%
MTBF 100,000 hours
Operating Temperature 0°C ~ 50°C
Protection Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

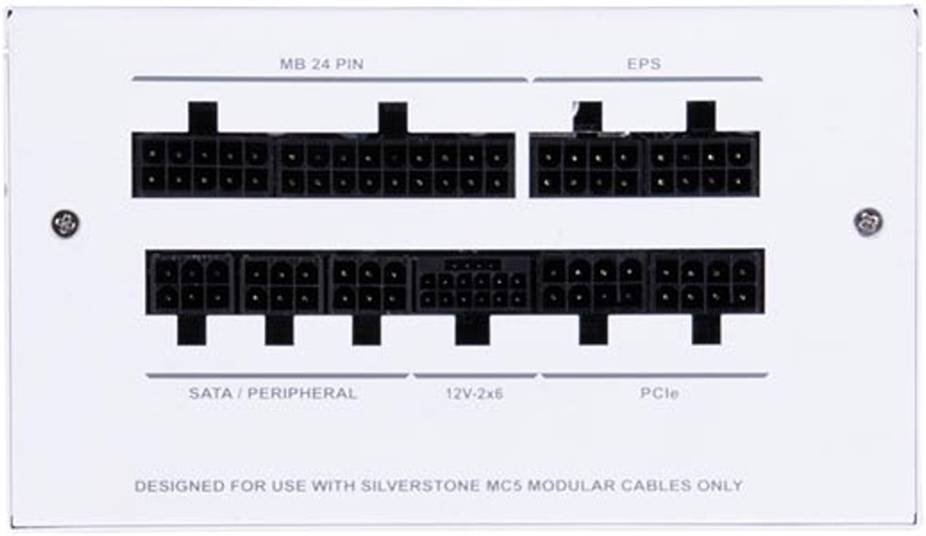

Connectors 1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
※ DA850R-GMA/ DA850R-GMA-WWW is not compatible with PP05-E and PP06 cables.

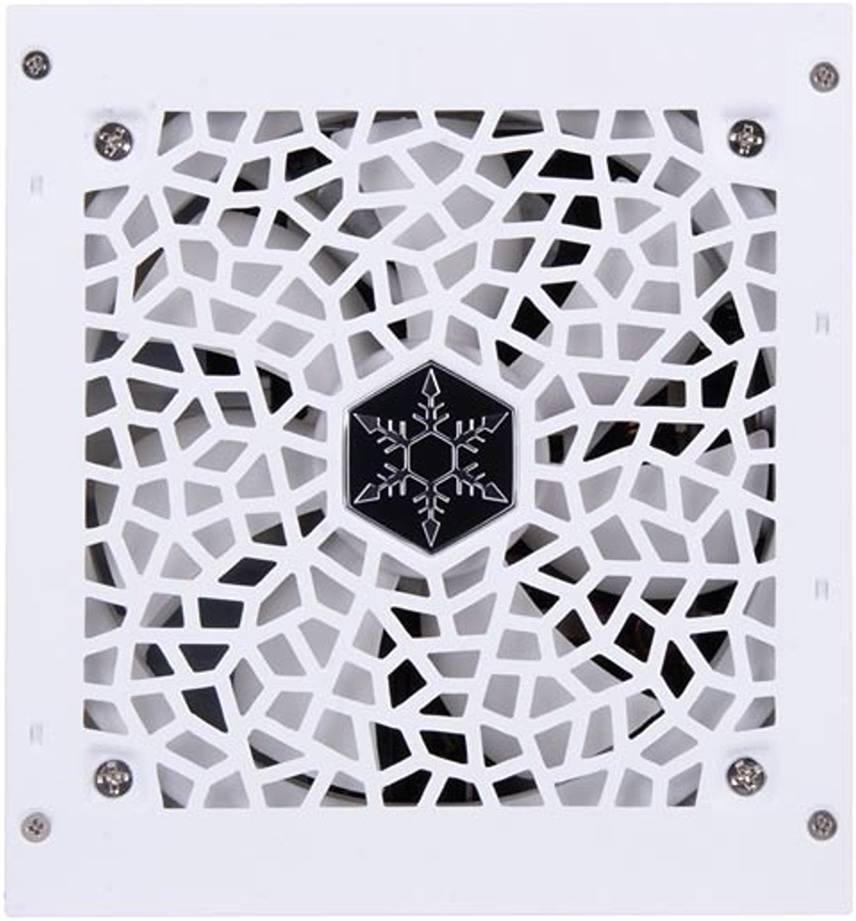

Cooling System Silent 120mm fan
Noise Level 0 dBA minimum
Certification 80 PLUS Gold
Form Factor ATX (PS2)
Dimension 150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight 2.13 kg
