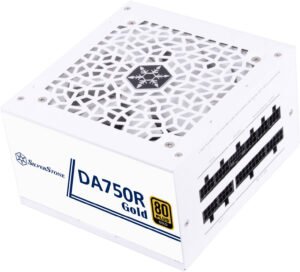

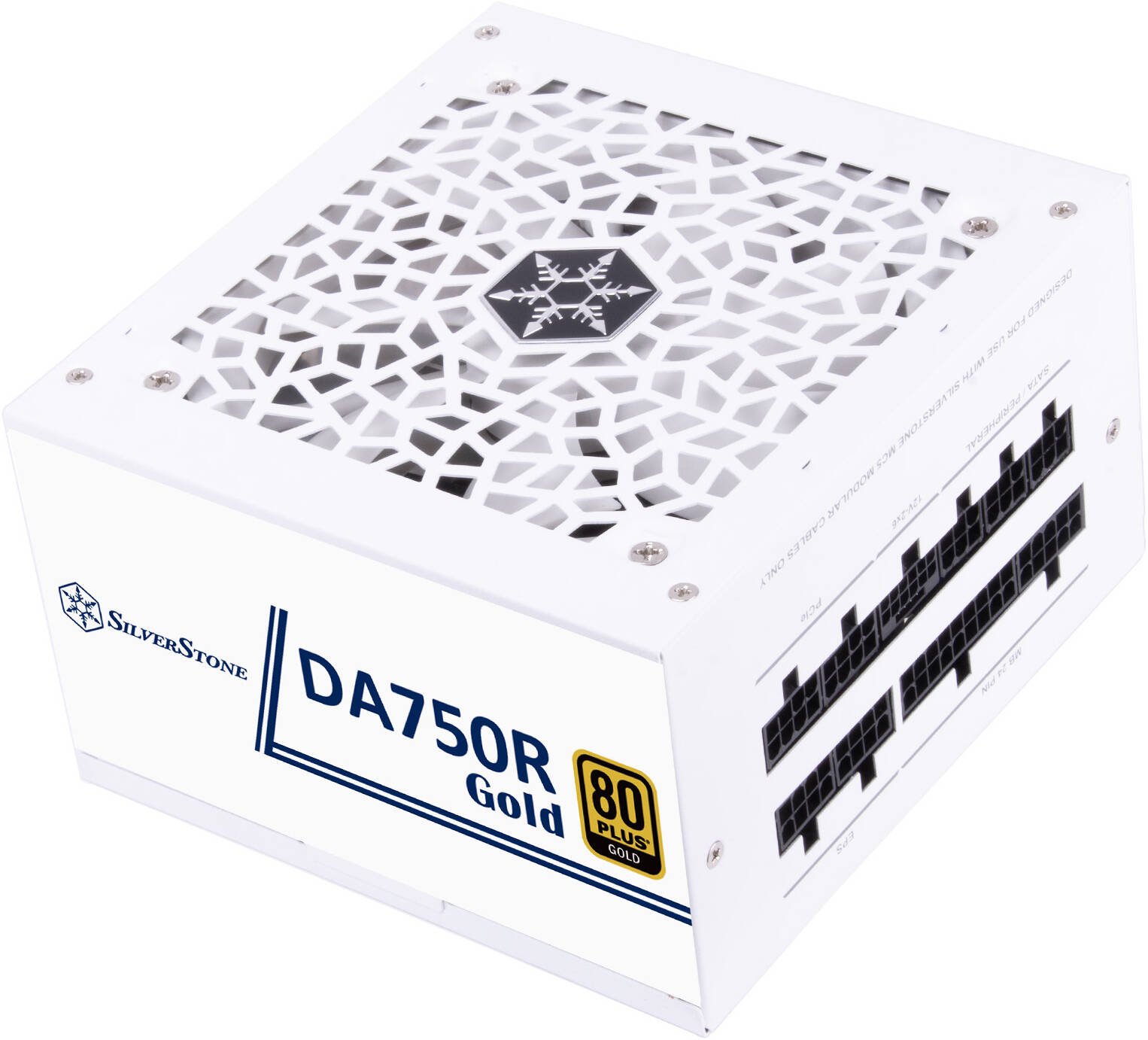

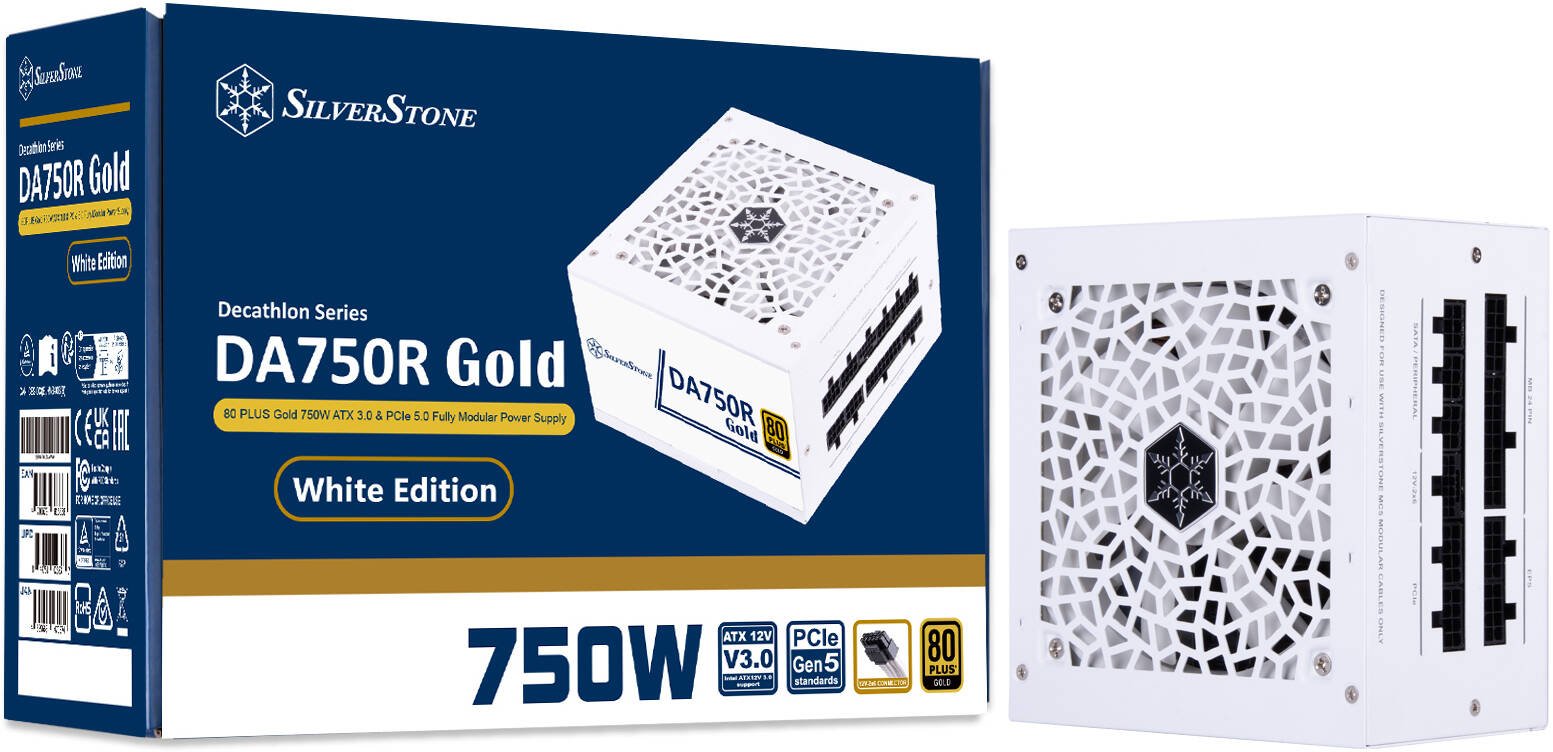

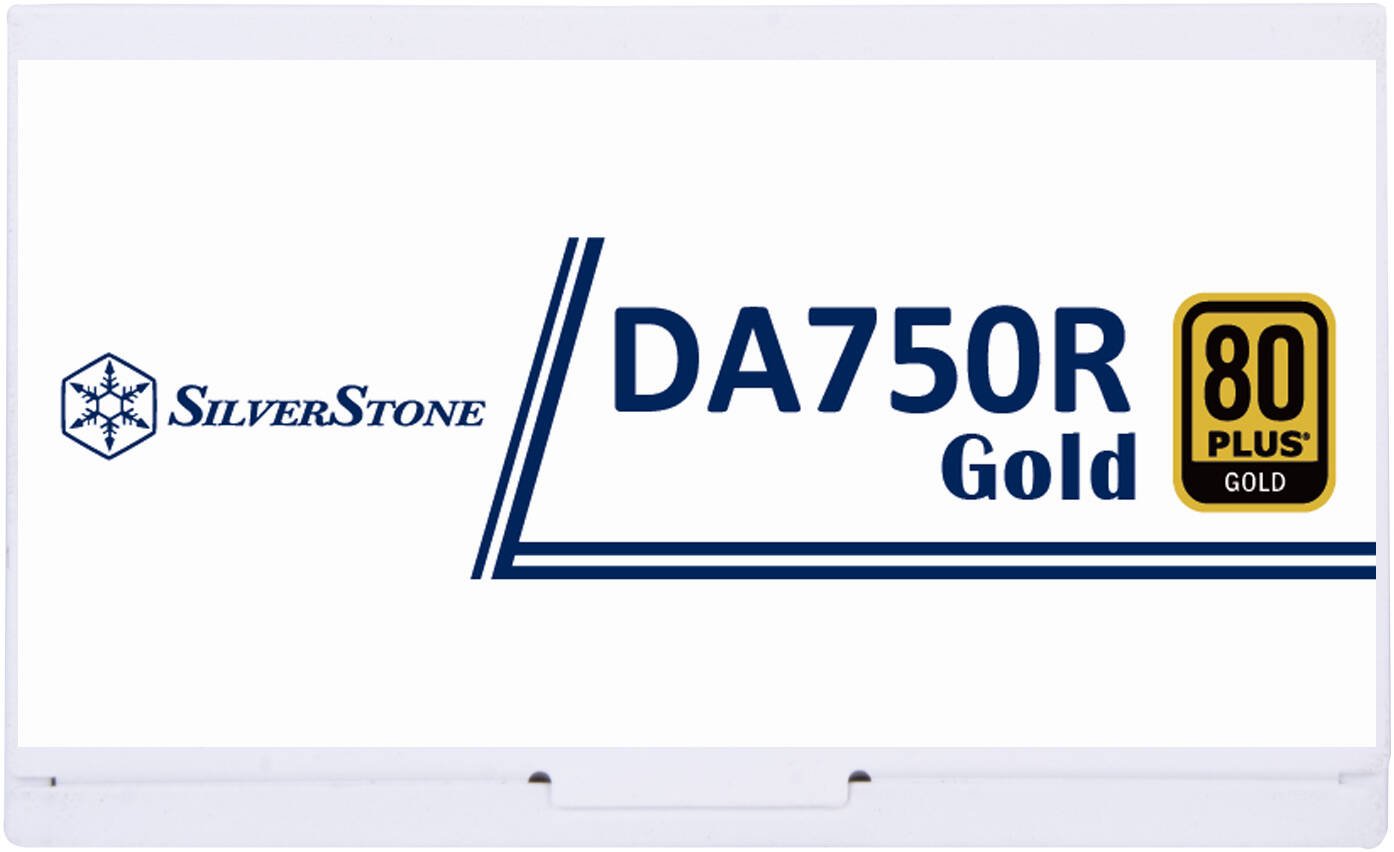

SilverStone DA750R Gold Fully Modular Power Supply, 80 PLUS Gold, 750W ATX 3.0 & PCIe 5.0, Active PFC, Silent 120mm FDB Fan, Japanese Capacitors, White
365,00 AED
High efficiency with 80 PLUS Gold certification
Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
Latest PCIe Gen 5 standard to support up to 2X power excursion
24/7 continuous power output with 40℃operating temperature
Silent running 120mm FDB fan with 18 dBA minimum
All Japanese electrolytic capacitors
Compact design with a 140mm depth for easy integration
| Color | White (lead-free paint) |
| Max. DC Output | 750W |
| Power density | 415W/L |

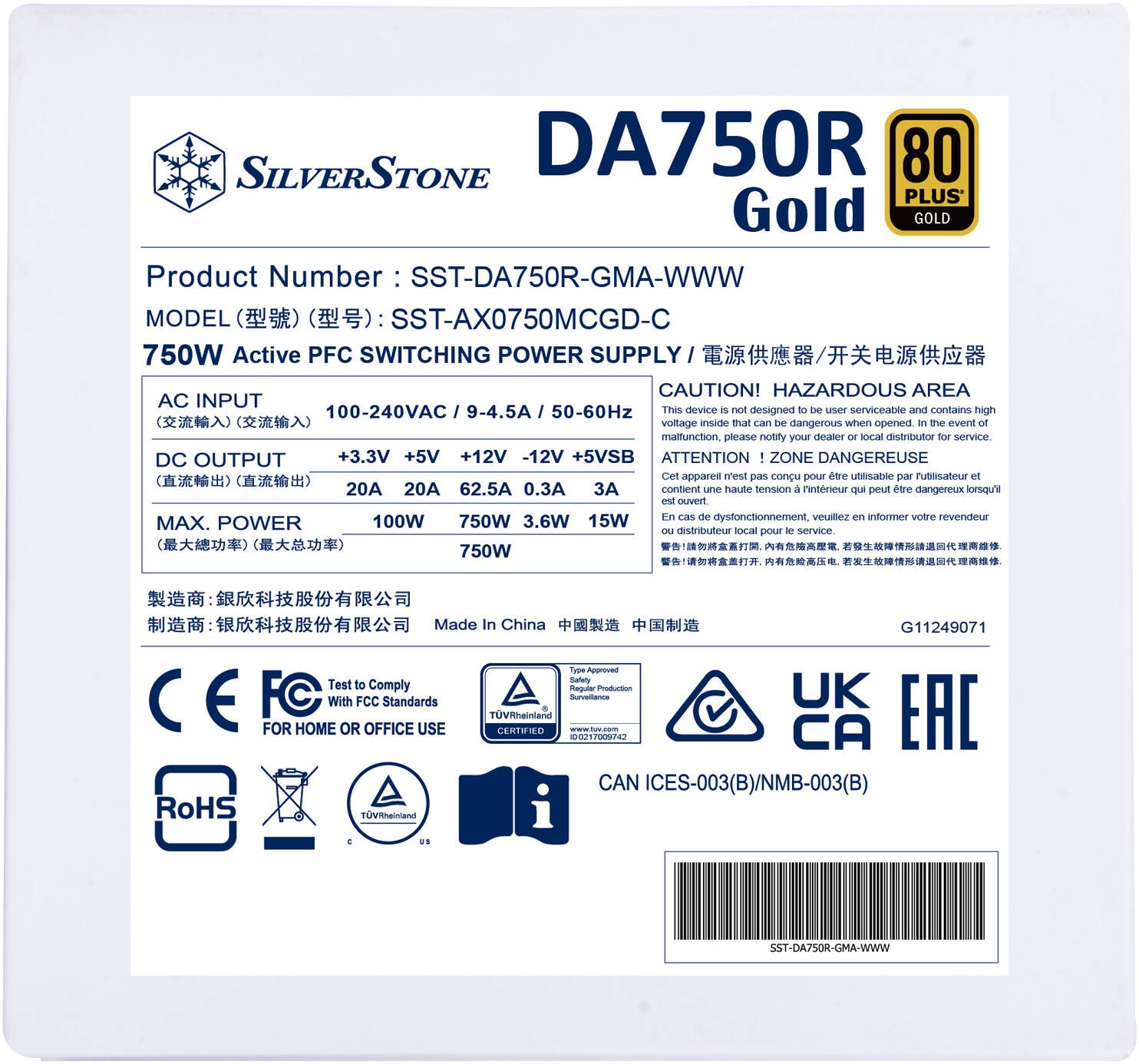

| Load Range | Output: +3.3V +5V +12V +5VSB -12V |
| Max.(Amps): 20A 20A 62.5A 3A 0.3A | |
| Min.(Amps): 0A 0A 0A 0A 0A | |
| Range (%): ±3% ±3% +5%-7% ±5% ±8% | |
| Line Reg.(%): ±1% ±1% ±1% ±1% ±1% | |
| Ripple(mVp-p): 40mV 40mV 80mV 40mV 80mV | |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 750W |

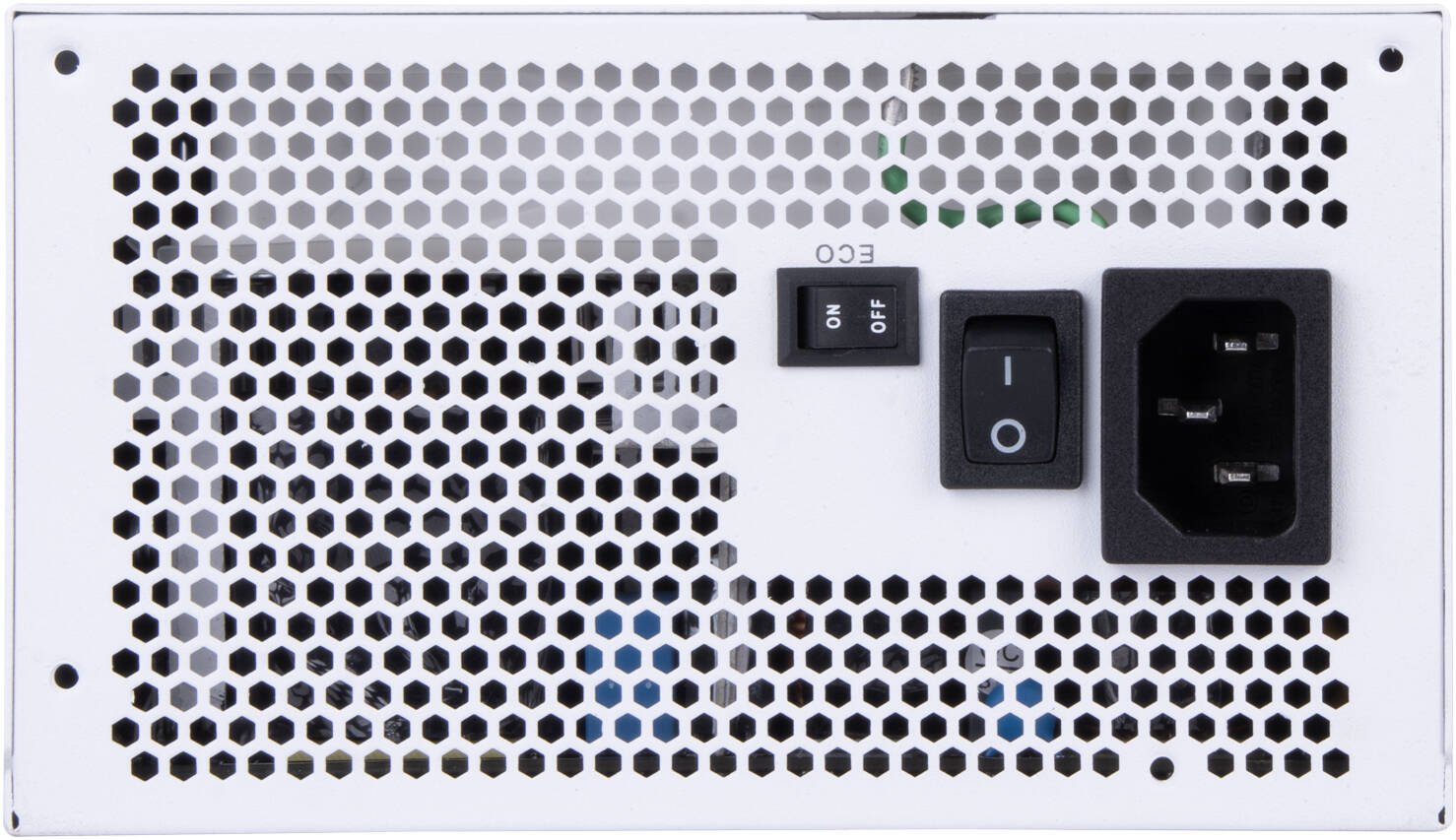

| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | ≥87% & <89% |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection |
| Over Power Protection | |
| Over Voltage Protection | |
| Short Circuit Protection | |
| Over Temperature Protection | |
| Under Voltage Protection | |

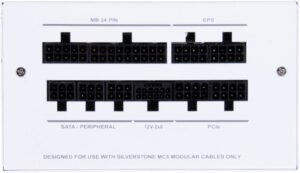

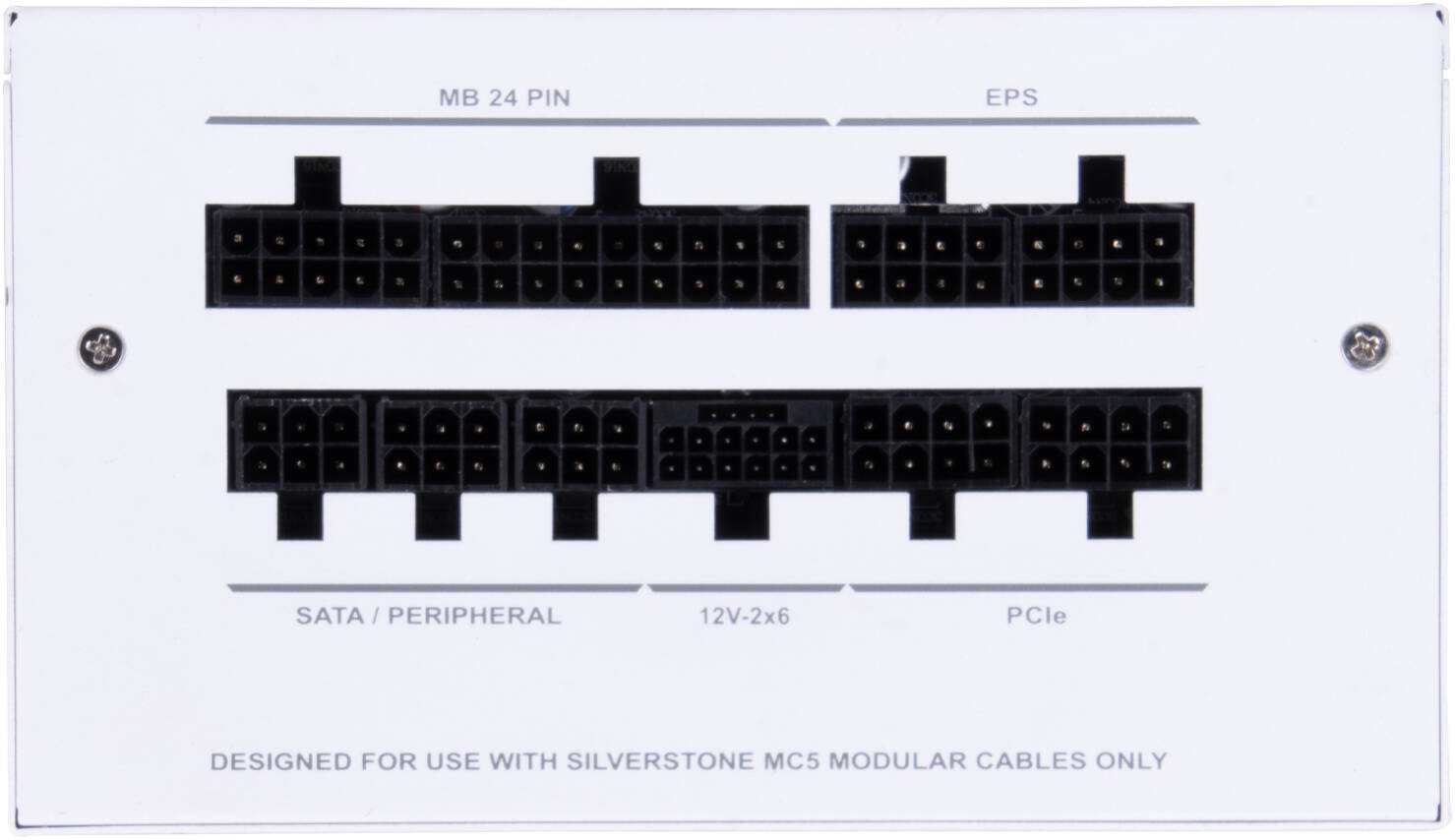

| Connectors | 1 x 24 / 20-Pin motherboard connector |
| 2 x 8 / 4-Pin EPS / ATX 12V connector | |
| 4 x 8 / 6-Pin PCIe connectors | |
| 1 x 12V-2x6 connector | |
| 8 x SATA connectors | |
| 4 x 4-Pin Peripheral connector | |
| ※ DA750R-GMA/DA750R-GMA-WWW are not compatible with PP05-E and PP06 cables. | |

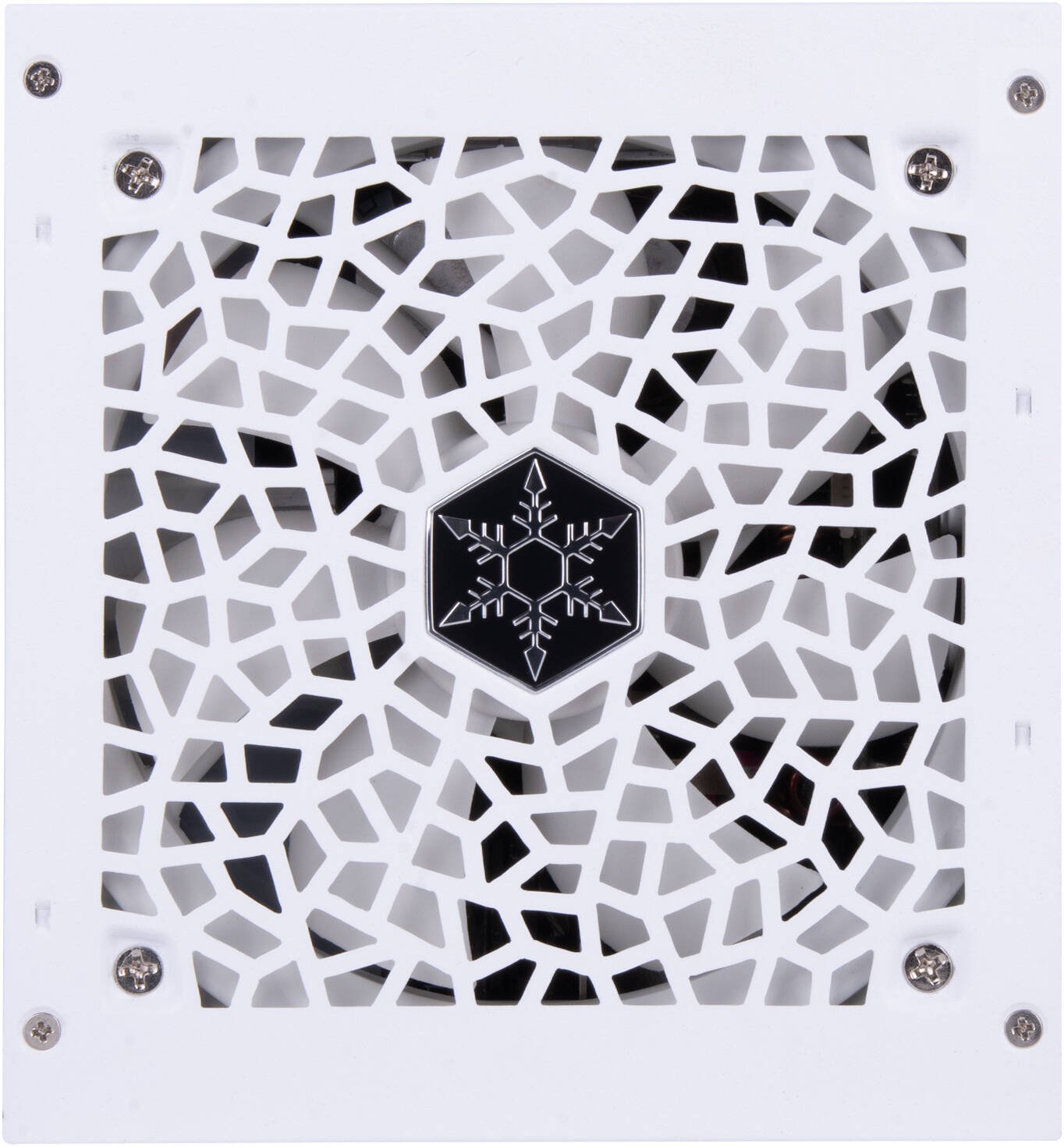

| Cooling System | Silent 120mm fan |
| Noise Level | 0 dBA minimum |
| Certification | 80 PLUS Gold |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) |
| 5.91" (W) x 3.39" (H) x 5.51" (D) | |
| Weight | 2.08kg |
