SilverStone ATTIS 650R Non-Modular Power Supply, 650W Power, 80 Plus Bronze, Silent 120mm Fan, Active PFC, Multi-Protection, ATX Form Factor, Japanese Primary Capacitor, Black

241,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Compliant with ATX 3.1 standards and supports up to 2X power excursion
  • High efficiency with 80 PLUS Bronze certification
  • 24/7 continuous power output with 50℃ operating temperature
  • Japanese primary capacitor

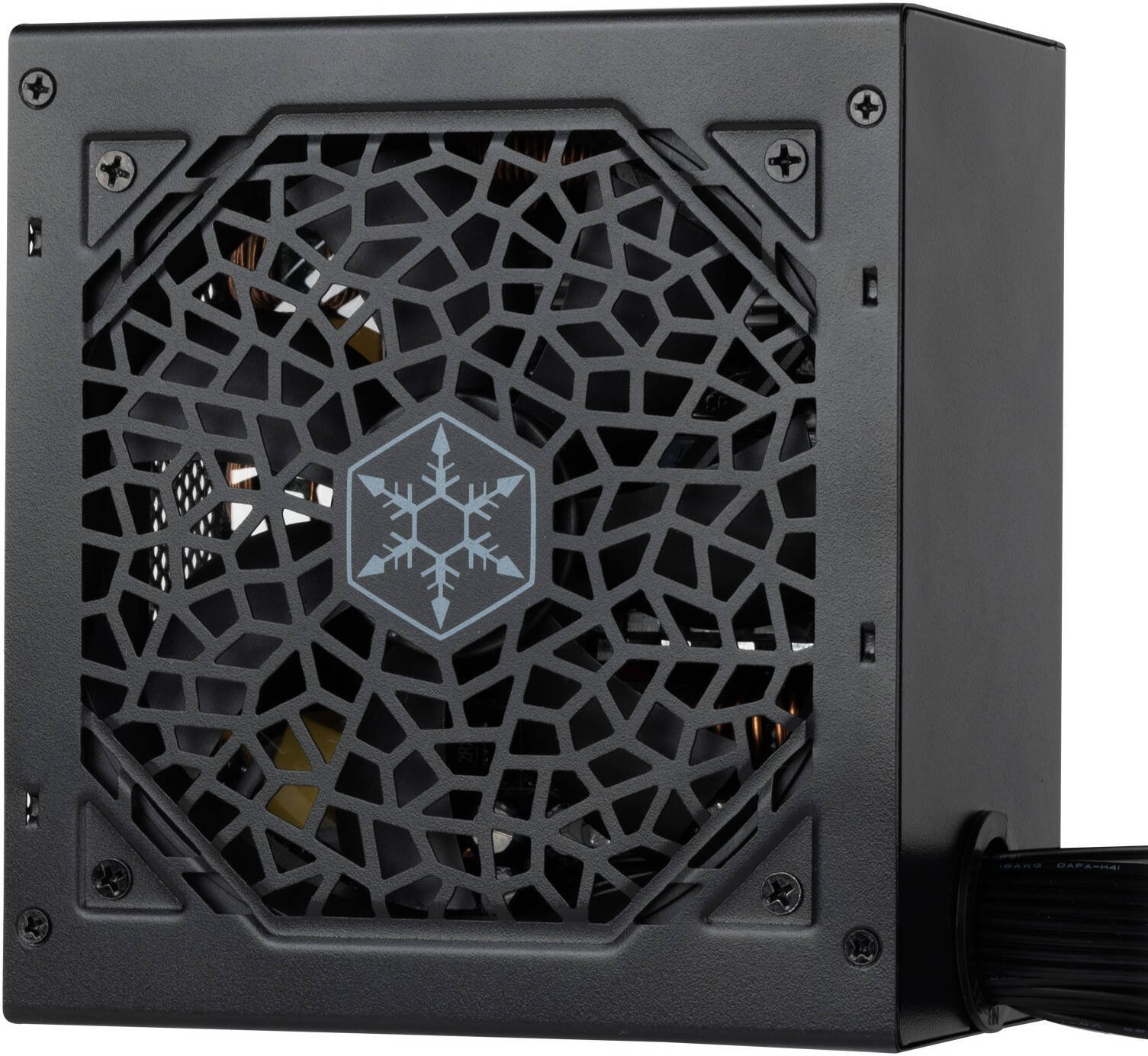

  • Silent running 120mm fan with 18 dBA minimum
  • Multiple protection circuitry
  • Flat cable design

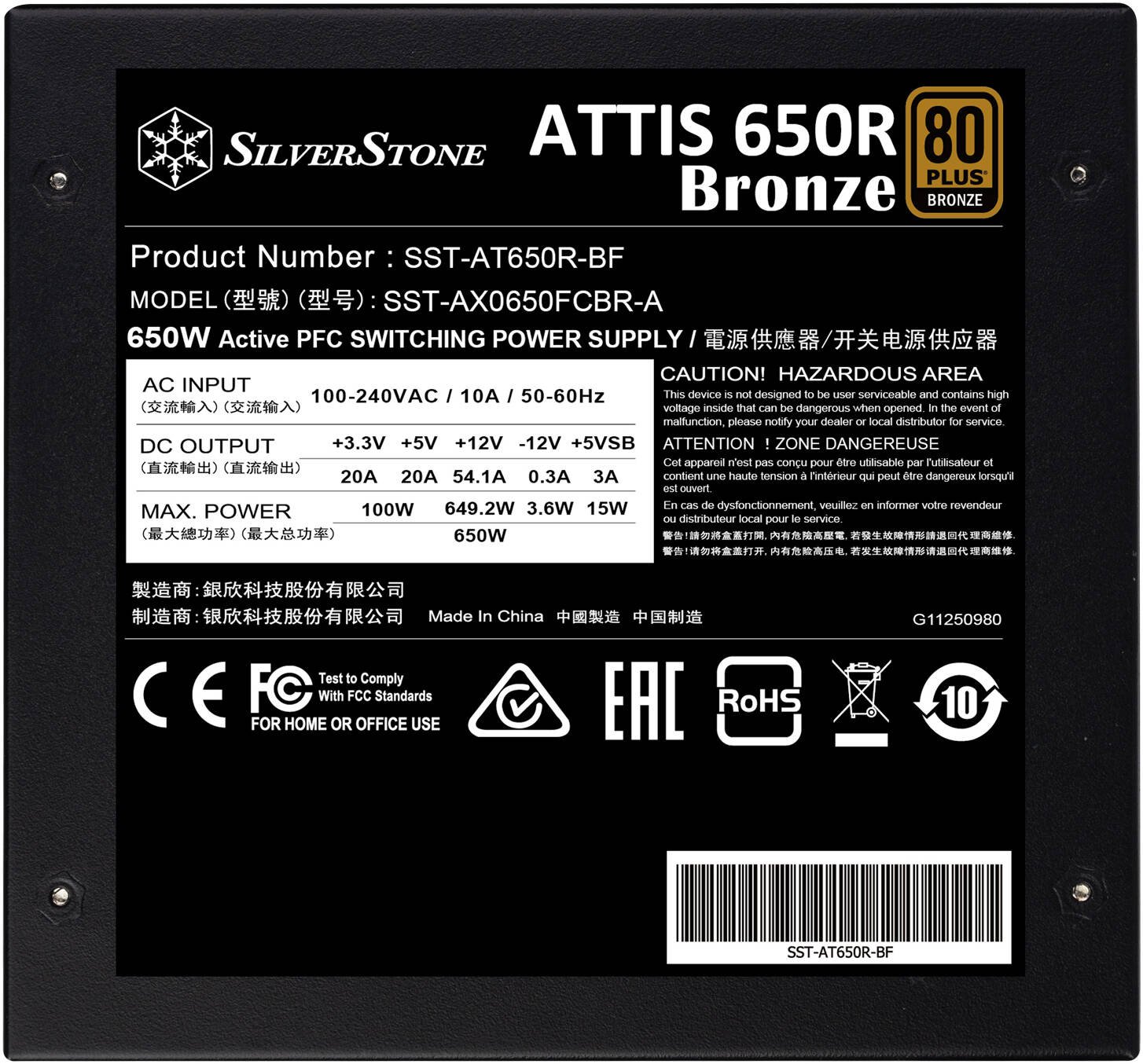

Color SST-AT650R-BF: Black (lead-free paint)
Max. DC Output 650W
Load Range
Output +3.3V
+5V
+12V
+5VSB
-12V
Max. (Amps) 20A
20A
54.1A
3A
0.3A
Range (%) ±5%
±5%
+5~-7%
±5%
±10%
Line Reg. (%) ±1%
±1%
±1%
±1%
±1%
Ripple (mVp-p) 50mV
50mV
120mV
50mV
50mV
Combined +3.3V & +5V 100W
Combined +12V 649.2W
Input Voltage 90 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.9 at full load)
Efficiency 82% ~ 85% (at 20% ~ 100% loading)
MTBF 100,000 hours
Operating temperature 0°C ~ 50°C
Protection Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Connectors 1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connectors
4 x 8 / 6-Pin PCIe connectors
6 x SATA connectors
3 x 4-Pin Peripheral connector
Cooling System Silent 120mm fan
Noise Level 18 dBA minimum
Certification 80 PLUS Bronze
Form factor ATX (PS2)
Dimension 150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.5" (D)
Weight 1.52 kg
