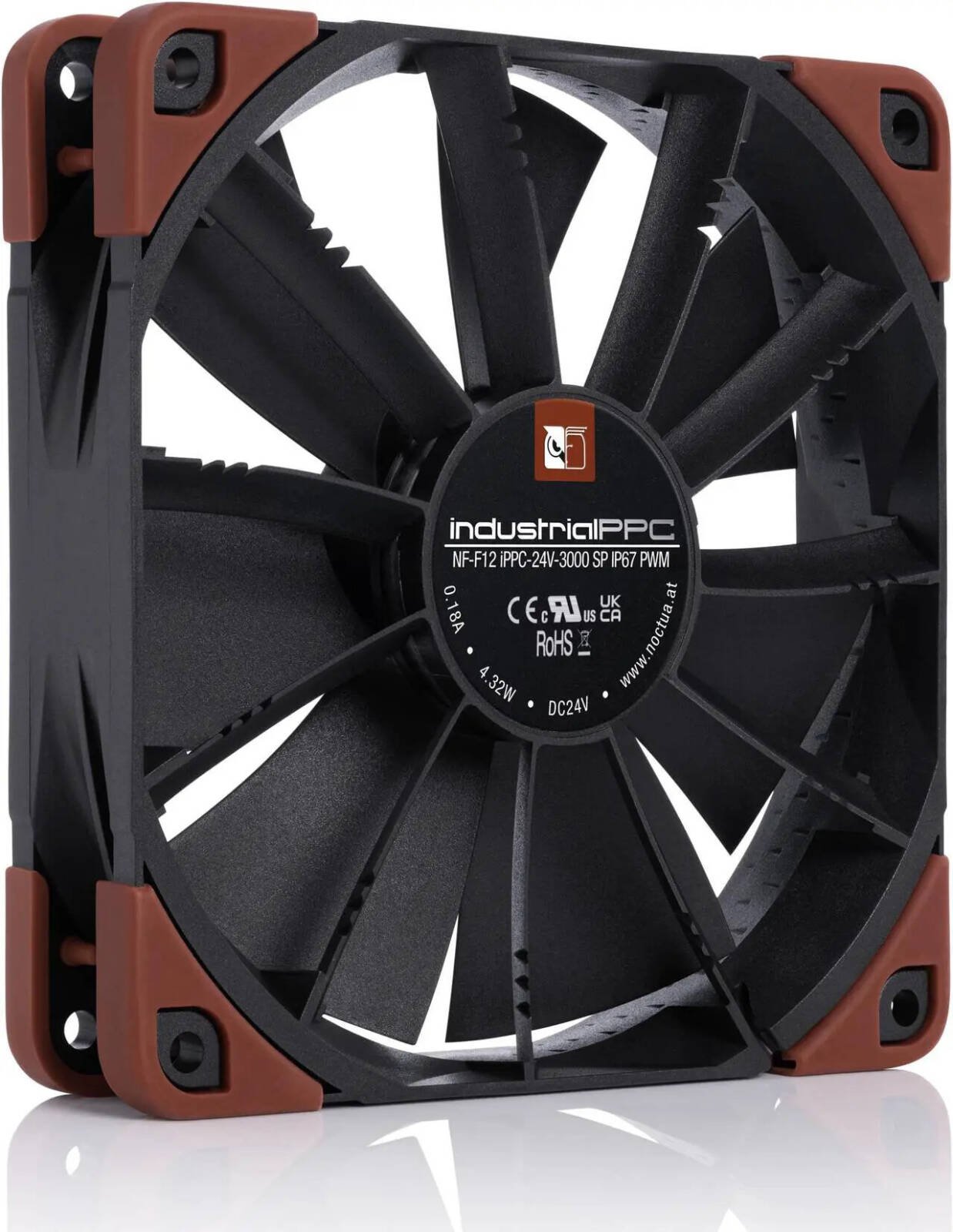

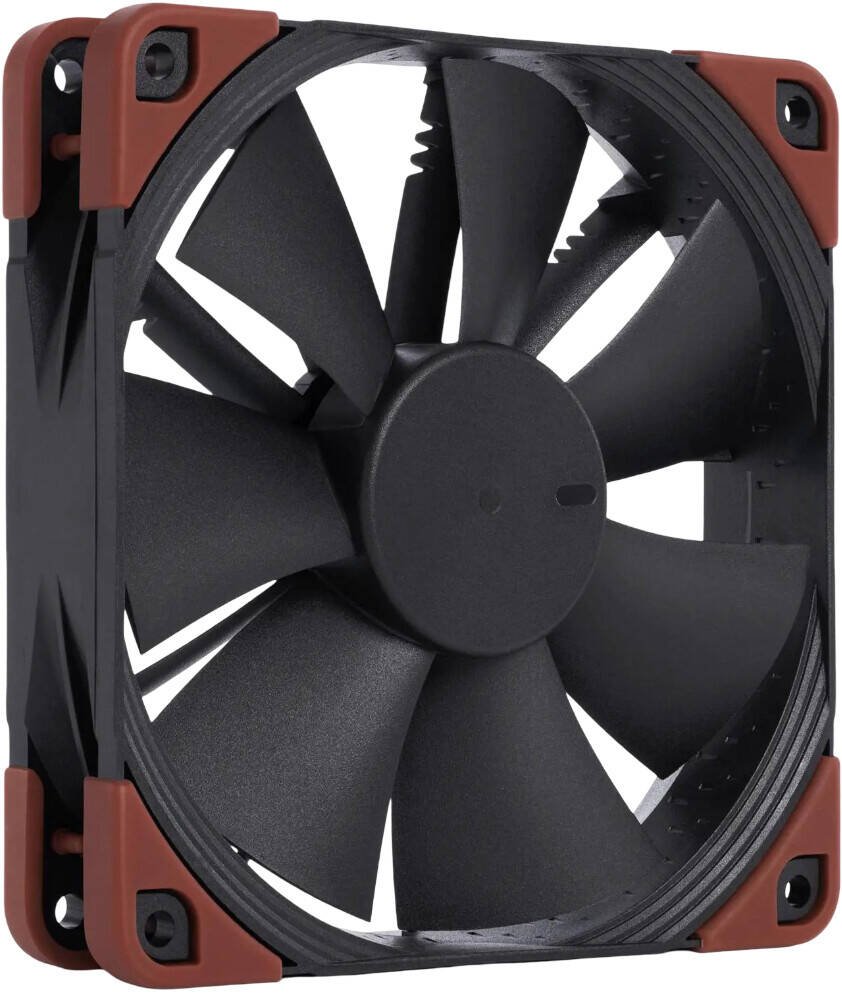

Noctua NF-F12 industrialPPC-24V-3000 SP IP67 PWM Case Fan, 120mm Fan Size, 3000 RPM Speed, 109.89 CFM Airflow, SSO2 Bearing Type, IP67 Protection, Black

159,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Award-winning 120mm design For high static pressure and superior cooling efficiency
  • 3000rpm industrialPPC version Fibre-glass reinforced polyamide construction for heavy-duty use

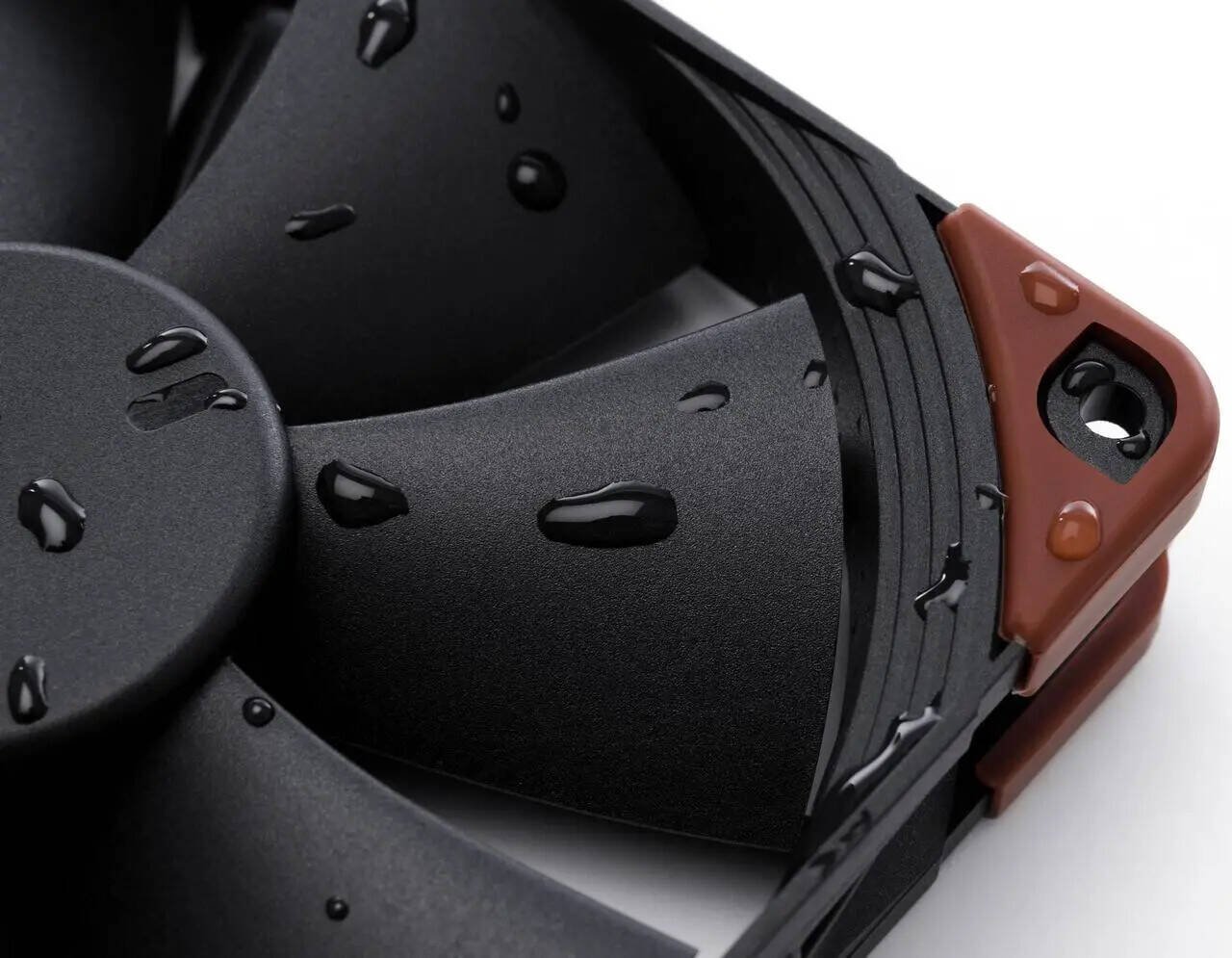

  • 24V version With IP67 certified water and dust protection
Dimensions (without anti-vibration pads) 120 × 120 × 25 mm
Dimensions (with anti-vibration pads) 120 × 120 × 27 mm
Frame Shape Square
Mounting Hole Spacing 105 × 105 mm
Weight 180 g
Frame Material PA66 GF30
Impeller Material PA66 GF30
Anti-Vibration Pads Material Silicone rubber
Bearing SSO2
Rotational Direction Counter-clockwise
Frame Colour Black
Impeller Colour Black
Anti-Vibration Pads Colour Brown

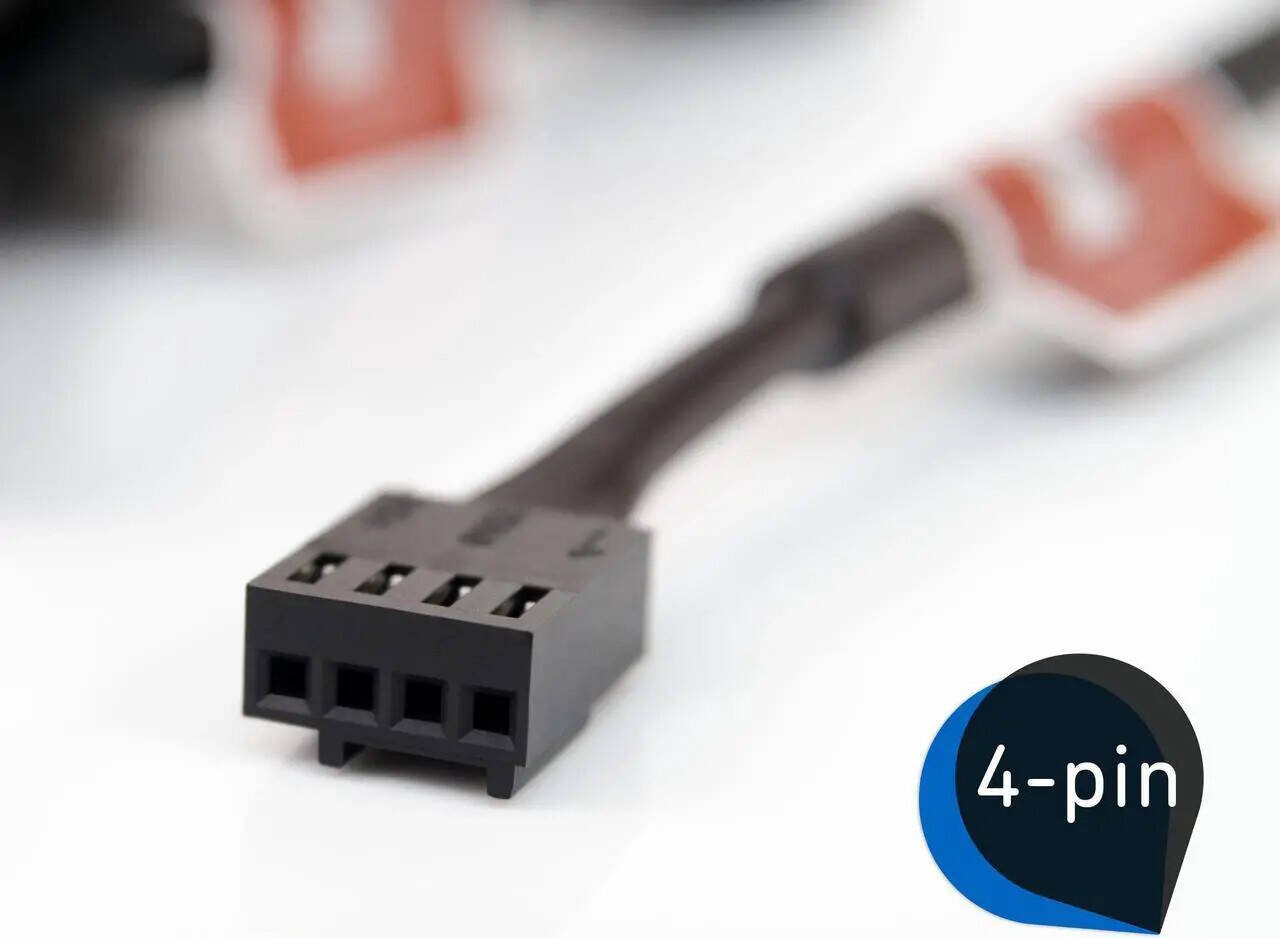

Connector Type A2543-4PIN (or equal)
Cable Length 400 mm
Wire 26 AWG
Sleeving Fibreglass silicone mesh
Rotational Speed (Max) 3000 rpm
Rotational Speed @ 20% PWM 700 rpm
Rotational Speed @ 0% PWM 0 rpm
Acoustical Noise (Max) 43.5 dB(A)
Airflow (Max) 186.7 m³/h (109.89 CFM)
Static Pressure (Max) 7.63 mm H₂O
Motor Type (Phases) Single phase
Poles 4
Slots 4
Driver IC NE-FD5
Rated Voltage 24 V
Starting Voltage 12 V
Max Operating Voltage 26.4 V
Pin 1 Black: Ground (GND)
Pin 2 Yellow: Voltage (Vcc)
Pin 3 Green: RPM Signal
Pin 4 Blue: PWM Signal
Input Power (Max) 4.32 W
Input Power (Typical) 3.33 W
Input Current (Max) 0.18 A
Input Current (Typical) 0.14 A
Safety Standards EN62368-1
EMC Standards EN55032, EN55035
Certifications UL, CE, UKCA
Production Standards ISO 9001 & ISO 14001
Flammability UL 94 V-0
Environmental Compliance REACH, RoHS, CMRT, EMRT
Ingress Protection IP67
Operating Temperature −40°C to +70°C
Operating Humidity 15 – 90 %
Storage Temperature −40°C to +75°C
Storage Humidity 15 – 90 %
MTTF >150,000 hours
Locked Rotor Protection Auto power off after 1 sec; restart attempt after 2–6 sec
Polarity Protection Open circuit when Vcc & GND are exchanged
Overvoltage Protection Yes
Overcurrent Protection Yes
Insulation Resistance 10 MΩ between unshielded wire and frame at 500 VDC/min
Dielectric Strength 5 mA max between lead wire (+) and frame at 500 VAC/min
Packaging Dimensions 180 × 170 × 34 mm
Packaging Weight (Including Product) 270 g
