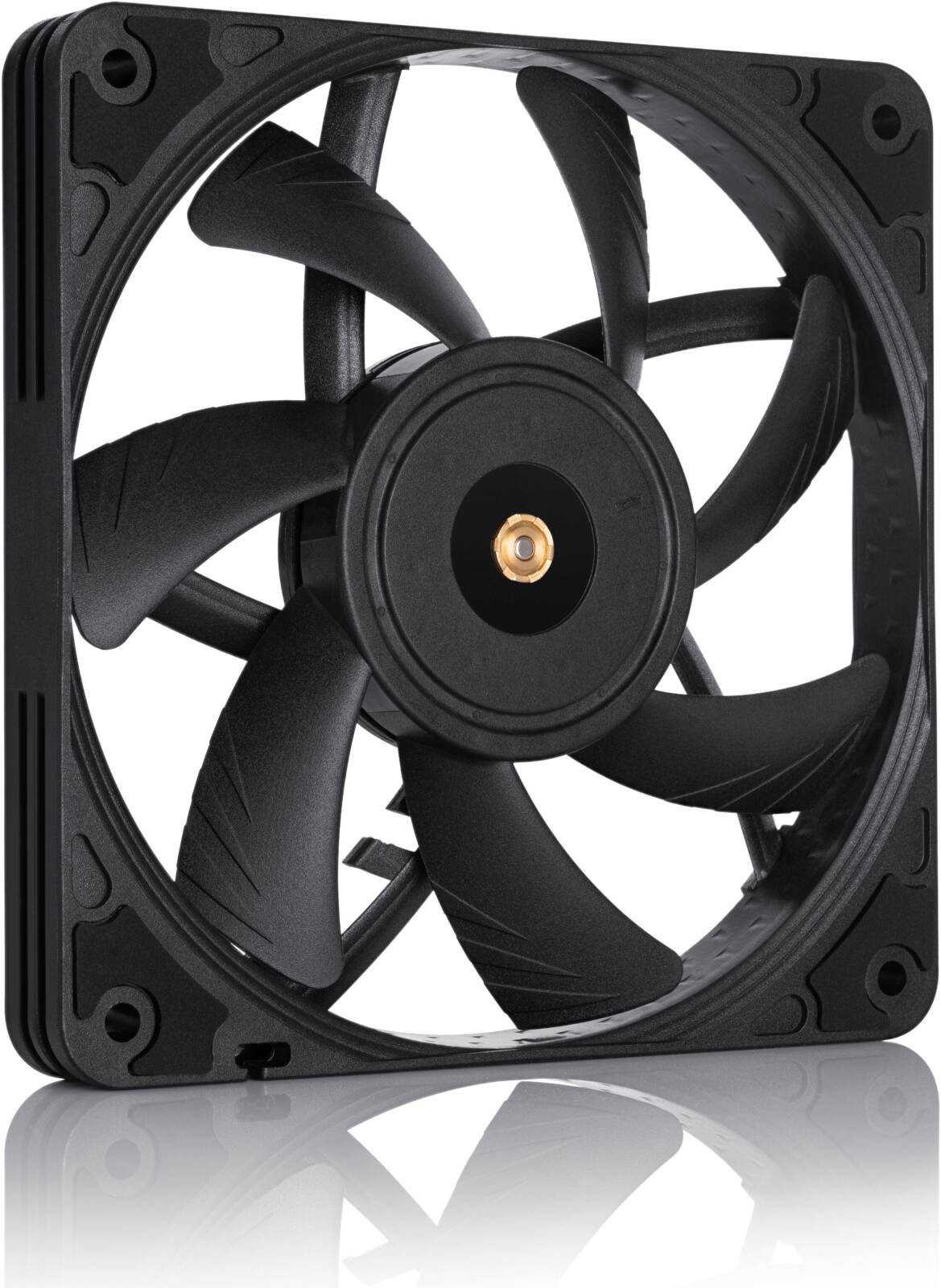

Noctua NF-A12X15 PWM CHROMAX.BLACK.SWAP Case Fan, 120mm Fan Size, 1850 RPM Fan Speed, 55.44 CFM Airflow, Anti-Vibration Pads, 4-Pin PWM Connector, Black
125,00 AED
- 15mm Slim Profile: Ultra-slim 120x120x15 mm design, ideal for space-restricted applications such as low-profile CPU coolers, compact cases, and HTPC systems
- Advanced Aerodynamics: Features Flow Acceleration Channels on the impeller to improve efficiency and reduce vortex noise by speeding up airflow at the blade edges
- Premium Bearing and Build Quality: Equipped with Noctua’s SSO2 (Self-Stabilizing Oil-Pressure) bearing for excellent stability, precision, and durability
- PWM Control and Low-Noise Operation: Custom NE-FD1 PWM IC enables fully automatic speed control via 4-pin headers, supporting speeds up to 1850 RPM
- Includes Low-Noise Adaptor (L.N.A.) to cap maximum speed at 1400 RPM for quieter operation
- Maximum noise level: 23.9 dB(A) (at 1850 RPM); 16.8 dB(A) with L.N.A.
| Size | 120 x 120 x 15 mm |
| Mounting Hole Spacing | 105 x 105 mm |
| Connector & Pin-Configuration | 4-pin PWM |
| Cable Length | 2 cm + 30 cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Frame Technology | AAO (Advanced Acoustic Optimisation) |
| Rotational Speed (+/-10%) | 1850 RPM |
| Min. Rotational Speed @ 20% PWM | 450 RPM (+/-20%) |
| Airflow | 94.2 m³/h |
| Acoustical Noise | 23.9 dB(A) |
| Static Pressure | 1.53 mm H₂O |
| Input Power (Typical) | 1.27 W |
| Input Power (Max.) | 1.56 W |
| Input Current (Typical) | 0.11 A |
| Max. Input Current | 0.13 A |
| Operating Voltage | 12 V |
| PWM Signal Voltage | 5 V |
| MTTF (Mean Time to Failure) | >150,000 hours |

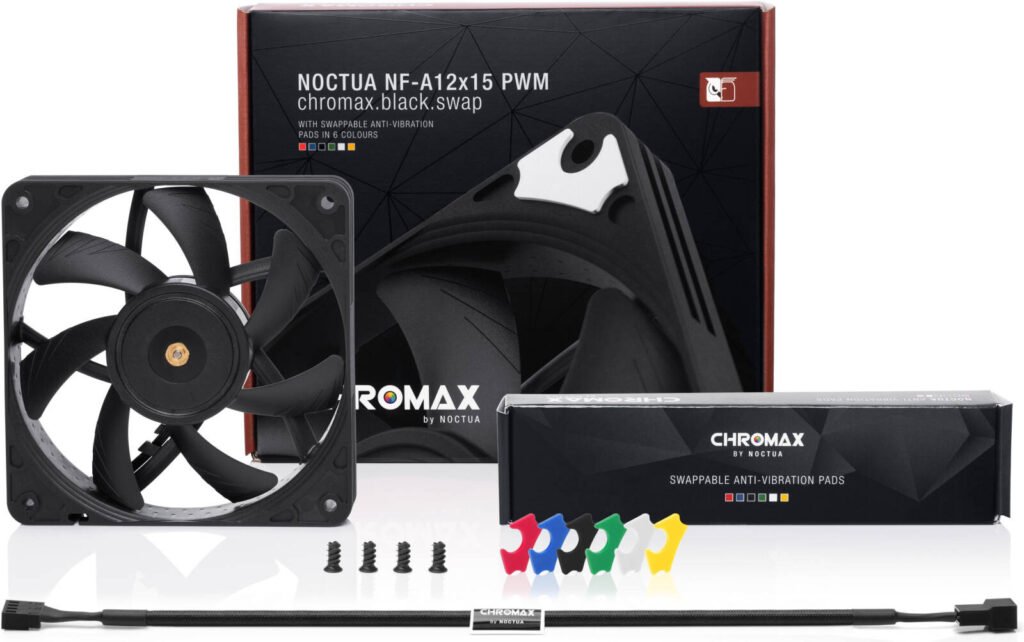

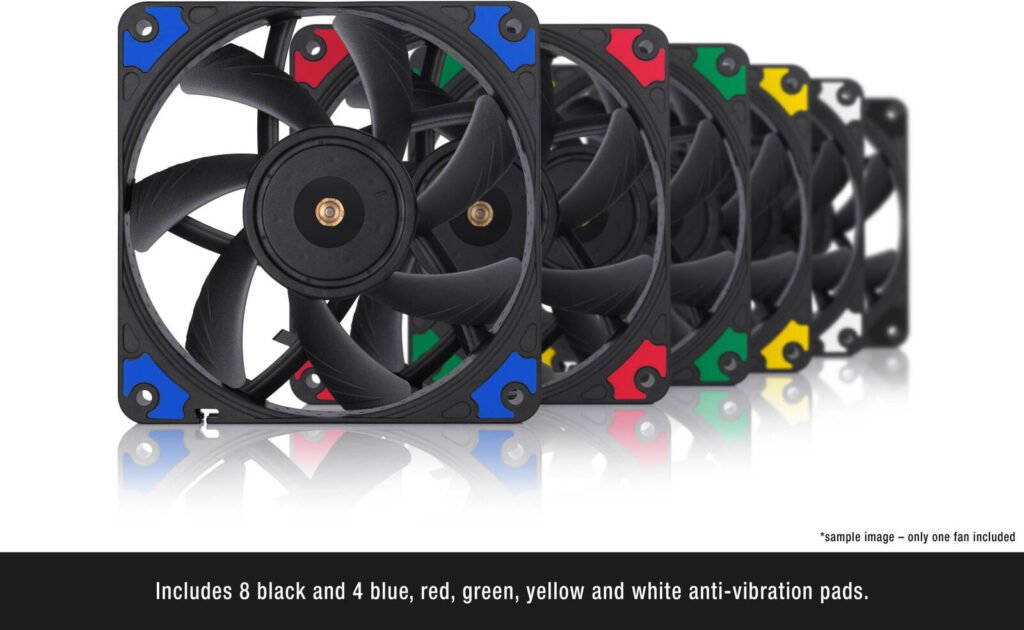

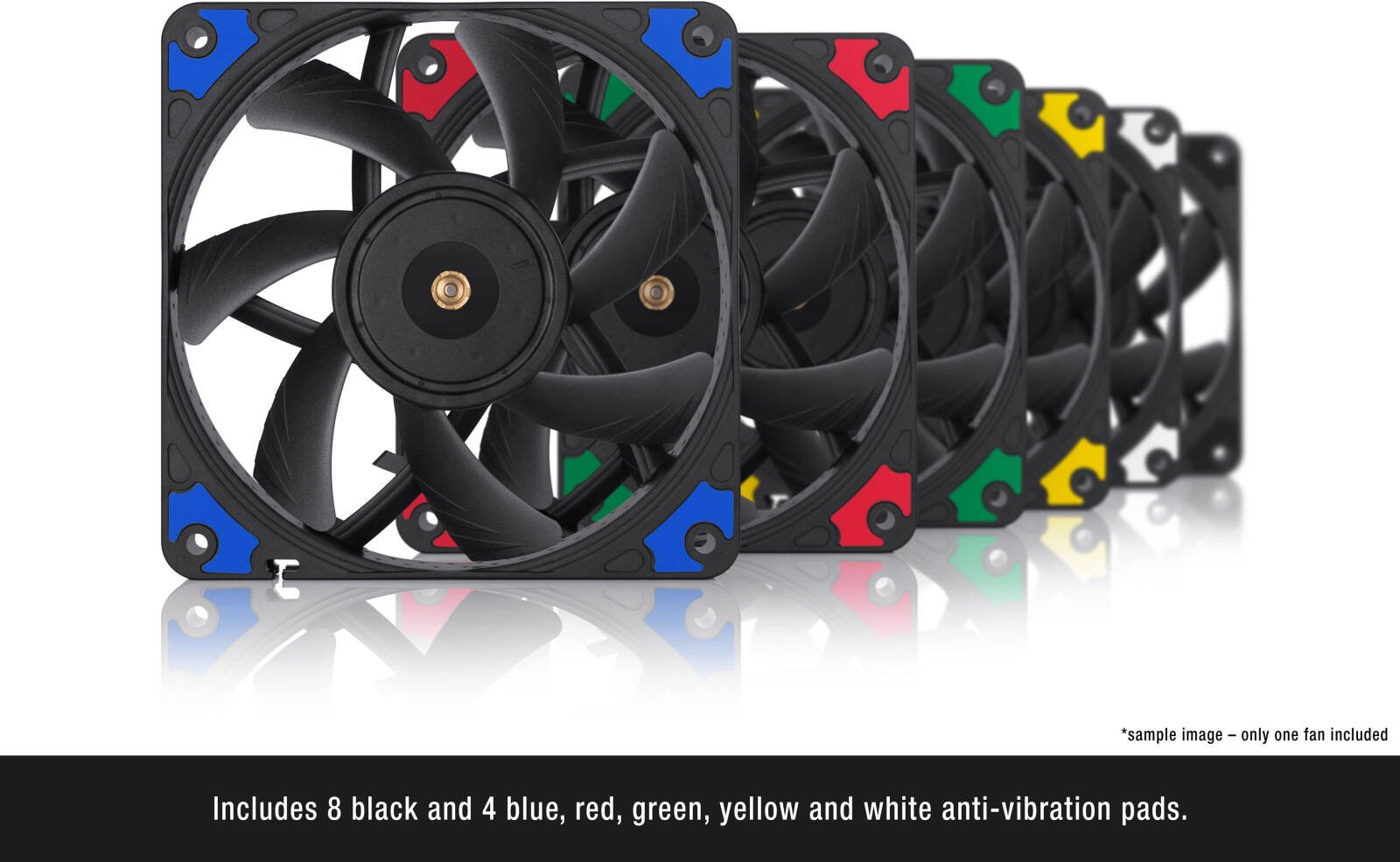

| Scope of Delivery | - 8x NA-AVP7 chromax.black anti-vibration pads |
| - 8x NA-AVP7 chromax.blue anti-vibration pads | |
| - 8x NA-AVP7 chromax.green anti-vibration pads | |
| - 8x NA-AVP7 chromax.red anti-vibration pads | |
| - 8x NA-AVP7 chromax.white anti-vibration pads | |
| - 8x NA-AVP7 chromax.yellow anti-vibration pads | |
| - NA-EC1 chromax.black 30 cm extension cable | |
| - 4x fan screws |
