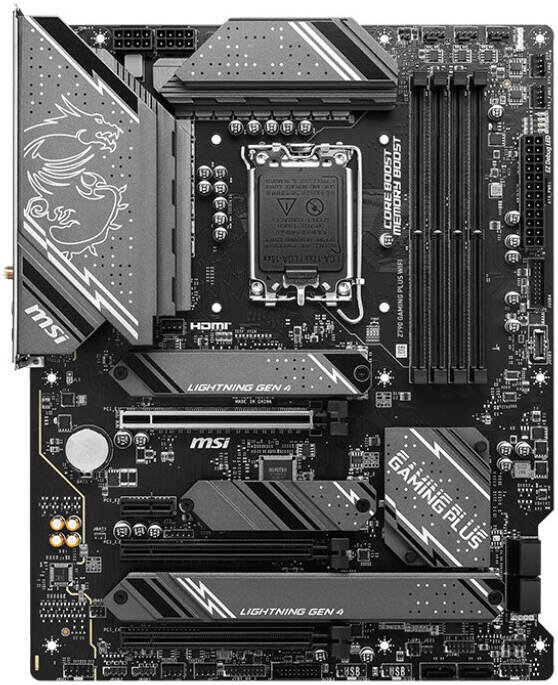

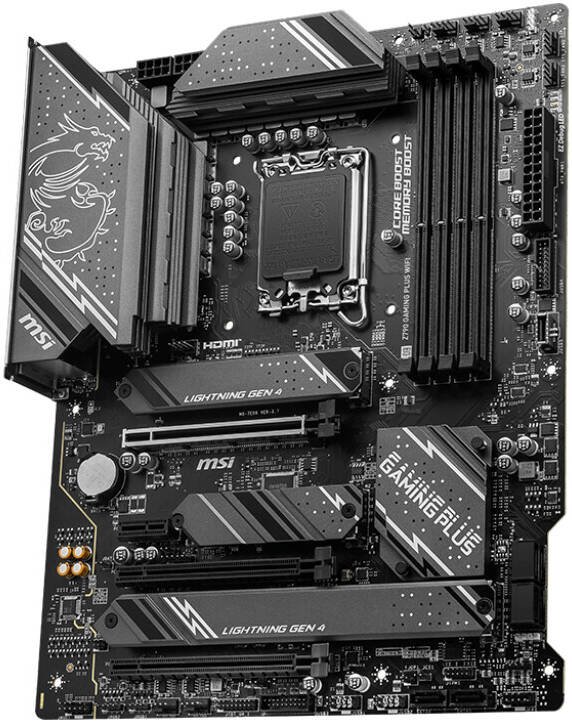

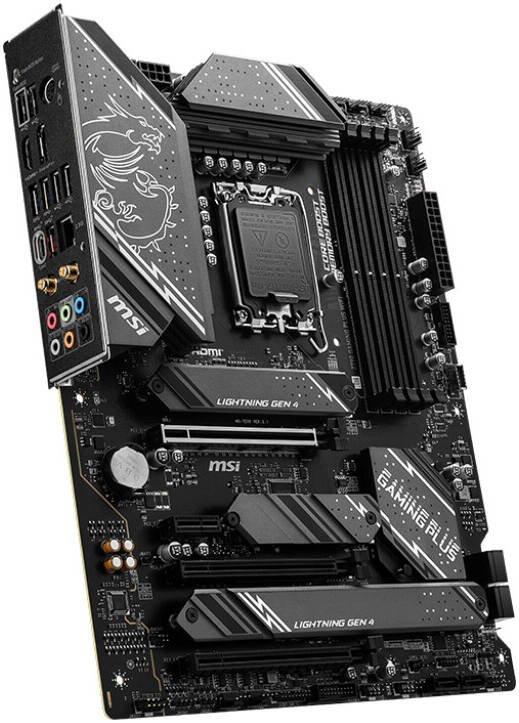

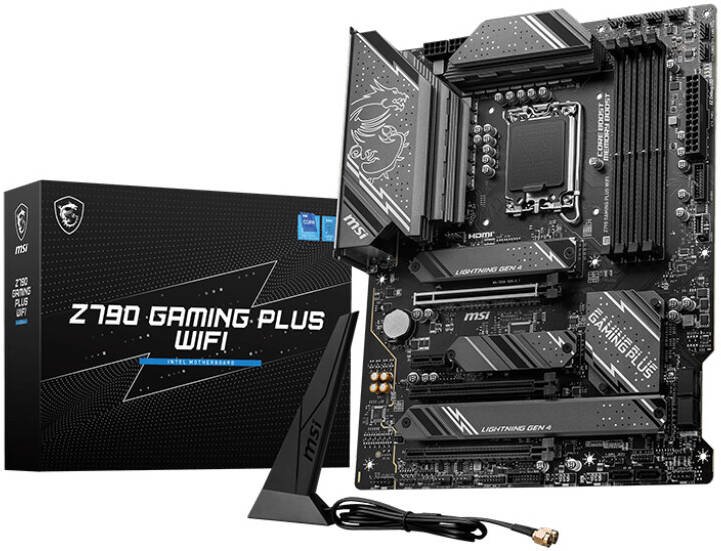

MSI Z790 Gaming Plus Wi-Fi ATX LGA 1700 Motherboard, Intel Z790 Chipset, 4x DDR5 Slot, 256GB Max Memory, 4x M.2 Slot, 3x PCI-E x16 Slot, Intel Wi-Fi 6E & BT 5.3 Connectivity, Black

999,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset INTEL Z790
CPU Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 256GB, Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. Overclocking Frequency: 1DPC 1R Max speed up to 7200+ MHz, 1DPC 2R Max speed up to 6600+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage 4x M.2: M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
LAN Intel® 2.5Gbps LAN
Onboard Graphics 1x HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*, 1x DisplayPort 1.4, maximum resolution of 4K 60Hz*
Slot 3x PCI-E x16 slot, 1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)
Wireless LAN & Bluetooth Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/b/g/n/ac/ax, Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO 1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector (JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports
LED Feature 4x EZ Debug LED

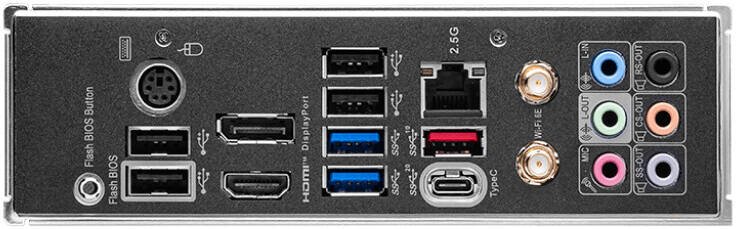

Back Panel Ports Keyboard / Mouse, DisplayPort, USB 2.0, 2.5G LAN Port, Wi-Fi/Bluetooth Antenna, Audio Connectors, Flash BIOS Button, USB 2.0, HDMI™ 2.1 Port, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, USB 3.2 Gen 2 10Gbps Type-A
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info ATX, 243.84mm x 304.8mm
