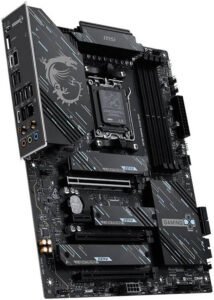

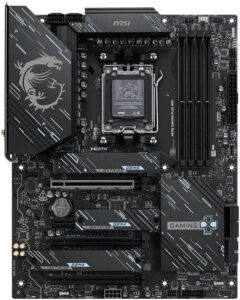

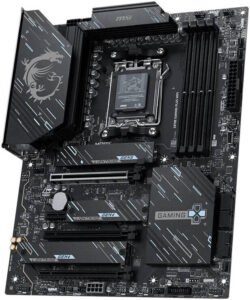

MSI X870E GAMING PLUS WIFI ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 UDIMM Slot, 256GB Max Memory, 3x PCI-E x16 Slot, 3x M.2 Slots
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory Slots | 4× DDR5 UDIMM |
| Max Memory | 256GB |
| Memory Speed | OC: 8200–5600 MT/sJEDEC: 5600–4800 MT/s |
| Max OC (Ryzen 9000) | 1DPC 1R: 8200+ MT/s1DPC 2R: 6400+ MT/s2DPC 1R: 6400+ MT/s2DPC 2R: 6000+ MT/s |
| Memory Features | Dual-Channel, Non-ECC Unbuffered, AMD EXPO™, POR & JEDEC support, CUDIMM (Clock Driver bypass) |
| Onboard Graphics Outputs | 1× HDMI™ 2.1 (4K 60Hz)1× USB4® Type-C (DP 1.4 HBR3, 4K 120Hz) |
| Expansion Slots | 3× PCIe x16, 1× PCIe x1 |
| PCIe Details | PCI_E1: PCIe 5.0 x16 (CPU)PCI_E2: PCIe 3.0 x1 (Chipset)PCI_E3: PCIe 4.0 x4 (Chipset)PCI_E4: PCIe 3.0 x1 (Chipset) |
| PCI_E1 Mode by CPU | PCIe 5.0 x16 (Ryzen 9000/7000)PCIe 4.0 x8 (Ryzen 8700/8600/8400)PCIe 4.0 x4 (Ryzen 8500/8300) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Storage – M.2 | 3× M.2 (PCIe 5.0 x4 / 4.0 x4) |
| Storage – SATA | 4× SATA 6Gb/s |
| RAID Support | SATA: RAID 0/1/10M.2 NVMe: RAID 0/1/5* (*RAID 5 for Ryzen 9000 only) |
| USB (Rear) | 4× USB 2.02× USB 5Gbps Type-A2× USB 10Gbps Type-A1× USB 20Gbps Type-C1× USB 40Gbps Type-C |
| USB (Front) | 6× USB 2.04× USB 5Gbps Type-A1× USB 10Gbps Type-C |
| LAN | Realtek® 8126VB 5G LAN |
| Wireless | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), 2.4/5/6GHz (320MHz), up to 5.8Gbps |
| Bluetooth | Bluetooth® 5.4, MLO, 4KQAM |
| Internal Power Connectors | 1× ATX 24-pin2× CPU_PWR1× PCIe 8-pin |
| Fan Headers | 1× CPU Fan1× Pump/System Fan6× System Fan |
| Internal Headers | 2× Front Panel, 1× Front Audio, 1× TPM (2.0), 3× ARGB V2, 1× RGB, JCI, JDASH, JAF_1 |
| LED Features | 4× EZ Debug LED1× EZ Memory Detection LED |

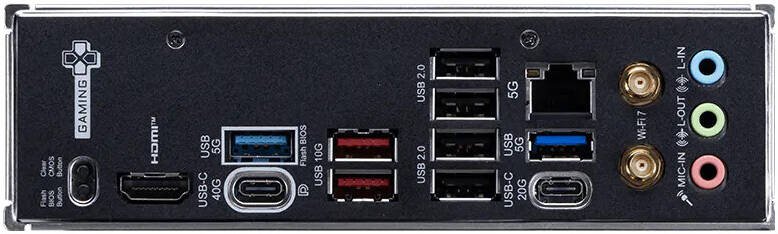

| Back Panel Ports | Clear CMOS, Flash BIOS Button, HDMI™, 5G LAN, Wi-Fi/Bluetooth, Audio, Multiple USB (2.0 / 5 / 10 / 20 / 40Gbps) |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX |
| Dimensions | 243.84mm × 304.8mm |
