MSI PRO H610M-S LGA 1700 Micro-ATX Motherboardm, Intel H610 Chipset, 2x DDR5 UDIMM Slots, 128GB Max Memory, 1x PCI-E x16, 1x M.2 Slot, 2x SATA 6G Slots

389,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 5600(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Chipset Intel H610
CPU Support Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron®, LGA 1700
Memory 2x DDR5 UDIMM, up to 128GB, DDR5 5600 MT/s, Intel® XMP 3.0, Dual-Channel, non-ECC, un-buffered
Memory Notes Single-sided latches; compatibility varies by CPU/memory; see MSI support page for details
Onboard Graphics 1x HDMI™ 1.4 (HDR, max 4K 30Hz, requires CPU with iGPU)
Expansion Slots 1x PCI-E x16 (PCIe 4.0, from CPU), 1x PCI-E x1 (PCIe 3.0, from Chipset)
Audio Realtek® ALC897 Codec, 7.1-Channel HD Audio
Storage 1x M.2 (PCIe 3.0 x4, supports 2280/2260/2242), 2x SATA 6G
USB Ports Rear: 4x USB 2.0, 2x USB 5Gbps Type-A; Front: 4x USB 2.0, 2x USB 5Gbps Type-A
LAN Realtek® RTL8111H Gigabit LAN
Internal IO 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 1x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x TPM header (TPM 2.0), 4x USB 2.0, 2x USB 5Gbps Type-A
LED Feature 4x EZ Debug LED

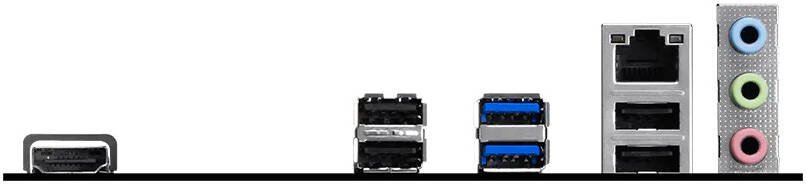

Back Panel Ports HDMI™, USB 2.0, USB 5Gbps Type-A, LAN, Audio Connectors
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor mATX, 200 × 236.16 mm
Box Content / PCB Info mATX PCB
