MSI PRO B860-P ATX LGA 1851 Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, Frozr Design

849,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socketSupport Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Thunderbolt™ 4 port and 5G LAN: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset Intel® B860
CPU Support Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory 4x DDR5 UDIMM, Max 256GB
Memory Speed 8800–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s
Max Overclocking Frequency 1DPC 1R: 8800+ MT/s; 1DPC 2R: 7200+ MT/s; 2DPC 1R: 6400+ MT/s; 2DPC 2R: 5600+ MT/s
Memory Features Supports Intel® XMP 3.0, Dual-Channel, Non-ECC, Un-buffered, CUDIMM
Note DIMM slots use single-sided latches; compatibility varies by CPU/memory
Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz); 1x DisplayPort 1.4 (4K@60Hz); 1x Thunderbolt™ 4 Type-C (DP 2.1, 4K@120Hz / 8K@60Hz) *CPU with iGPU required
Expansion Slots 4x PCIe x16: PCI_E1 (Gen5 x16 CPU), PCI_E2 (Gen4 x1 Chipset), PCI_E3 (Gen4 x4 Chipset), PCI_E4 (Gen4 x1 Chipset)
Audio Realtek® ALC897 Codec, 7.1-Channel HD Audio
Storage 3x M.2: M.2_1 (Gen5 x4 CPU, 2280/2260), M.2_2 (Gen4 x4, 2280/2260/2242), M.2_3 (Gen4 x2, 2280/2260); 4x SATA 6G
RAID Support RAID 0/1/5/10 for SATA devices
Thunderbolt 1x Thunderbolt™ 4 (Rear), up to 40Gbps (TB), 20Gbps (USB4), 10Gbps (USB3.2), 5V/3A (15W), supports daisy-chain & 8K display
USB Ports Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x Thunderbolt 4 Type-C; Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
LAN Realtek® 8126 5Gbps LAN
Internal I/O Thunderbolt5 (JTBT5), ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR (8pin), 1x CPU Fan, 1x Pump/SYS Fan, 4x SYS Fans, JFP, JCI, JAUD, JCOM, JDASH, 2x JARGB_V2, 1x JRGB, TPM 2.0 header, multiple USB headers
LED Feature 4x EZ Debug LED

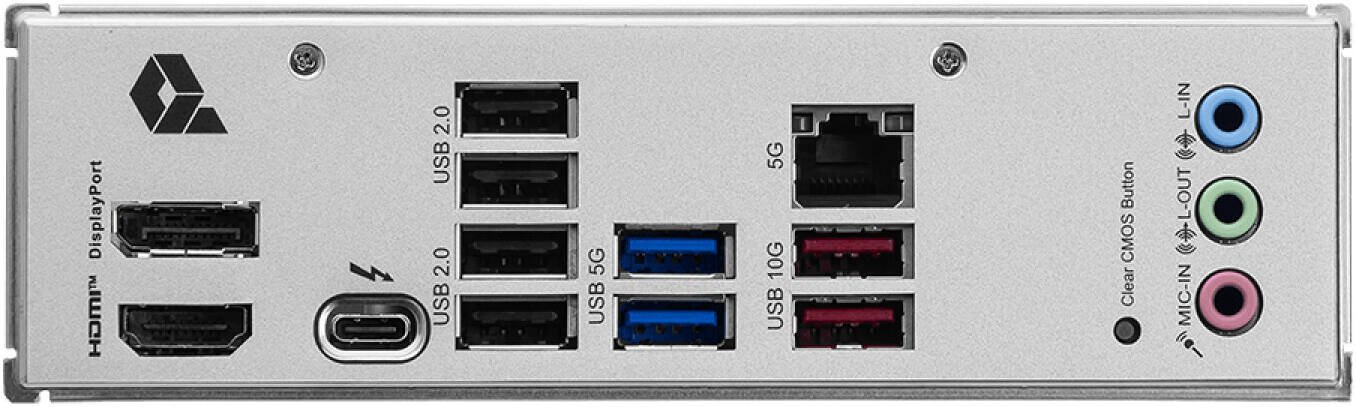

Back Panel Ports DisplayPort, HDMI™, USB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-A, Thunderbolt™ 4 (Type-C, 40Gbps), 5G LAN, Audio connectors, Clear CMOS
Operating System Windows® 11 64-bit
Form Factor (PCB Info) ATX, 243.84 mm × 304.8 mm
Box Contents Motherboard, Accessories (per package content)
