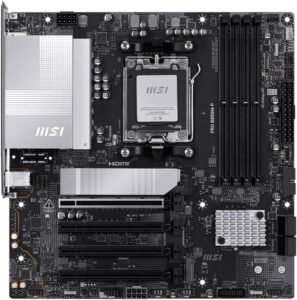

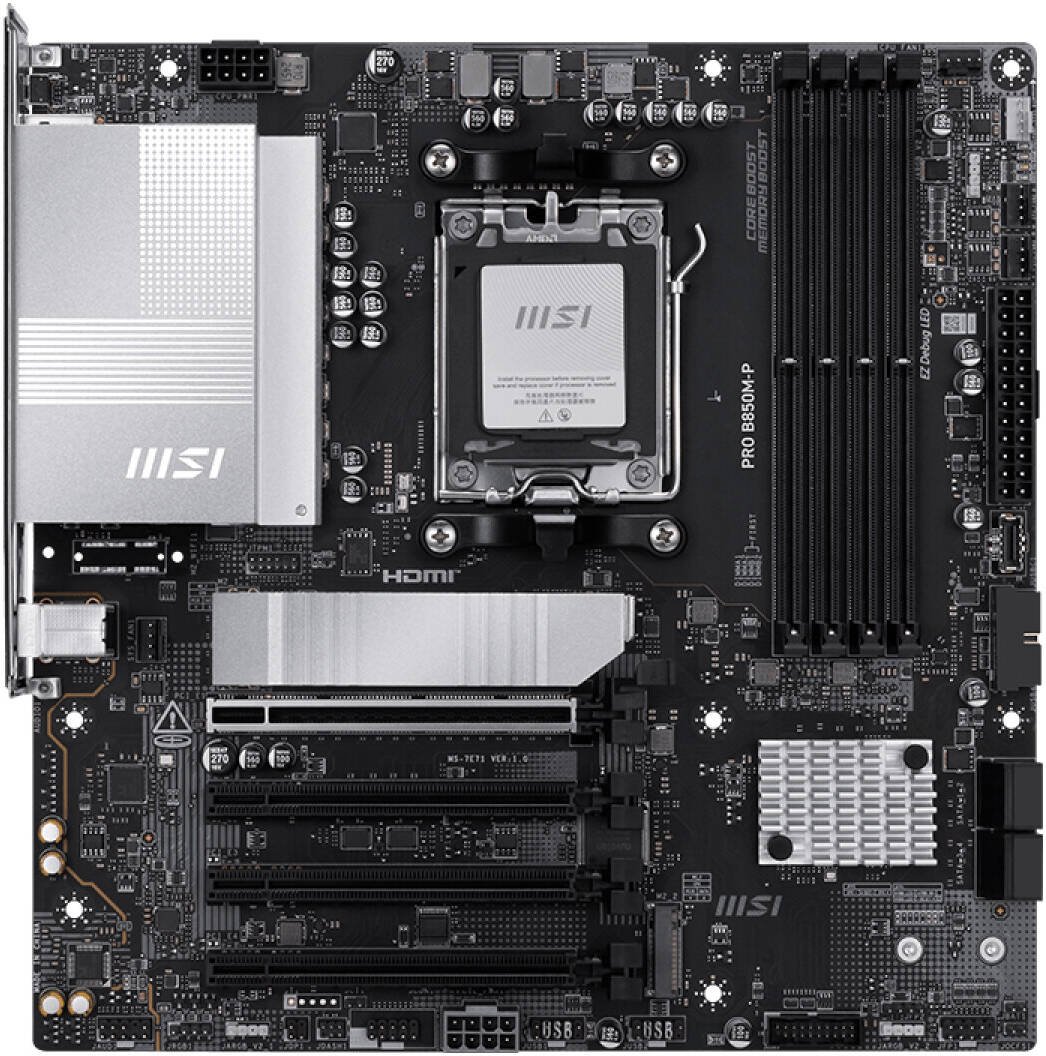

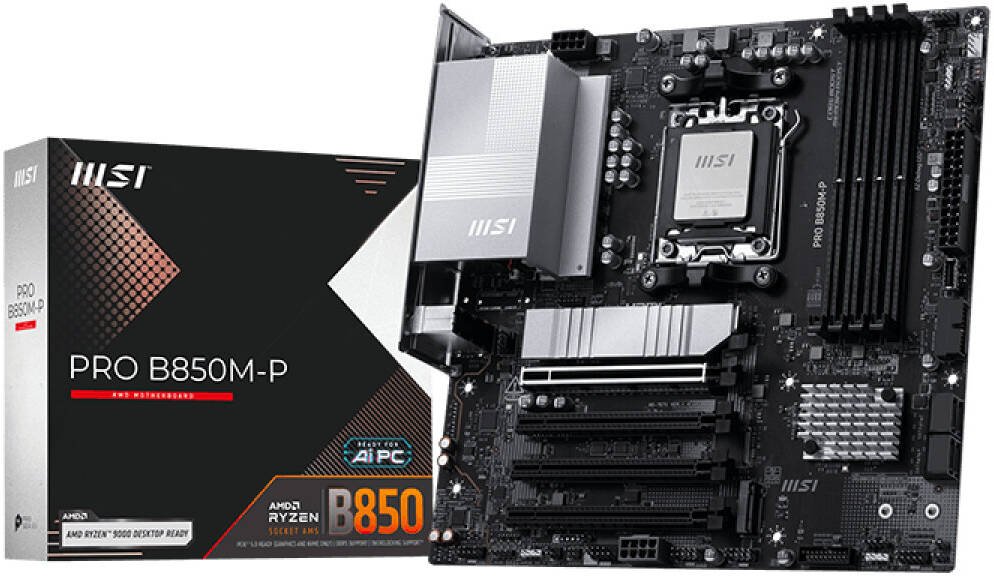

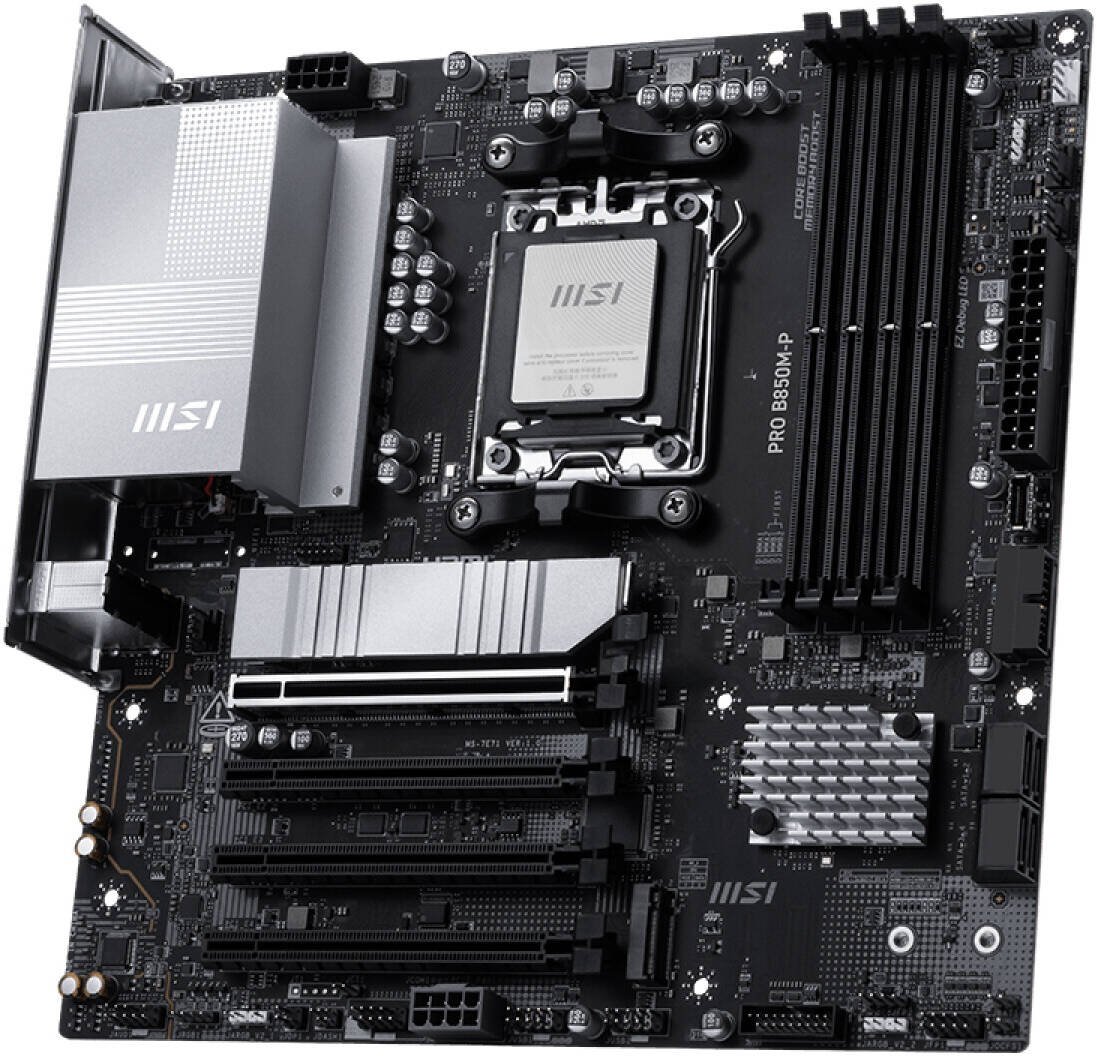

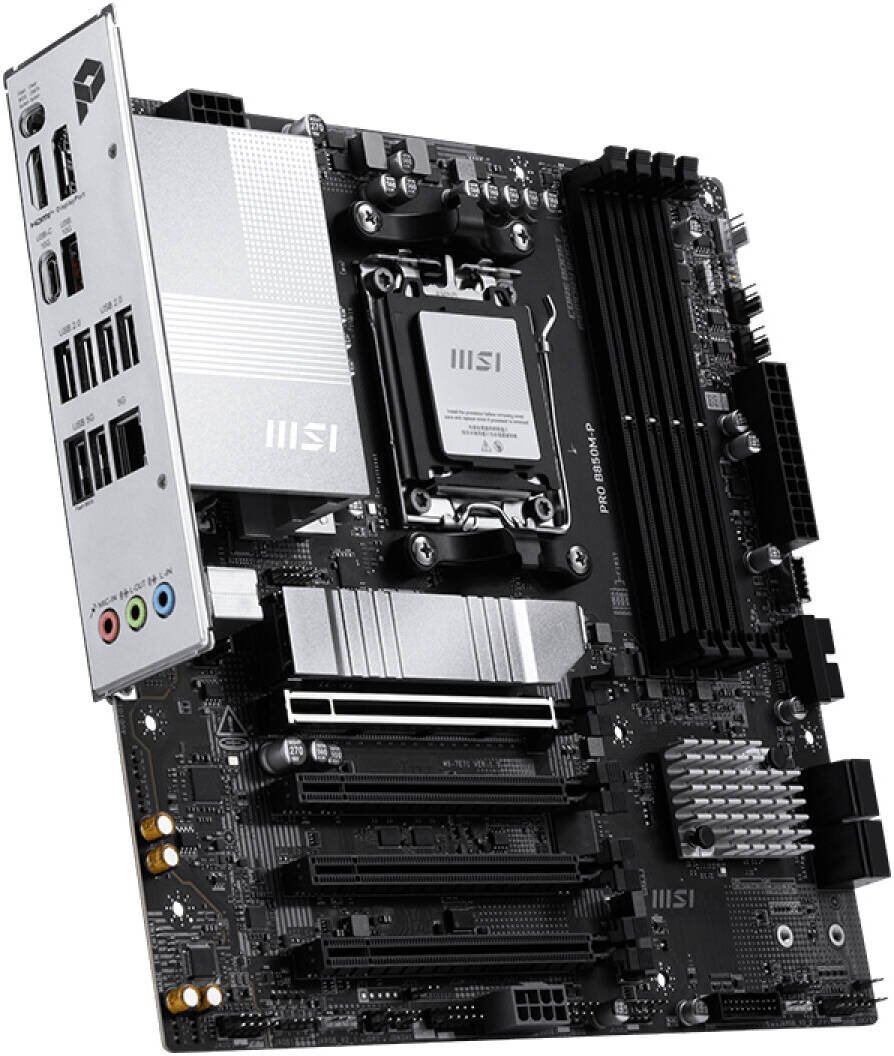

MSI PRO B850M-P mATX AM5 Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, 256GB Max Memory, 4x PCI-E x16 Slot, 3x M.2 Slots

749,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, and EZ PCIe Clip II
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • 5G LAN: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset AMD B850
CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Max 256GB
Memory Support DDR5 8200–5600 (OC) MT/s / 5600–4800 (JEDEC) MT/s
Ryzen™ 9000 Series OC Speeds 1DPC 1R: 8200+ MT/s; 1DPC 2R: 6400+ MT/s; 2DPC 1R: 6400+ MT/s; 2DPC 2R: 6000+ MT/s
Memory Features Supports AMD POR, JEDEC, Overclocking, AMD EXPO™, Dual Channel, Non-ECC Unbuffered, CUDIMM (Clock Driver bypass only)*
Notes CUDIMM and POR boot frequency may vary by CPU; single-sided latch DIMM slots; check MSI Support for compatibility.
Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz); available only on CPUs with iGPU
Slots 4x PCI-E x16
PCI_E1 PCIe 5.0 x16 (Ryzen™ 9000/7000), PCIe 4.0 x8 (Ryzen™ 8700/8600/8400), PCIe 4.0 x4 (Ryzen™ 8500/8300)
PCI_E2/E3/E4 PCIe 3.0 x1 (from chipset)
Audio Realtek® ALC897, 7.1-Channel HD Audio
Storage 3x M.2, 4x SATA 6G
M.2_1 (CPU) PCIe 5.0 x4 (Ryzen™ 9000/7000), PCIe 4.0 x4 (Ryzen™ 8000), 2280/2260
M.2_2 (CPU) PCIe 4.0 x4 / x2 (Ryzen™ 8500/8300), 2280/2260
M.2_3 (Chipset) PCIe 4.0 x2, 2280
RAID SATA: RAID 0/1/10; M.2 NVMe: RAID 0/1/5 (RAID 5 only for Ryzen™ 9000)
USB Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C; Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
LAN Realtek® 8126VB 5G LAN
Internal I/O ATX_PWR, CPU_PWR, PCIE_PWR (8-pin), CPU Fan, Pump/Sys Fan, 3x Sys Fan, 2x Front Panel, JCI, JAUD, JCOM, JDASH, 3x JARGB_V2, 1x JRGB, TPM 2.0 header, 4x USB 2.0, 4x USB 5Gbps, 1x USB 10Gbps Type-C
LED Features 4x EZ Debug LED, 1x EZ Memory Detection LED

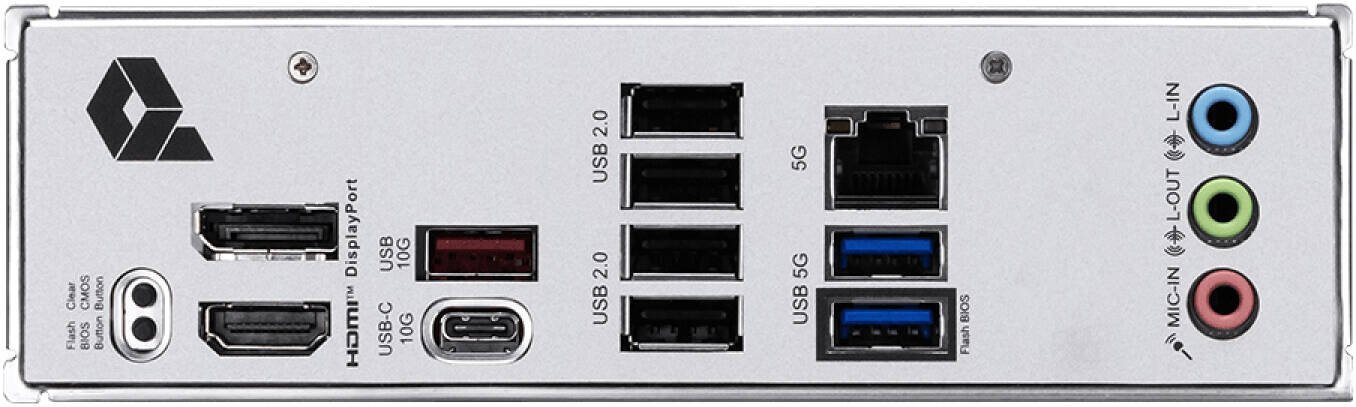

Back Panel Ports Clear CMOS Button, DisplayPort, USB 10Gbps Type-A, USB 2.0, 5G LAN, Audio Connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-C, USB 5Gbps Type-A
Operating System Windows® 11 64-bit
Form Factor (PCB Info) mATX, 243.84mm × 243.84mm
Box Contents Motherboard, SATA cables, M.2 screws, Quick Installation Guide, I/O shield (depends on model)
