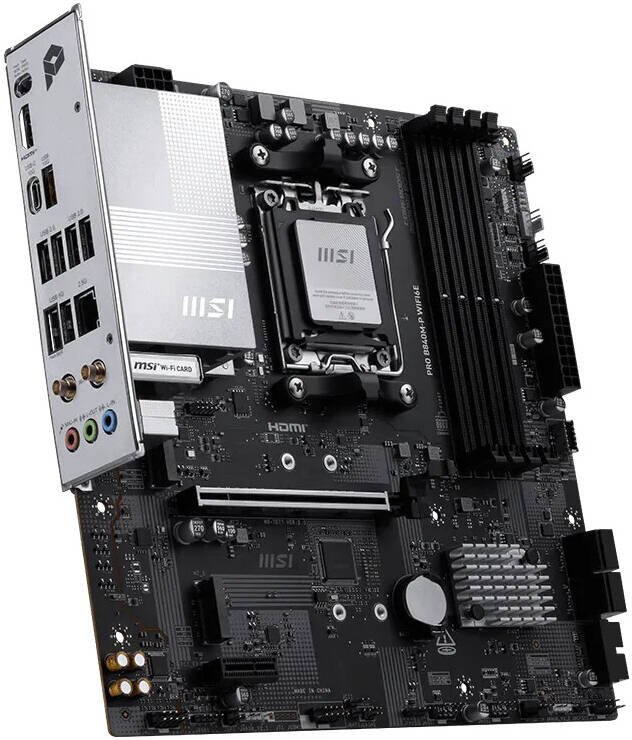

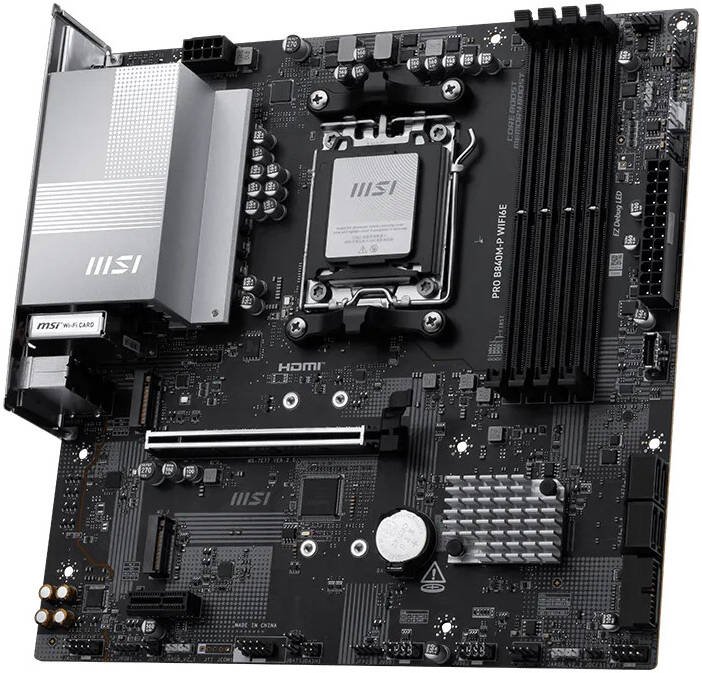

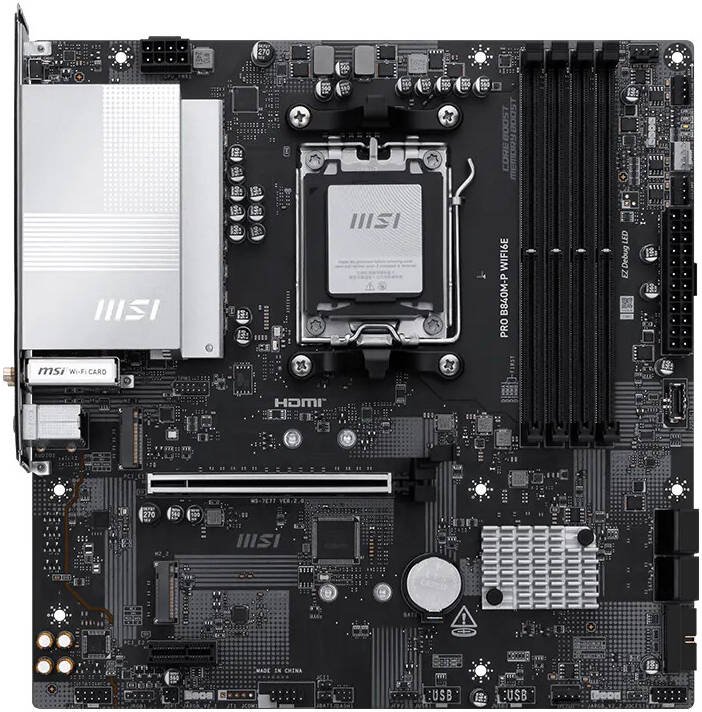

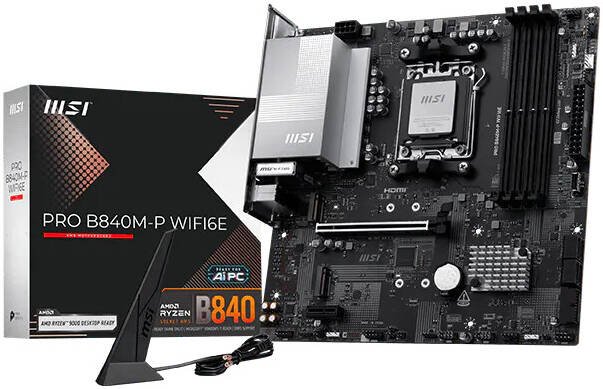

MSI PRO B840M-P WIFI6E mATX AM5 Motherboard, AMD B840 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 1x PCIe x16, 2x M.2 Slots

669,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna
  • Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
  • 2.5G LAN with Wi-Fi 6E Solution: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset AMD B840
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket AM5
Memory Slots 4 × DDR5 UDIMM
Maximum Memory 256 GB
Memory Speed DDR5 8000–5600 (OC), 5600–4800 (JEDEC) MT/s
Memory Overclock (Ryzen 9000) 1DPC 1R up to 8000+ MT/s; 1DPC 2R up to 6400+ MT/s; 2DPC 1R up to 6400+ MT/s; 2DPC 2R up to 5600+ MT/s
Memory Features AMD POR Speed, JEDEC Speed, AMD EXPO™, Dual Channel
Memory Type Support Non-ECC, Unbuffered, CUDIMM (Clock Driver bypass mode)
Graphics Output 1 × HDMI™
HDMI Support HDMI 2.1, up to 4K @ 60Hz
Expansion Slots 1 × PCIe x16, 1 × PCIe x1
PCIe Slot Details PCI_E1 PCIe 4.0 x16 (CPU), PCI_E2 PCIe 3.0 x1 (Chipset)
PCIe x16 Mode by CPU x16 (Ryzen 9000/7000), x8 (Ryzen 8700/8600/8400), x4 (Ryzen 8500/8300)
Audio Realtek® ALC897
Audio Channels 7.1-Channel High Definition Audio
M.2 Slots 2 × M.2 PCIe 4.0 x4 (2280/2260)
SATA Ports 4 × SATA 6Gb/s
RAID Support RAID 0, 1, 10 (SATA) / RAID 0, 1 (M.2 NVMe)
USB (Rear) 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C
USB (Front) 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 5Gbps Type-C
LAN Realtek® 8125D 2.5G LAN
Wireless Wi-Fi 6E (2.4 / 5 / 6 GHz, up to 2.4 Gbps, MU-MIMO)
Bluetooth Bluetooth® 5.3 (upgradable with Windows 11 updates)
Internal Power Connectors 1 × ATX_PWR, 1 × CPU_PWR
Fan Headers 1 × CPU Fan, 1 × Combo Fan (Pump/Sys), 3 × System Fan
Front Panel Headers 2 × JFP
Other Internal Headers Chassis Intrusion, Front Audio, COM Port, Tuning Controller (JDASH)
RGB Headers 3 × Addressable V2 RGB (JARGB_V2), 1 × RGB (JRGB)
TPM Header 1 × TPM (TPM 2.0 Support)
Internal USB Headers 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 5Gbps Type-C
LED Features 4 × EZ Debug LED, 1 × EZ Memory Detection LED

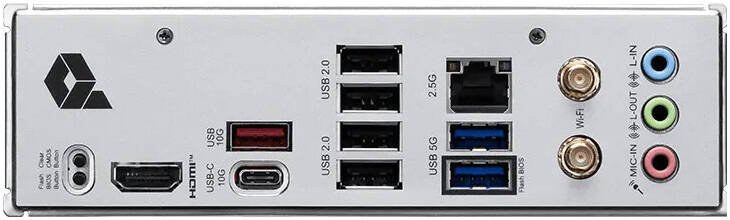

Rear Ports Clear CMOS Button, HDMI™, USB 10Gbps Type-A, USB 10Gbps Type-C, USB 5Gbps Type-A, USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio connectors, Flash BIOS Button
Operating System Windows® 11 64-bit
Form Factor mATX
PCB Dimensions 243.84 × 243.84 mm
