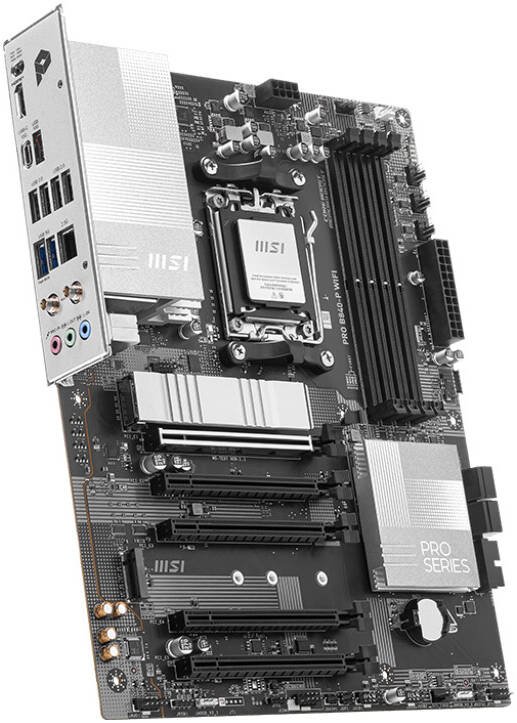

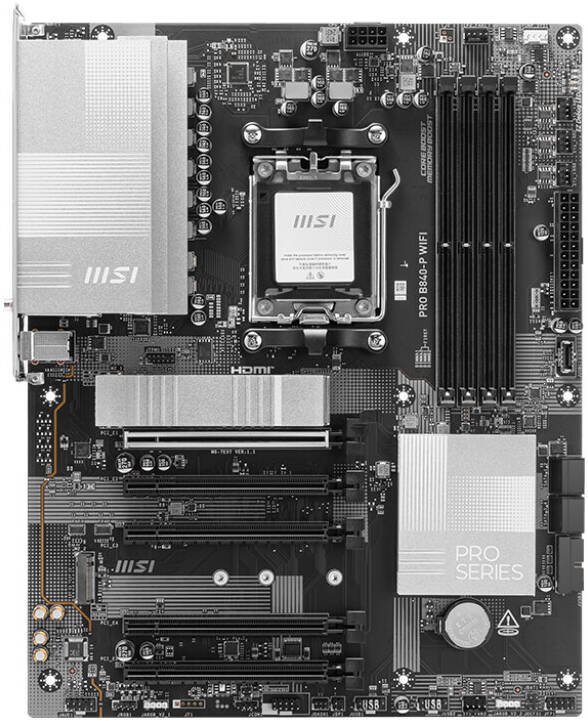

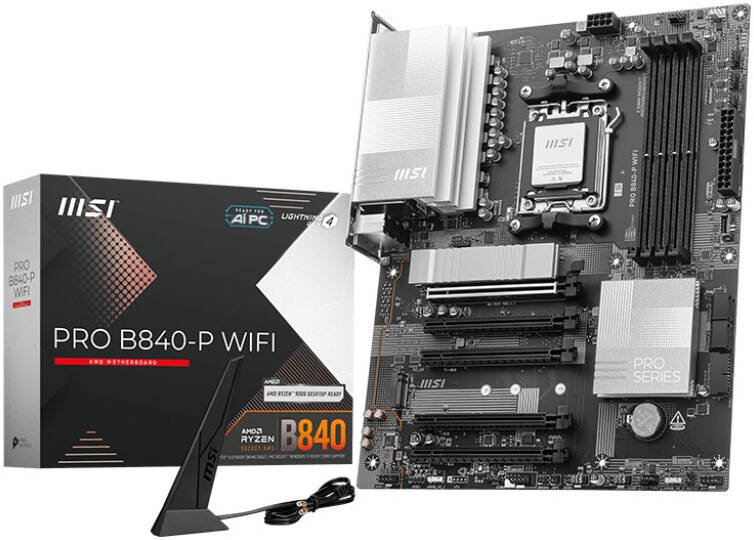

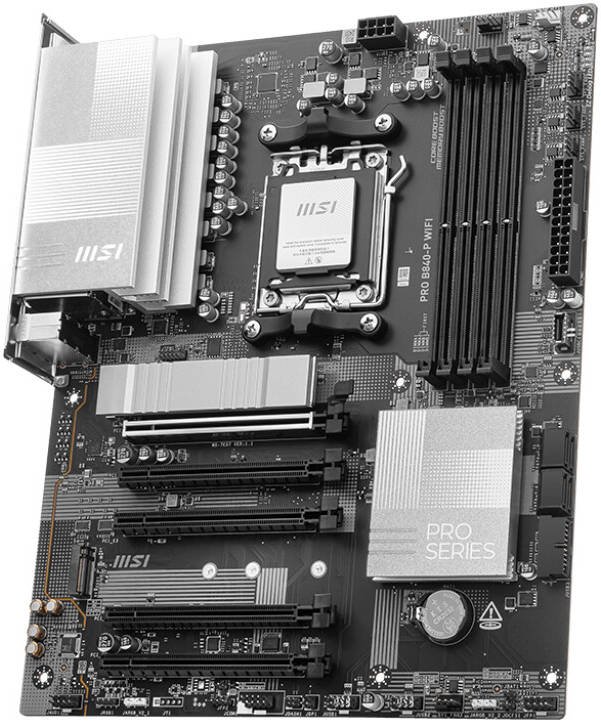

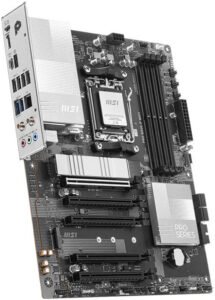

MSI Pro B840-P WiFi AM5 ATX Motherboard, AMD B840 Chipset, 4x DDR5 UDIMM Slot, Up to 256GB Max Memory, 5x PCI-E x16 Slots, 2x M.2 Slots, WiFi & BT Connectivity

649,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
  • 2.5G LAN with Wi-Fi 7 Solution: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset AMD B840
CPU Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors, Socket AM5
Memory 4x DDR5 UDIMM, Maximum Capacity: 256GB, DDR5 8000 - 5600 (OC)/5600 - 4800 (JEDEC) MT/s. Supports Dual-Channel, Non-ECC, Unbuffered memory, AMD EXPO™, Memory Overclocking
Onboard Graphics 1x HDMI™ 2.1, maximum resolution of 4K 60Hz (only for processors with integrated graphics)
Slots 5x PCI-E x16 slots (PCIe 4.0/3.0 support varies by processor)
Audio Realtek® ALC897, 7.1-Channel High Definition Audio
Storage 2x M.2 slots (PCIe 4.0 support), 4x SATA 6G. RAID 0, 1, 10 supported
USB Ports Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C. Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
LAN Realtek® 8125D 2.5G LAN
Wireless LAN & Bluetooth Wi-Fi 7, Bluetooth® 5.4 (Windows 11 version 24H2 required for full features)
Internal IO Multiple connectors including ATX_PWR, CPU_PWR, RGB LED, USB 2.0, and fan headers
LED Features 4x EZ Debug LED

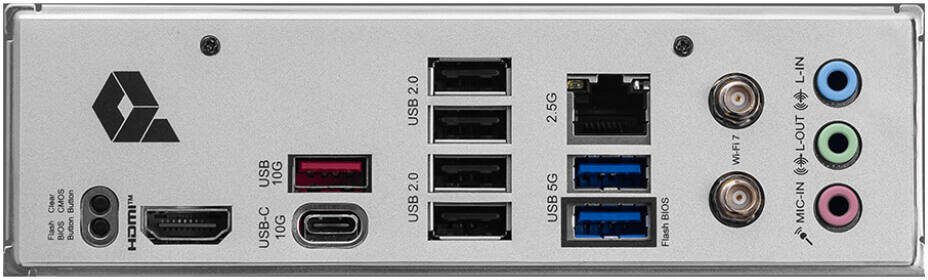

Back Panel Ports Clear CMOS, USB ports (2.0, 5Gbps, 10Gbps), HDMI™, 2.5G LAN, Wi-Fi/Bluetooth, Flash BIOS Button, Audio Connectors
Operating System Support for Windows® 11 64-bit
Box Content PCB Info: ATX, 243.84mm x 304.8mm
