MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard, Intel B760 Chipset, 2x DDR5 Slots, Up to 128GB Max Memory, 1x 1x PCI-E x16 Slot, 2x M.2 Slots, Wi-Fi 6E & BT 5.3

960,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
  • Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Chipset Intel B760
CPU Support Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron®, LGA 1700
Memory 2x DDR5, up to 128GB, 7200+ MHz (OC), Dual-Channel, non-ECC, XMP support
Memory OC Frequencies Max 7200+ (1DPC 1R), Max 6600+ (1DPC 2R)
Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (8K@60Hz), CPU-dependent
PCIe Slot 1x PCI-E x16 (PCIe 5.0 from CPU)
Audio Realtek® ALC897, 7.1-Channel HD Audio
Storage 2x M.2 (PCIe 4.0 x4/SATA), 4x SATA 6Gb/s, RAID 0/1/5/10
USB Ports 2x USB 2.0 (Rear), 2x USB 2.0 (Front), 4x USB 5Gbps (Rear), 2x USB 5Gbps (Front)
1x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear), 1x USB 10Gbps Type-C (Front)
LAN Realtek® RTL8125BG 2.5Gbps
Internal I/O ATX_PWR, CPU_PWR, CPU Fan, Pump Fan, System Fan, Front Panel, JCI, JAUD, JARGB_V2, JRGB, TPM
2x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C
Wireless/Bluetooth Intel® Wi-Fi 6E (2.4/5/6GHz), Bluetooth® 5.3
LED Features 4x EZ Debug LED

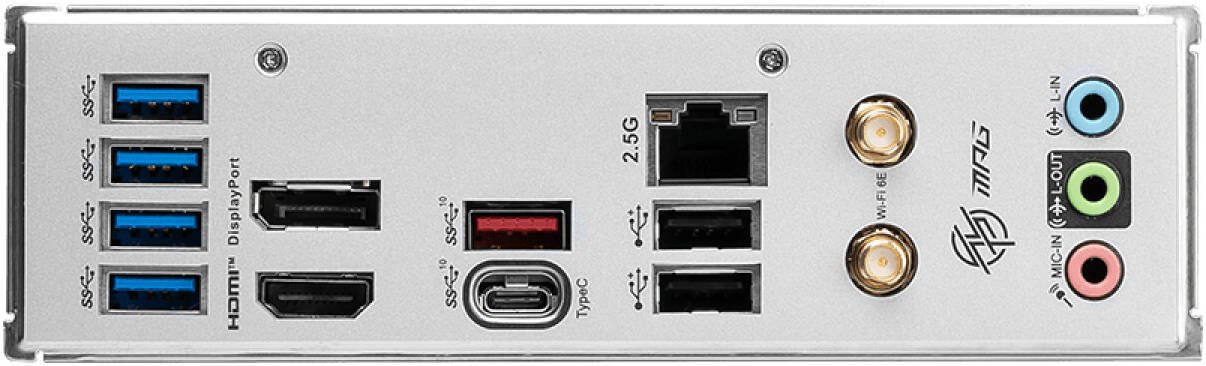

Back Panel Ports USB 2.0, USB 5Gbps, USB 10Gbps (Type-A & C), HDMI™, DisplayPort, 2.5G LAN, Audio, Wi-Fi/Bluetooth
OS Support Windows® 11/10 64-bit
Form Factor Mini-ITX (170mm x 170mm)
