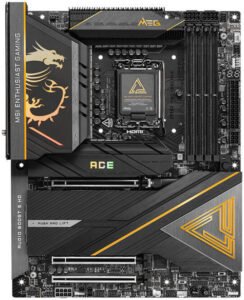

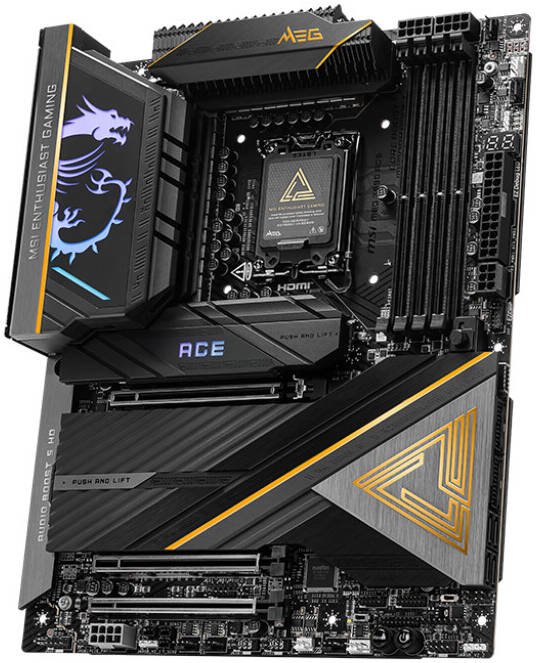

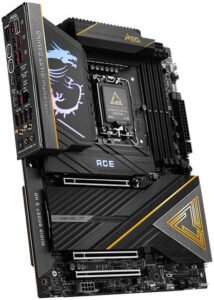

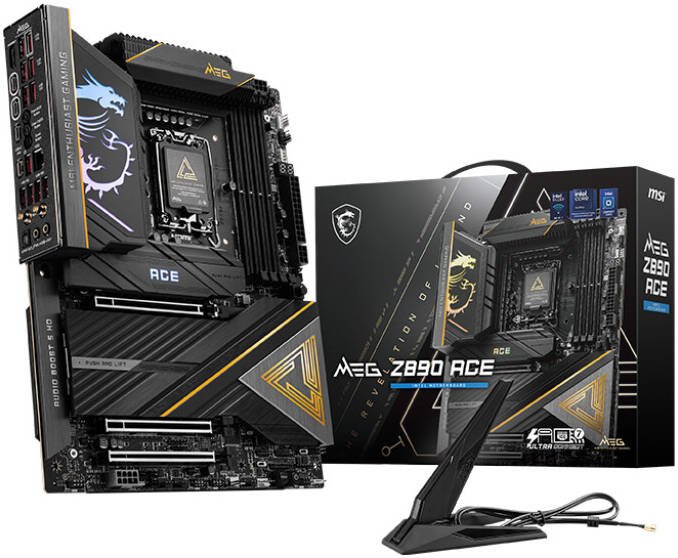

MSI MEG Z890 Ace LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 3x PCI-E x16 Slots, 5x M.2 Slots, Black

2.887,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
  • Ultra Performance: 24+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY: EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • Ultra Connect: Dual Thunderbolt™ 4 ports, 10G LAN, and Full-speed Intel® Killer™ Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory 4x DDR5 UDIMM, Max 256GB, Speeds: 9200-4800 MT/s, Supports Intel® XMP 3.0, Dual-Channel Mode, Non-ECC
Onboard Graphics 1x HDMI™ 2.1 (8K 60Hz), 2x Type-C DisplayPort (Thunderbolt™ 4, 8K@60Hz)
Expansion Slots 3x PCI-E x16 (PCIe 5.0/4.0), Supports manual BIOS adjustment
Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC, 7.1-Channel, S/PDIF, 32-bit/384 kHz playback
Storage 5x M.2 (PCIe 5.0/4.0/SATA), 4x SATA 6G, RAID 0/1/5/10 for SATA & NVMe
RAID Supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage
Thunderbolt™ 2x Thunderbolt 4 (40Gbps), Supports USB4, USB 3.2, up to 8K display, 15W charging
USB Rear: 11x USB 10Gbps Type-A, 2x USB 10Gbps Type-C; Front: 4x USB 2.0, 4x USB 5Gbps Type A, 1x USB 20Gbps Type C
LAN Marvell® AQC113CS 10Gbps LAN
Internal IO Thunderbolt5 card connector, ATX_PWR, CPU_PWR, PCI_PWR, PD_PWR1, CPU & system fans, RGB LED connectors, TPM 2.0 header, USB 2.0, 5Gbps Type A, 20Gbps Type C
Wireless LAN & Bluetooth Intel® Killer™ BE1750x Wi-Fi 7 (5.8Gbps), Bluetooth 5.4, 2.4GHz/5GHz/6GHz MU-MIMO
LED Features 4x EZ Debug LED, 1x EZ Digit Debug LED, 1x EZ LED Control Switch

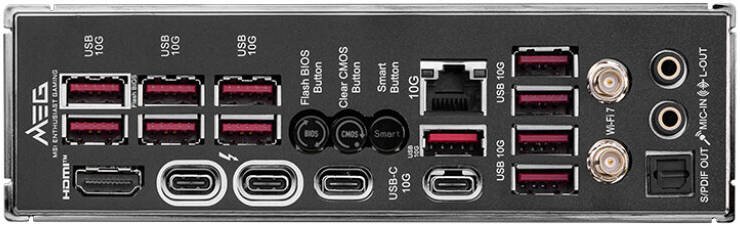

Back Panel Ports HDMI™ 2.1, Thunderbolt™ 4, USB 10Gbps Type-C/A, Optical S/PDIF-Out, Wi-Fi/Bluetooth, 10G LAN, Smart Button, Flash BIOS, Clear CMOS
Operating System Windows® 11 64-bit
PCB Info ATX, 243.84mm x 304.8mm
