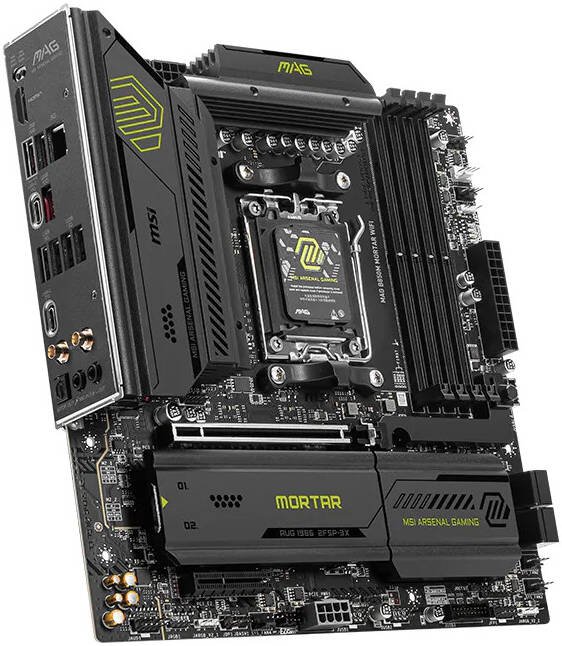

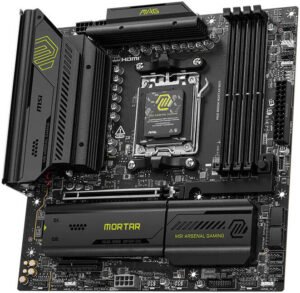

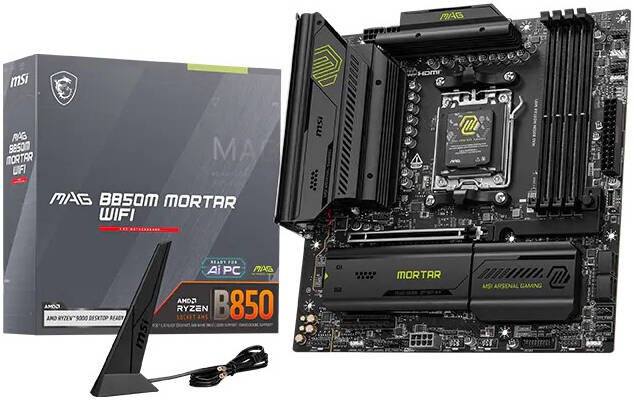

MSI MAG B850M MORTAR WIFI mATX AM5 Motherboard, AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 1x PCIe x16 Slot, 3x M.2 Slots

1.059,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
  • 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Chipset AMD B850
CPU Support AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
CPU Socket AM5
Memory Slots 4 × DDR5 UDIMM
Maximum Memory 256 GB
Memory Speed DDR5 8200–5600 (OC), 5600–4800 (JEDEC) MT/s
Memory Overclock (Ryzen 9000) 1DPC 1R up to 8200+ MT/s; 1DPC 2R up to 6400+ MT/s; 2DPC 1R up to 6400+ MT/s; 2DPC 2R up to 6400+ MT/s
Memory Features AMD POR Speed, JEDEC Speed, AMD EXPO™, Dual Channel
Memory Type Support Non-ECC, Unbuffered, CUDIMM (Clock Driver bypass mode)
Graphics Output 1 × HDMI™
HDMI Support HDMI 2.1 FRL, up to 8K @ 60Hz
Expansion Slots 1 × PCIe x16, 1 × PCIe x4
PCIe Slot Details PCI_E1 PCIe 5.0 x16 (CPU), PCI_E2 PCIe 4.0 x4 (Chipset)
PCIe x16 Mode by CPU x16 PCIe 5.0 (Ryzen 9000/7000), x8 PCIe 4.0 (Ryzen 8700/8600/8400), x4 PCIe 4.0 (Ryzen 8500/8300)
Audio Realtek® ALC4080
Audio Features 7.1-Channel USB High Performance Audio, up to 32-bit/384kHz, S/PDIF Output
M.2 Slots 3 × M.2
M.2_1 PCIe 5.0 x4 (CPU), supports 2280/2260
M.2_2 PCIe 5.0 x4 (CPU), supports 2280/2260
M.2_3 PCIe 4.0 x2 (Chipset), supports 2280
SATA Ports 4 × SATA 6Gb/s
Multi-GPU AMD Multi-GPU Support
RAID Support RAID 0/1/10 (SATA), RAID 0/1/5 (M.2 NVMe – RAID 5 for Ryzen 9000)
USB (Rear) 4 × USB 5Gbps Type-A, 3 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C, 1 × USB 20Gbps Type-C
USB (Front) 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-C
LAN Realtek® 8126-VB 5G LAN
Wireless Wi-Fi 7 (2.4 / 5 / 6 GHz, MU-MIMO, up to 5.8 Gbps)
Bluetooth Bluetooth® 5.4
Internal Power Connectors 1 × ATX_PWR, 2 × CPU_PWR, 1 × PCIe_PWR (8-pin)
Fan Headers 1 × CPU Fan, 1 × Combo Fan (Pump/Sys), 4 × System Fans
EZ Conn Header 1 × JAF_1
Front Panel Headers 2 × JFP
Other Internal Headers Chassis Intrusion, Front Audio, Tuning Controller (JDASH)
RGB Headers 3 × Addressable V2 RGB (JARGB_V2), 1 × RGB (JRGB)
TPM Header 1 × TPM (TPM 2.0 Support)
Internal USB Headers 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-C
LED Features 4 × EZ Debug LED, 1 × EZ Memory Detection LED

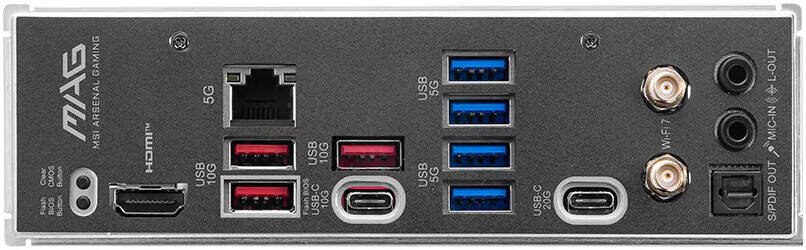

Rear Ports Clear CMOS Button, 5G LAN, USB 5Gbps Type-A, USB 10Gbps Type-A, USB 10Gbps Type-C, USB 20Gbps Type-C, HDMI™, Wi-Fi/Bluetooth, Audio connectors, Optical S/PDIF Out, Flash BIOS Button
Operating System Windows® 11 64-bit
Form Factor mATX
PCB Dimensions 243.84 × 243.84 mm
