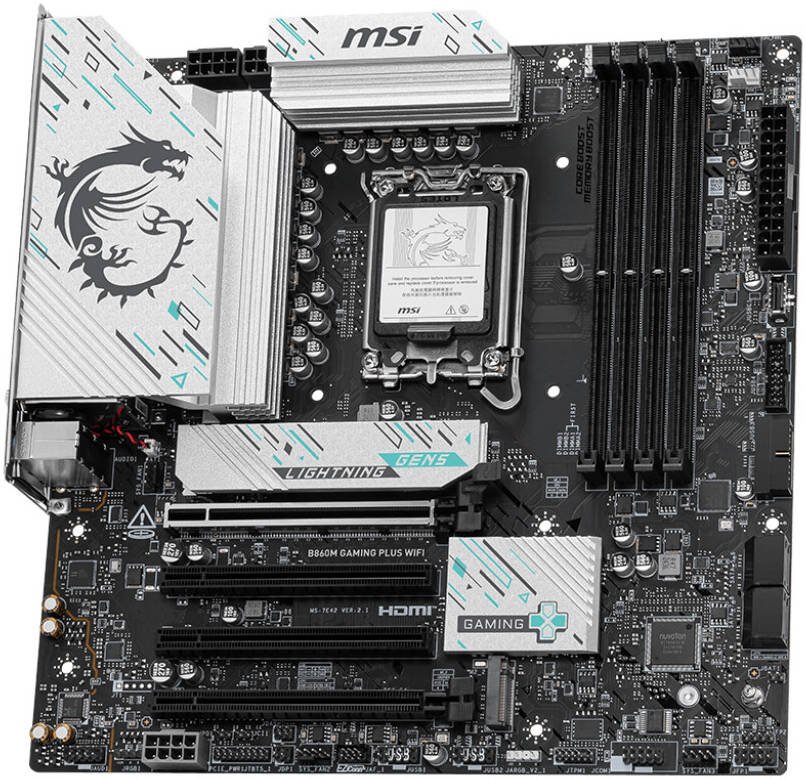

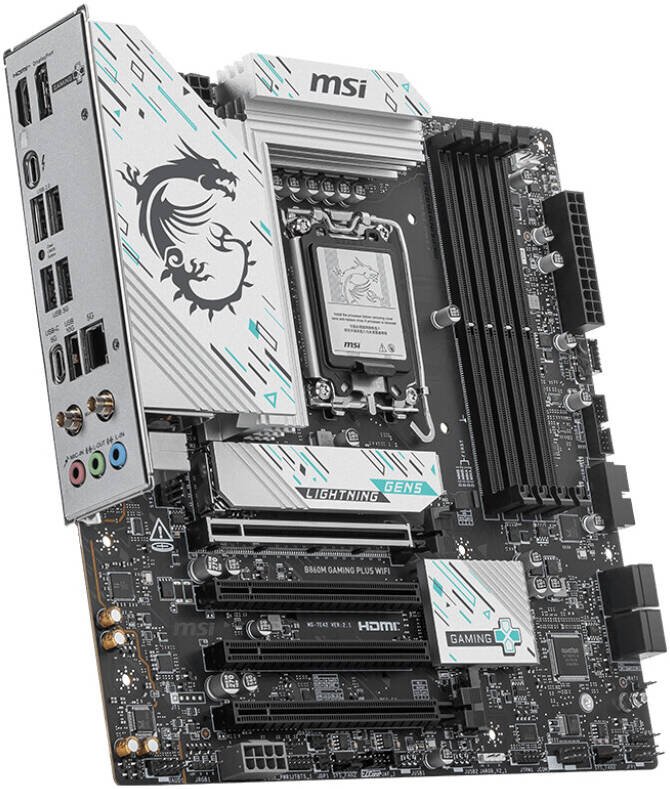

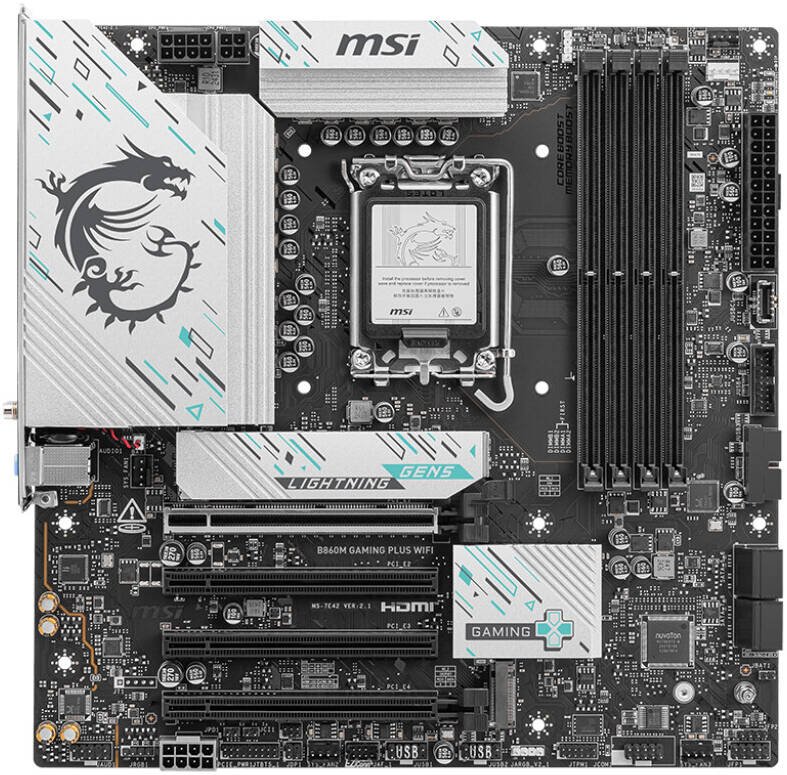

MSI B860M Gaming Plus WiFi LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity

850,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset INTEL B860
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8800-6400 (OC), 6400-4800 (JEDEC) MT/s, Dual-Controller Dual-Channel, Intel® XMP 3.0
Max Overclocking Frequency 1DPC 1R: 8800+ MT/s, 1DPC 2R: 7200+ MT/s, 2DPC 1R: 6400+ MT/s, 2DPC 2R: 5600+ MT/s
Onboard Graphics 1x HDMI™ 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x Thunderbolt™ 4 (DP 2.1: 4K@120Hz / 8K@60Hz, via USB Type-C)
Slots 4x PCI-E x16 (PCIe 5.0/4.0 support varies by processor and slot)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage 3x M.2 (PCIe 5.0/4.0 support varies), 4x SATA 6G, RAID 0/1/5/10 for SATA
Thunderbolt 1x Thunderbolt™ 4 (40Gbps, USB4, supports 8K display, power charging, and daisy-chaining)
USB Ports Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 1x USB 10Gbps Type-A. Front: 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
LAN Intel® Killer™ E5000 5Gbps LAN
Internal IO Thunderbolt5 card connector, Power Connectors, Fan Headers, RGB LED, TPM pin, USB ports, Front Panel Connectors, Debug LEDs
Wireless LAN & Bluetooth Intel® Killer™ BE1750x Wi-Fi 7 (up to 5.8Gbps, supports 6GHz), Bluetooth® 5.4 (Windows 11 SV3 required for full features)
LED Features 4x EZ Debug LED

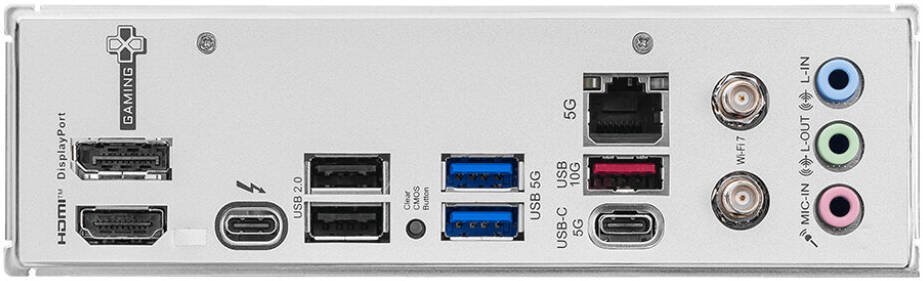

Back Panel Ports HDMI™, DisplayPort, Thunderbolt™ 4 (Type-C), USB (2.0, 5Gbps, 10Gbps), 5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Clear CMOS Button
Operating System Support for Windows® 11 64-bit
Box Content PCB Info: mATX, 243.84mm x 243.84mm
