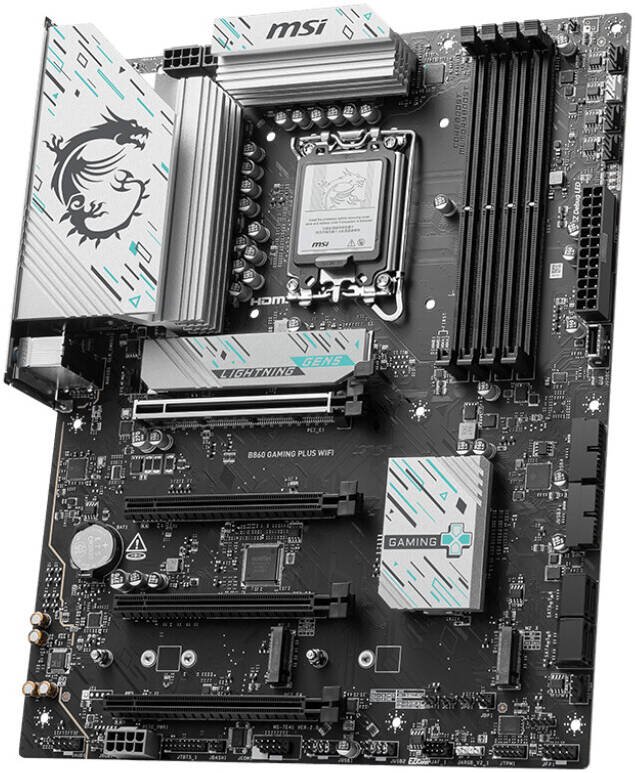

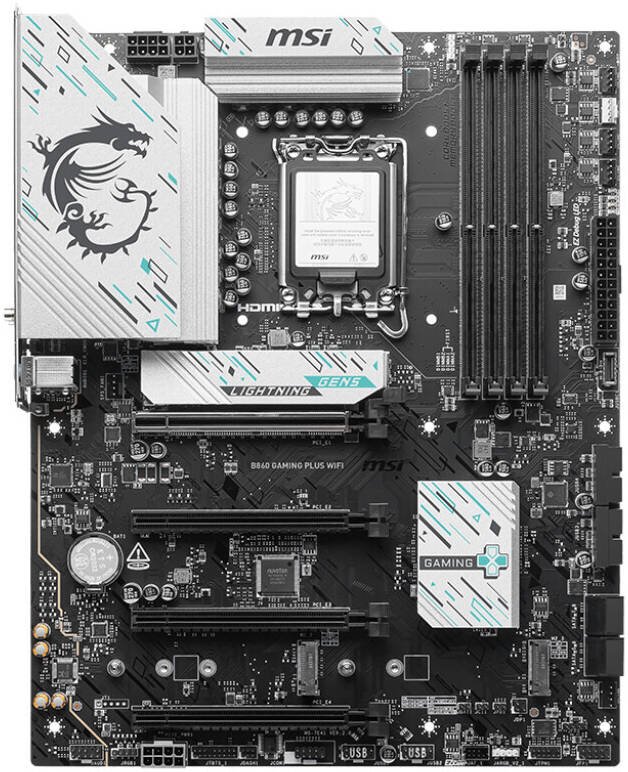

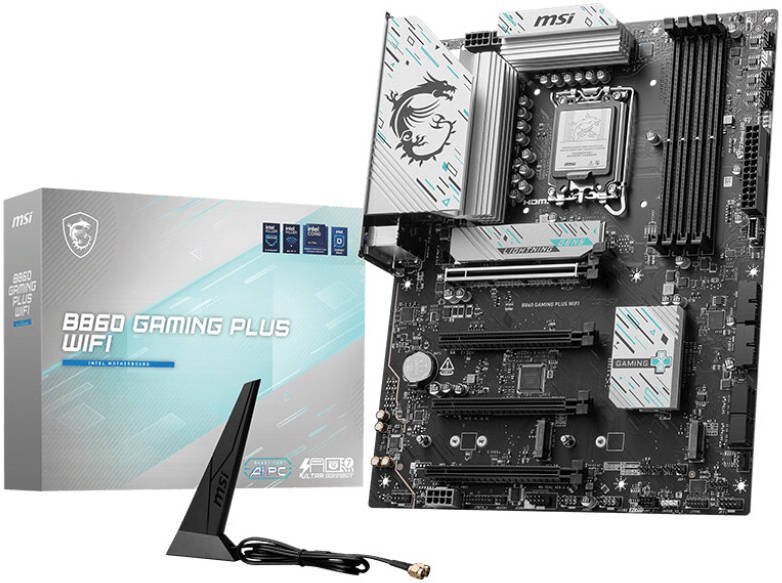

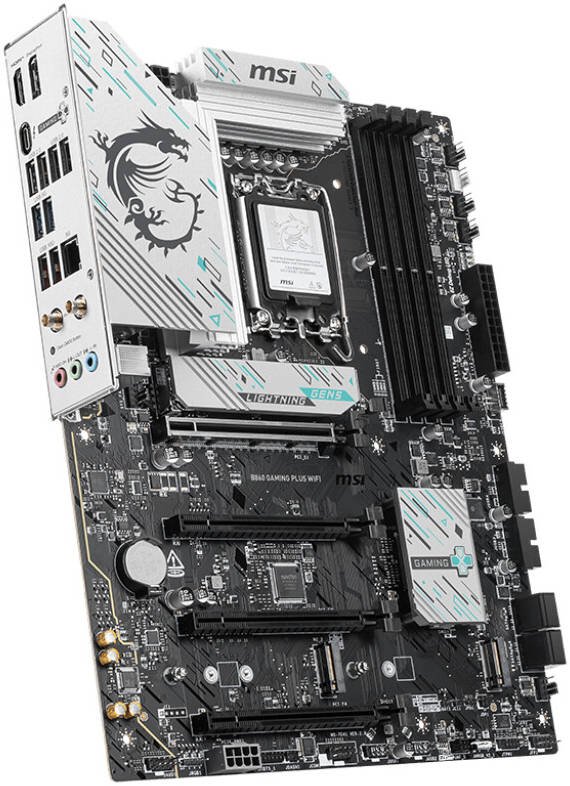

MSI B860 Gaming Plus WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity
910,00 AED
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | INTEL B860 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum 256GB |
| Memory Support | DDR5 8800-6400 (OC) MT/s / 6400-4800 (JEDEC) MT/s |
| Memory Overclocking | Dual-Controller Dual-Channel mode, Intel® XMP 3.0, Non-ECC Un-buffered memory, CUDIMM |
| Onboard Graphics | - 1x HDMI™ 2.1 (4K@60Hz) |
| - 1x DisplayPort 1.4 (4K@60Hz) | |
| - 1x Thunderbolt™ 4 (DisplayPort 2.1, 4K@120Hz / 8K@60Hz) | |
| Slots | 4x PCI-E x16 slots: |
| - PCI_E1: PCIe 5.0 (x16) | |
| - PCI_E2, PCI_E3, PCI_E4: PCIe 4.0 (x1/x4/x1 respectively) | |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 3x M.2 slots: |
| - M.2_1: PCIe 5.0 x4 (2280/2260) | |
| - M.2_2: PCIe 4.0 x4 (2280/2260/2242) | |
| - M.2_3: PCIe 4.0 x2 (2280/2260) | |
| 4x SATA 6G | |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage |
| Thunderbolt™ | 1x Thunderbolt™ 4 (40Gbps, supports USB4, USB 3.2, power charging, daisy-chain, up to 8K display) |
| USB Ports | - Rear: 4x USB 2.0, 2x USB 5Gbps (Type-A), 2x USB 10Gbps (Type-A), Thunderbolt™ 4 |
| - Front: 4x USB 5Gbps (Type-A), 1x USB 10Gbps (Type-C) | |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Internal IO | - Power connectors: ATX_PWR, CPU_PWR (x2), PCIE_PWR |
| - Fans: 1x CPU, 1x Combo (Pump_Sys), 4x System | |
| - RGB connectors: 2x Addressable V2 (JARGB_V2), 1x Standard (JRGB) | |
| - TPM pin header, Front Audio, EZ Conn-header, USB headers | |
| Wireless & Bluetooth | Intel® Killer™ BE1750x Wi-Fi 7 (2.4GHz/5GHz/6GHz, up to 5.8Gbps), Bluetooth® 5.4 |
| LED Features | 4x EZ Debug LEDs |

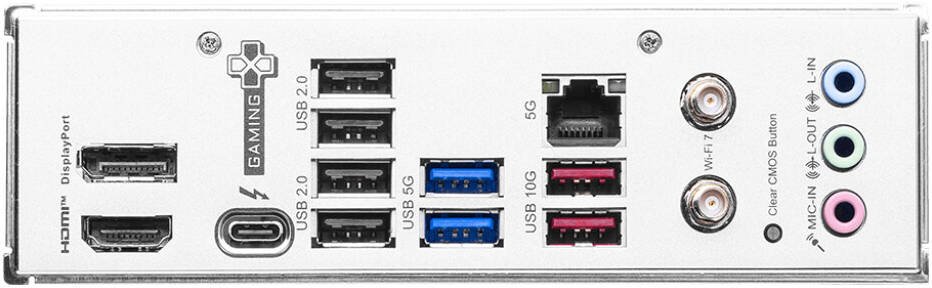

| Back Panel Ports | HDMI™, DisplayPort, Thunderbolt™ 4, USB 2.0, USB 5Gbps, USB 10Gbps, 5G LAN, Wi-Fi/Bluetooth, Clear CMOS Button |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX (243.84mm x 304.8mm) |
