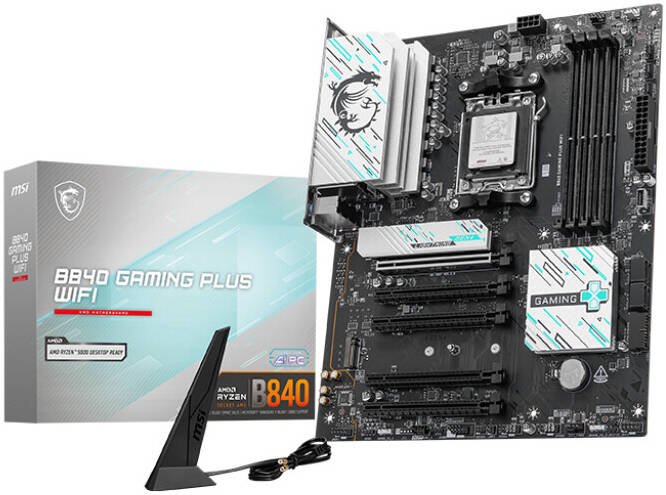

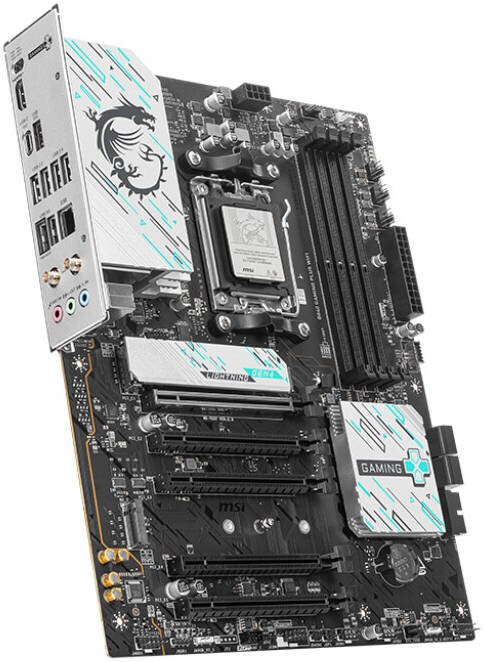

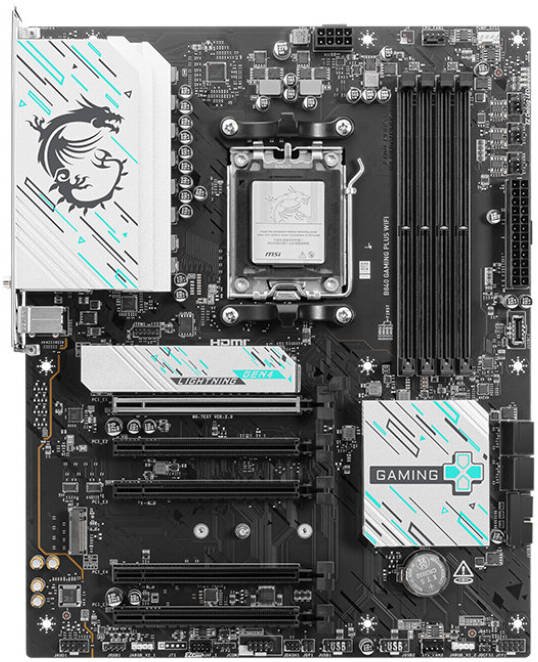

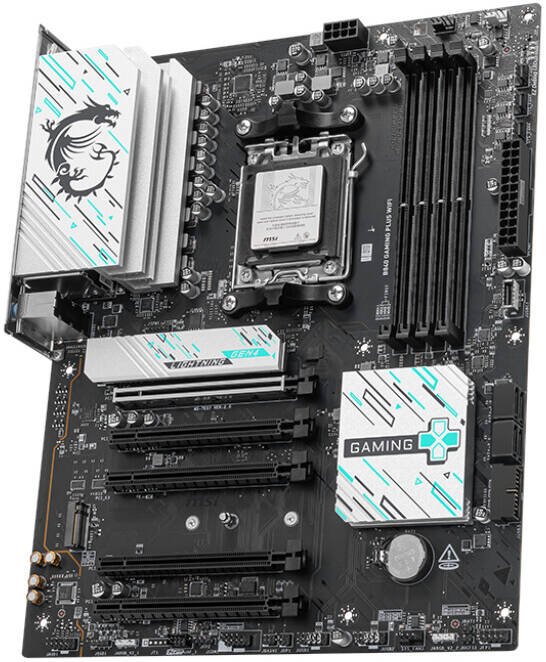

MSI B840 Gaming Plus WiFi AM5 ATX Motherboard, AMD B840 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 5x PCIe x16 Slots, 2x M.2 Slots, WiFi & BT Connectivity

Send Enquiry On Whatsapp
  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Chipset AMD B840
CPU Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors, Socket AM5
Memory 4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8000-5600 (OC), 5600-4800 (JEDEC) MT/s, Dual-Channel, Non-ECC, AMD EXPO™, Memory Overclocking
Onboard Graphics 1x HDMI™ 2.1, Max Resolution: 4K 60Hz (processors with integrated graphics only)
Slots 5x PCI-E x16 (varies by processor), PCIe 4.0/3.0 support
Audio Realtek® ALC897, 7.1-Channel High Definition Audio
Storage 2x M.2 (PCIe 4.0/3.0 support varies by processor), 4x SATA 6G, RAID 0 and 1 for M.2 NVMe storage devices
USB Ports Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C. Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x Type-C
LAN Realtek® 8125BG 2.5G LAN
Internal IO Power Connectors, Fan Headers, RGB LED, TPM pin, USB ports, Front Panel Connectors, Debug LEDs
Wireless LAN & Bluetooth Wi-Fi 7 (up to 5.8Gbps, supports 6GHz), Bluetooth® 5.4 (Windows 11 version 24H2 required for full features)
LED Features 4x EZ Debug LED

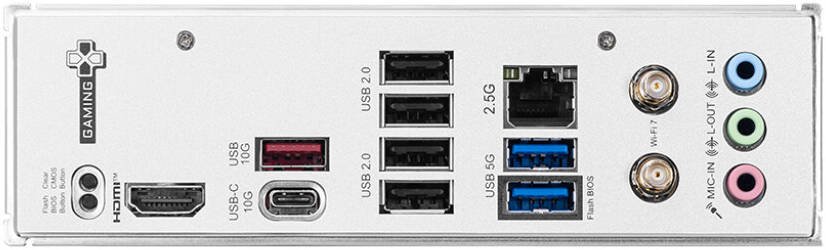

Back Panel Ports Clear CMOS, USB (2.0, 5Gbps, 10Gbps), HDMI™ 2.1, 2.5G LAN, Wi-Fi/Bluetooth, Flash BIOS Button, Audio Connectors
Operating System Support for Windows® 11 64-bit
Box Content PCB Info: ATX, 243.84mm x 304.8mm
