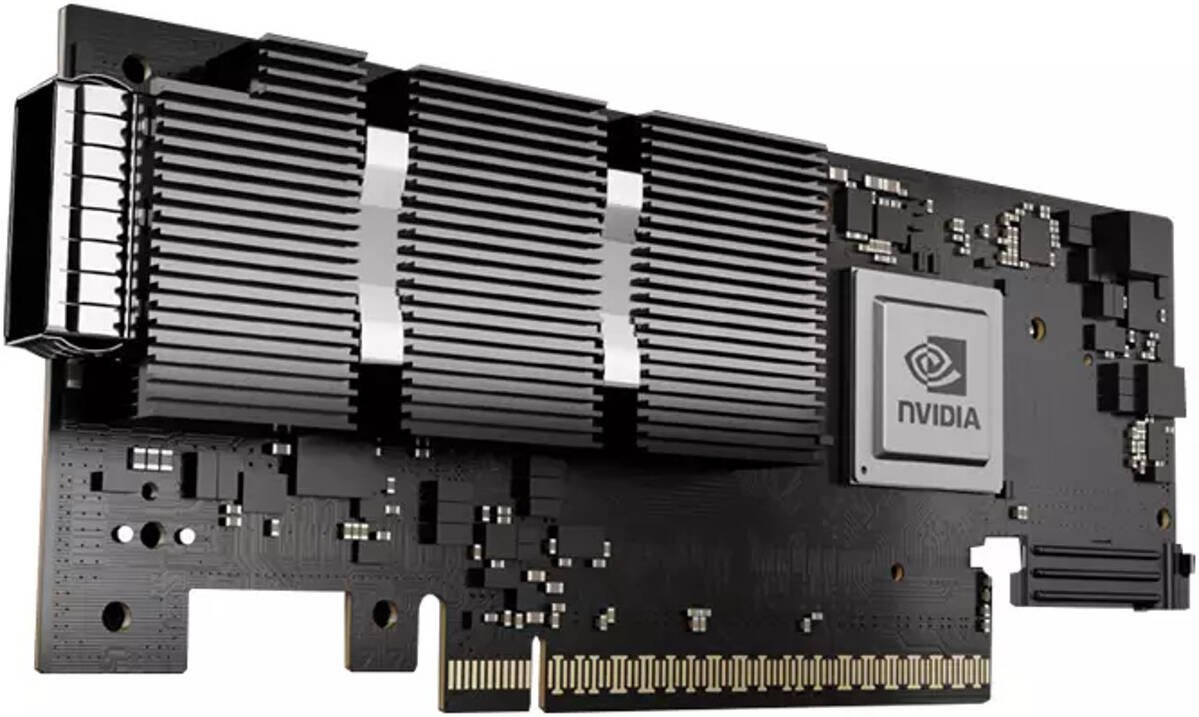

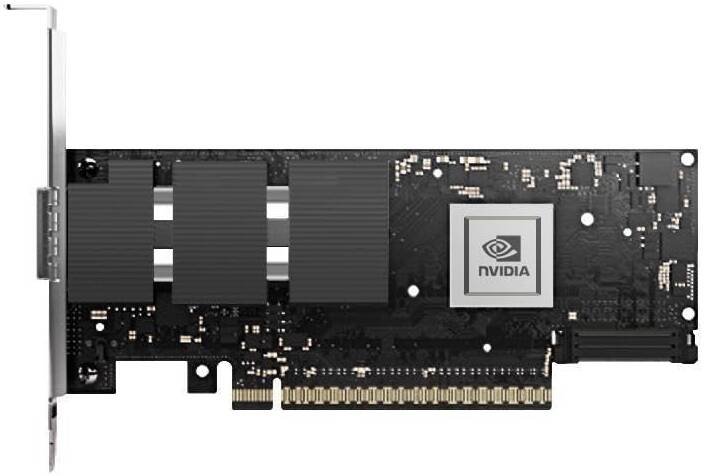

Mellanox MCX75310AAS-NEAT ConnectX-7 InfiniBand/Ethernet Adapter Card, NDR 400Gb/s (Default speed), Single-port OSFP, PCIe x16 Gen 4.0/5.0, Tall Bracket

12.425,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
Adapter Card Size PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
Interfaces
PCI Express Gen 4.0/5.0: SERDES @ 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Networking Port Single OSFP InfiniBand and Ethernet
Data Rate
InfiniBand (Default) NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
Ethernet 400/200/100/50/40/10/1 Gb/s Ethernet
Protocol Support
InfiniBand IBTA v1.5a
Auto-Negotiation NDR, NDR200, HDR, HDR100, EDR, FDR, 1X/2X/4X SDR
Ethernet 400GAUI-4, 200GAUI-2, 200GAUI-4, 100GAUI-2, 100GAUI-1, 50GAUI-2, 50GAUI-1, etc.
Capabilities
MCX75310AAS-NEAT Secure Boot Enabled, Crypto Disabled
Electrical and Thermal
Voltage 12V, 3.3VAUX
Maximum Current 100mA
Typical Power (Passive Cables) 24.9W
Additional Specs Refer to "NVIDIA ConnectX-7 Adapter Card Product Specifications" document
Environmental
Temperature (Operational) 0°C to 55°C
Temperature (Non-operational) -40°C to 70°C
Humidity (Operational) 10% to 85% relative humidity
Humidity (Non-operational) 10% to 90% relative humidity
Altitude (Operational) 3050m
Regulatory
Safety CB / cTUVus / CE
EMC CE / FCC / VCCI / ICES / RCM / KC
RoHS RoHS Compliant
