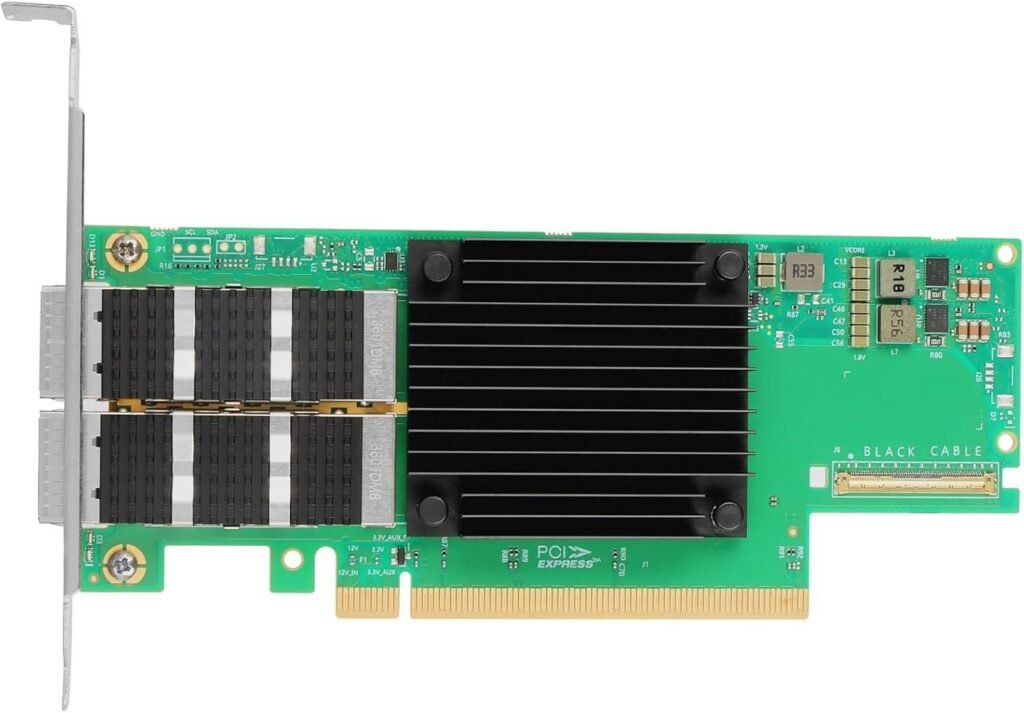

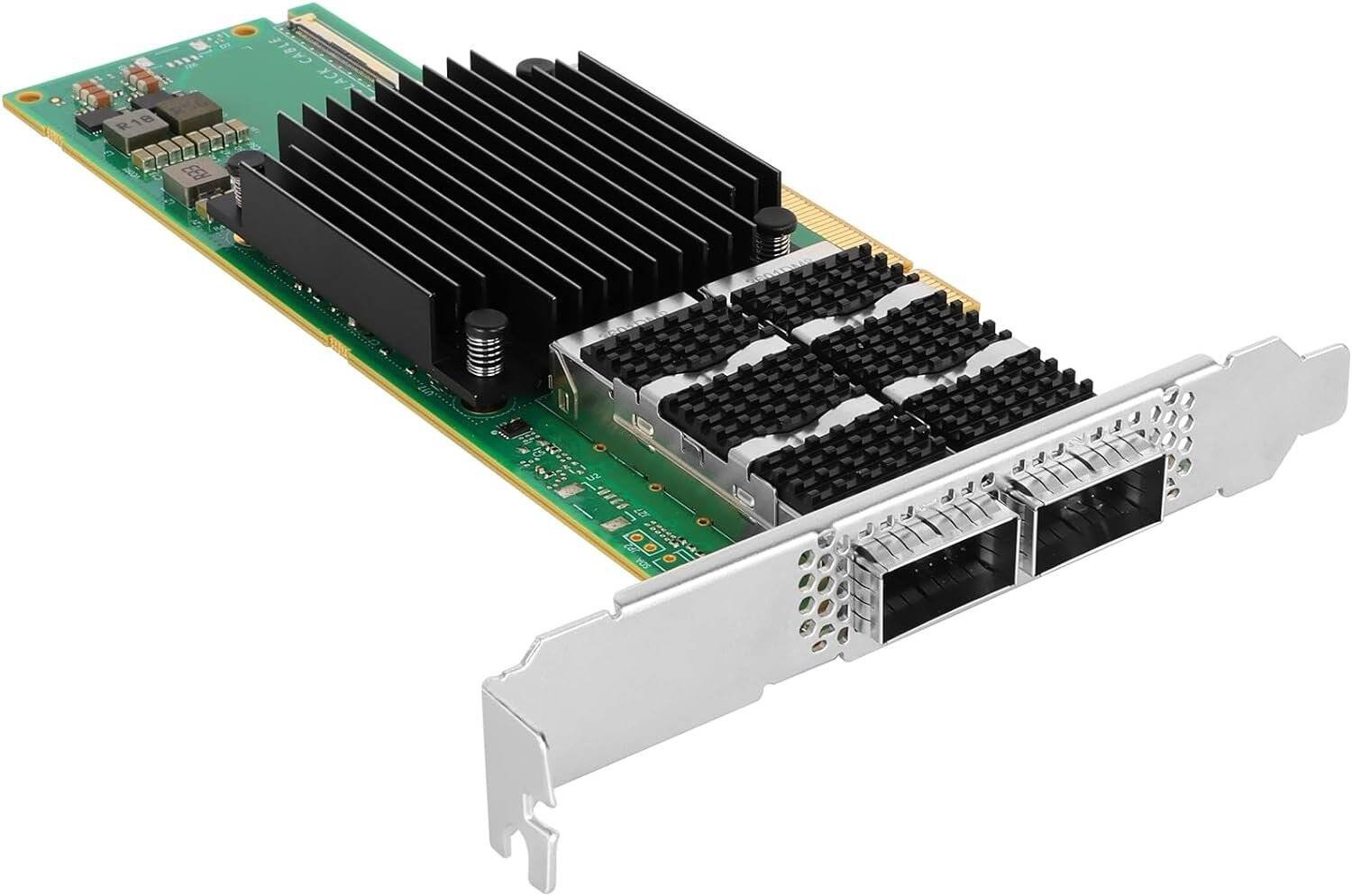

Mellanox MCX653106A-HDAT ConnectX-6 InfiniBand/Ethernet Adapter Card, HDR IB (200Gb/s) & 200GbE, Dual-Port QSFP56, PCIe3.0/4.0 x16, Tall Bracket

10.870,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
Physical
Adapter Card Size 6.6 in. x 2.71 in. (167.65mm x 68.90mm)
Connector Dual QSFP56 InfiniBand and Ethernet (copper and optical)
Protocol Support
InfiniBand IBTA v1.4a
Auto-Negotiation 1X/2X/4X SDR, DDR, QDR, FDR10, FDR, EDR, HDR100, HDR
Ethernet 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, etc.
Data Rate
InfiniBand SDR/DDR/QDR/FDR/EDR/HDR100/HDR
Ethernet 1/10/25/40/50/100/200 Gb/s
PCI Express Gen3/4 SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible)
Power and Airflow
Voltage 3.3V AUX
Maximum Current 100mA
Power
Typical Power (Passive Cables) 23.6W
Maximum Power Refer to ConnectX-6 VPI Power Specifications
Power via QSFP56 Port 5W
Airflow (LFM) / Temperature
Passive Cables (Heatsink to Port) 400 LFM / 55°C
Passive Cables (Port to Heatsink) 300 LFM / 35°C
NVIDIA Active 4.7W Cables (Heatsink to Port) 950 LFM / 55°C
NVIDIA Active 4.7W Cables (Port to Heatsink) 600 LFM / 48°C
NVIDIA Active 4.7W Cables (Port to Heatsink) 300 LFM / 35°C
Environmental
Temperature (Operational) 0°C to 55°C
Temperature (Non-operational) -40°C to 70°C
Humidity (Operational) 10% to 85% relative humidity
Humidity (Non-operational) 10% to 90% relative humidity
Altitude (Operational) 3050m
Regulatory
Safety CB / cTUVus / CE
EMC CE / FCC / VCCI / ICES / RCM / KC
RoHS RoHS Compliant
