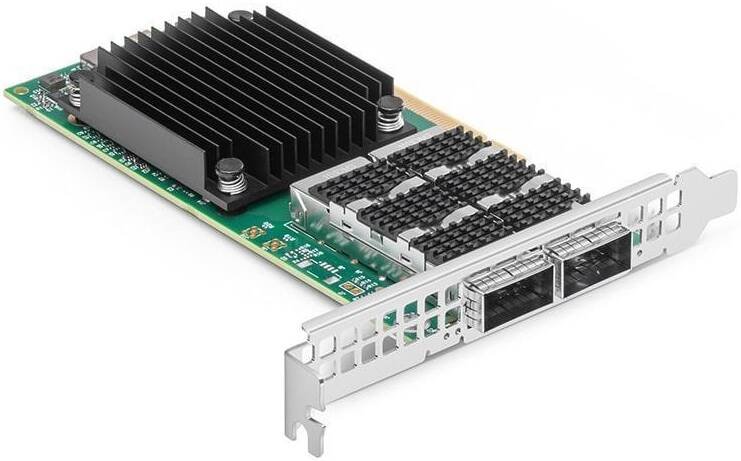

Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter Card, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket

6.655,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
Size 5.59in. x 2.71in. (142.00mm x 68.90mm)
Connector Dual QSFP56 Ethernet (copper and optical)
Data Rate Ethernet - 1/10/25/40/50/100 Gb/s
Protocol Support
Ethernet 100GBASE-CR2, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, etc.
PCI Express Gen 3.0/4.0 SerDes @ 16.0 GT/s, 16 lanes (2.0 and 1.1 compatible)
Capabilities
Crypto Disabled
Secure Boot Enabled
Power and Airflow
Typical Power Passive Cables: 18.7W (PCIe Gen 3.0), 19.52W (PCIe Gen 4.0)
Maximum Power Passive Cables: 25.28W (PCIe Gen 3.0), 26.64W (PCIe Gen 4.0)
Power via QSFP56 Port 5W (each port)
Voltage 3.3V AUX
Maximum Current 100mA
Airflow Requirements Passive Cables: 550 LFM (hot aisle - heatsink to port)
Active 2.5W Cable: 700 LFM (hot aisle - heatsink to port)
Environmental
Temperature (Operational) 0°C to 55°C
Temperature (Non-operational) -40°C to 70°C
Humidity (Operational) 10% to 85% relative humidity
Humidity (Non-operational) -10% to 90% relative humidity
Altitude (Operational) 3050m
Regulatory
Compliance RoHS Compliant
