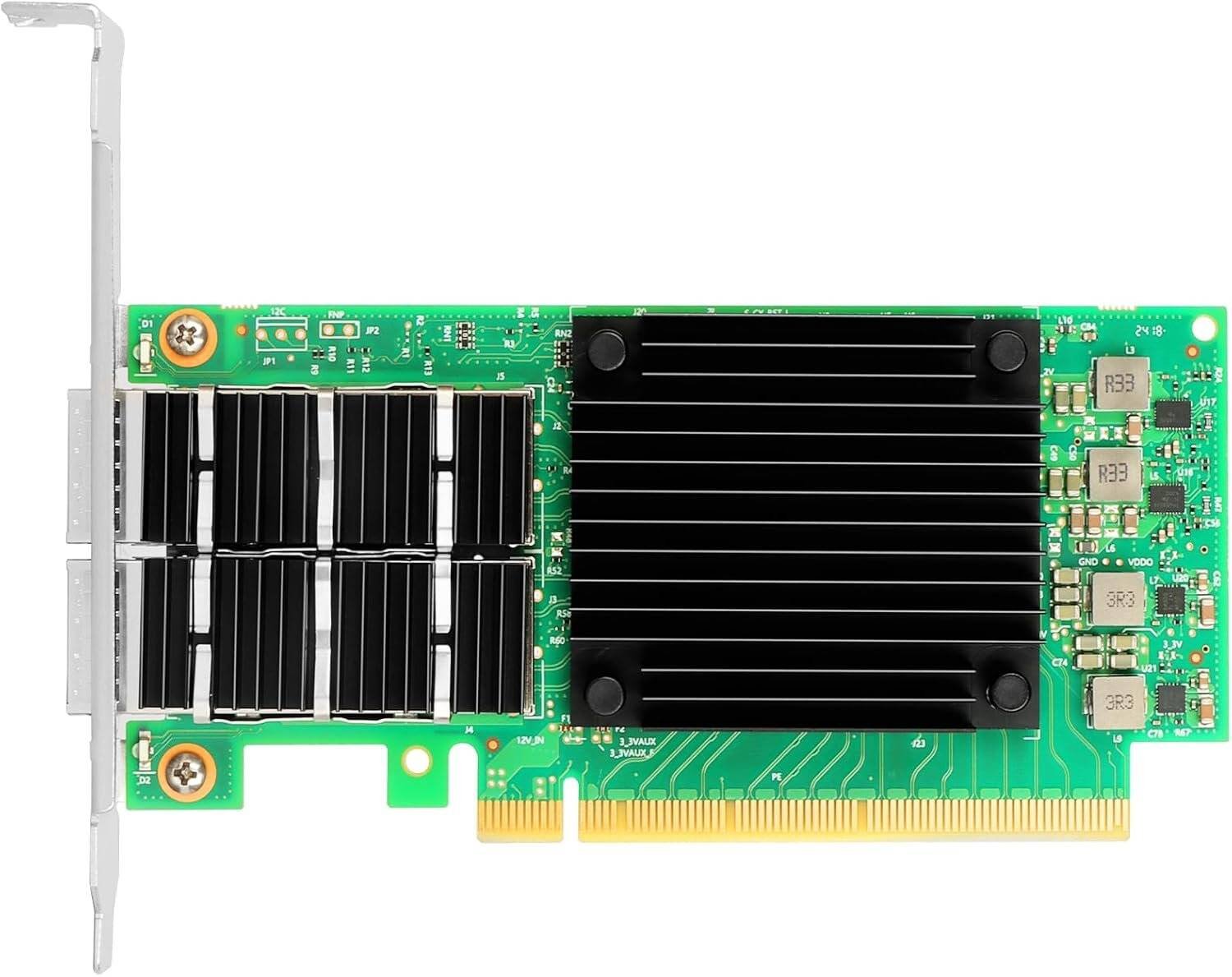

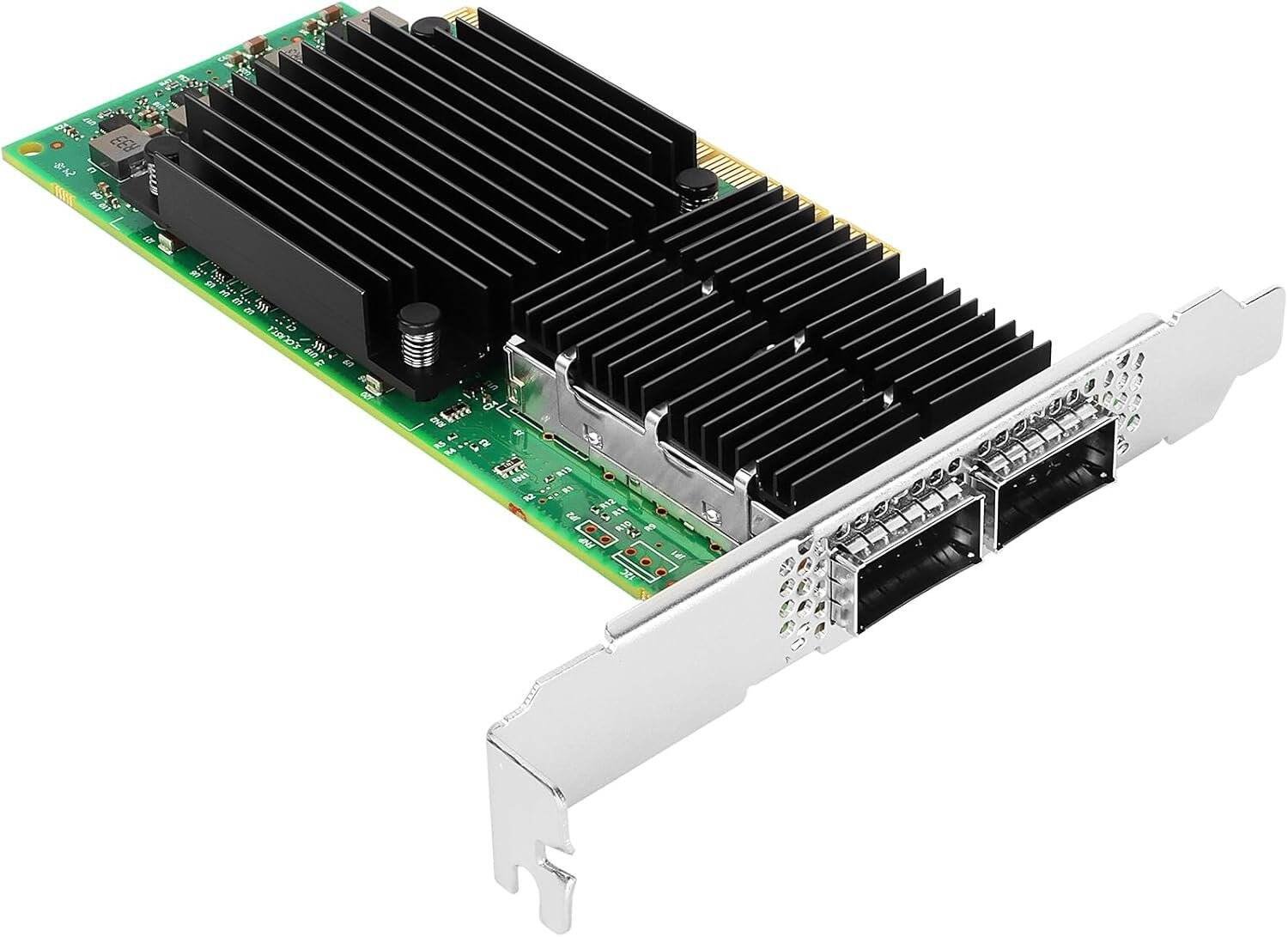

Mellanox MCX556A-EDAT ConnectX-5 Ex InfiniBand/Ethernet Adapter Card, EDR IB (100Gb/s) & 100GbE, Dual-Port QSFP28, PCIe 4.0 x16, Tall Bracket

7.898,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
Size 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile
Connector Dual QSFP28 InfiniBand and Ethernet (copper and optical)
Protocol Support
InfiniBand IBTA v1.3a
Auto-Negotiation 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane)
Ethernet 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
Data Rate
InfiniBand SDR/DDR/QDR/FDR/EDR
Ethernet 1/10/25/40/50/100 Gb/s
PCI Express Gen4 SERDES @ 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Power
Voltage 12V
Power
Cable Type Typical Power
Passive Cables 19.3W
Maximum Power
Passive Cables 23.4W
1.5W Active Cables 26.8W
2.5W Active Cables 29.0W
Maximum Power (QSFP28 Port) 5W
Environmental
Temperature (Operational) 0°C to 55°C
Temperature (Non-operational) -40°C to 70°C
Humidity (Operational) 10% to 85% relative humidity
Humidity (Non-operational) 10% to 90% relative humidity
Altitude (Operational) 3050m
Airflow See Airflow Specifications
Regulatory
Safety CB / cTUVus / CE
EMC CE / FCC / VCCI / ICES / RCM
RoHS RoHS-R6
