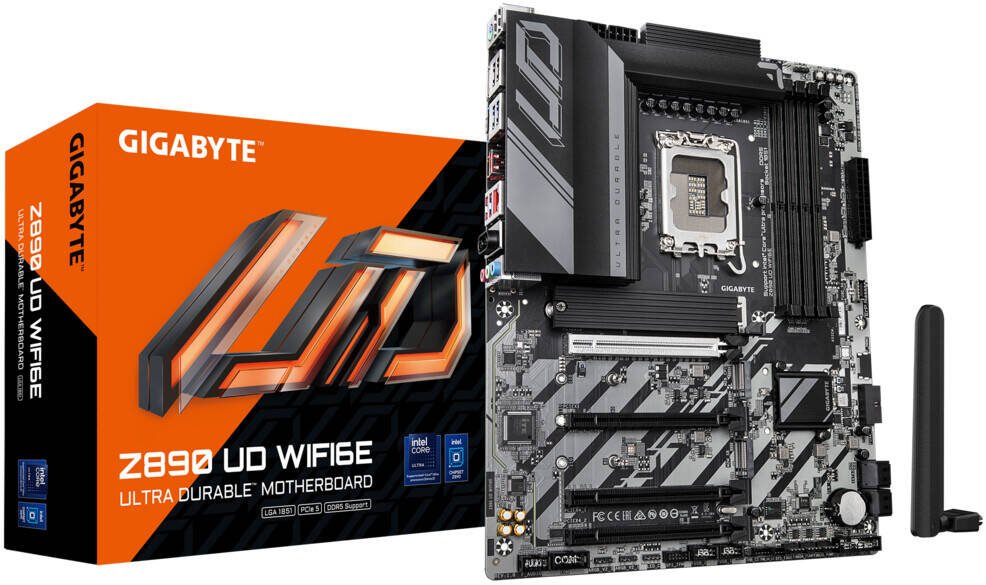

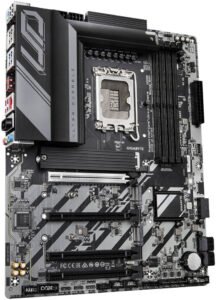

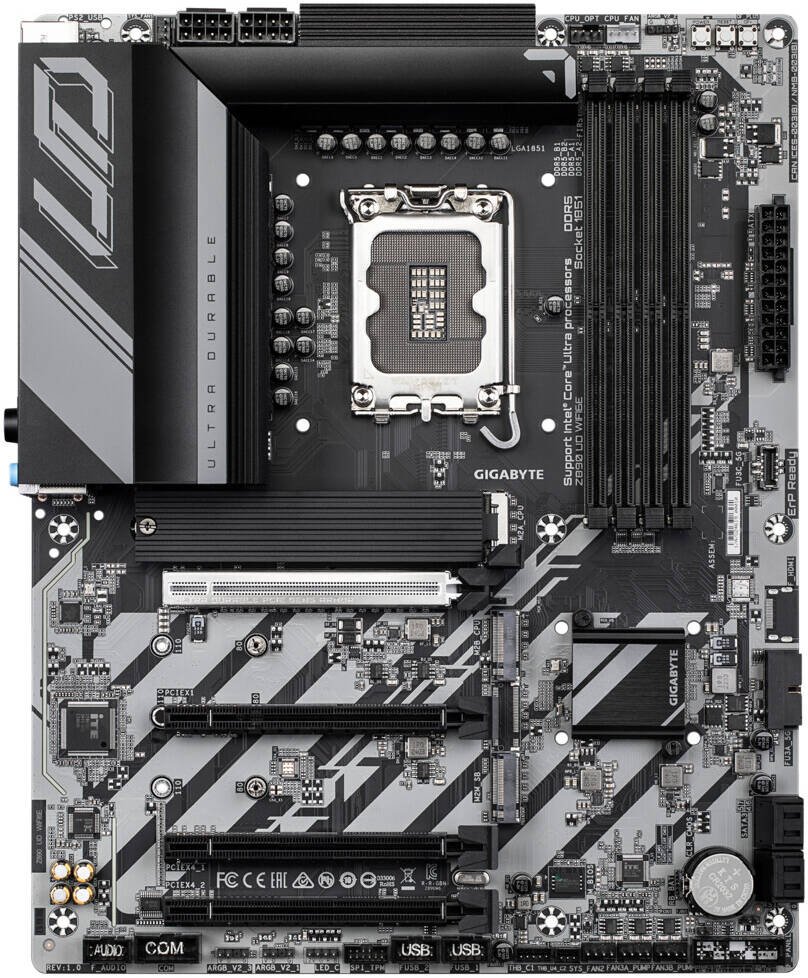

GIGABYTE Z890 UD WIFI6E, LGA 1851 ATX Motherboard, Intel Z890 Express Chipset, For Intel Core Ultra Processors (Series 2), DDR5, Up To 256GB RAM, 1x PCIe 5.0 x16 Slot, 4x M.2 Slots
1.075,00 AED
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
| CPU Support | LGA1851 socket: Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory Support | - DDR5 9200(O.C) to 6400/6200/6000/5800/5600MT/s memory support |
| - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) | |
| - Dual-channel architecture, supports ECC and non-ECC Un-buffered DIMM memory | |
| Graphics | Integrated Intel® HD Graphics |
| - 1 x USB4® USB Type-C® supporting 3840x2160@144Hz DisplayPort video output | |
| - 1 x DisplayPort supporting 3840x2160@144Hz | |
| Audio | Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1-channel audio |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | Intel® Wi-Fi 6E AX211 or Realtek® RTL8852CE with Bluetooth 5.3, 2.4/5/6 GHz, 11ax 160MHz wireless standard |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (for graphics card or NVMe SSD) |
| Chipset: 2 x PCIe 4.0 x16 slots (x4) and 1 x PCIe 4.0 x16 slot (x1) | |
| Storage Interface | - 1 x M.2 PCIe 5.0 x4 SSD slot, 1 x M.2 PCIe 4.0 x4 SSD slot (CPU side) |
| - Chipset: 1 x M.2 SATA/PCIe 4.0 x4 SSD slot, 4 x SATA 6Gb/s connectors | |
| - RAID 0, 1, 5, 10 support | |
| USB Ports | - 1 x USB4® USB Type-C® port on the back panel |
| - Chipset: 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1 ports, 8 x USB 2.0/1.1 ports | |
| Internal I/O Connectors | Multiple headers for power, fans, RGB LED strips, USB, and Thunderbolt™ add-in cards |

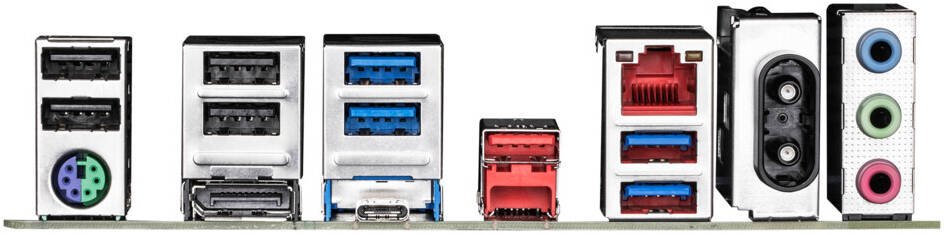

| Back Panel Connectors | - 4 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 1 x DisplayPort, 4 x USB 3.2 Gen 1, 1 x USB4® Type-C®, 1 x USB 3.2 Gen 2 (red) |
| - 1 x RJ-45 LAN port, 2 x SMA antenna connectors, 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, and water cooling flow rate detection; fan fail warning |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, supports Q-Flash, Q-Flash Plus, and Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System Support | Windows 11 64-bit |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup |
