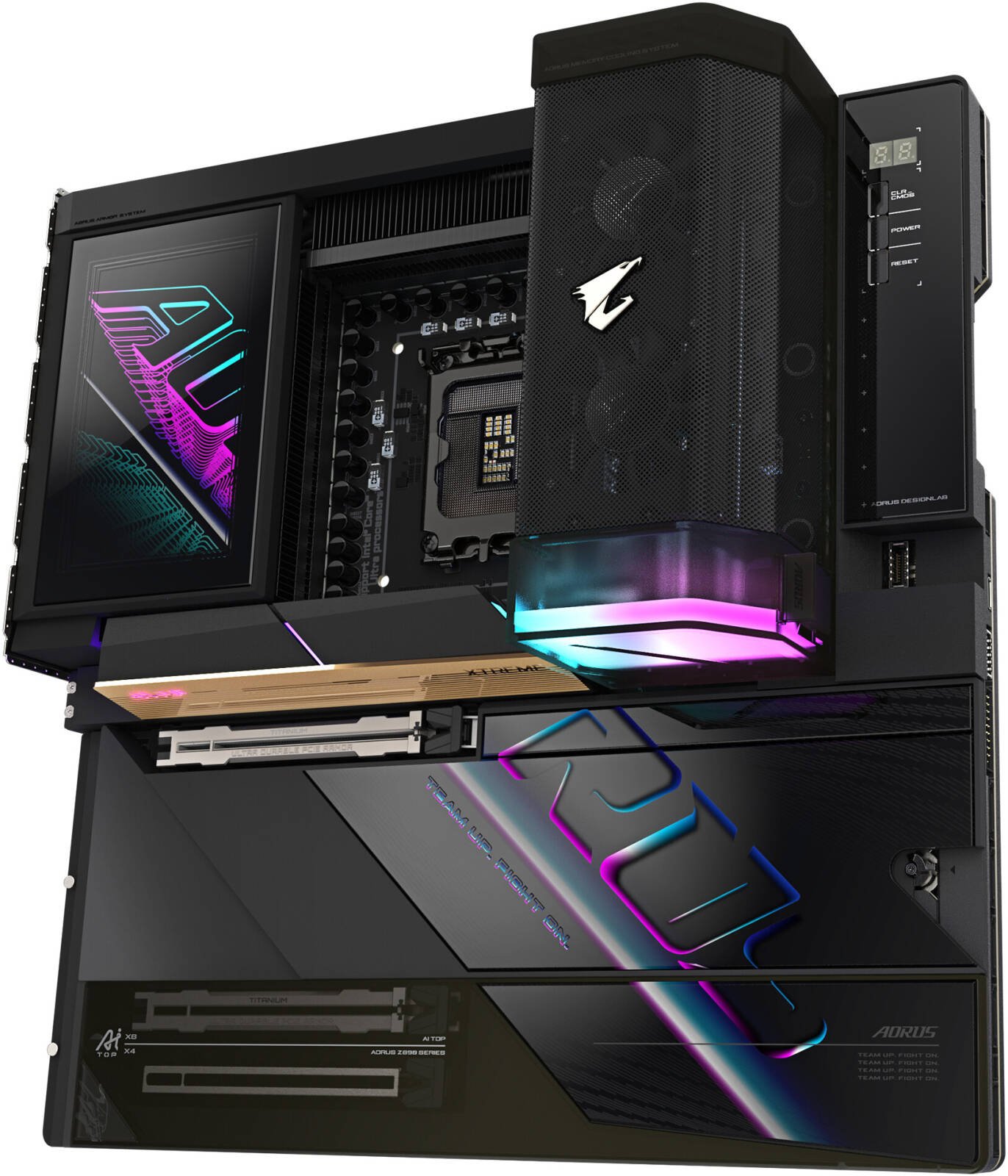

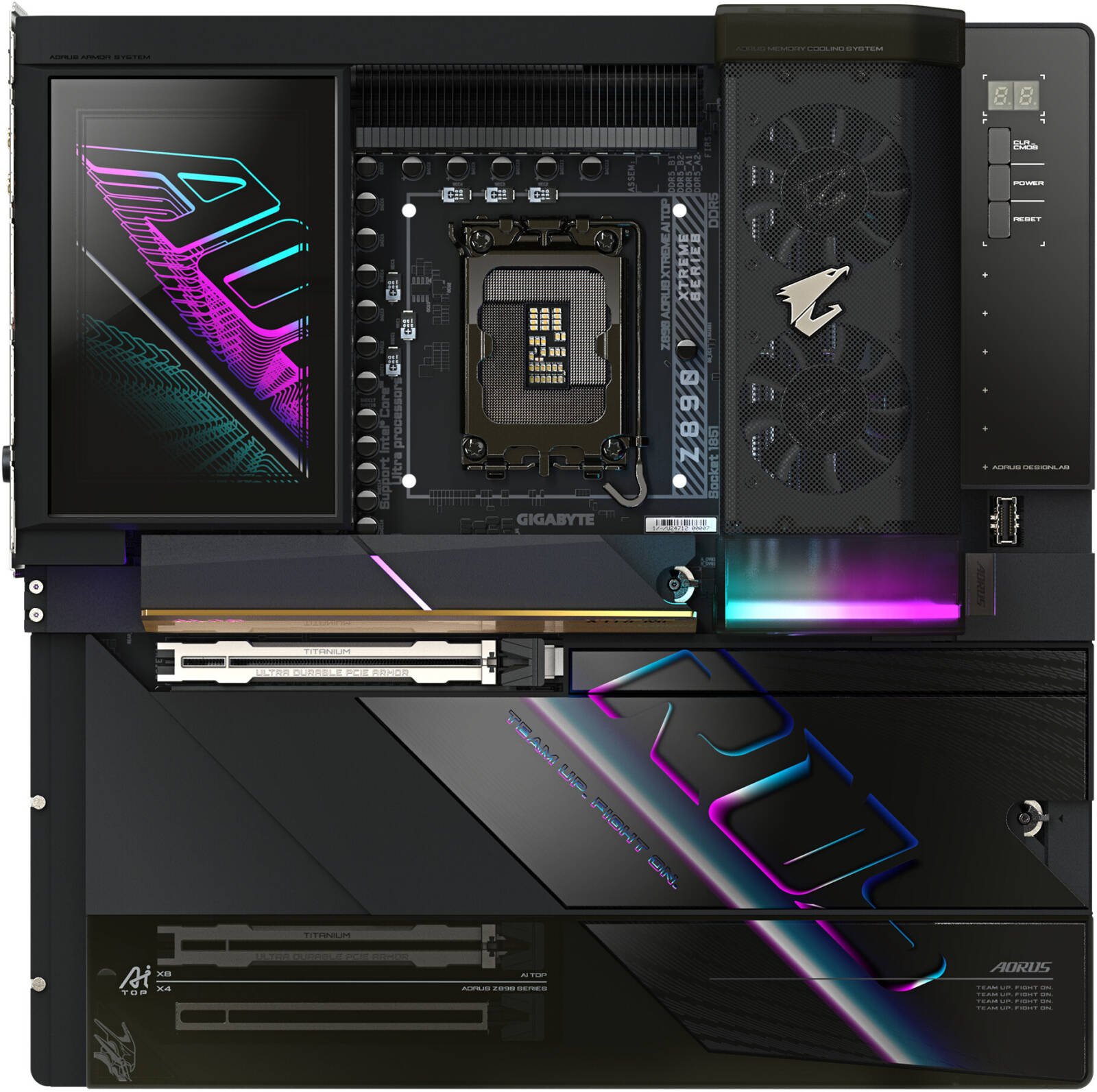

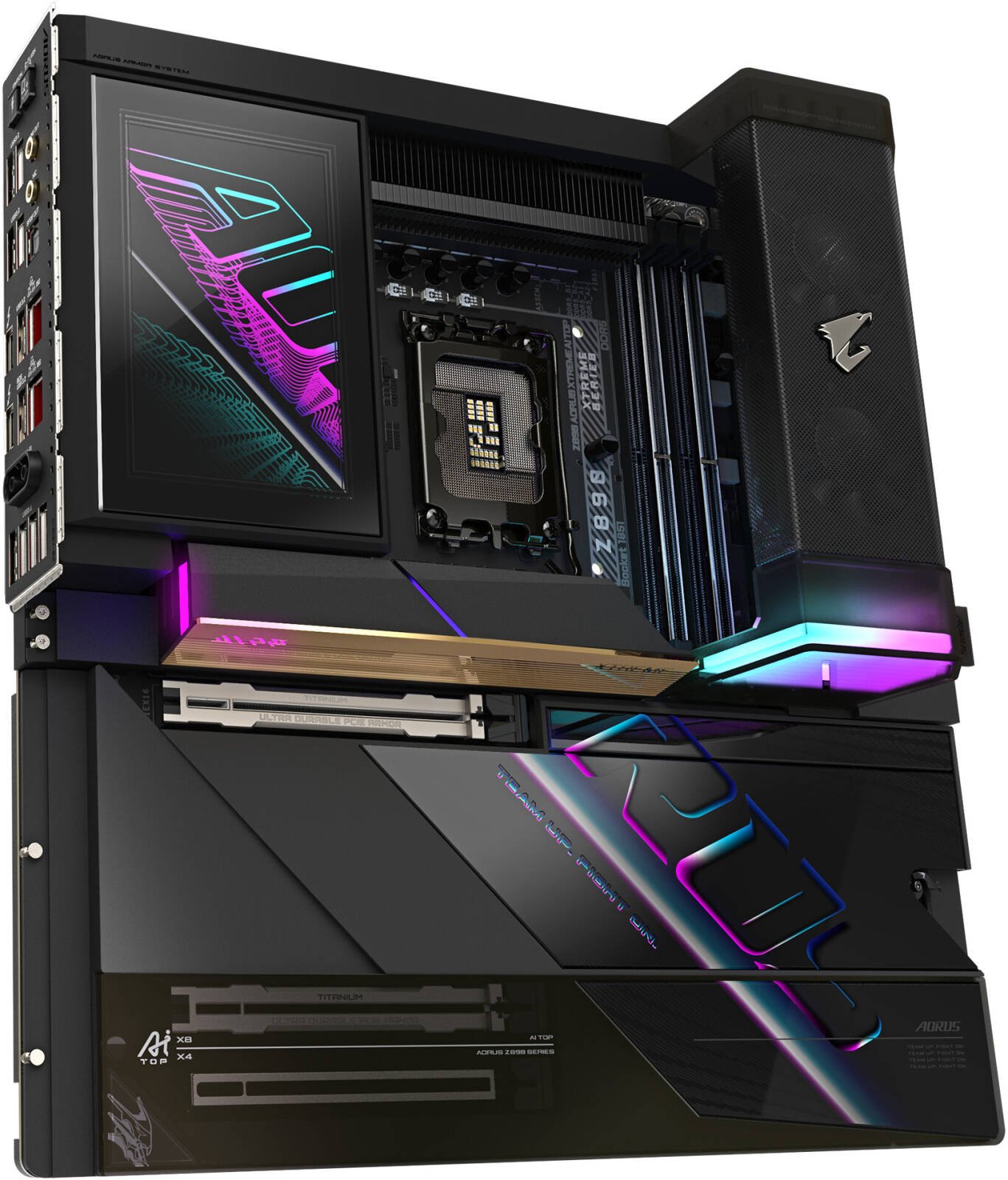

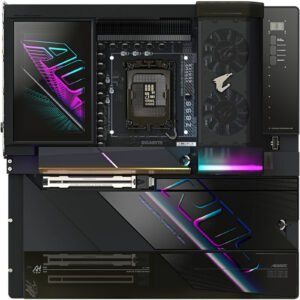

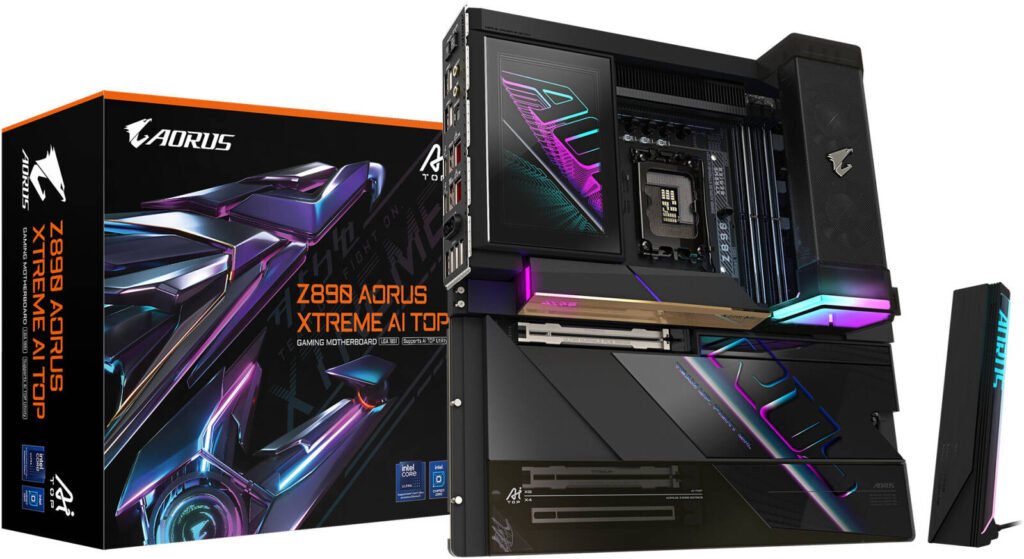

GIGABYTE Z890 Aorus XTREME AI TOP LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16, 4x M.2 Slots

4.725,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Ultimate Scalability​ : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
  • Next-gen Connectivity: Dual THUNDERBOLT™ 5 and THUNDERBOLT™ 4 Type-C with DP-Alt
  • Premium Compatibility: 4*DDR5 with XMP Memory Module Support
  • DDR Wind Blade XTREME: Enhanced Active Cooling for Memory Modules
  • DTS:X® Ultra Audio: ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • Titanium PCIe UD Slot X: PCIe 5.0 x16 slot with titanium for ultimate protection of graphics cards
CPU LGA1851 socket: Supports Intel® Core™ Ultra Processors; L3 cache varies with CPU (Refer to "CPU Support List" for more details)
Chipset Intel® Z890 Express Chipset
Memory DDR5 up to 9500MT/s (O.C); 4 x DIMM slots, max 256GB; Dual-channel; ECC/Non-ECC un-buffered DIMMs; XMP and CUDIMM support (Refer to "Memory Support List" for compatibility)
Onboard Graphics Intel® Thunderbolt™ 5 Controller: 2x USB4 (Type-C) ports, up to 7680x4320@60Hz; Intel® HD Graphics: Thunderbolt™ 4 (Type-C) port, up to 5120x2880@60Hz
Audio ESS ES9280AC + 2x ES9080 chips; DTS® Sound Unbound™, 2-channel HD Audio, S/PDIF Out
LAN Dual Marvell® AQtion AQC113C 10GbE LAN chips

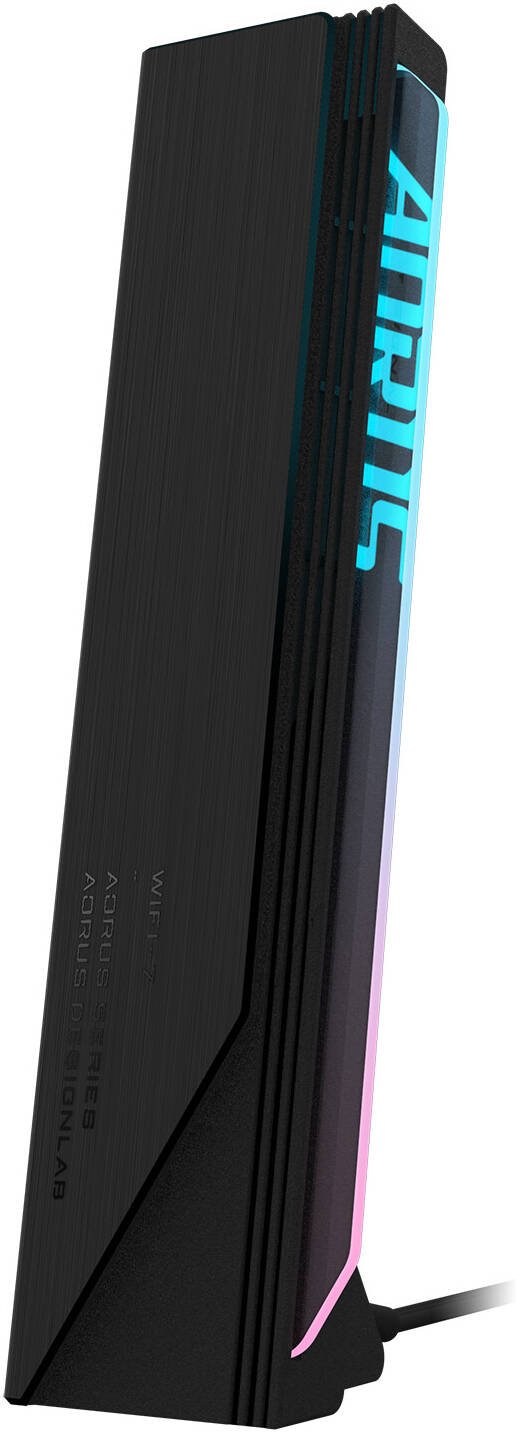

Wireless Intel® Wi-Fi 7 BE200NGW (2.4/5/6 GHz, Bluetooth 5.4); Requires Windows 11 SV3
Expansion Slots CPU: 1x PCIe 5.0 x16, 1x PCIe 5.0 x8 (shares bandwidth with x16); Chipset: 1x PCIe 4.0 x4 (shared with M2L_SB)
Storage Interface CPU: 1x PCIe 5.0 x4 M.2, 1x PCIe 4.0 x4 M.2; Chipset: 1x PCIe 4.0 x4 M.2, 1x SATA+PCIe 4.0 M.2, 4x SATA 6Gb/s; RAID 0/1/5/10 support
USB 2x Thunderbolt™ 5 (USB-C, 80Gbps); 10x USB 3.2 Gen 2 Type-A (rear); 1x USB 3.2 Gen 2x2 Type-C (onboard); 4x USB 2.0 (internal headers)
Internal I/O 24-pin ATX, 2x 8-pin ATX 12V, 4x SATA 6Gb/s, 4x M.2 slots, multiple fan/pump headers, RGB/LED headers, power/reset buttons, noise/temp sensors

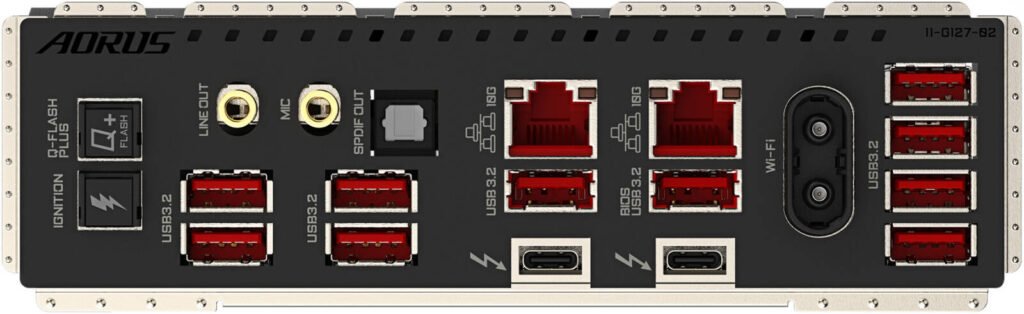

Back Panel 2x Thunderbolt™ 5 (USB-C), 10x USB 3.2 Gen 2, 2x RJ-45, 2x audio jacks, S/PDIF Out, 2x antenna connectors, Q-Flash Plus button
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, and water cooling flow rate detection; Fan speed control (fan-dependent)
BIOS 256 Mbit flash, AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup support
Unique Features GIGABYTE Control Center (GCC), Norton® Internet Security (OEM), LAN management software
OS Support Windows 11 64-bit (version 24H2 or later)
Form Factor E-ATX (30.48cm x 30.5cm)
