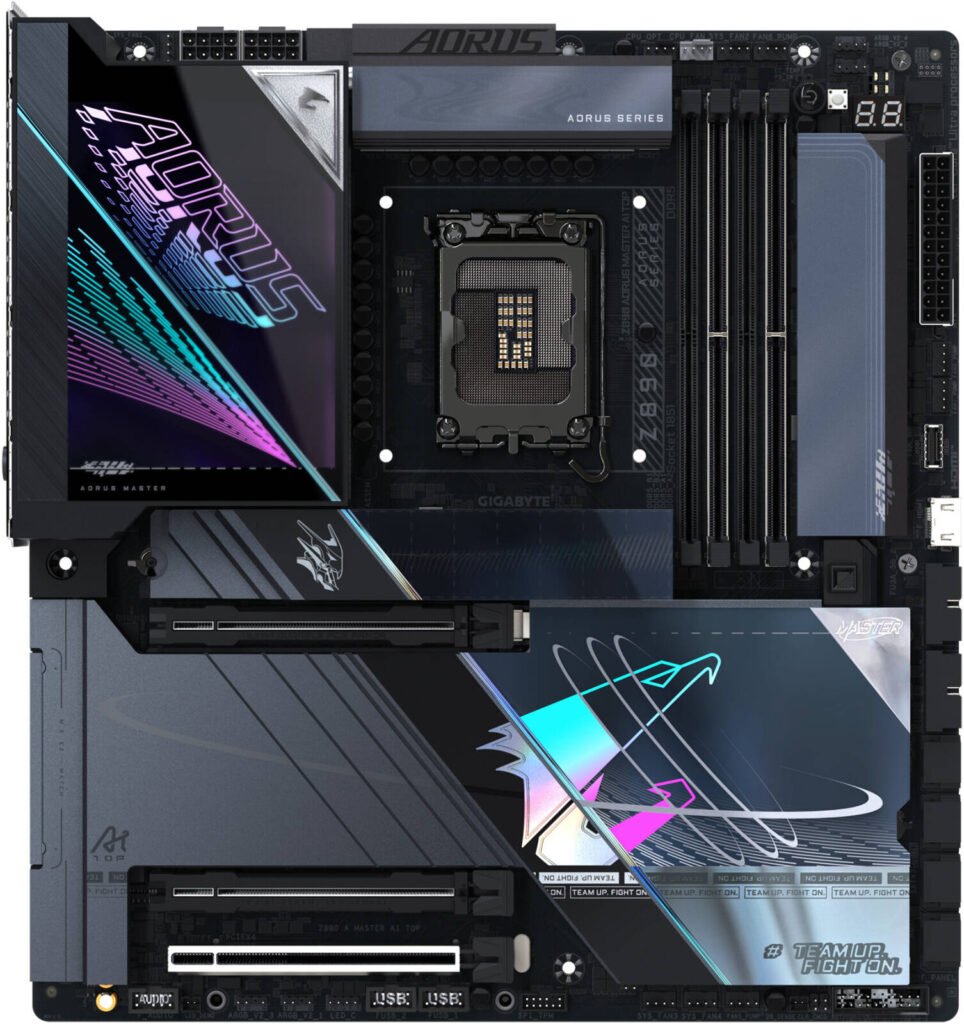

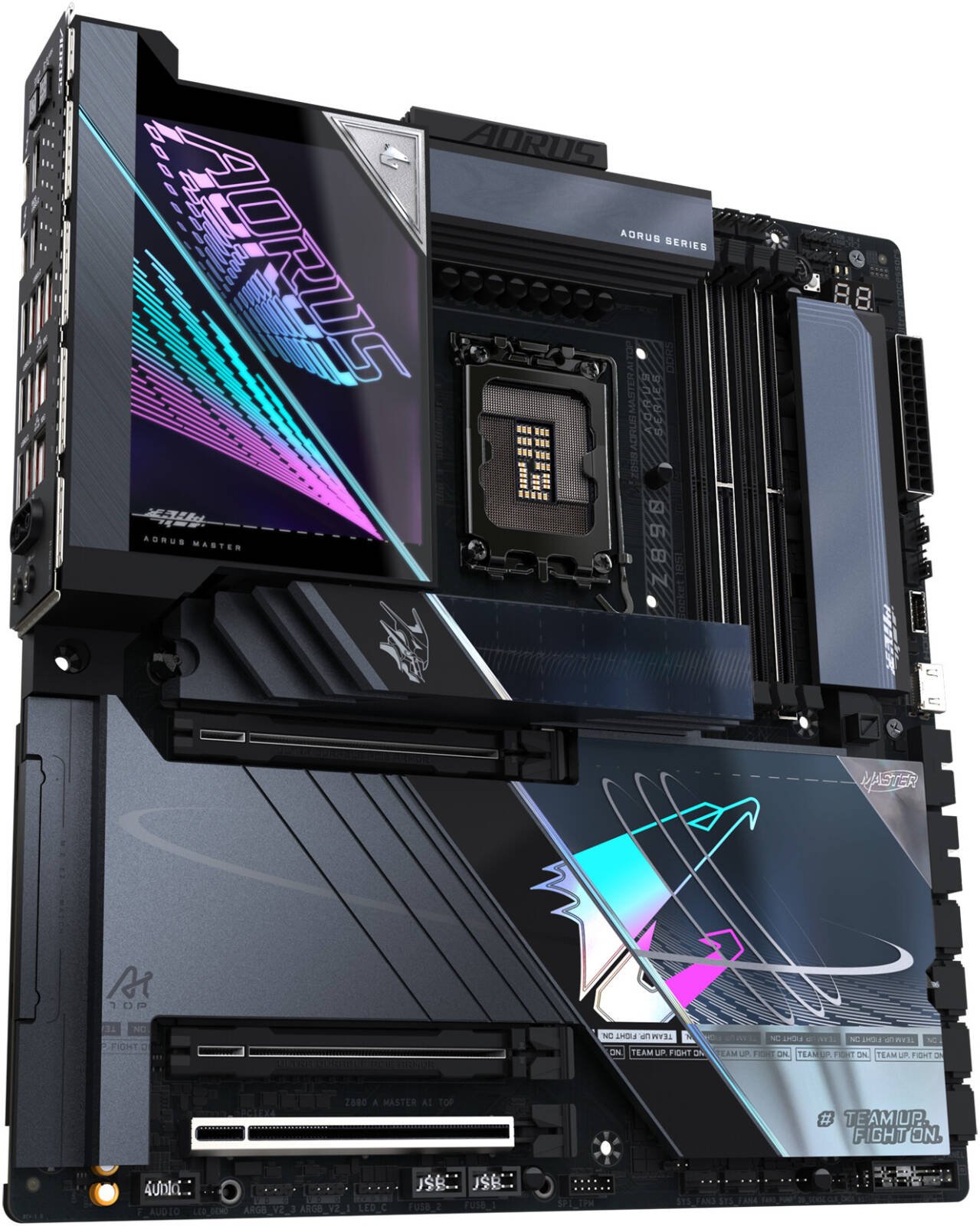

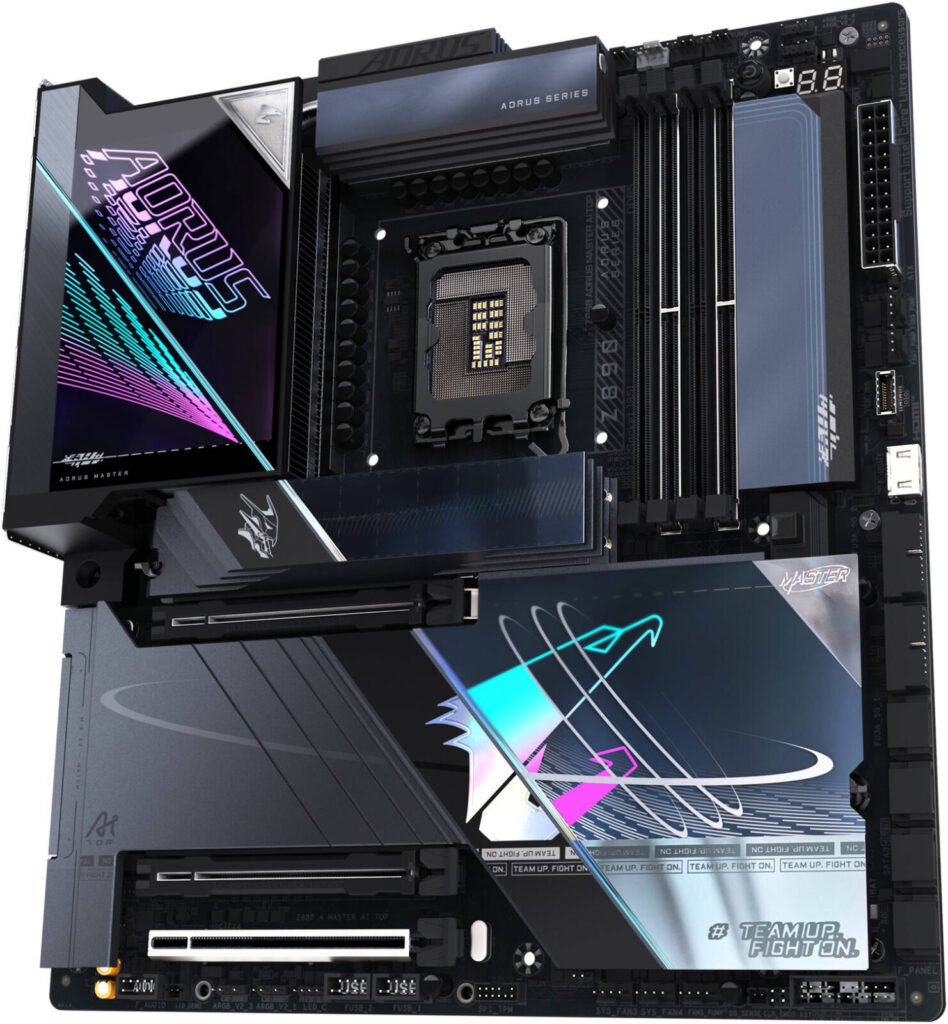

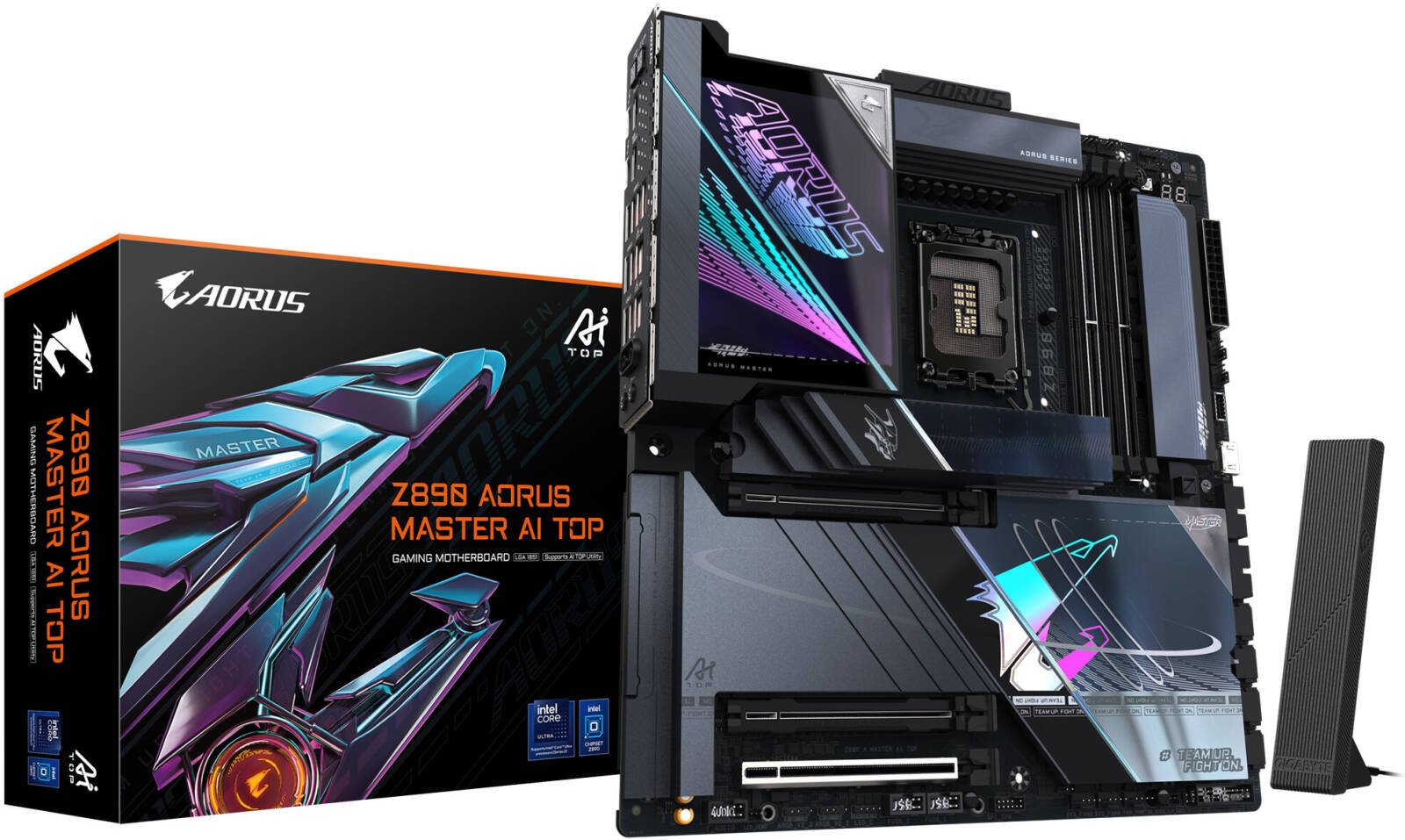

GIGABYTE Z890 Aorus Master AI TOP LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16 Slot, 4x M.2 Slots

3.250,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
  • Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
  • Premium Compatibility : 4*DDR5 with XMP Memory Module Support
  • DTS:X® Ultra Audio : ESS ES9280 and ESS SABRE Hi-Fi 9118 DAC
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU. Refer to "CPU Support List" for more details.
Chipset Intel® Z890 Express Chipset
Memory Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s memory modules.
4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM capacity)
Supports ECC and non-ECC Un-buffered DIMM, XMP, and CUDIMM memory modules.
Onboard Graphics Integrated Graphics Processor with Intel® Thunderbolt™ 4 support:
2 x Thunderbolt™ 4 connectors (USB4® USB Type-C® ports) supporting DisplayPort and Thunderbolt™ video outputs.
Maximum resolution: 5120x2880@60Hz (Thunderbolt monitor); 3840x2160@240Hz (USB4 monitor)
1 x Front HDMI port (1920x1080@30Hz). Supports HDMI 1.4 version.
Triple-display support.
DisplayPort 2.1 and HDCP 2.3 support.
* Graphics specifications vary by CPU.
Audio ESS ES9280 chip (rear panel audio) with DTS:X® Ultra, 2-channel, and High Definition Audio.
ESS ES9118 DAC chip (front panel audio).
LAN 2 x Marvell® AQtion AQC113C 10GbE LAN chips (10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps).
Wireless Intel® Wi-Fi 7 BE200NGW with 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz bands) and Bluetooth 5.4.
Wi-Fi 7 requires Windows 11 SV3; channels on 6 GHz depend on regional regulations.
Expansion Slots CPU:
1 x PCIe x16 slot (PCIe 5.0, x16)
1 x PCIe x16 slot (PCIe 5.0, x8; shares bandwidth with PCIe x16 slot).
Chipset:
1 x PCIe x16 slot (PCIe 4.0, x4).
Storage CPU:
1 x M.2 (PCIe 5.0 x4) (M2A_CPU)
1 x M.2 (PCIe 4.0 x4) (M2B_CPU).
Chipset:
1 x M.2 (PCIe 4.0 x4) (M2Q_SB)
1 x M.2 (SATA + PCIe 4.0 x4) (M2M_SB)
4 x SATA 6Gb/s connectors.
RAID 0, 1, 5, and 10 support for NVMe and SATA devices.
USB CPU:
2 x Thunderbolt™ 4 (USB Type-C®) ports (40Gbps/20Gbps/10Gbps).
Chipset:
6 x USB 3.2 Gen 2 Type-A (red)
1 x USB Type-C® (USB 3.2 Gen 2x2, internal header)
4 x USB 3.2 Gen 1 (internal headers)
4 x USB 2.0/1.1 (internal headers).
Internal I/O 1 x 24-pin ATX main power, 2 x 8-pin ATX 12V power connectors, 4 x system fan headers, 4 x M.2 sockets, 4 x SATA connectors, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers, RGB and fan extension headers, and more.

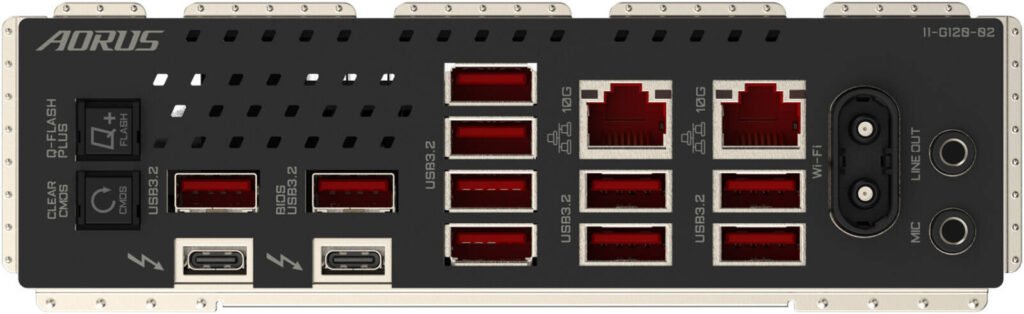

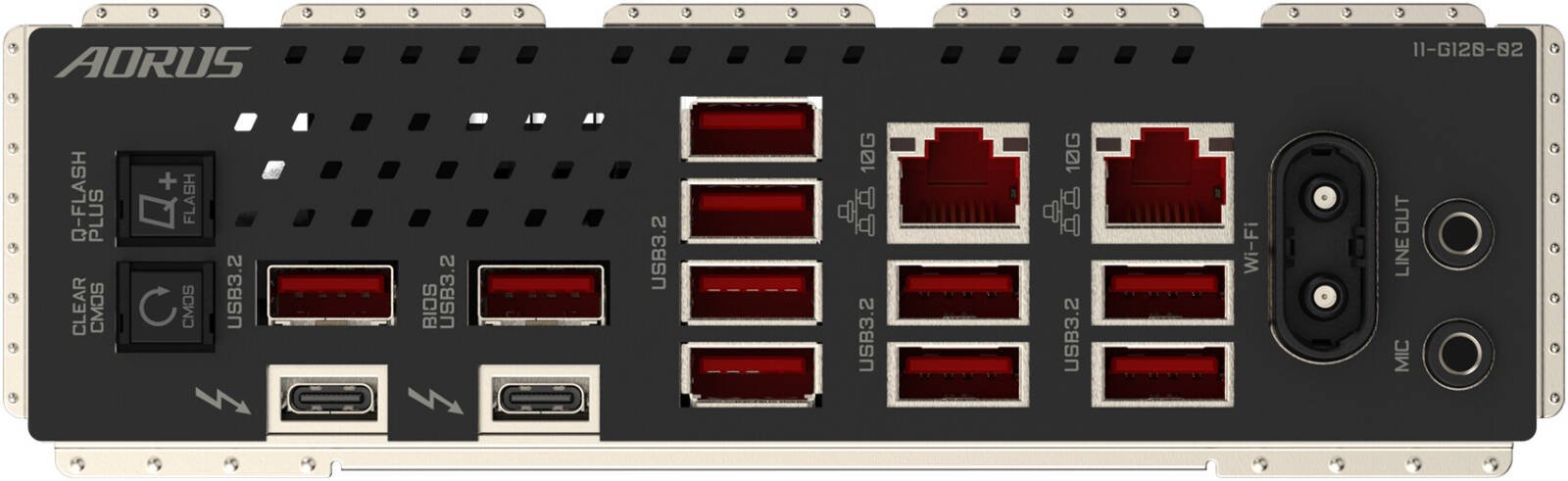

Back Panel 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x Thunderbolt™ 4 (USB Type-C®), 10 x USB 3.2 Gen 2 Type-A, 2 x RJ-45, 2 x antenna connectors, 2 x audio jacks.
BIOS 1 x 256 Mbit flash with AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Unique Features Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup.
Bundled Software Norton® Internet Security (OEM version), LAN bandwidth management software.
OS Support Windows 11 64-bit
Form Factor E-ATX, 30.5 cm x 28.5 cm
