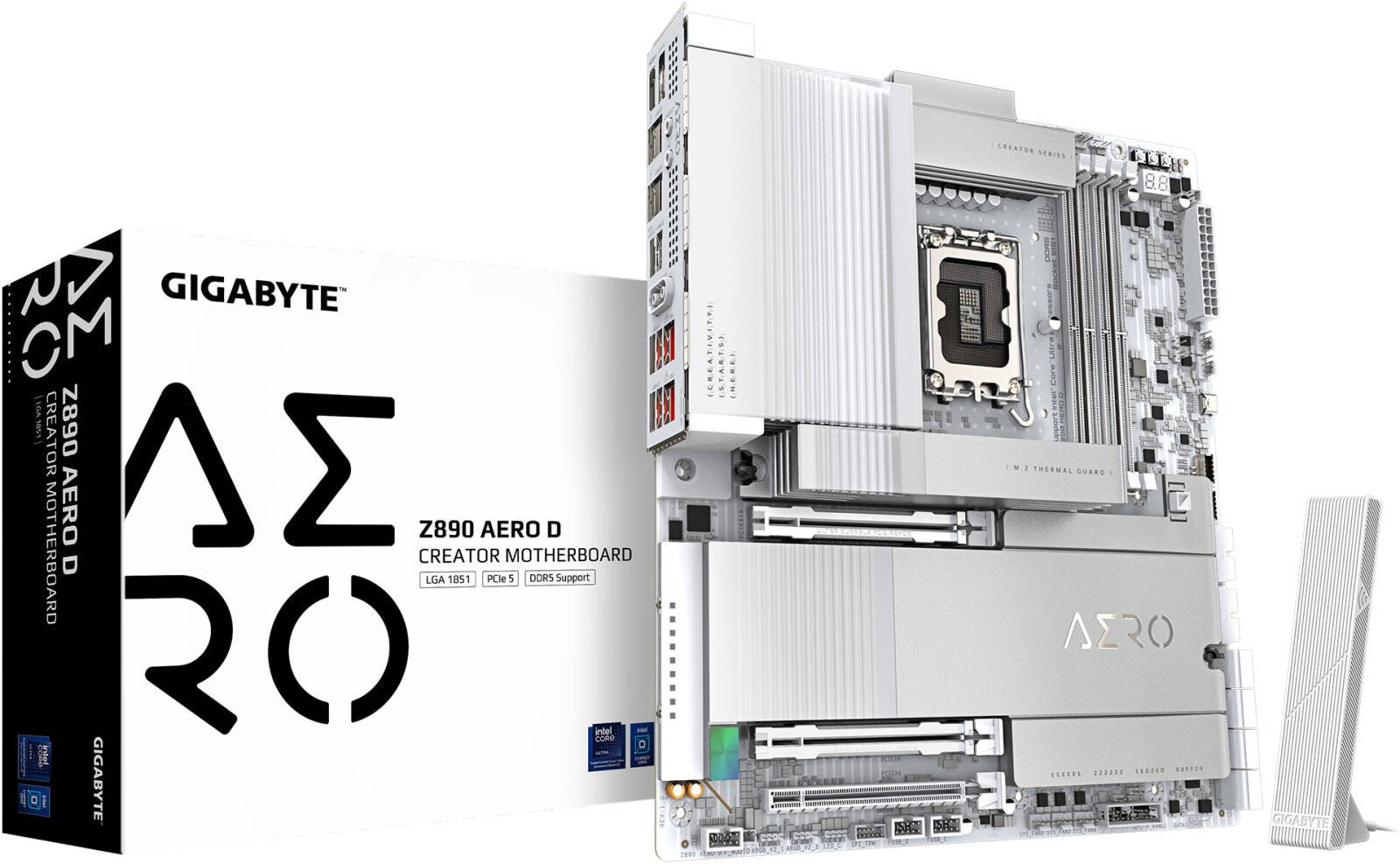

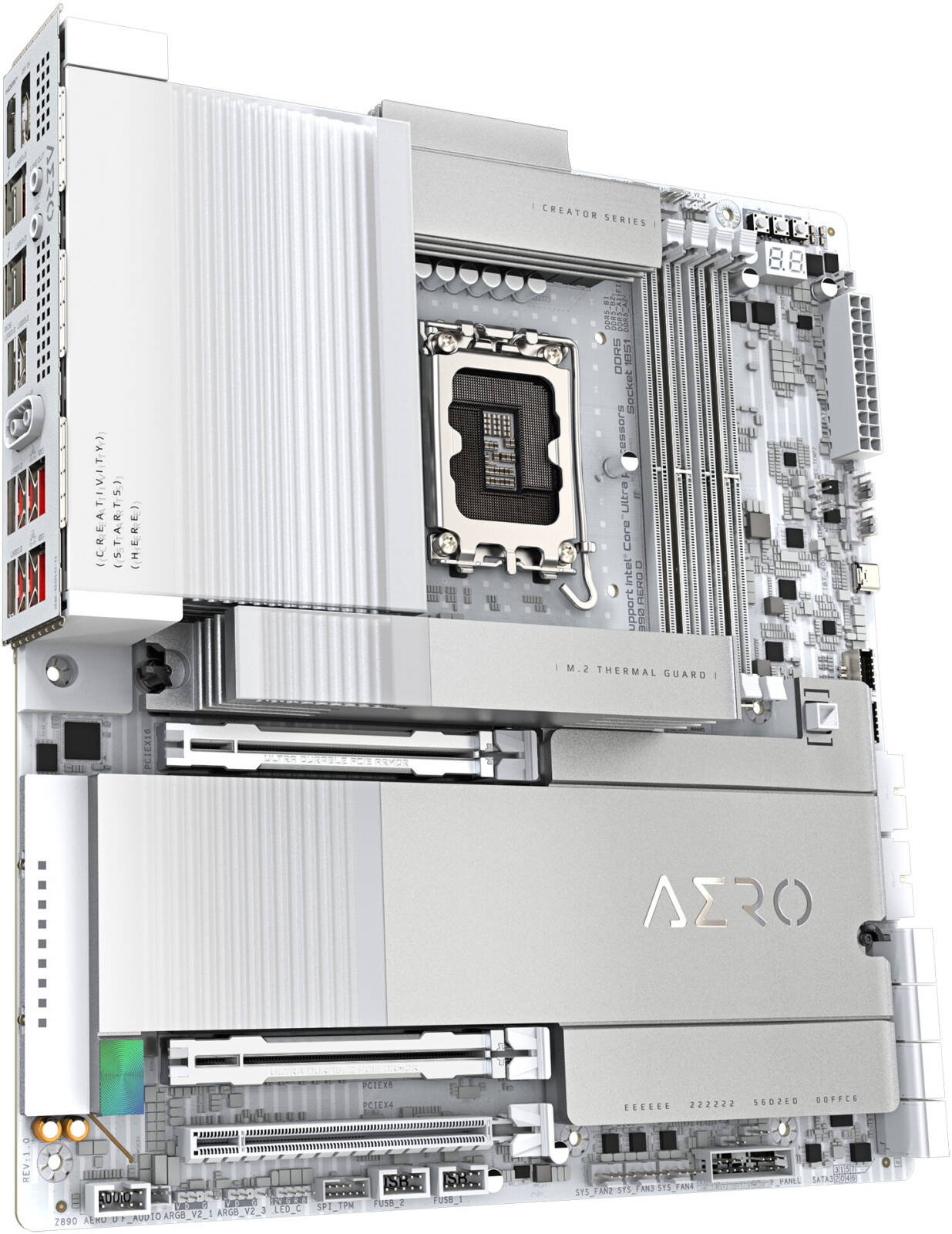

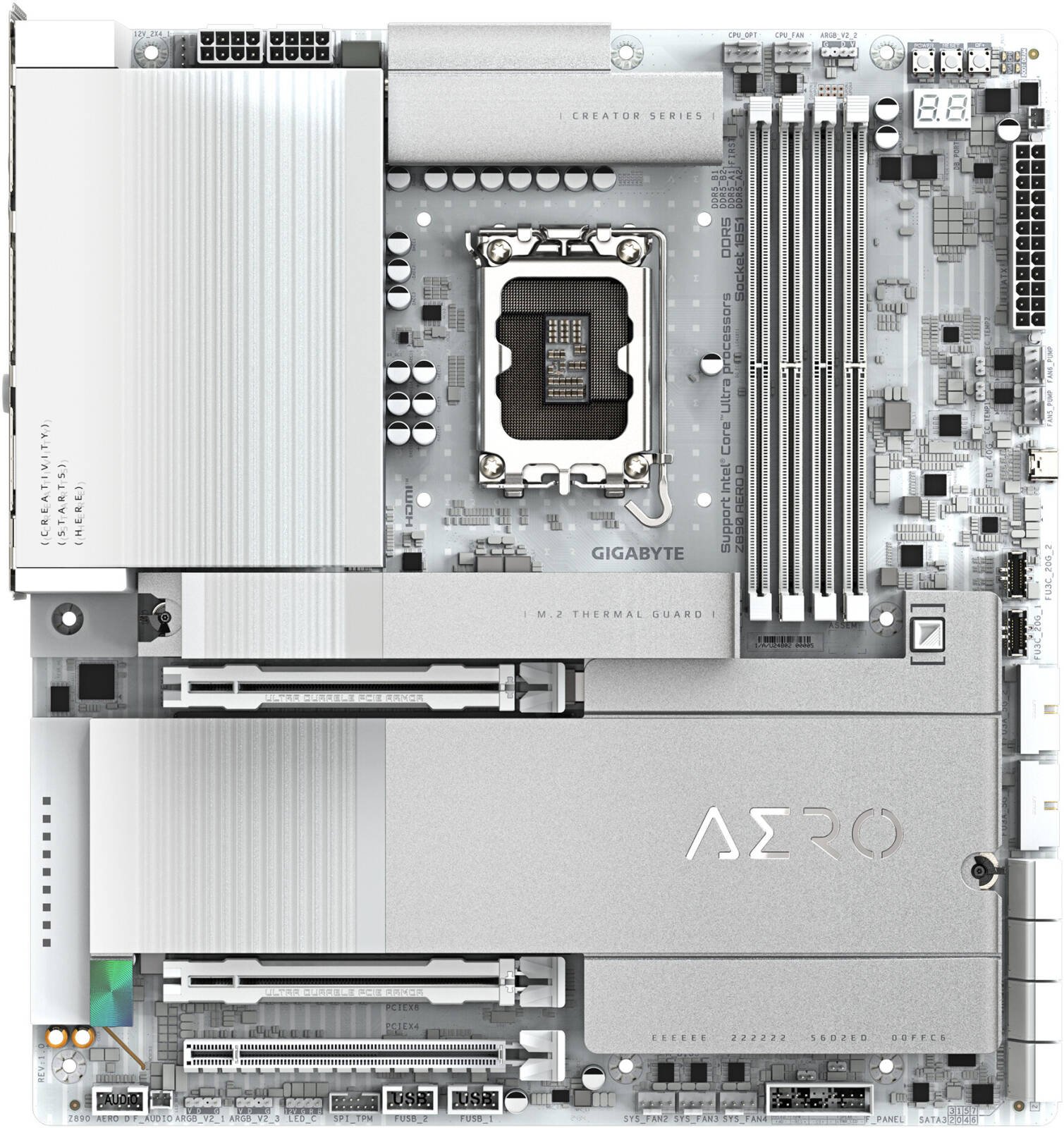

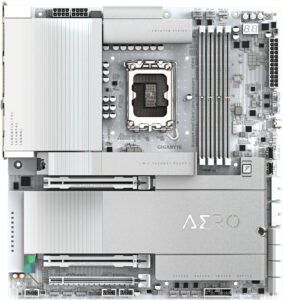

GIGABYTE Z890 Aero D LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16, 4x M.2 Slots, Intel Wi-Fi 7 & BT 5.4 Connectivity, White

2.971,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports Intel® Core™ Ultra processors (Series 2)
  • VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging
  • Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU
  • Extended Connectivity : Dual THUNDERBOLT™ 5 Type-C®with DP-Alt, HDMI
  • Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
  • Blazing Fast Networks : Daul 10 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna
  • Digital twin 16+1+2 phases VRM solution

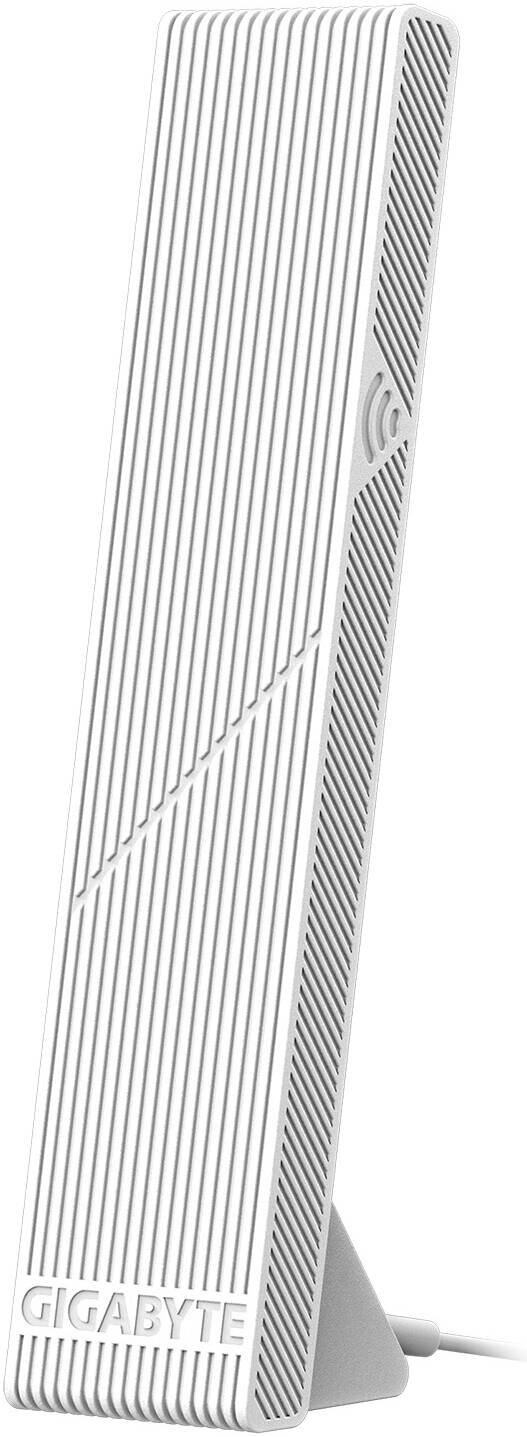

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
Model LGA1851-based Motherboard
CPU Support Intel® Core™ Ultra Processors (LGA1851 socket), L3 cache varies
Chipset Intel® Z890 Express Chipset
Memory Up to DDR5 9500(O.C.), 4x DIMM, 256 GB max, dual channel, ECC & non-ECC support, XMP support
Graphics Integrated: Thunderbolt™ 5 (2x USB4® Type-C), 1x Thunderbolt™ 4 (USB4®), 1x HDMI 2.1
Max Resolution 7680x4320@60Hz (TB5), 5120x2880@60Hz (TB4), 3840x2160@240Hz (USB-C), 4096x2160@60Hz (HDMI)
Audio ESS ES9260 (rear), Realtek® ALC897 (front), HD Audio, 2-channel
LAN 2x Marvell® AQC113C 10GbE
Wi-Fi Intel® Wi-Fi 7 BE200, Bluetooth 5.4
Expansion Slots 1x PCIe 5.0 x16, 1x PCIe 5.0 x8 (shares w/ x16), 1x PCIe 4.0 x4
Storage (CPU) 1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4
Storage (Chipset) 2x M.2 PCIe 4.0 x4, 8x SATA 6Gb/s (4 via ASM1164), RAID 0/1/5/10
USB Ports TB5: 2x USB4 Type-C, TB4: 1x USB4 Type-C, 1x USB 3.2 Gen2x2 Type-C (front), 6x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, internal headers: multiple USB 3.2 Gen1/Gen2/USB 2.0
Internal Connectors 2x 8-pin ATX, 1x 24-pin ATX, 6x fan headers, 3x ARGB, 1x RGB, 4x M.2, TPM, buttons (PWR, RESET), Q-Flash Plus

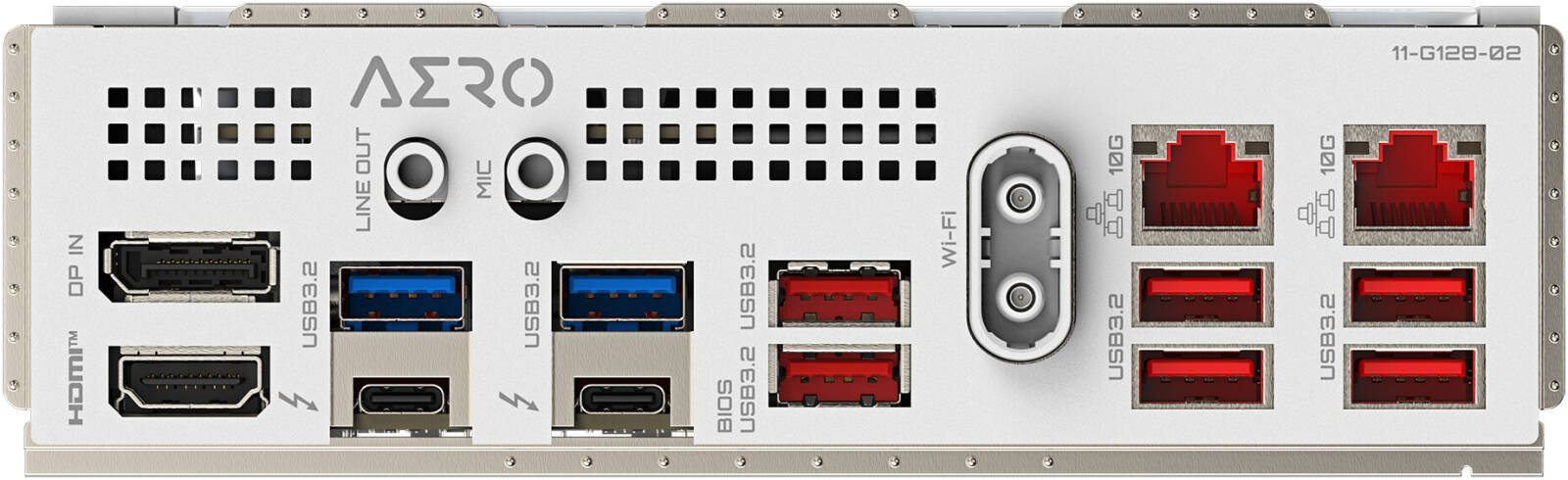

Back I/O 1x DP In, 1x HDMI, 2x audio jacks, 2x USB4, 2x USB 3.2 Gen1, 6x USB 3.2 Gen2, 2x RJ-45 (10GbE), 2x antenna
Monitoring Voltage, temp, fan speed, flow rate, noise, fail warning, speed control
BIOS 256Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup
Software GIGABYTE Control Center, Norton Security, LAN manager
OS Support Windows 11 64-bit (v24H2 or later)
Form Factor E-ATX, 30.5cm x 28.5cm
