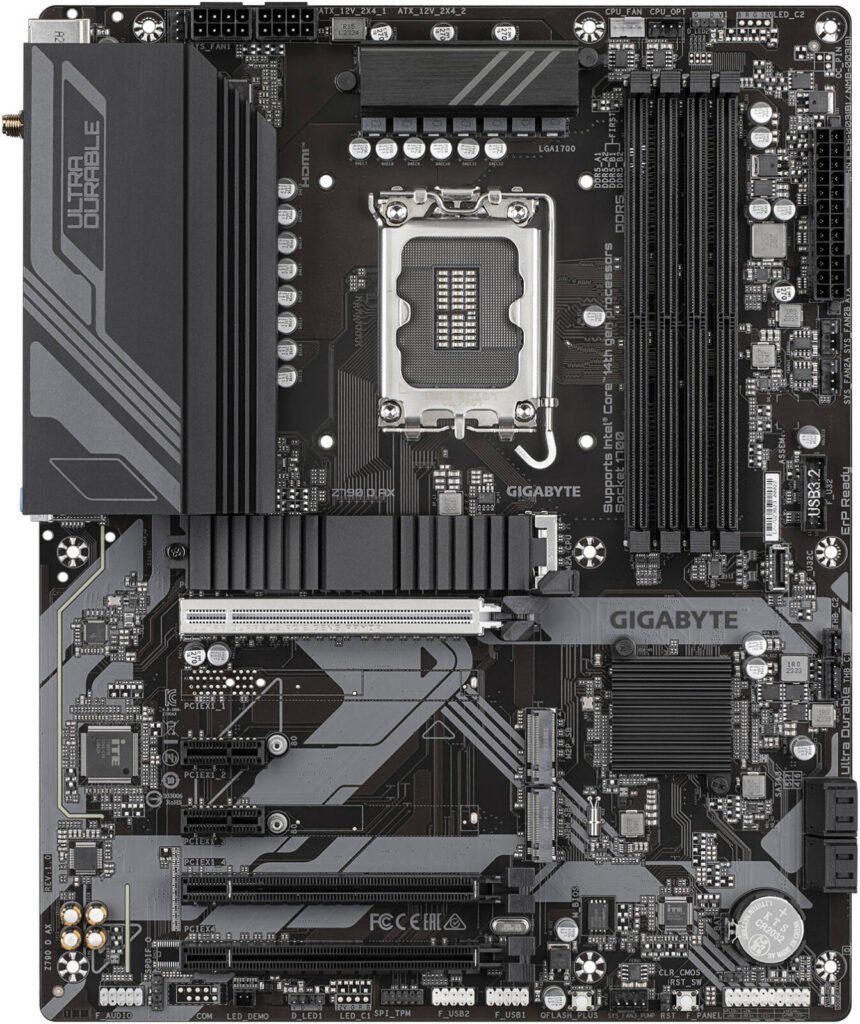

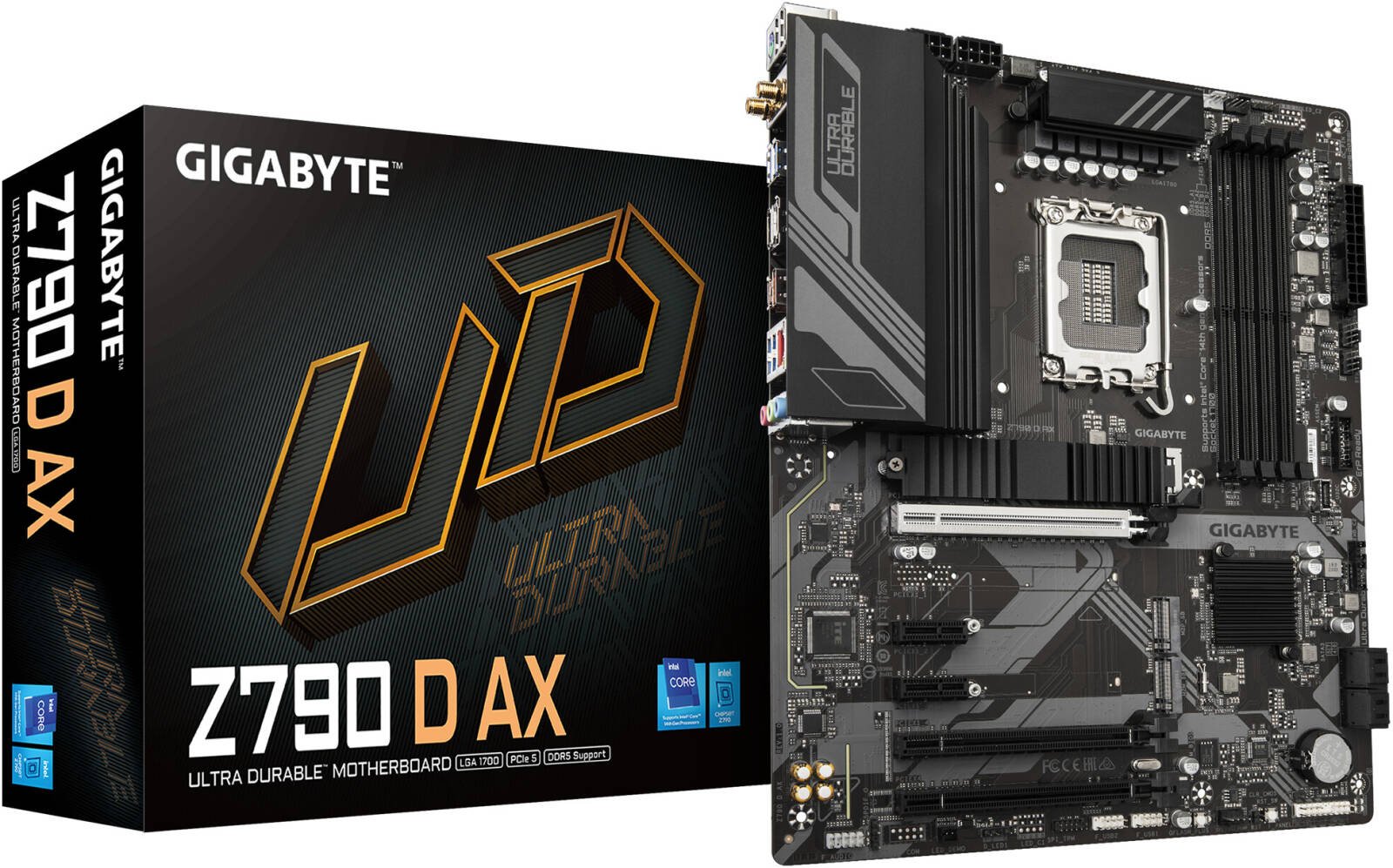

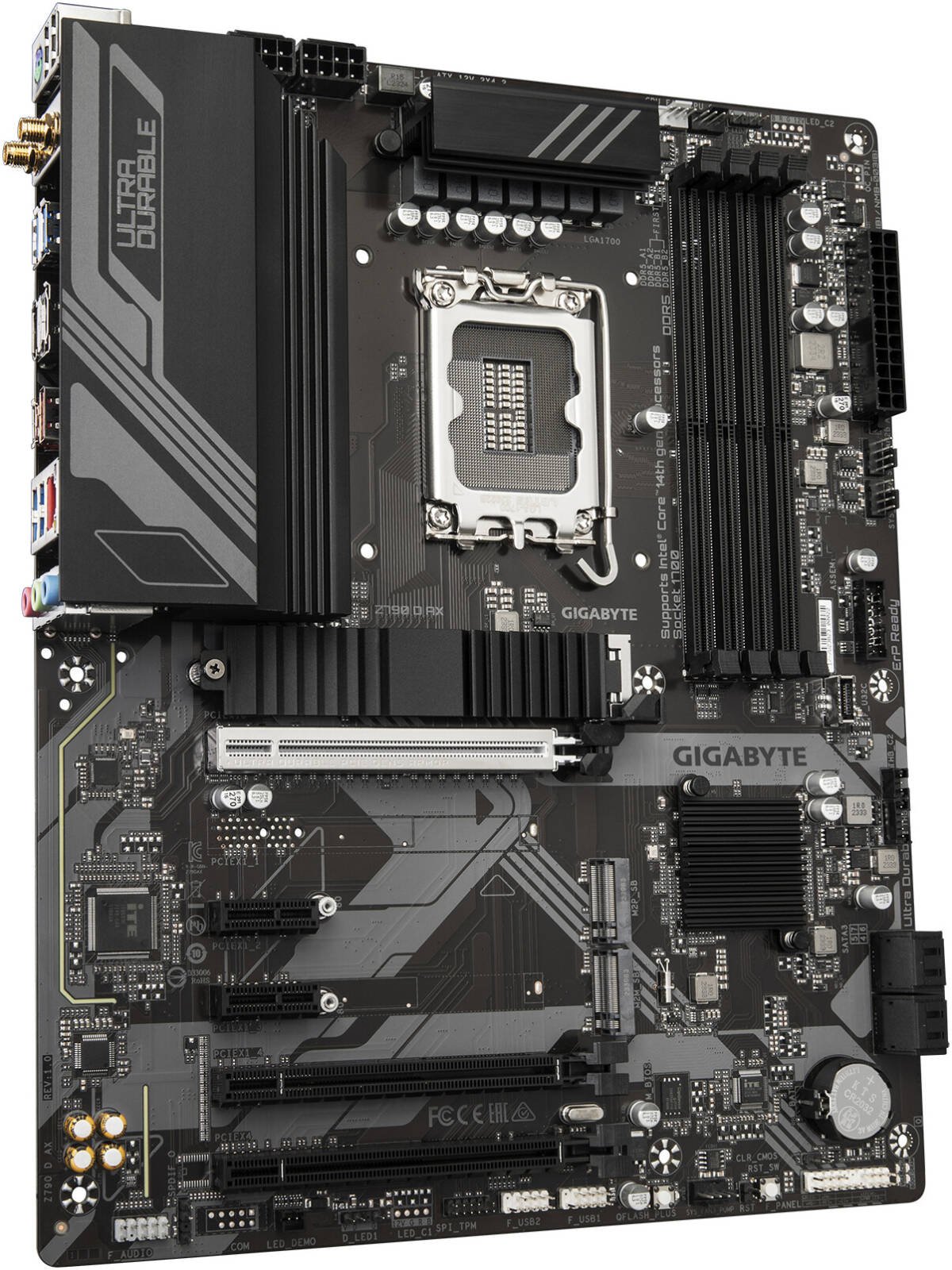

GIGABYTE Z790 D AX LGA 1700 ATX Motherboard, Intel Z790 Express Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x SMD PCIe 5.0 x16 Slot, 3x M.2 Slots, WiFi 6E & BT 5.3

785,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
CPU LGA1700 socket: Supports 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron. L3 cache varies with CPU.
Chipset Intel Z790 Express Chipset
Memory Supports DDR5 up to 7600(O.C.), 4x DDR5 DIMM slots, up to 256GB, ECC/non-ECC Un-buffered, Dual channel, XMP support.
Onboard Graphics Intel HD Graphics, 1x HDMI (4096x2160@60Hz), 1x DP (4096x2304@60Hz), HDMI 2.1 & DP 1.2, HDCP 2.3.
Audio Realtek Audio CODEC, High Definition, 2/4/5.1/7.1-channel, S/PDIF Out.
LAN Realtek 2.5GbE LAN (2.5/1 Gbps/100 Mbps)
Wireless Communication Intel Wi-Fi 6E AX211 (WiFi a/b/g/n/ac/ax, 2.4/5/6 GHz, BT 5.3, 160MHz support)
Expansion Slots 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1, 2x PCIe 3.0 x1 (Chipset)
Storage Interface 1x M.2 (CPU, PCIe 4.0 x4/x2), 2x M.2 (Chipset, PCIe 4.0/SATA), 4x SATA 6Gb/s, RAID 0/1/5/10 for NVMe & SATA.
USB Rear: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0. Internal: USB-C 3.2 Gen 1, USB 3.2 Gen 1, 4x USB 2.0.
Internal I/O Connectors ATX 24-pin, 2x 8-pin ATX 12V, 5x fan headers, 2x aRGB headers, 3x M.2, 4x SATA, front audio, front panel, USB headers, TPM, reset, Q-Flash Plus, Clear CMOS.
Back Panel Connectors PS/2, USB-C, USB-A (Gen 2), 4x USB 3.2, 2x USB 2.0, 2x SMA antenna, HDMI, DP, RJ-45, 3x audio jacks.
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage/Temp/Fan speed/water flow monitoring, fan fail warning, speed control (depends on fan/pump).
BIOS 256Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software Norton Internet Security (OEM), LAN bandwidth software
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor ATX (30.5 cm x 24.4 cm)
