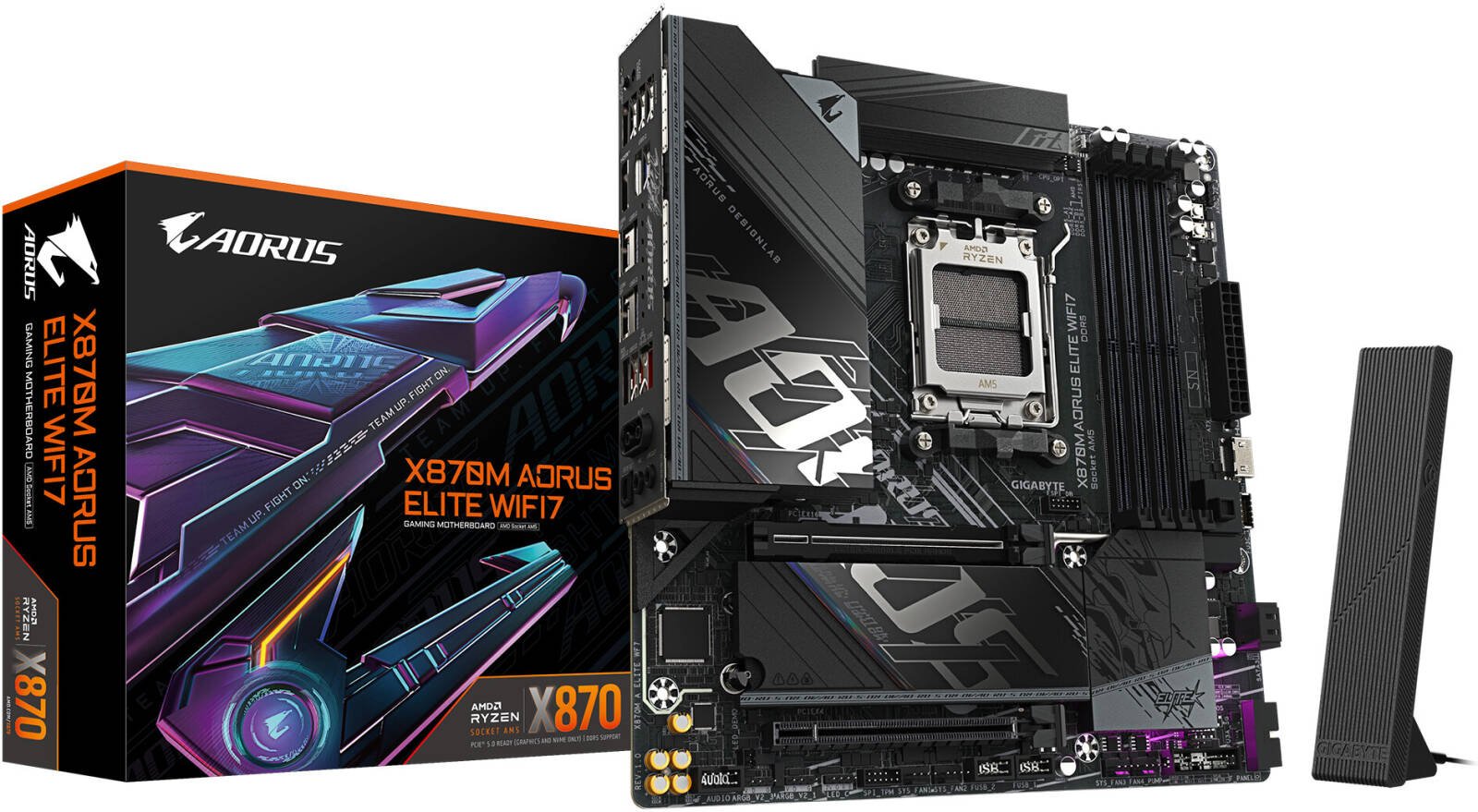

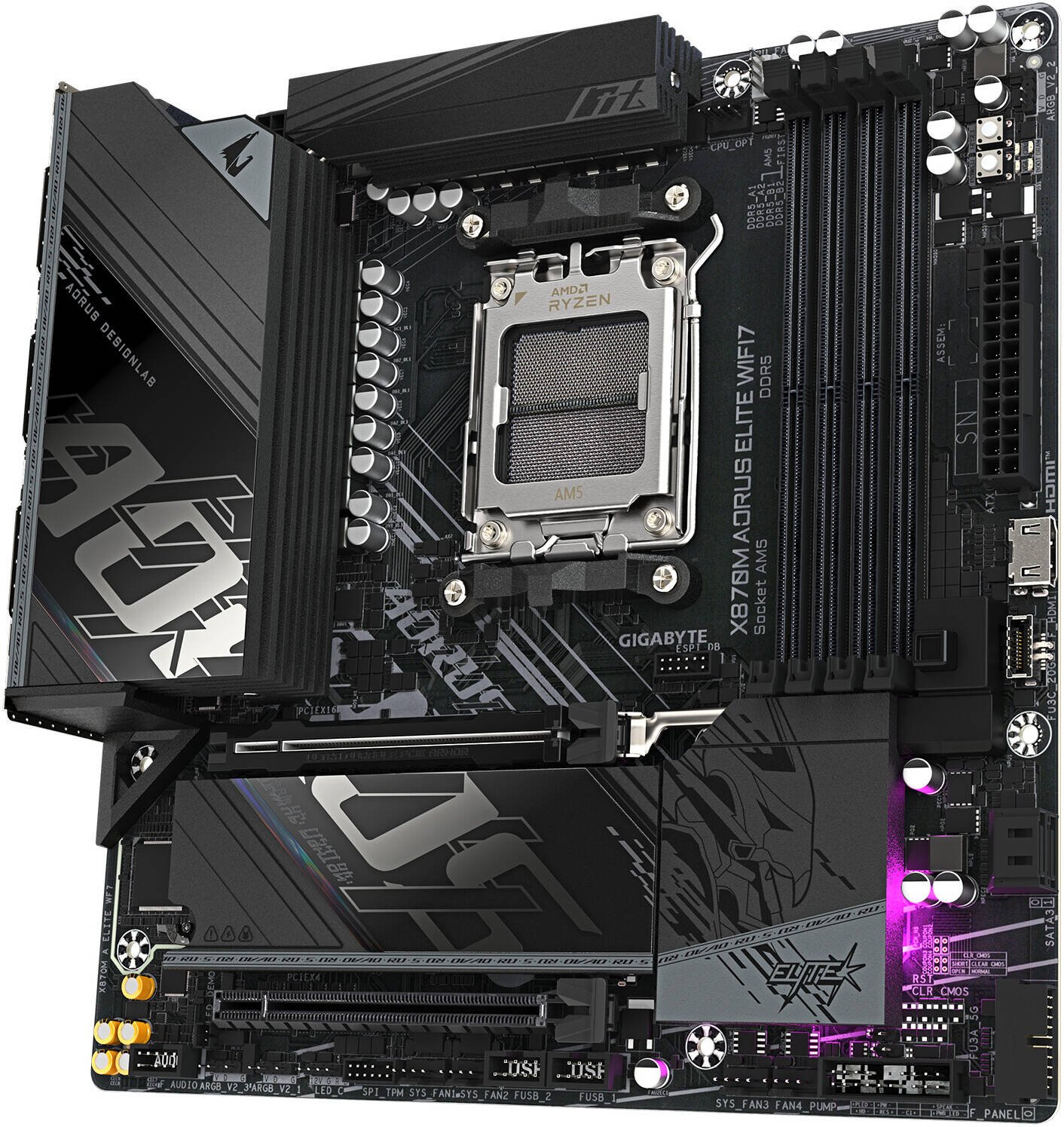

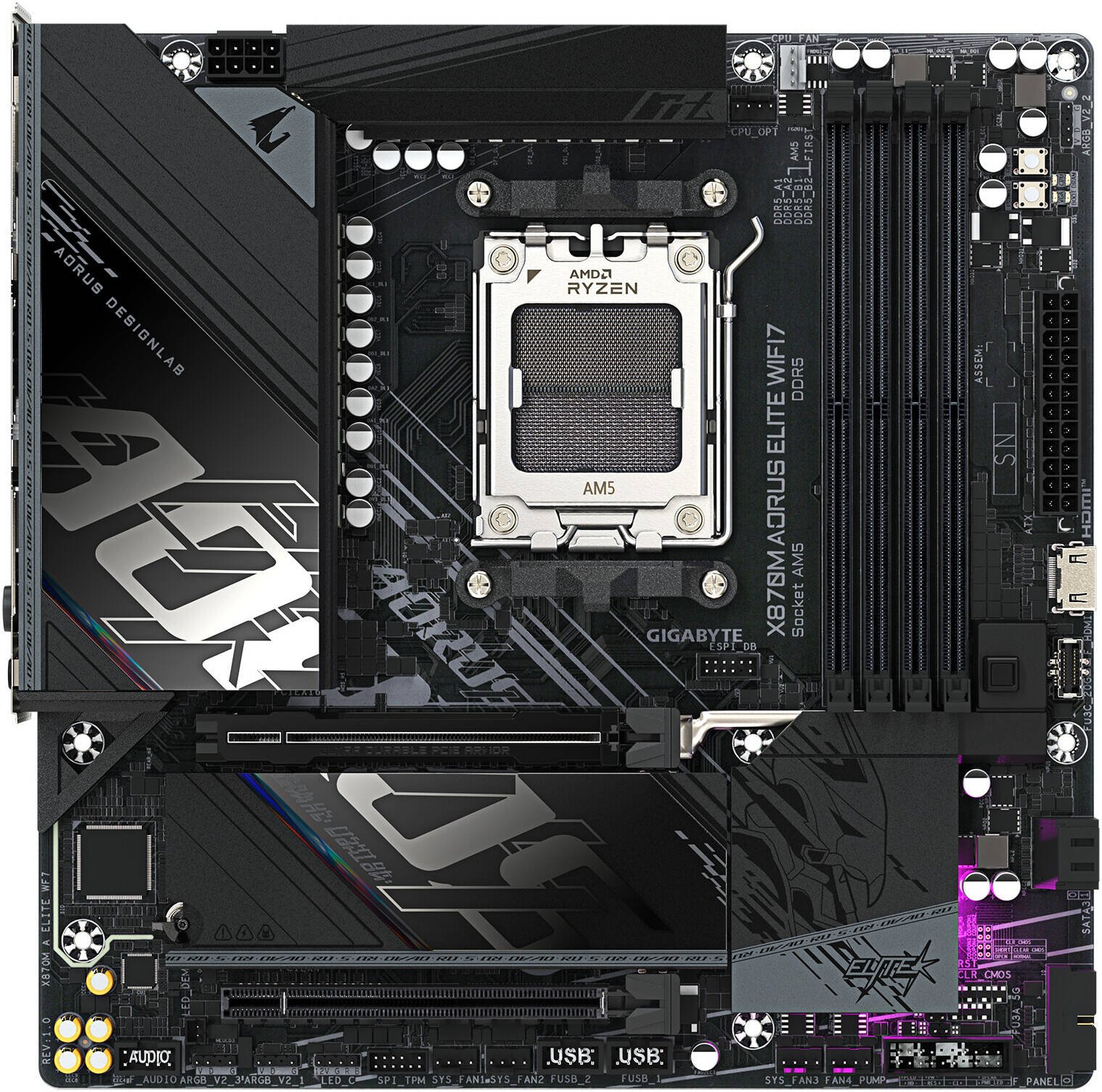

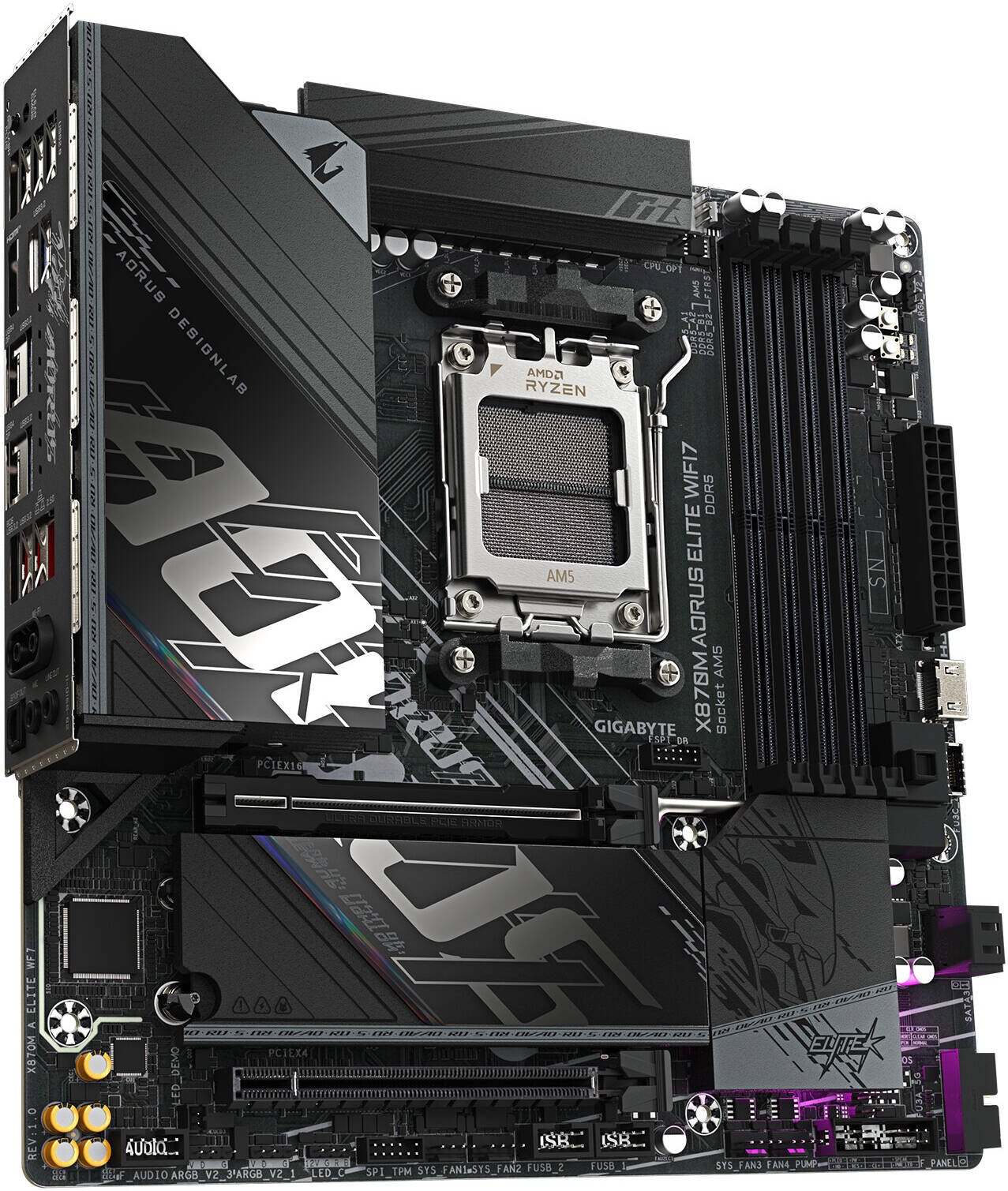

GIGABYTE X870M AORUS ELITE WIFI7 AM5 Micro ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WIFI 7 & BT5.4
1.099,00 AED
- X3D Turbo Mode：Unleash new era gaming performance | DDR5 OC up to 8200MT/s
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors | Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4
| CPU | AMD Socket AM5; Supports Ryzen™ 9000 / 8000 / 7000 Series (see GIGABYTE website for full list) |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM, up to 256 GB (64 GB per DIMM), Dual channel Supports DDR5 8200(O.C)–4400 MT/s Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Supports AMD EXPO™ & Intel XMP |
| Onboard Graphics | Integrated AMD Radeon™ Graphics • 2× USB4 Type-C (DP output, up to 3840×2160@240Hz, DP 1.4, HDR) • 1× HDMI (up to 4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) • 1× front HDMI (1920×1080@30Hz, HDMI 1.4) (Specs vary by CPU) |
| Audio | Realtek® ALC1220 CODEC, HD Audio, 2/4/5.1/7.1-channel DSD audio on rear line-out, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps) |
| Wireless | Realtek® Wi-Fi 7 RTL8922AE, Bluetooth® 5.4 2.4/5/6 GHz bands, supports 11be 160MHz Requires Windows 11 SV3 |
| Expansion Slots | • CPU: 1× PCIe x16 – Ryzen 9000/7000: PCIe 5.0 x16 – Ryzen 8000 Phoenix 1: PCIe 4.0 x8 – Ryzen 8000 Phoenix 2: PCIe 4.0 x4 • Chipset: 1× PCIe x16 (PCIe 4.0 x4) |
| Storage | • CPU: 1× M.2 (25110/22110/2280/2580), PCIe 5.0/4.0 x4/x2 (CPU dependent) • Chipset: 1× M.2 (2280/22110), PCIe 4.0 x4 • 2× SATA 6Gb/s RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) RAID 5 only with Ryzen 9000 |
| USB | • Back panel: 2× USB4 Type-C, 2× USB 3.2 Gen2 Type-A (red), 4× USB 3.2 Gen1, 4× USB 2.0 • Internal: 1× USB-C (3.2 Gen2x2), 1× USB 3.2 Gen1 header (2 ports), 2× USB 2.0 headers (4 ports) |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V, 1× CPU fan, 1× CPU fan/pump, 3× system fans, 1× system fan/pump, 3× ARGB Gen2, 1× RGB, 2× M.2, 2× SATA, front panel, audio, TPM, USB headers, power/reset buttons, HDMI, Clear CMOS, jumpers |

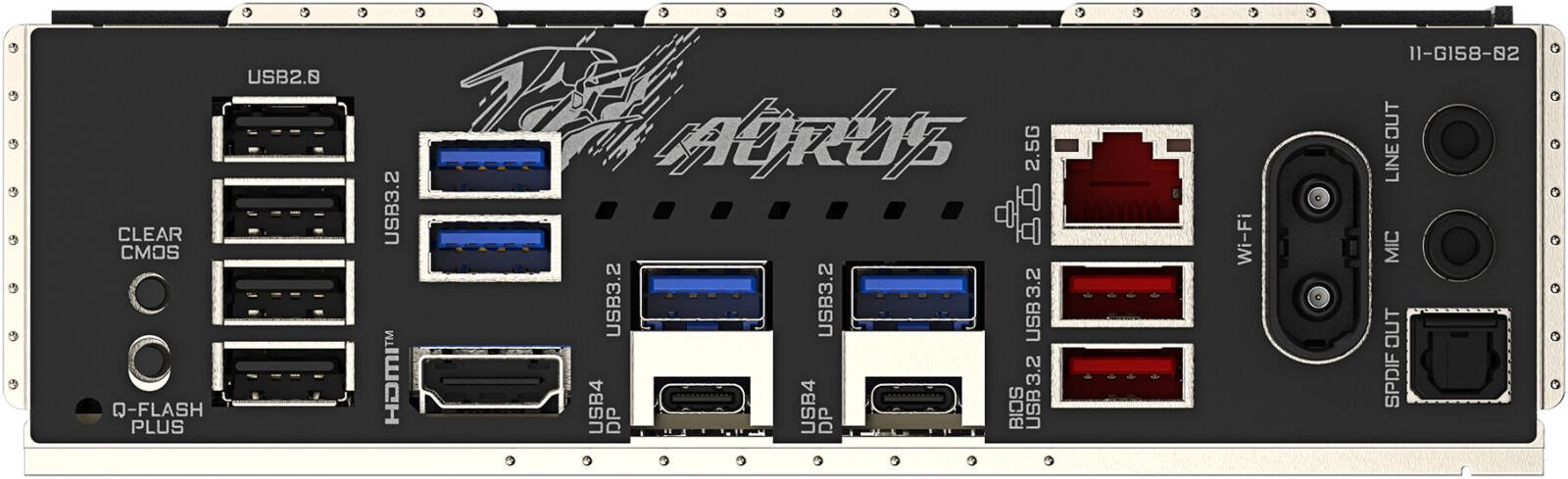

| Back Panel | 1× Clear CMOS, 1× Q-Flash Plus, 1× HDMI*, 2× USB4 Type-C (DP), 2× USB 3.2 Gen2 Type-A (red), 4× USB 3.2 Gen1, 4× USB 2.0, 1× RJ-45, 2× Wi-Fi antenna, 2× audio jacks, 1× optical S/PDIF Out (*varies by CPU) |
| I/O Controller | iTE® Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow, fan fail warning, fan/pump speed control |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | Micro ATX, 24.4 × 24.4 cm |
