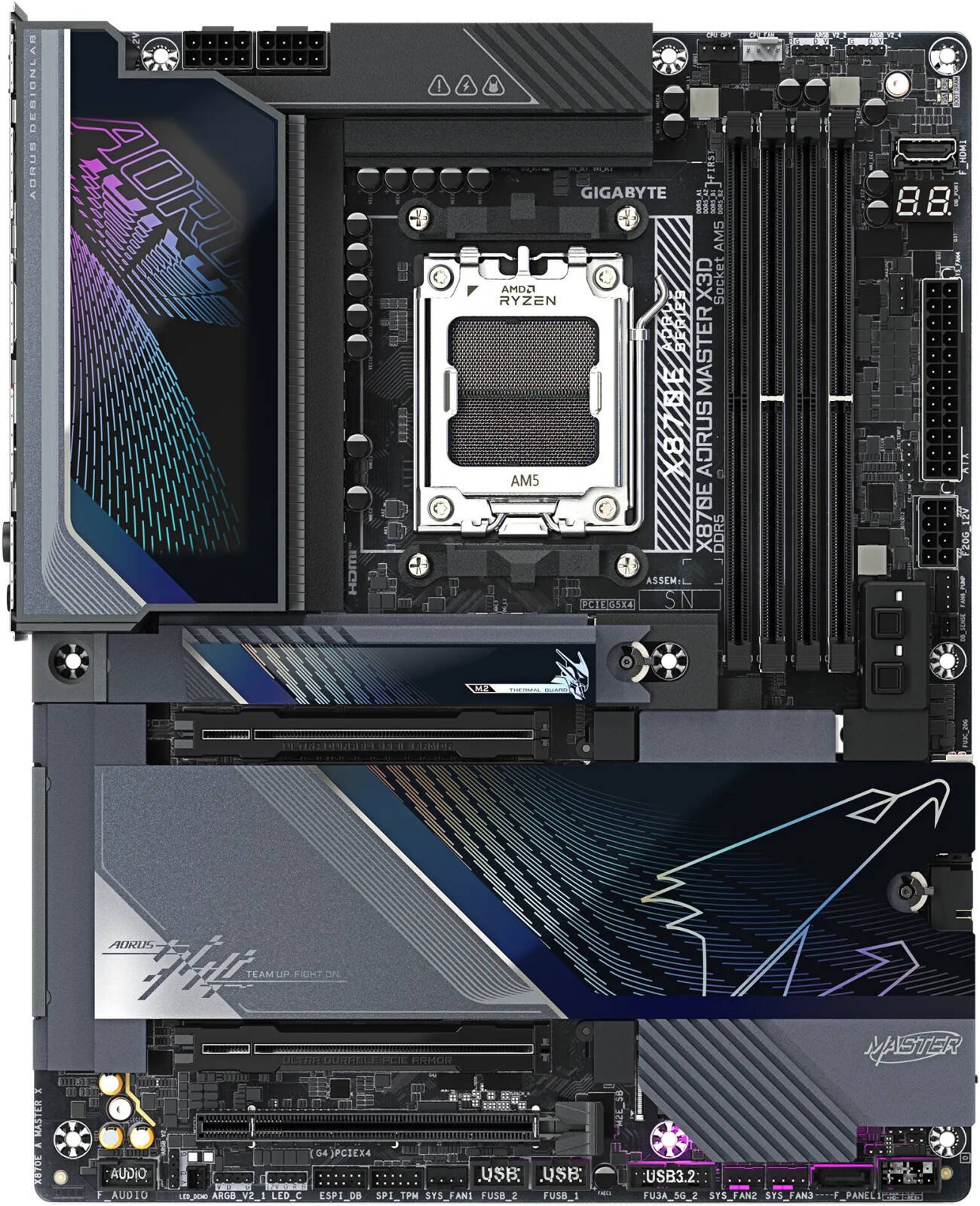

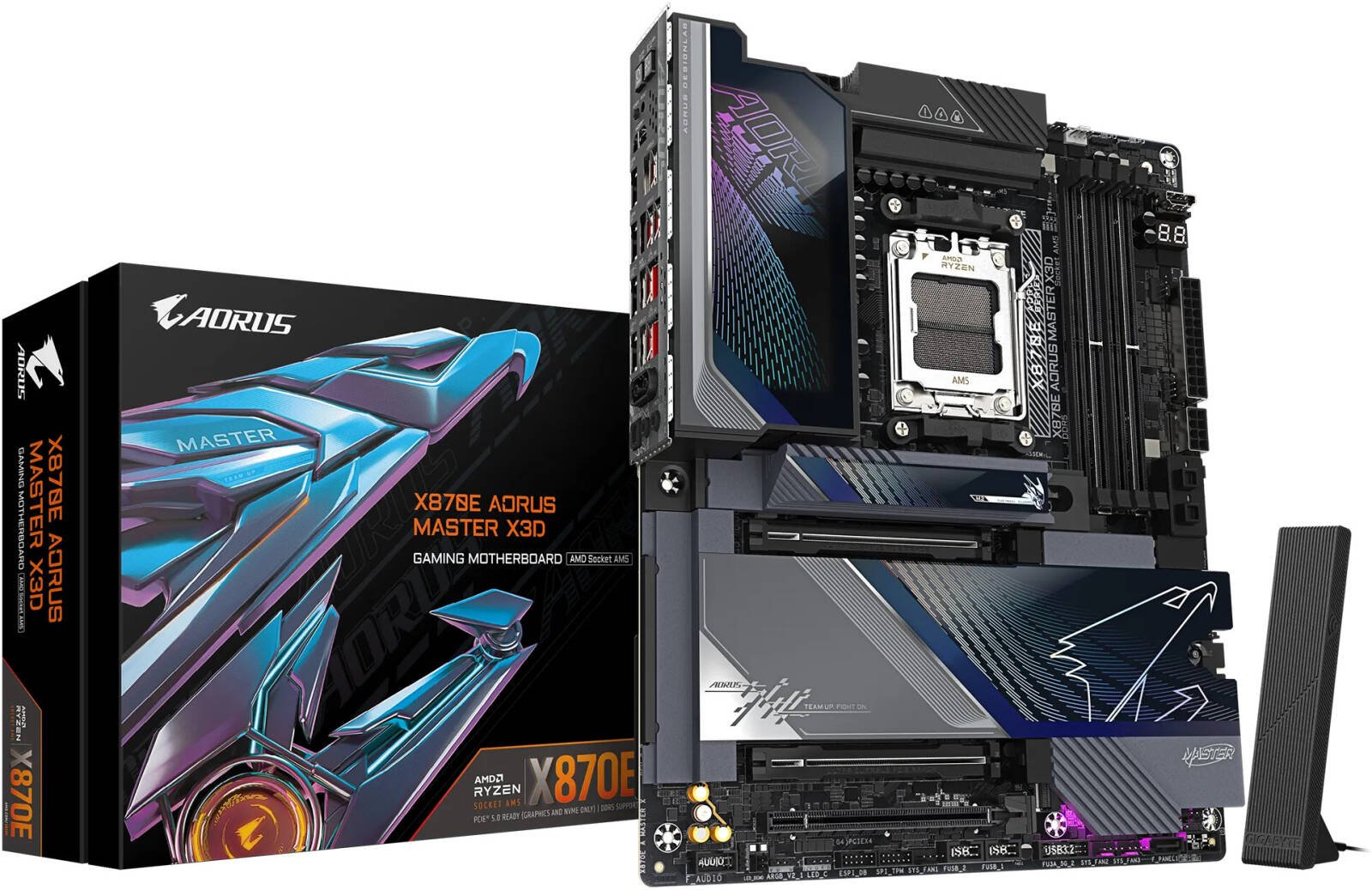

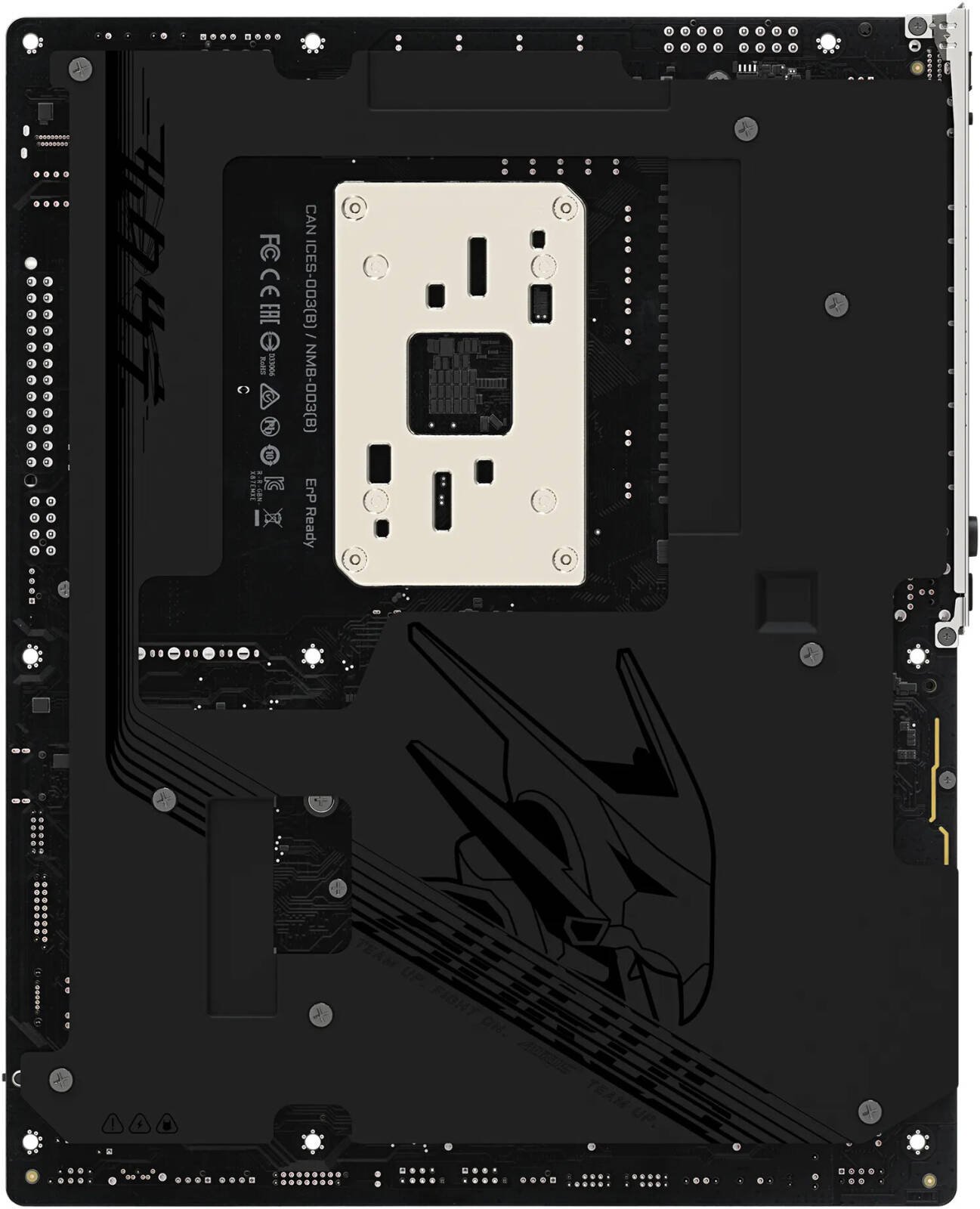

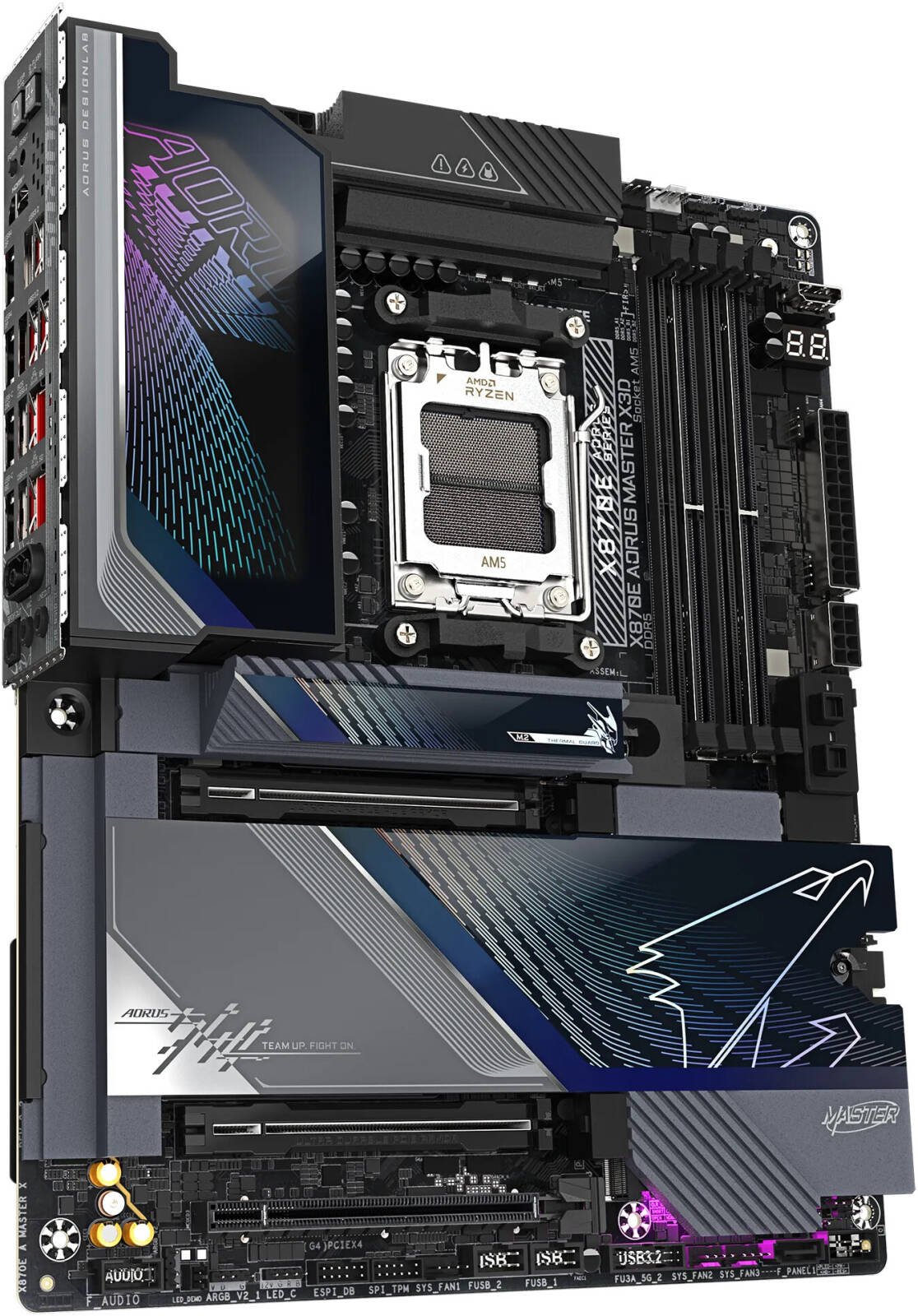

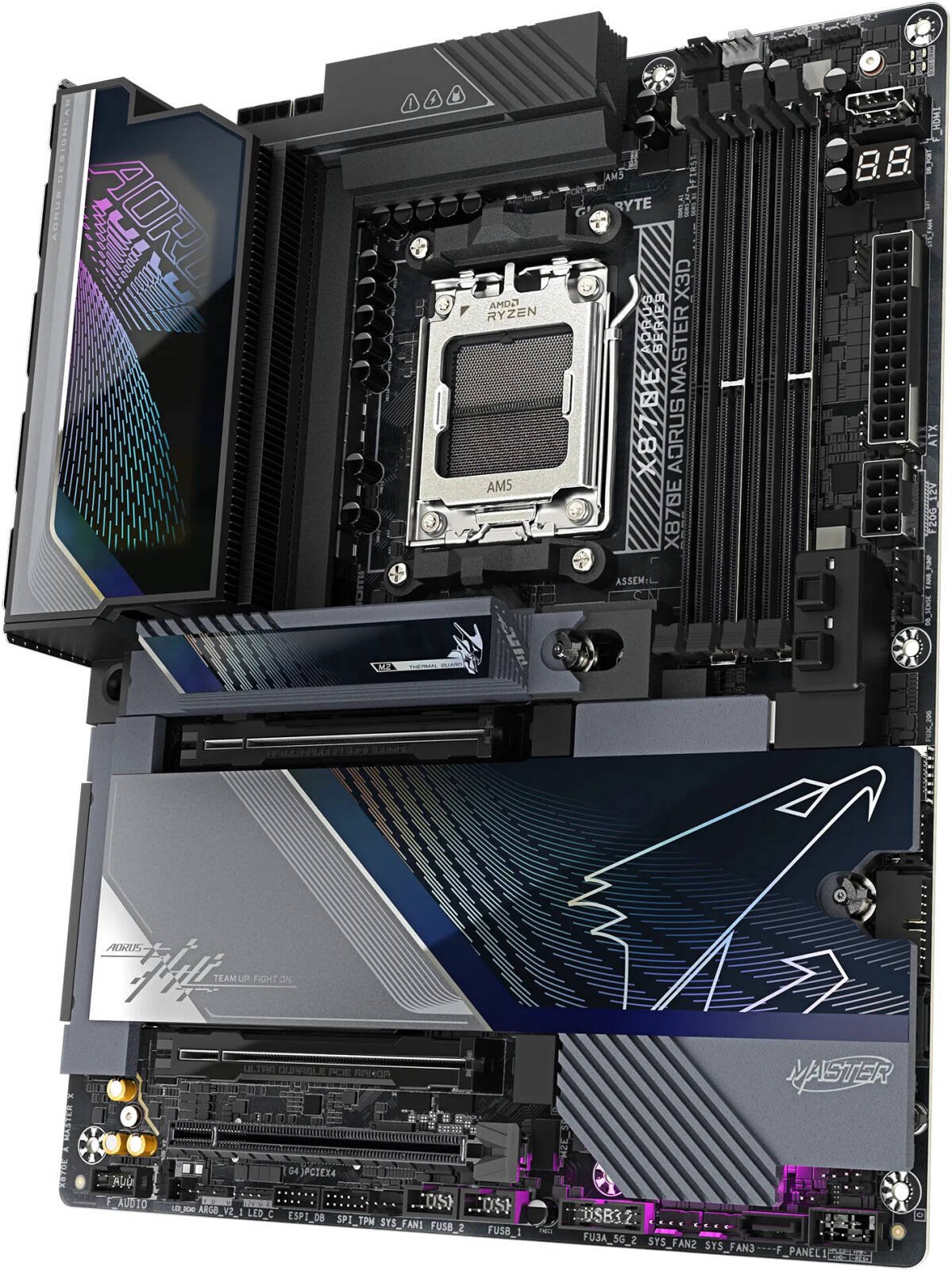

GIGABYTE X870E Aorus Master X3D AM5 AMD Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up ro 256GB Max Memory, 1x PCI Express x16 Slot, 5 x M.2 Slots, Black
2.949,00 AED
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- PCIe EZ-Latch Plus Duo : One click for screwless & quick release on dual PCIe slots
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD

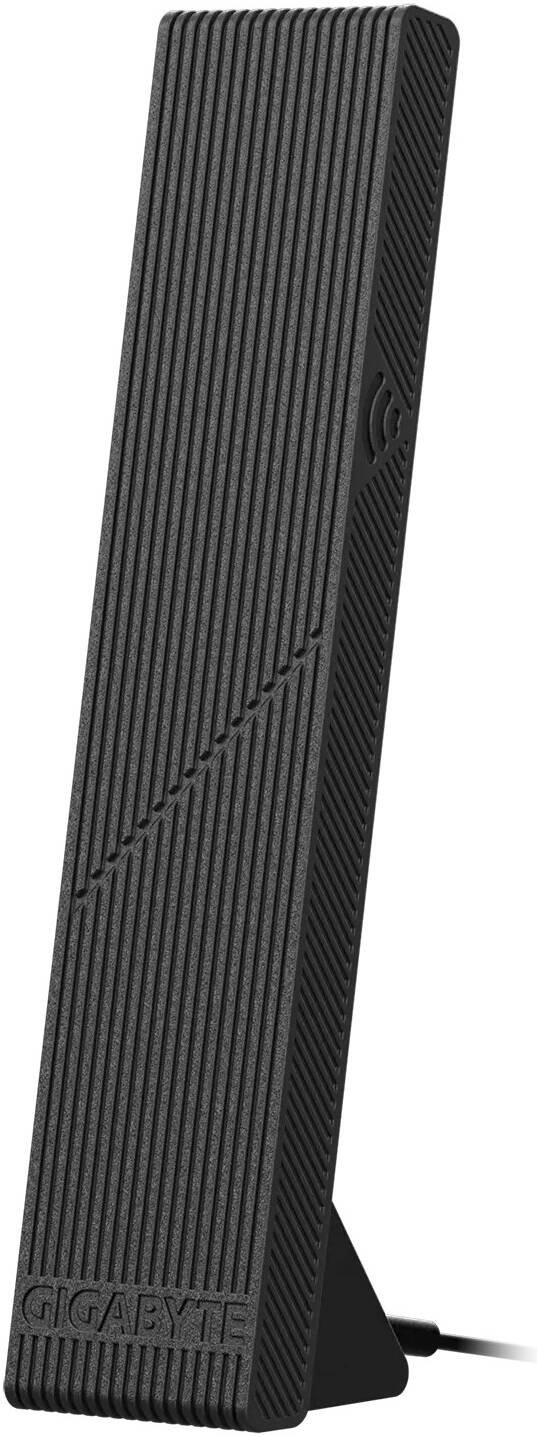

- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870E |
| Memory Type | DDR5 |
| Memory Speed | Up to 9000 MT/s (O.C.) |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory Capacity | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual Channel |
| Memory Support | Non-ECC Unbuffered, AMD EXPO™, XMP |
| Onboard Graphics (USB4) | 2 × USB4 Type-C (DP 1.4, HDR, up to 3840×2160@240Hz) |
| Onboard Graphics (HDMI Rear) | 1 × HDMI 2.1, up to 4096×2160@60Hz |
| Onboard Graphics (HDMI Front) | 1 × HDMI 1.4, up to 1920×1080@30Hz |
| Audio Codec | Realtek® ALC1220 + ESS ES9118 DAC |
| Audio Features | DTS:X® Ultra, Hi-Res, S/PDIF Out |
| Audio Channels | 2 / 4 / 5.1 |
| LAN (LAN1) | Realtek® 5GbE |
| LAN (LAN2) | Realtek® 10GbE |
| Wi-Fi Module | MediaTek Wi-Fi 7 MT7927 (RZ738) |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax/be (2.4/5/6 GHz) |
| Bluetooth | Bluetooth® 5.4 |
| Primary PCIe Slot | 1 × PCIe x16 (PCIe 5.0 / 4.0 depending on CPU) |
| Secondary PCIe Slot | 1 × PCIe x16 (x8 mode) |
| Chipset PCIe Slot | 1 × PCIe 4.0 x4 |
| M.2 Slots (CPU) | 2 × PCIe 5.0 / 4.0 |
| M.2 Slots (Chipset) | 3 × PCIe 4.0 |
| SATA Ports | 2 × SATA 6 Gb/s |
| RAID (NVMe) | RAID 0/1/5/10 (RAID 5 Ryzen 9000 only) |
| RAID (SATA) | RAID 0 / 1 |
| USB4 Ports | 2 × USB4 Type-C (rear) |
| USB 3.2 Gen 2 Type-A | 7 × rear |
| USB Type-C (Gen 2x2) | Rear + Internal (65W PD support) |
| USB Headers (Internal) | USB 3.2 Gen 1 ×2, USB 2.0 ×2 |
| Power Connectors | 24-pin ATX, 2 × 8-pin CPU, PCIe power |
| Fan Headers | CPU, CPU Pump, 6 × System fan |
| RGB Headers | 4 × ARGB Gen2, 1 × RGB |
| Internal Headers | TPM, Noise detection, Temp sensors, Front panel |
| Back Panel Buttons | Power, Reset, Clear CMOS, Q-Flash Plus |

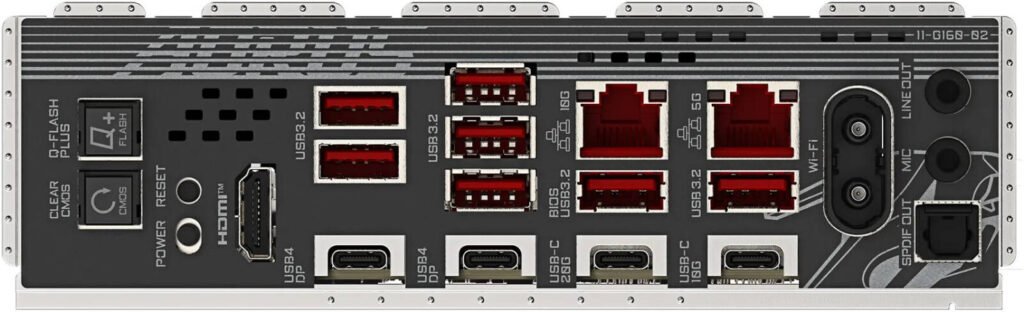

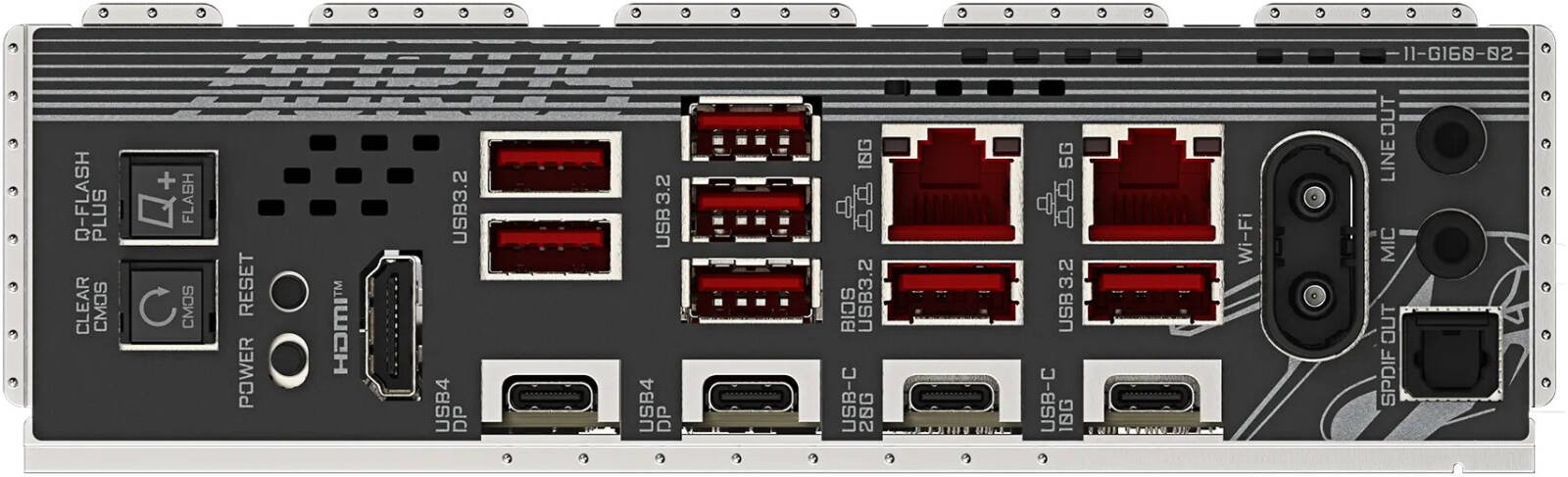

| Back Panel Ports | HDMI, USB4 ×2, USB-C ×2, USB-A ×7 |
| Ethernet Ports | 2 × RJ-45 |
| Audio Ports | 2 × Audio jacks + Optical S/PDIF |
| I/O Controller | iTE® I/O Controller |
| Hardware Monitoring | Voltage, Temp, Fan, Flow, Noise |
| BIOS | AMI UEFI, 512 Mbit flash |
| BIOS Features | Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm |
