GIGABYTE X870E AORUS ELITE X3D ICE AM5 ATX Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1x PCI Express x16 Slot, 4x M.2 Slots, White

1.575,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
  • DDR5 OC up to 9000MT/s
  • DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
  • M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
CPU Support AMD Socket AM5 — Ryzen 9000 / 8000 / 7000 Series (check GIGABYTE website for latest support)
Chipset AMD X870E
Memory • DDR5 4800–9000(O.C.) MT/s
• 4× DDR5 DIMM, up to 256 GB (64 GB per DIMM)
• Dual-channel
• Non-ECC Unbuffered 1Rx8/2Rx8/1Rx16
• Supports AMD EXPO & Intel XMP
• Supported speeds depend on CPU
Onboard Graphics USB4 Type-C (x2): USB4 + DisplayPort, 3840×2160 @240Hz (DP 1.4, HDR)
HDMI (rear): HDMI 2.1, 4096×2160 @60Hz, HDCP 2.3
Front HDMI: HDMI 1.4, 1920×1080 @30Hz
Graphics depend on CPU
Audio Realtek ALC1220 codec
DSD supported on line-out
7.1-channel HD Audio
S/PDIF Out
LAN Realtek 5GbE (5G/2.5G/1G/100M)
Wireless Qualcomm Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) – 2.4/5/6 GHz
Bluetooth 5.4
Supports 320 MHz channels
Wi-Fi 7 requires Windows 11 SV3
Expansion Slots CPU: 1× PCIe x16
• Ryzen 9000/7000 → PCIe 5.0 x16
• Ryzen 8000 Phoenix 1 → PCIe 4.0 x8
• Ryzen 8000 Phoenix 2 → PCIe 4.0 x4
Chipset:
• 1× PCIe 4.0 x4 (PCIEX4)
• 1× PCIe 3.0 x2 (PCIEX2)
Storage (M.2 / SATA) CPU:
• M2A_CPU: PCIe 5.0/4.0 x4/x2 (22110/2280/2580/25110)
• M2B_CPU: PCIe 5.0 x4/x2 (22110/2280) — bandwidth shared with USB4 controller
• With AMD 8000 Phoenix → M2B unavailable

Chipset:
• M2C_SB + M2D_SB: PCIe 4.0 x4/x2 (22110/2280)

SATA: 4× SATA 6Gb/s

RAID:
• NVMe RAID 0/1/5/10 (RAID 5 only on Ryzen 9000)
• SATA RAID 0/1/10
USB Ports Back Panel:
• 2× USB4 Type-C
• 1× USB-C (USB 3.2 Gen 2)
• 5× USB 3.2 Gen 2 Type-A (red)
• 3× USB 3.2 Gen 1

Internal:
• USB-C (USB 3.2 Gen 2x2) + 65W PD/QC 4+
• 4× USB 3.2 Gen 1 (via headers)
• 4× USB 2.0
Internal I/O • 24-pin ATX power
• 2× 8-pin CPU power
• PCIe power connector
• CPU fan + pump headers
• 4× system fans + 2× system/pump
• 3× ARGB Gen2 + 1× RGB headers
• 4× M.2 connectors
• 4× SATA
• Front panel + audio
• USB-C header (Gen2x2)
• 2× USB 3.2 Gen1 headers
• 2× USB 2.0 headers
• TPM header
• HDMI port
• Reset jumper / Clear CMOS
• 2× temperature sensor headers
• Noise detection header

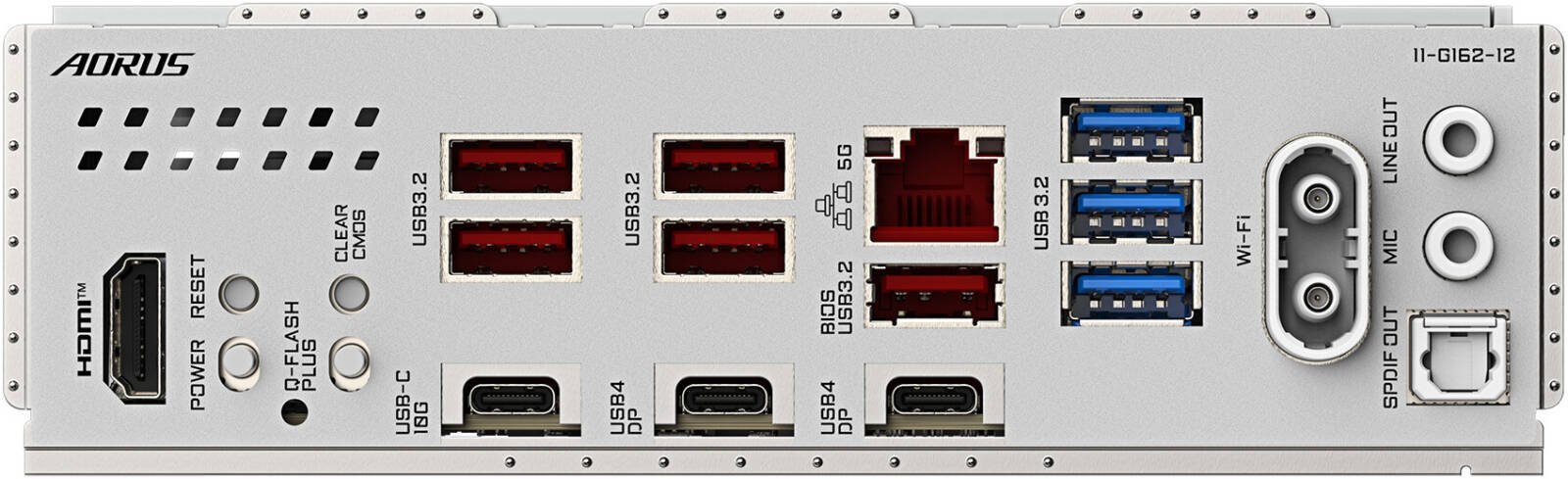

Back Panel • HDMI
• Reset / Power / Clear CMOS / Q-Flash Plus buttons
• 5× USB 3.2 Gen 2 Type-A
• 1× USB-C (USB 3.2 Gen 2)
• 2× USB4 Type-C (DP alt-mode)
• 1× RJ-45 (5GbE)
• 3× USB 3.2 Gen 1
• 2× antenna connectors
• 2× audio jacks + optical S/PDIF
I/O Controller iTE Controller
Hardware Monitoring Voltage, temp, fan speed, pump speed, water flow, fan fail warning, fan control, noise detection
BIOS 512 Mbit AMI UEFI BIOS — PnP 1.0a, DMI 2.7, ACPI 5.0
Supports Q-Flash & Q-Flash Plus
Unique Features Gigabyte Control Center, Smart Backup
Bundled Software Norton Internet Security (OEM)
OS Support Windows 11 64-bit
Form Factor ATX (30.5 cm × 24.4 cm)
