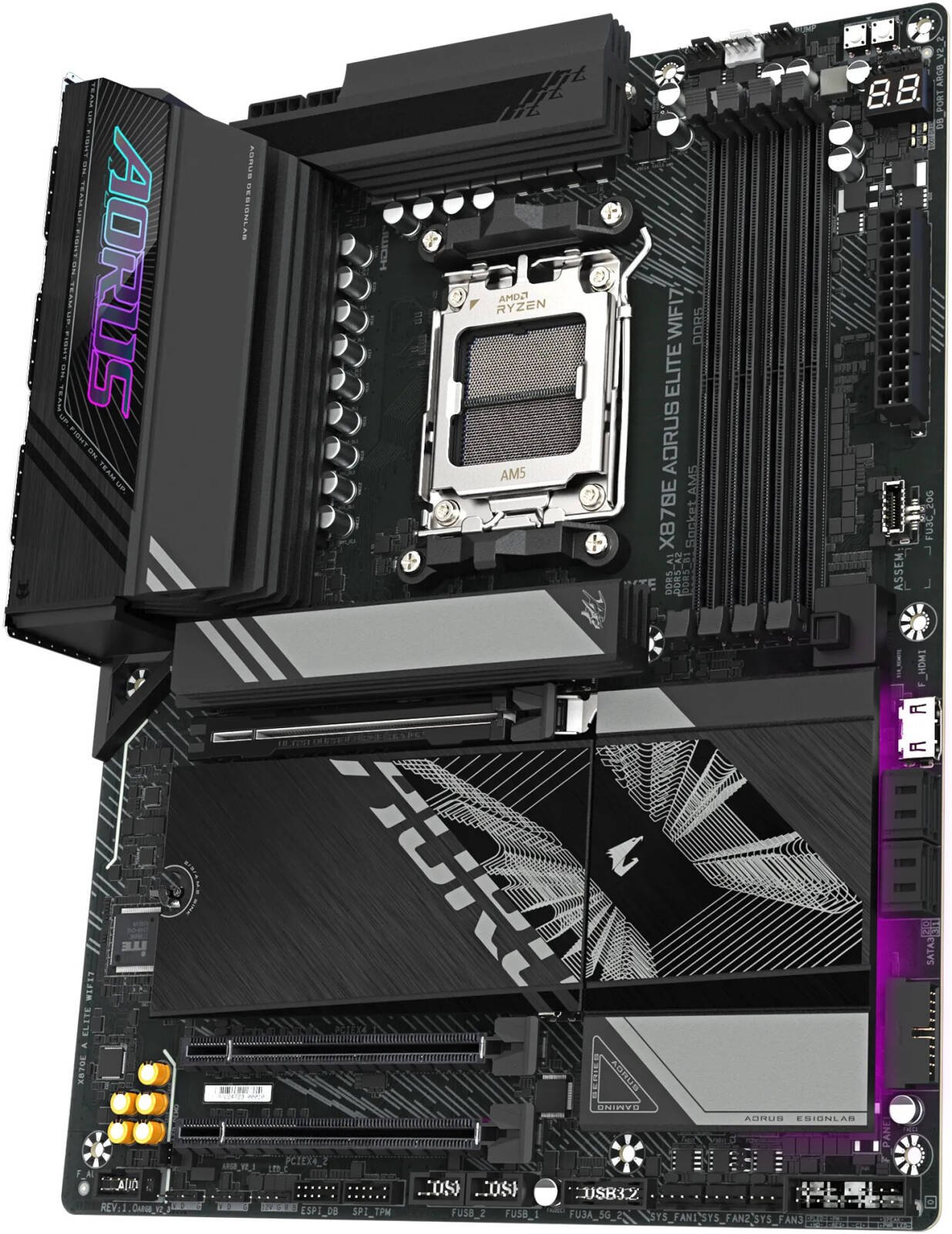

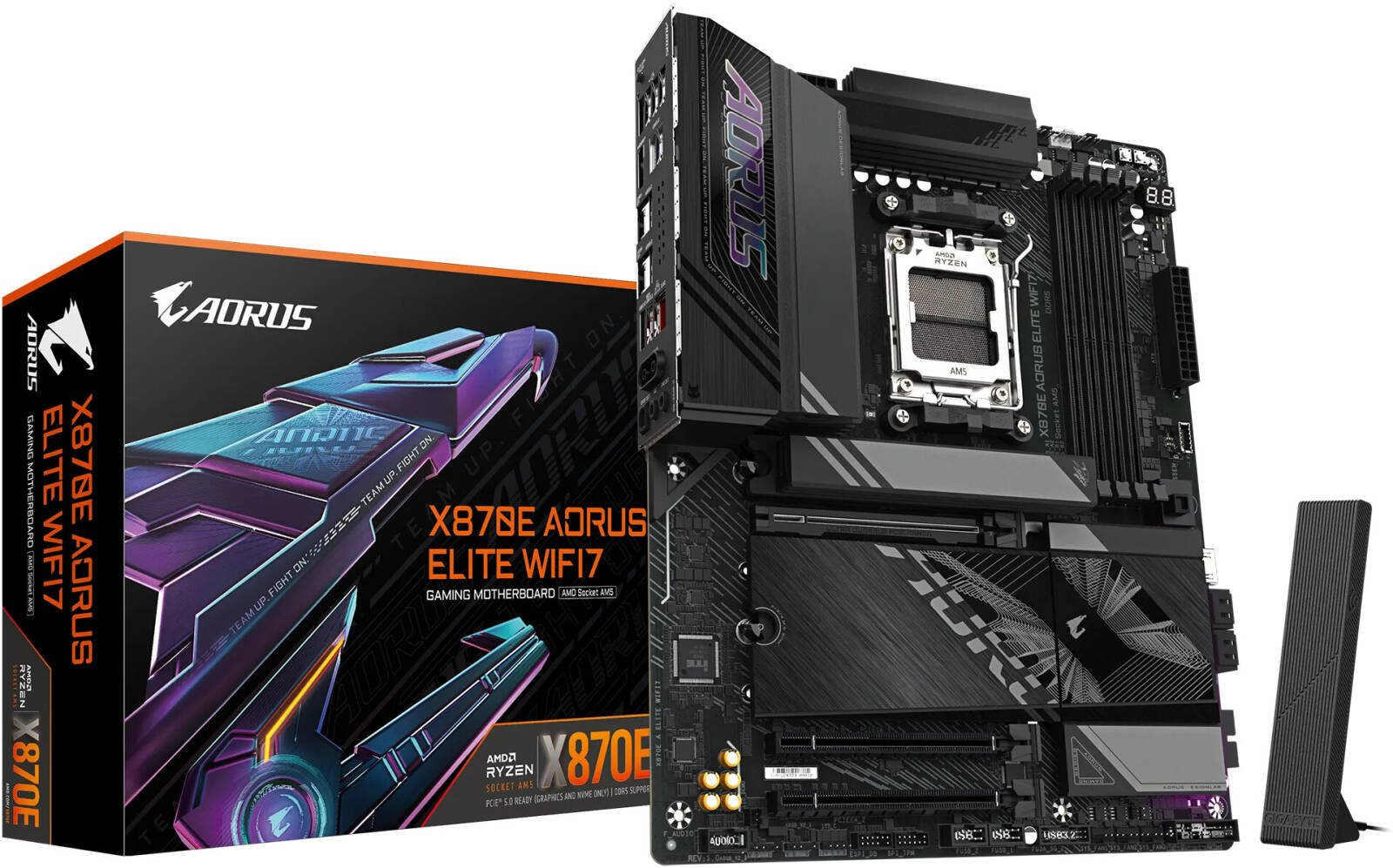

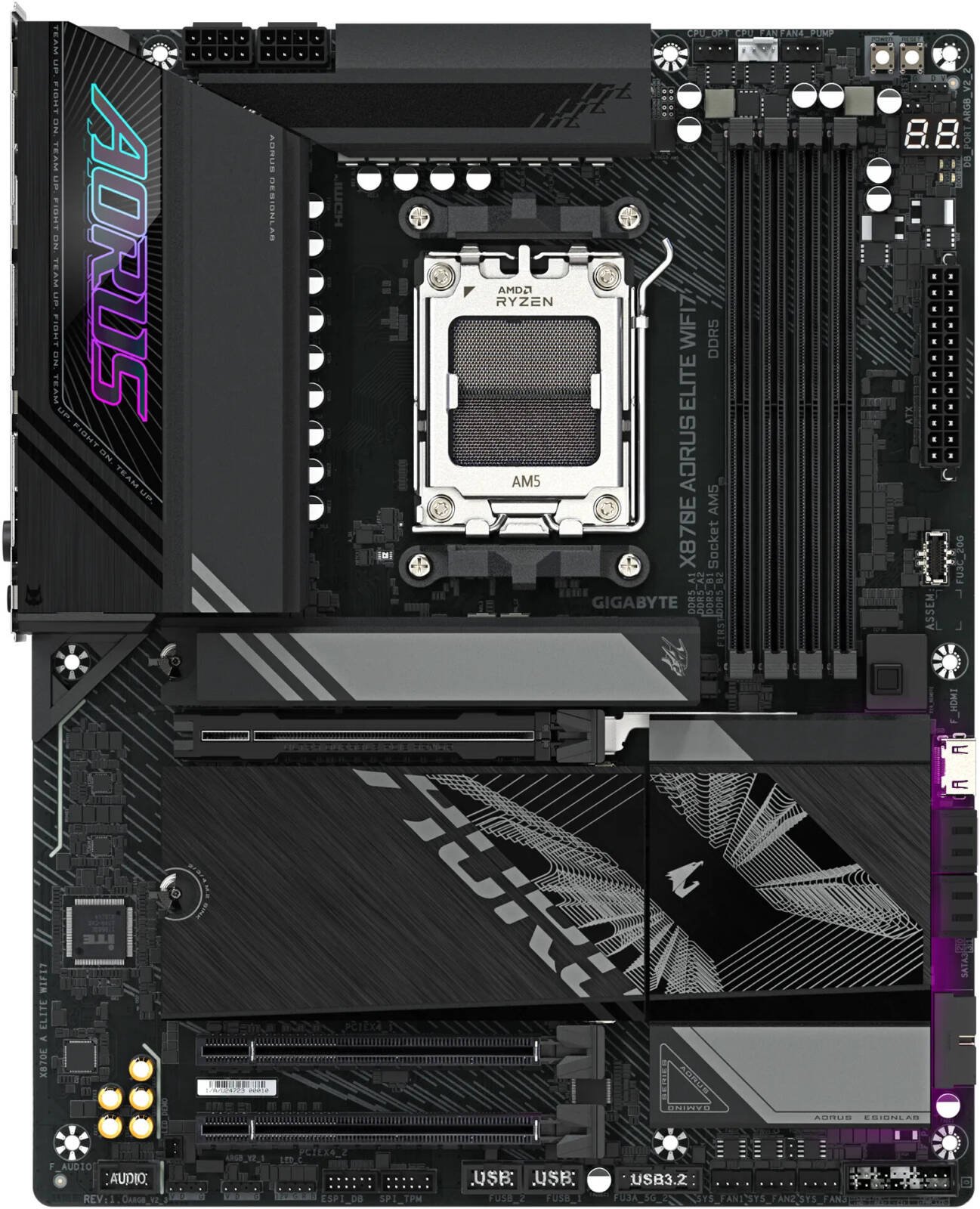

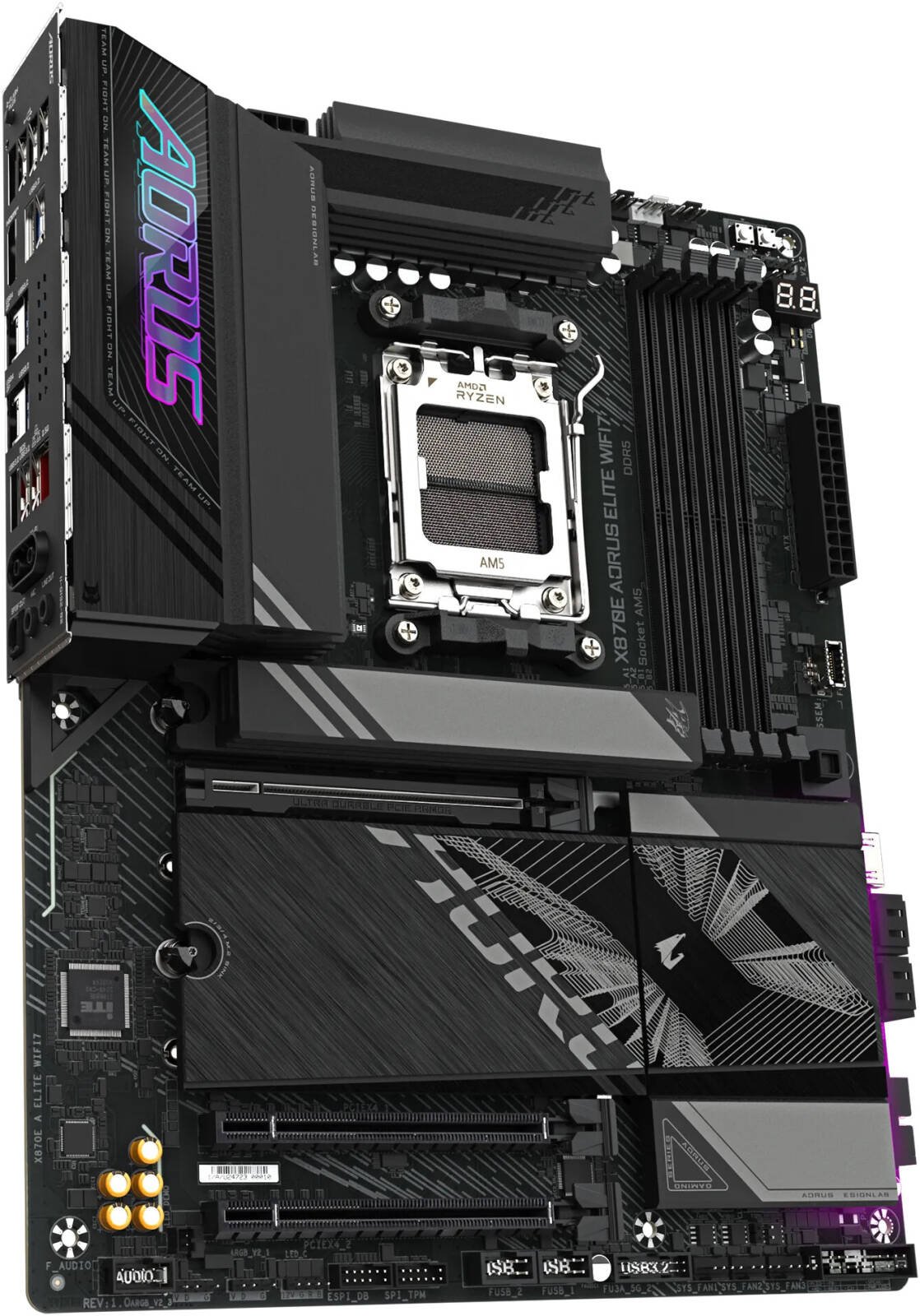

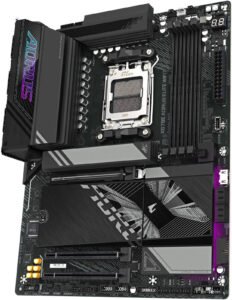

GIGABYTE X870E Aorus Elite WIFI7 Motherboard, AMD X870E Chipset, AMD Socket AM5, Dual Channel DDR5, EZ-Latch Plus, 4x M.2 Slots, Sensor Panel Link

1.359,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support

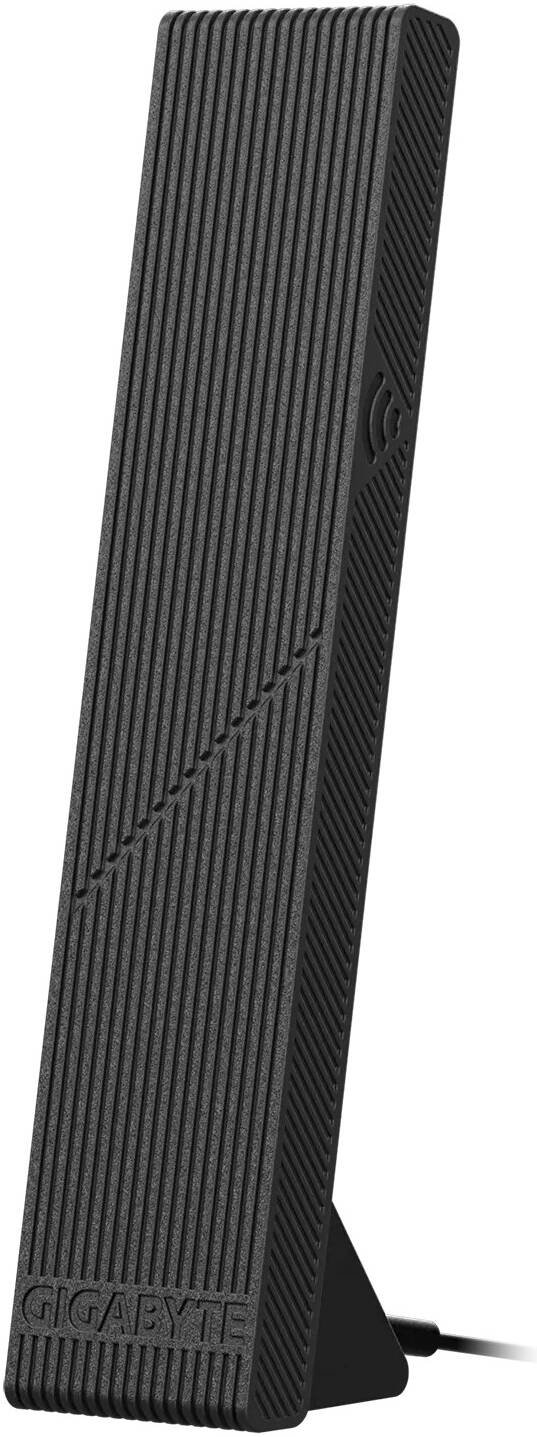

  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
CPU AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors.
Chipset AMD X870E
Memory - DDR5 up to 8200 MT/s (OC)
- 4 x DIMM, up to 256 GB total capacity
- Dual-channel
- AMD EXPO™ & XMP support.
Onboard Graphics - AMD Radeon™ Graphics
- 2 x USB4® USB-C ports (DisplayPort 1.4, HDR)
- HDMI 2.1: 4096x2160@60 Hz
- Front HDMI 1.4: 1920x1080@30 Hz.
Audio Realtek® ALC1220 CODEC
- DSD audio support
- 7.1-channel (via software)
- S/PDIF Out.
LAN Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication - Wi-Fi 7 (MediaTek MT7925/Realtek RTL8922AE)
- Bluetooth 5.4.
Expansion Slots - 1 x PCIe 5.0 x16 (CPU-integrated)
- 1 x PCIe 4.0 x4
- 1 x PCIe 3.0 x4.
Storage Interface - 4 x M.2 (PCIe 5.0 & 4.0 support)
- 4 x SATA 6Gb/s (RAID 0, 1, 5, 10).
USB Ports - 2 x USB4® Type-C
- 1 x USB 3.2 Gen 1
- 1 x USB-C (USB 3.2 Gen 2x2)
- 2 x USB 3.2 Gen 2 (Type-A)
- 7 x USB 3.2 Gen 1
- 8 x USB 2.0.
Internal I/O - 24-pin ATX power
- 2 x 8-pin ATX 12V power
- CPU/System/Water fan headers
- RGB/ARGB headers
- USB-C and USB 3.2 headers.

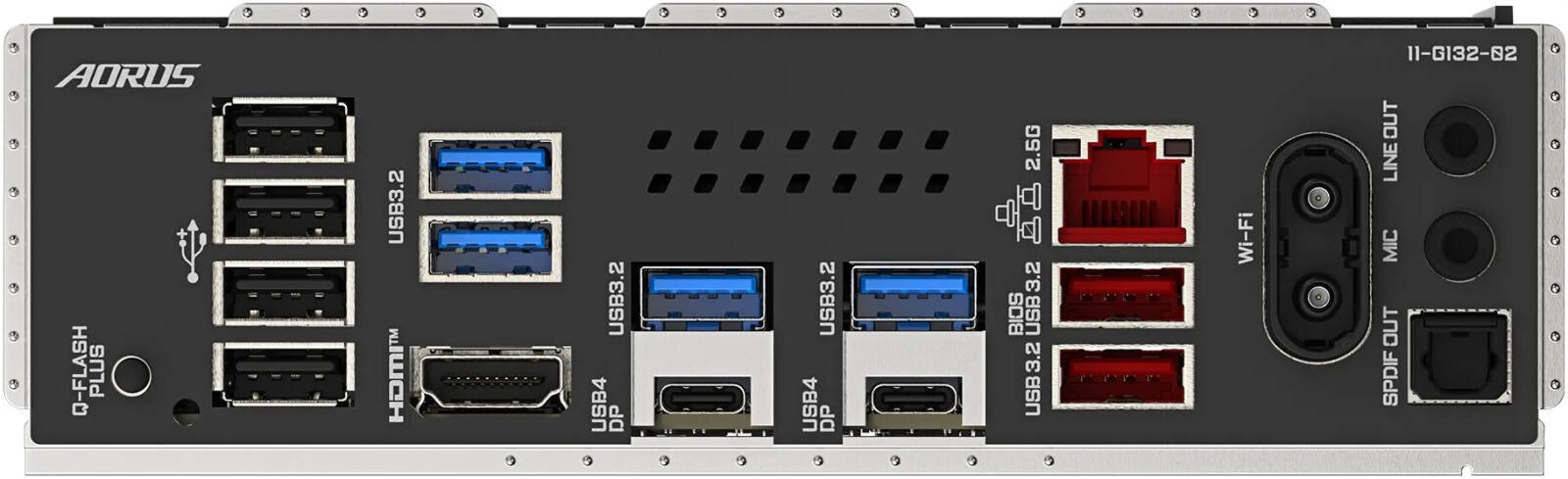

Back Panel I/O - 2 x USB4® Type-C (DisplayPort support)
- 4 x USB 2.0
- 4 x USB 3.2 Gen 1
- 2 x USB 3.2 Gen 2 (Type-A, red)
- HDMI, RJ-45, S/PDIF, Audio.
BIOS AMI UEFI BIOS
- Q-Flash & Q-Flash Plus support
- 256 Mbit flash.
Unique Features - GIGABYTE Control Center
- Smart Backup
- Noise detection.
Bundled Software - Norton® Internet Security (OEM version)
- LAN management software.
Operating System Windows 11 64-bit
Form Factor ATX (30.5cm x 24.4cm).
