GIGABYTE X870 EAGLE WIFI7 Motherboard, AMD Socket AM5, Dual Channel DDR5, AMD X870 Chipset, DDR5 Up to 256GB Memory, EZ-Latch Plus, 3 x M.2 Slots
859,00 AED
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
| CPU Support | AMD Socket AM5 (Supports Ryzen™ 9000/8000/7000 Series Processors) |
| Chipset | AMD X870 |
| Memory | - DDR5 (Up to 256GB) - Speeds: 4400-8200 MT/s (OC) - 4x DIMM slots - Dual Channel architecture - Supports AMD EXPO™ and XMP profiles |
| Graphics Support | - Integrated AMD Radeon™ Graphics - HDMI 2.1 (Max 4096x2160@60Hz) - 2 x USB4® (DP output up to 3840x2160@240Hz) |
| Audio | Realtek® Audio CODEC, 7.1 Channel HD Audio support |
| LAN | Realtek® 2.5GbE LAN |
| Wireless Communication | - MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) or Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - Bluetooth 5.4 |
| Expansion Slots | - 1x PCIe 5.0 x16 slot (CPU-integrated) - 2x PCIe 3.0 x1 slots (Chipset) |
| Storage | - 3x M.2 Slots: -- PCIe 5.0 x4/x2 (M2A_CPU) -- PCIe 4.0 x4/x2 (M2B_SB, M2C_SB)* - 4x SATA 6Gb/s |
| RAID Support | - NVMe SSDs: RAID 0, 1, 5**, 10 - SATA: RAID 0, 1, 10 |
| USB Ports | - Back Panel: -- 2x USB4® (Type-C®) -- 1x USB 3.2 Gen 2 (Type-A, red) -- 3x USB 3.2 Gen 1 -- 4x USB 2.0 - Internal: USB-C 3.2 Gen 2x2, 2x USB 3.2 Gen 1, 4x USB 2.0 |
| Cooling Features | - 1x CPU Fan Header - 1x CPU Fan/Water Pump Header - 4x System Fan Headers |
| RGB Headers | 3x Addressable RGB Gen2 Headers, 1x RGB LED Header |

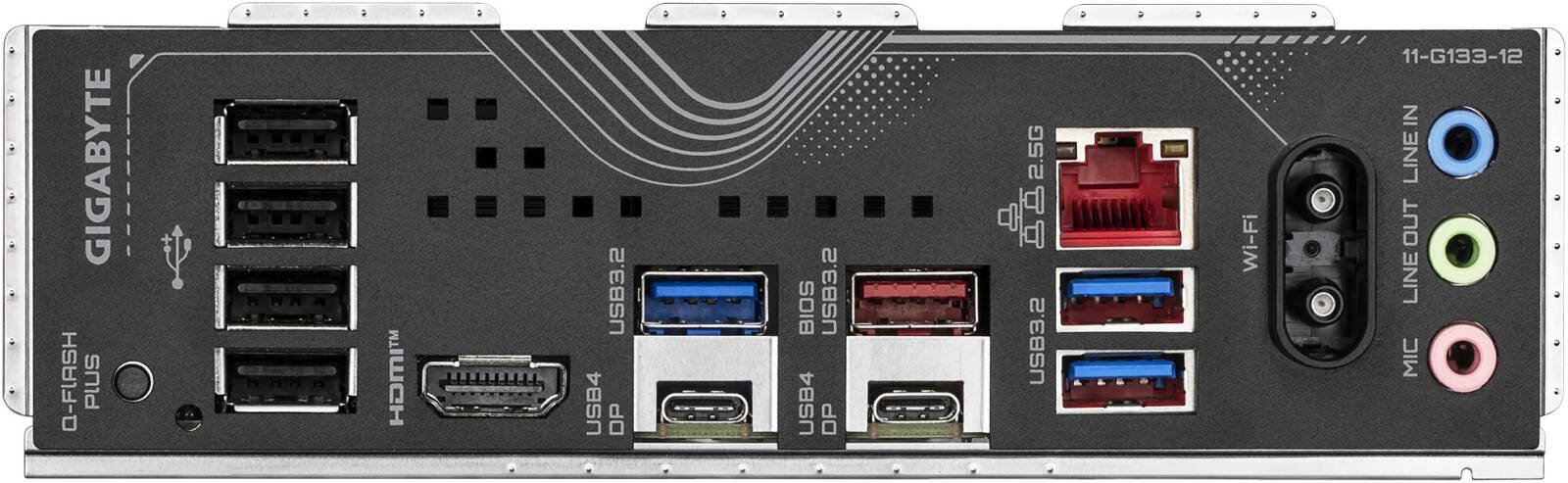

| Back Panel Connectors | - Q-Flash Plus button - 2x Antenna Connectors - HDMI - RJ-45 - Audio Jacks |
| BIOS | - AMI UEFI BIOS - 256 Mbit Flash - Features: Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton® Internet Security, LAN Bandwidth Management Software |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
