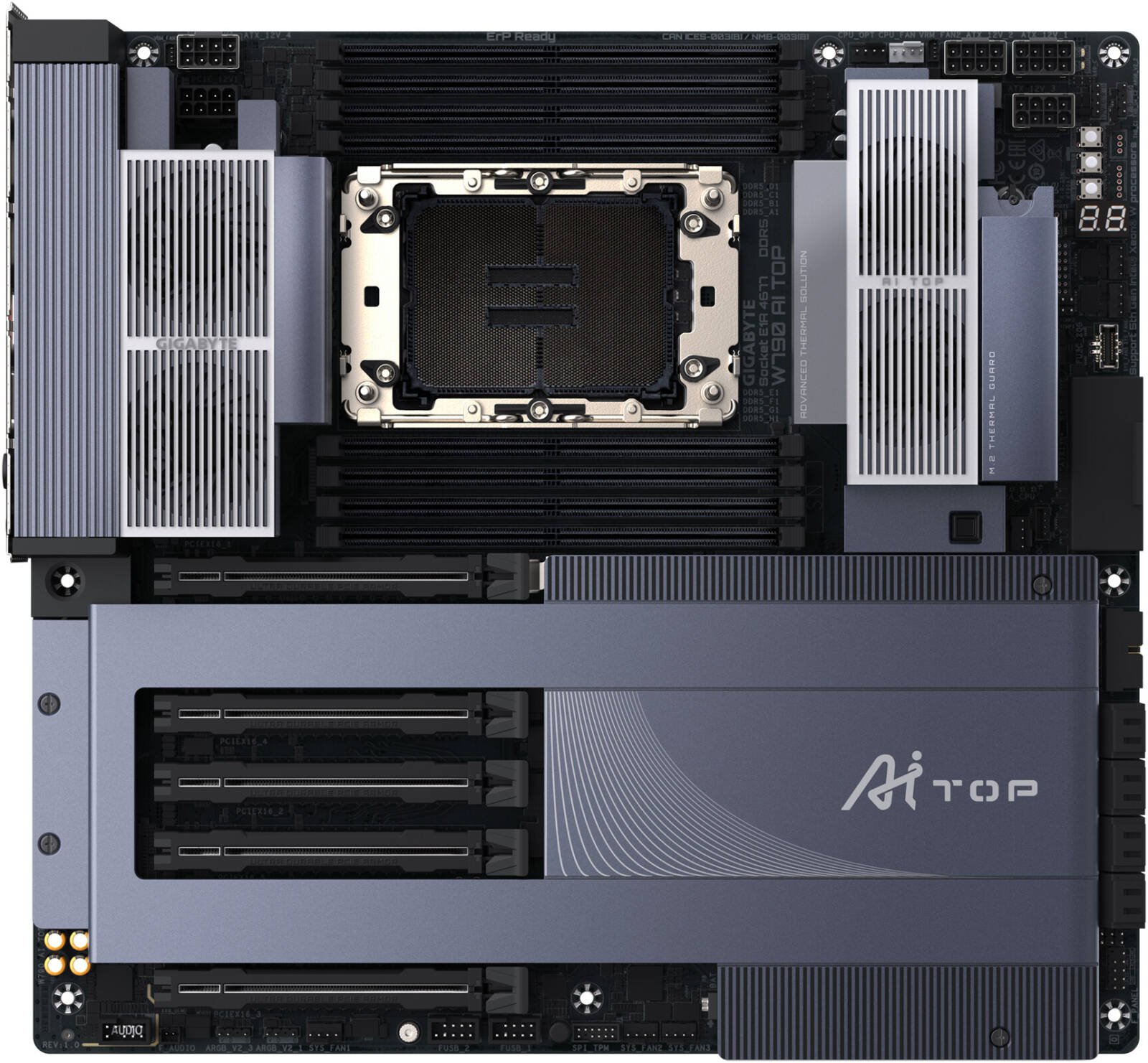

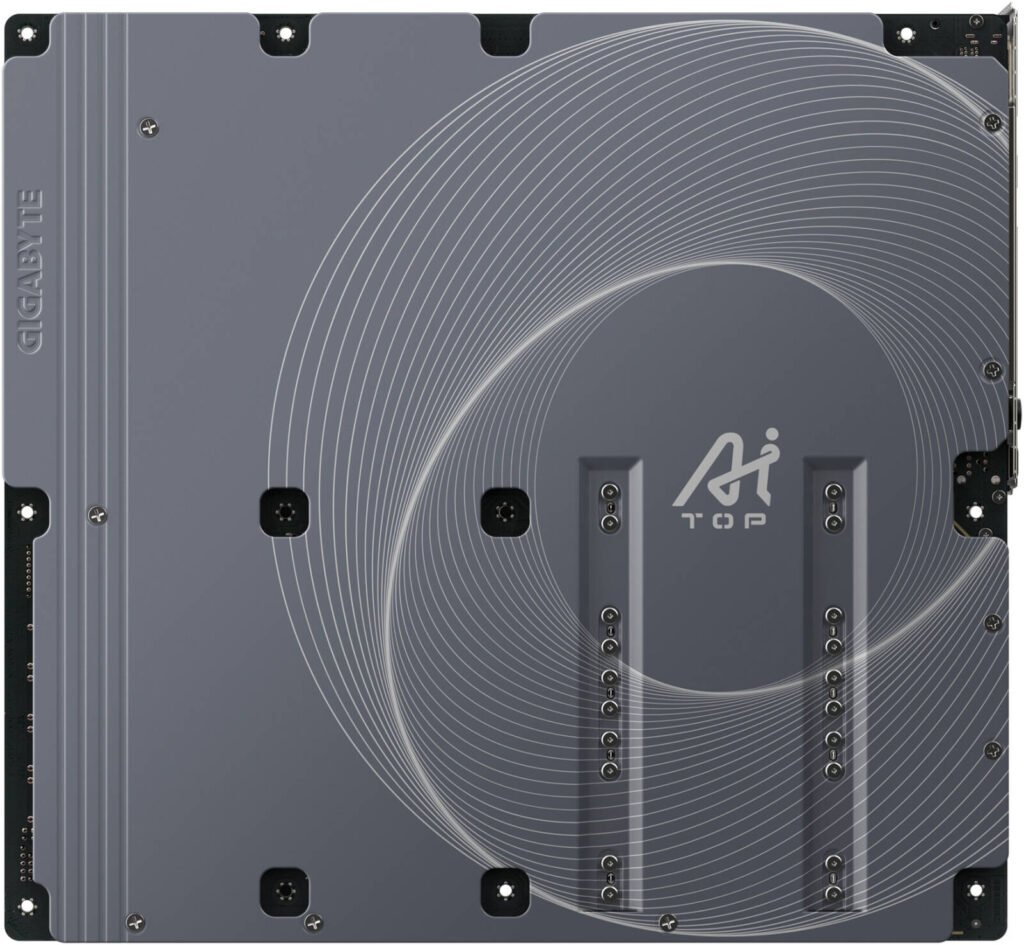

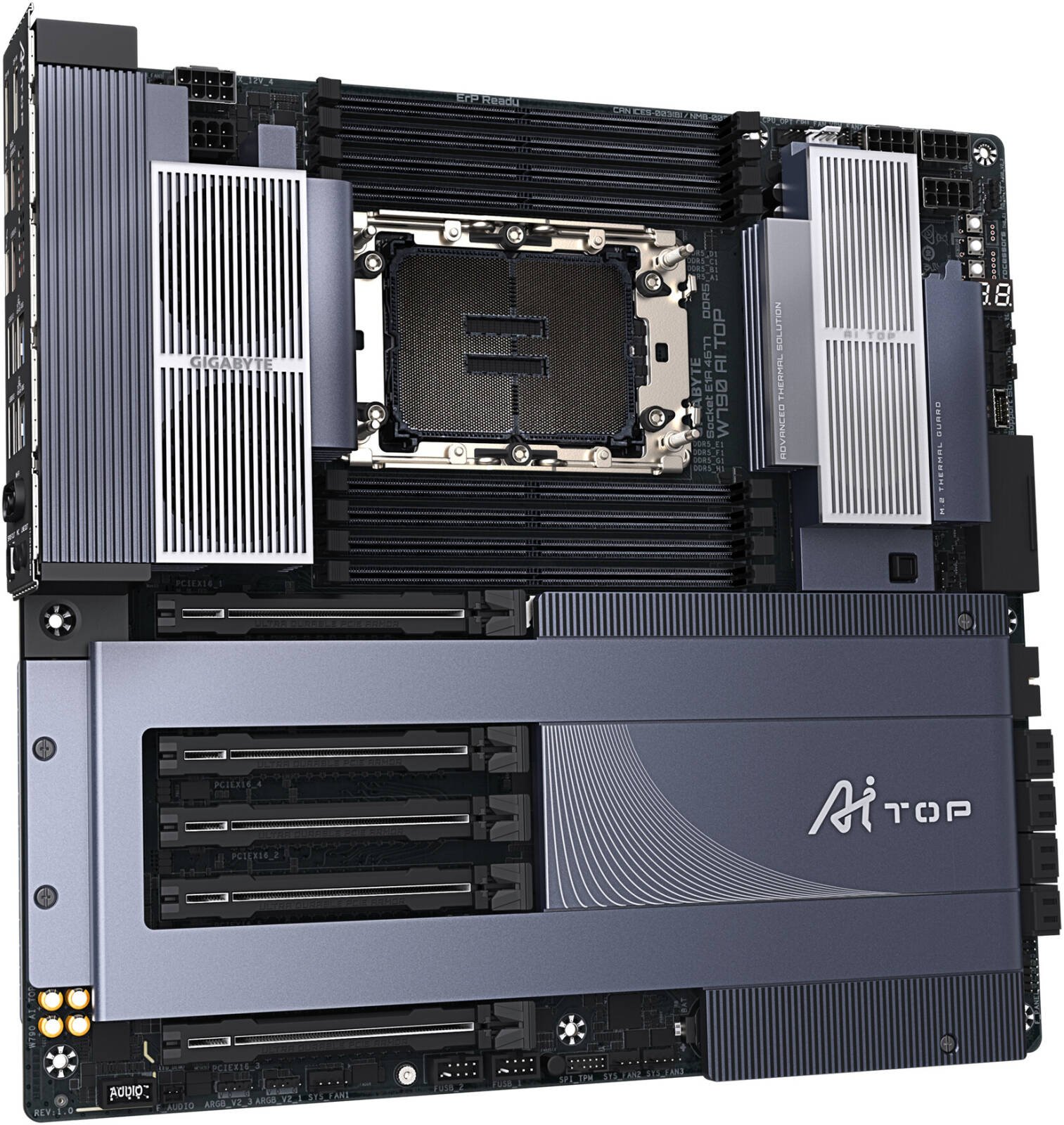

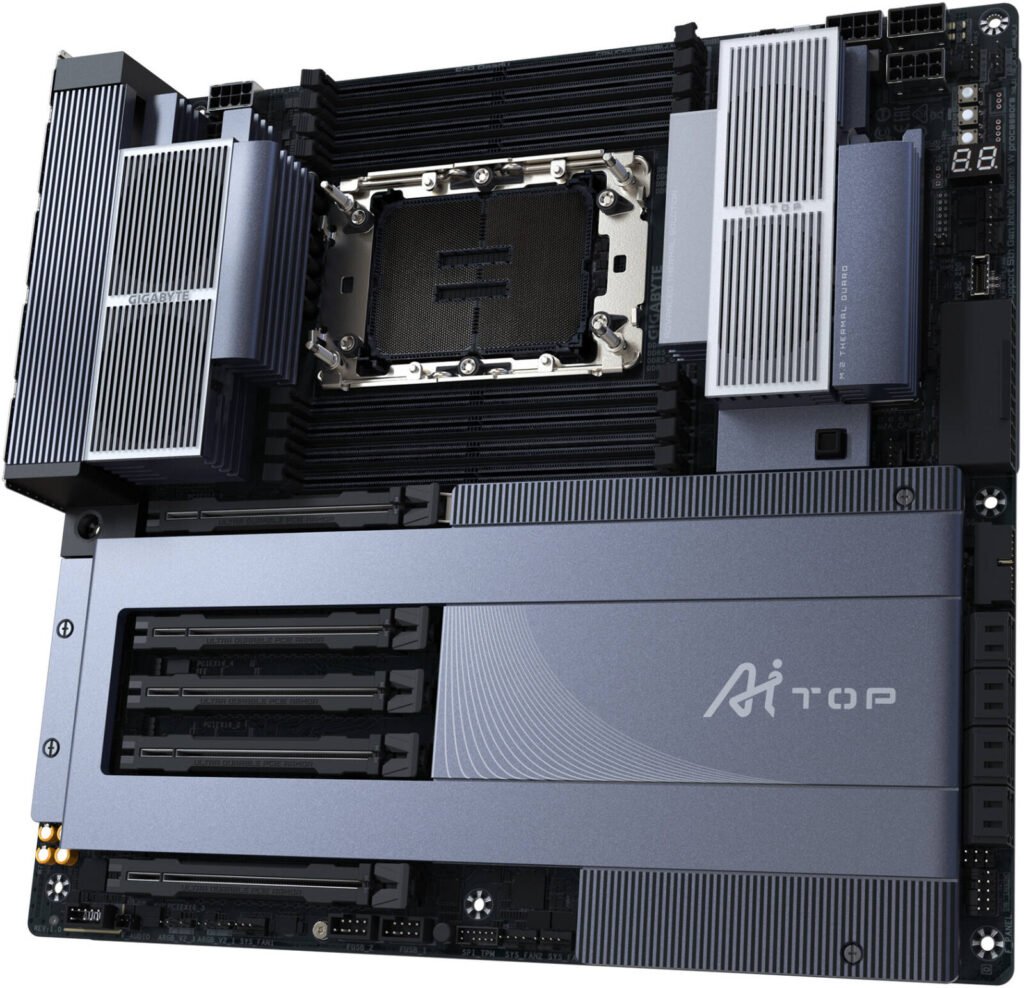

GIGABYTE W790 AI TOP LGA 4677 E-ATX Motherboard, Intel W790 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, 5x PCI Express x16 Slots, 6x M.2 Slots, WiFi & Bluetooth Connecitivty

4.830,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Support 5th Gen Intel® Xeon® W processors
  • Ultimate Scalibility : 5 * PCIe 5.0 x16 slots for Multi-GPU and 6*PCIe 5.0/4.0 M.2 slots
  • Next-gen Connectivity : Dual Thunderbolt™ 4 Type-C with DP-Alt
  • Blazing Fast Networks : Dual Sever-grade 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
  • 8 Channel DDR5 : 8*SMD ECC R-DIMMs with Maxmium 2TB capacity
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
CPU LGA4677 socket: Intel® Xeon® W-3500/W-3400/W-2500/W-2400 Series, L3 cache varies
Chipset Intel® W790 Express Chipset
Memory DDR5 up to 5600(O.C.)/4800 MHz, 8x DIMM slots, ECC Registered memory, max 2TB, XMP support
Audio Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out
LAN Intel® X710-AT2 10GbE (10/5/2.5/1 Gbps/100 Mbps)
Wireless Intel® Wi-Fi 7 BE200NGW, Bluetooth 5.4
Expansion Slots 5x PCIe 5.0 x16 (x16 mode), PCIEX16_4 & PCIEX16_5 unavailable with W-2500/W-2400 CPUs
Storage 6x M.2 (4x PCIe 5.0, 2x PCIe 4.0), 8x SATA 6Gb/s, RAID 0/1/5/10 support
USB Ports 2x Thunderbolt™ 4 (USB4® Type-C), 1x USB 3.2 Gen 2x2 (Type-C), 2x USB 3.2 Gen 2 (Type-A), 6x USB 3.2 Gen 1, 4x USB 2.0
Internal I/O 4x 8-pin ATX 12V, 6x M.2, 8x SATA, PCIe power, RGB headers, USB headers, TPM header, Q-Flash Plus button

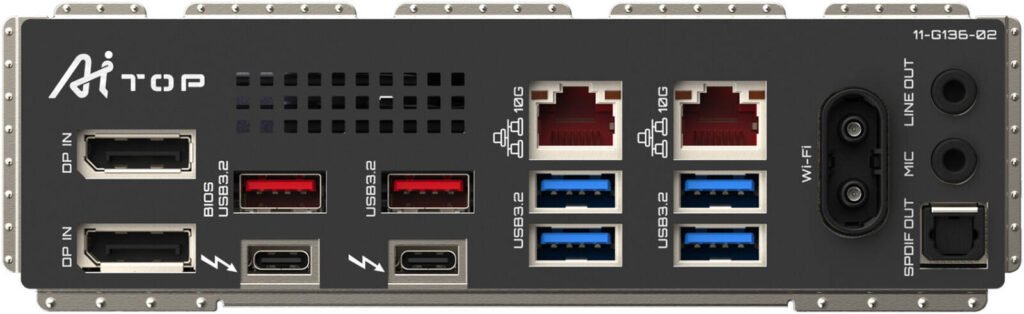

Back Panel 2x DisplayPort In, 2x Thunderbolt™ 4 (USB Type-C), 2x USB 3.2 Gen 2 (Type-A), 4x USB 3.2 Gen 1, 2x LAN, 2x audio jacks, optical S/PDIF Out, 2x antenna connectors
BIOS 512 Mbit flash, AMI UEFI, Q-Flash, Smart Backup
OS Support Windows 11 64-bit
Form Factor E-ATX (30.5cm x 33.0cm)
