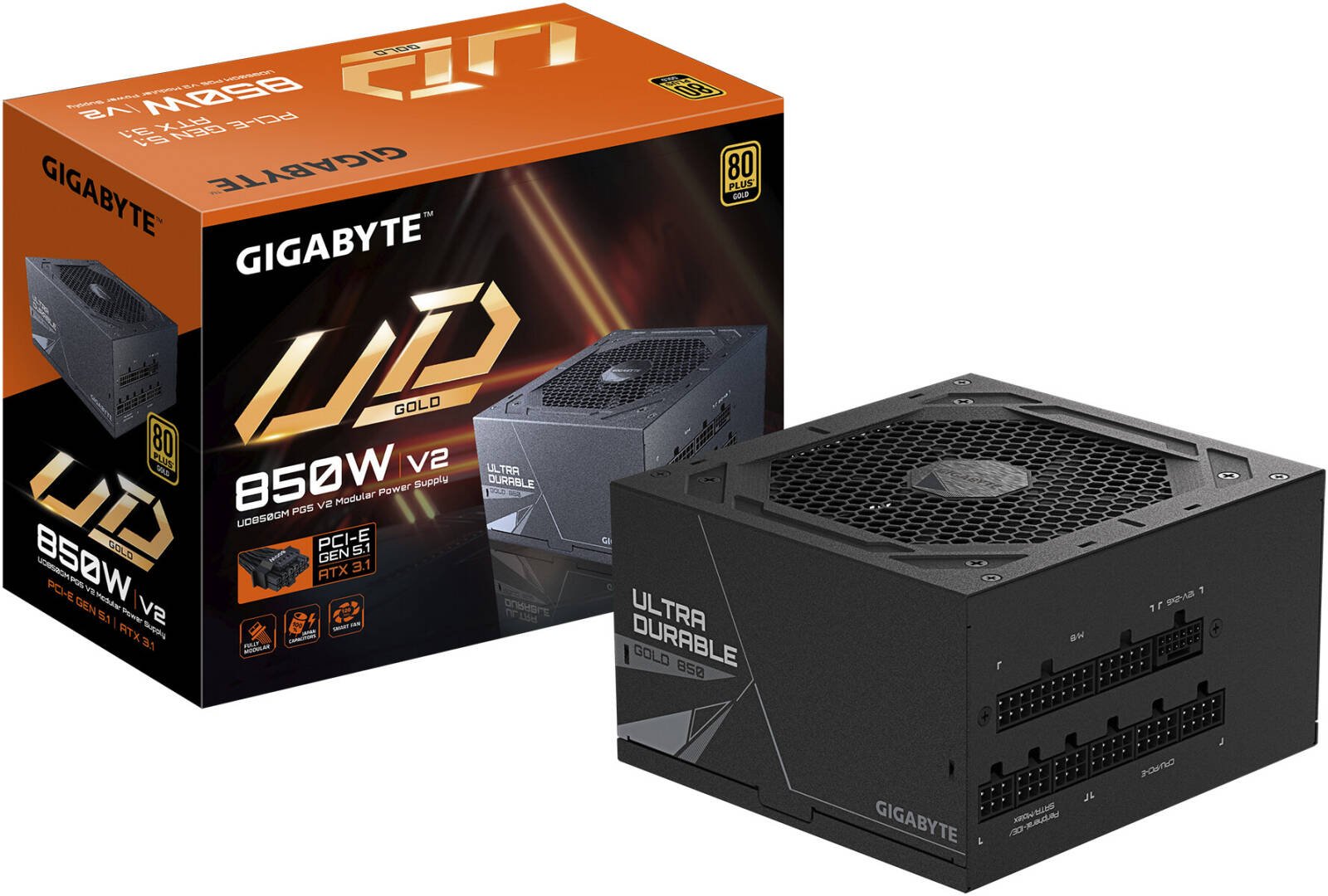

GIGABYTE UD850GM PG5 V2 Fully Modular Power Supply, 850W Power, 80 PLUS Gold Efficiency, 120mm Hydraulic Bearing, ATX 12V v3.1, Active PFC, Japanese Capacitors, Black

439,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Intel ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Fully modular design
  • Powerful single +12V rail

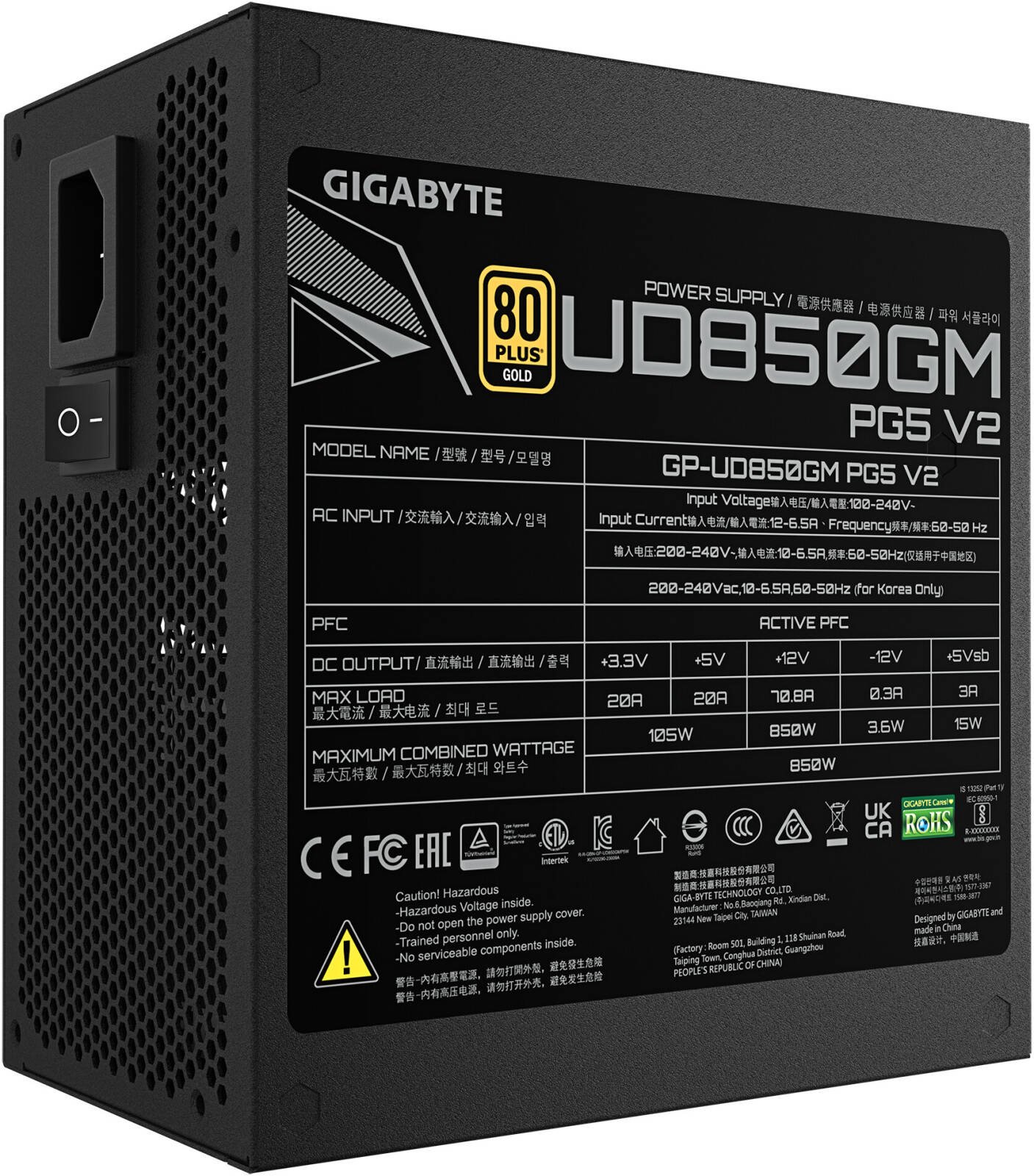

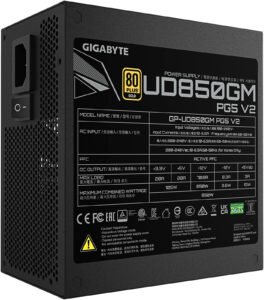

Model GP-UD850GM PG5 V2
Type Intel Form Factor ATX 12V v3.1
PFC Active PFC (>0.9 typical)
Input Voltage 100–240 Vac (full range)
Input Current 15–6.5 A
Input Frequency 60–50 Hz
Output Capacity 850 W
Dimensions 150 × 140 × 86 mm
Fan Type 120 mm Hydraulic Bearing (HYB) Fan
80 PLUS Certification Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protections OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal 100–150 ms
Hold Up Time >16 ms
Cable Type Embossed, All Black

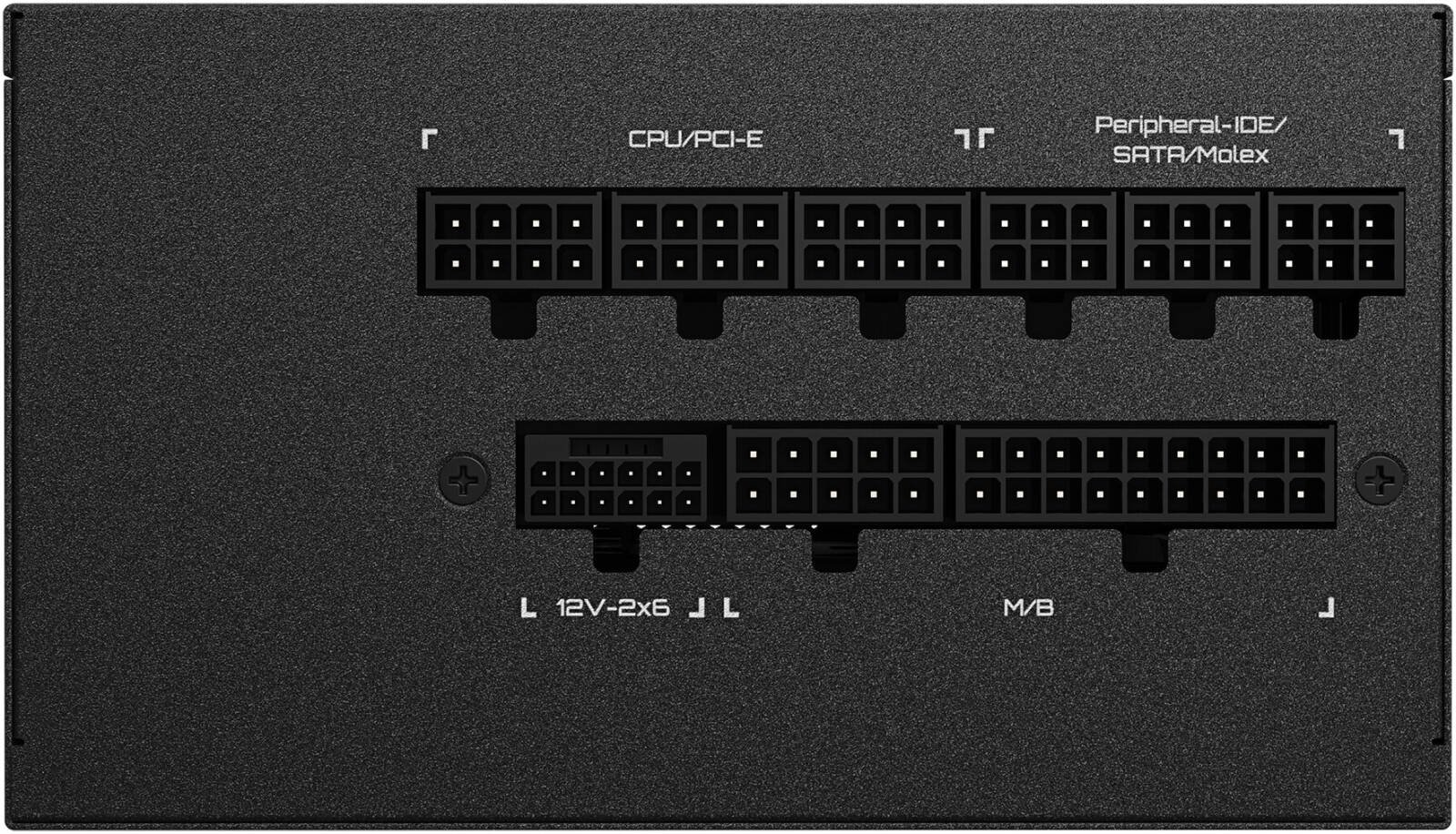

Connectors
ATX/MB 20+4 Pin × 1 : 610 mm × 1
CPU/EPS 4+4 Pin × 2 : 650 mm + 200 mm × 1
PCI-e 6+2 Pin × 4 : 600 mm + 150 mm × 2
PCI-e 12+4 Pin × 1 : 700 mm × 1
SATA × 8 : 600 mm + 150 mm + 150 mm + 150 mm × 2
4 Pin Peripheral + Floppy 3 × 4-Pin Peripheral + 1 × 4-Pin Floppy : 500 mm + 150 mm + 150 mm + 150 mm × 1
