GIGABYTE UD1600PM PG5 AI TOP Fully Modular Power Suppler, 1600W Power, 80 PLUS Platinum Efficiency, 140mm Double Ball Bearing Fan, ATX 12V v3.1, PCIe Gen 5.0, Black

1.399,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
  • ATX 3.1 and PCIe Gen 5.0 ready
  • Server-grade Ultra Durable
  • Main Japanese capacitors
  • Enhanced thermal solution

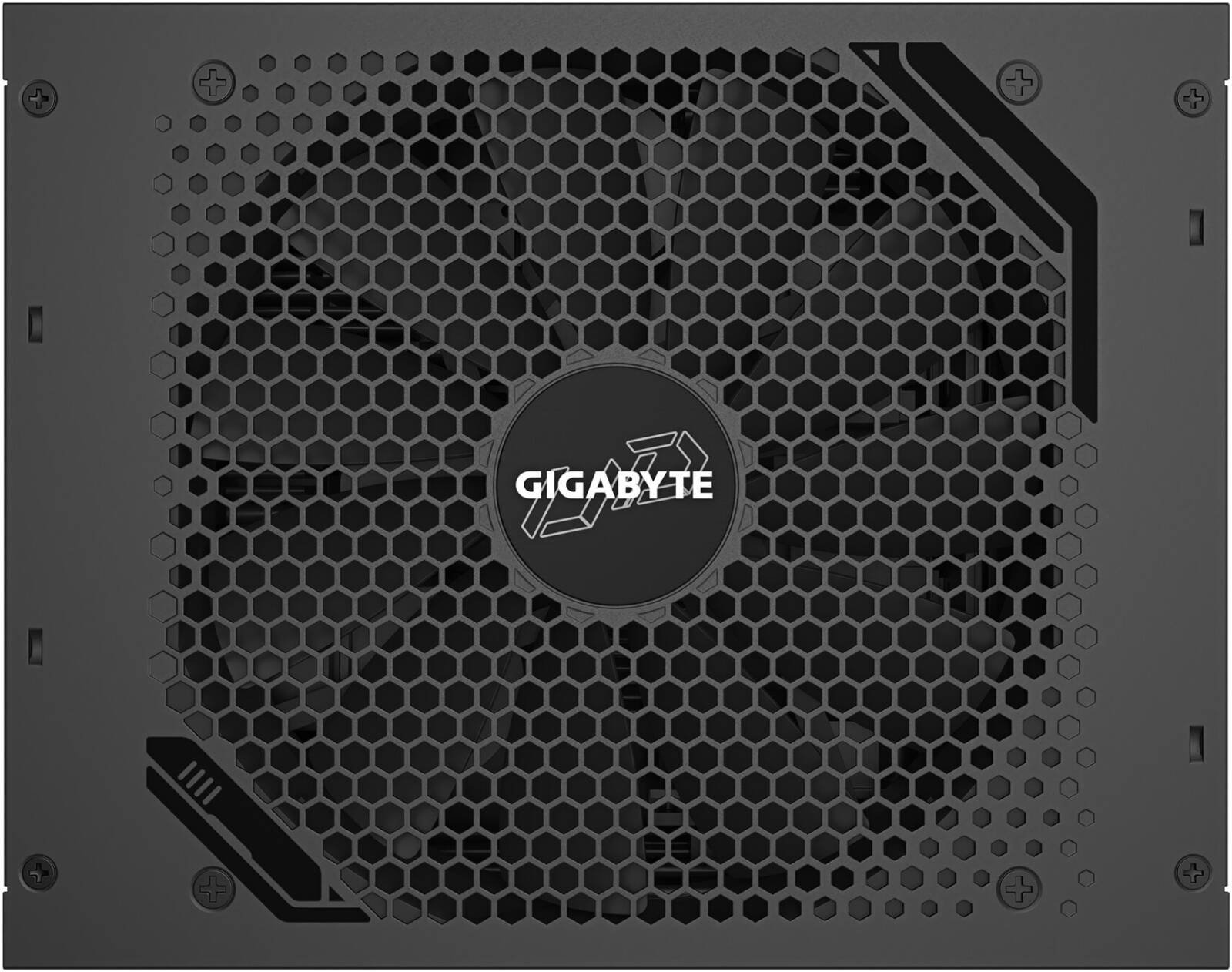

  • 140mm smart double ball bearing fan
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 80 PLUS Platinum certified
  • Fully modular design
  • Powerful single +12V rail
Model GP-UD1600PM PG5
Type Intel Form Factor ATX 12V v3.1
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-7.5A
Input Frequency 60-50 Hz
Output Capacity 1600W
Dimension 150 x 190 x 86 mm
Fan Type 140mm Double Ball Bearing Fan
80 PLUS Certification Platinum
Efficiency 92% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150 ms
Hold Up Time >16 ms
Cable Type Flat, All black

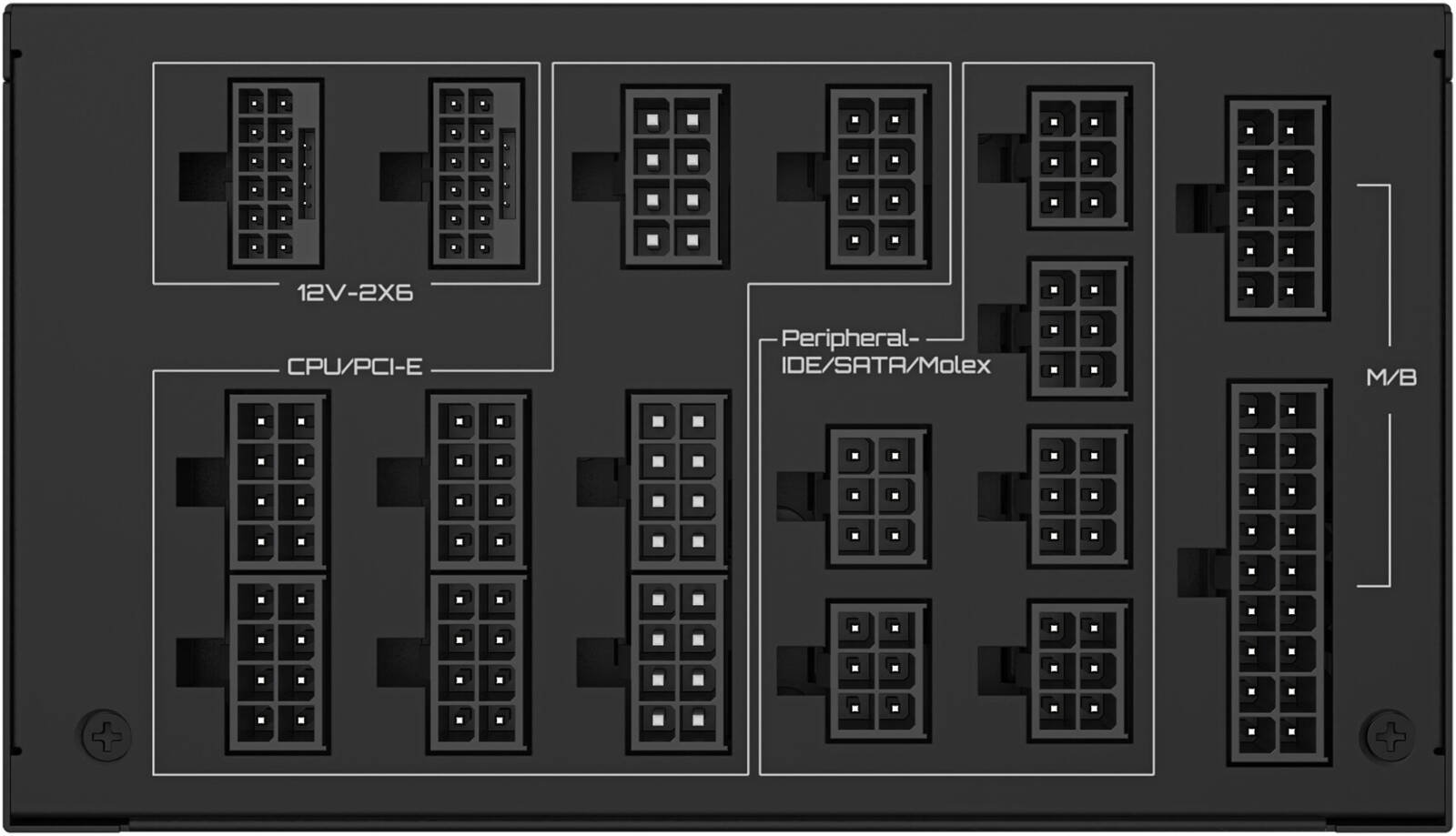

Connectors - ATX/MB 20+4 Pin x 1: 610mm
- CPU/EPS 4+4 Pin x 2: 650mm
- PCI-E 16 Pin x 2: 700mm
- PCI-E 16 Pin to PCI-E 8 Pin x 2: 700mm
- PCI-E 6+2 Pin x 8: 650mm + 150mm (x4 sets)
- SATA x 16: 650mm + 150mm + 150mm + 150mm (x4 sets)
- 4 Pin Peripheral x 6 + 4 Pin Floppy x 2: 600mm + 150mm + 150mm (x2 sets)
