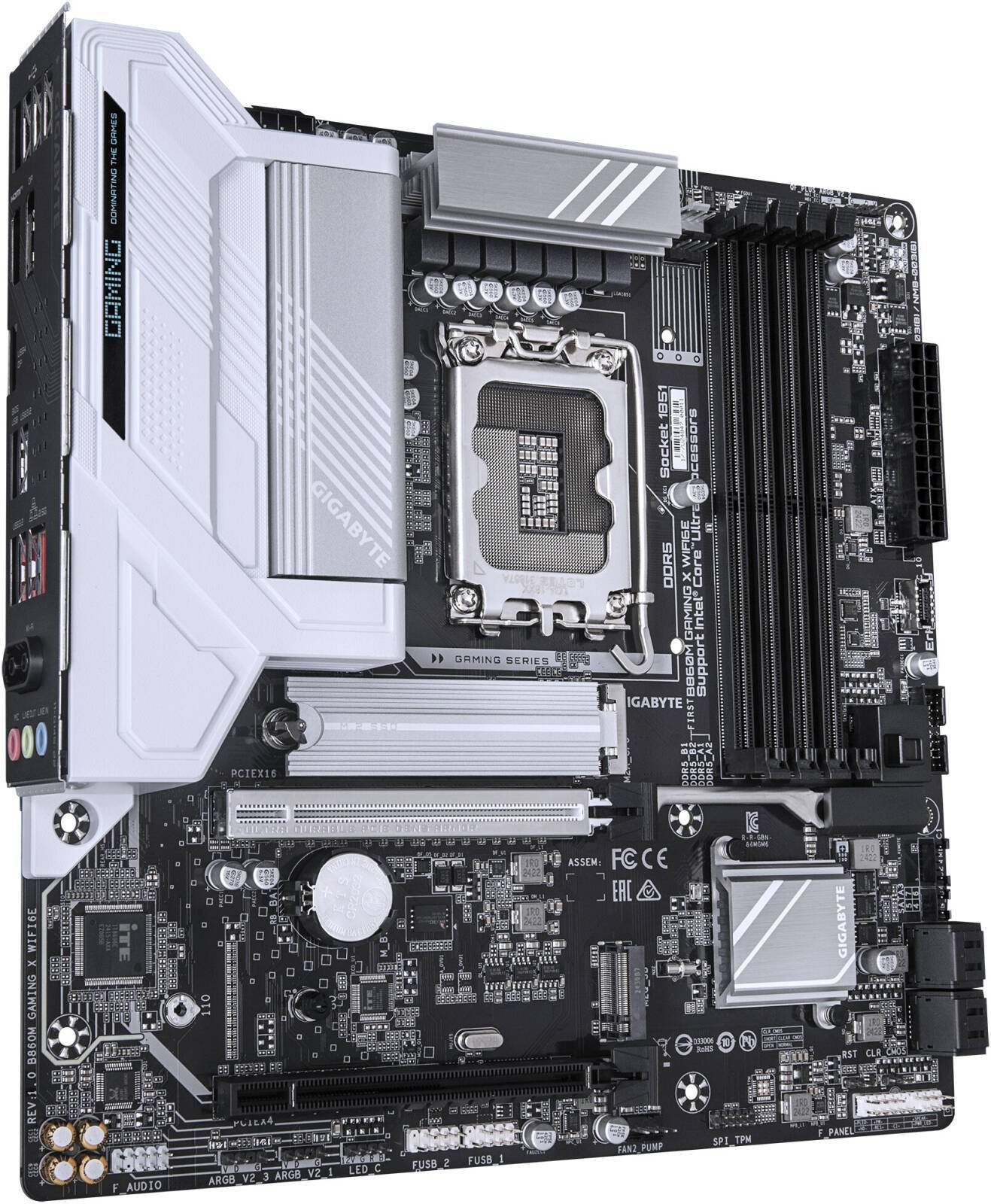

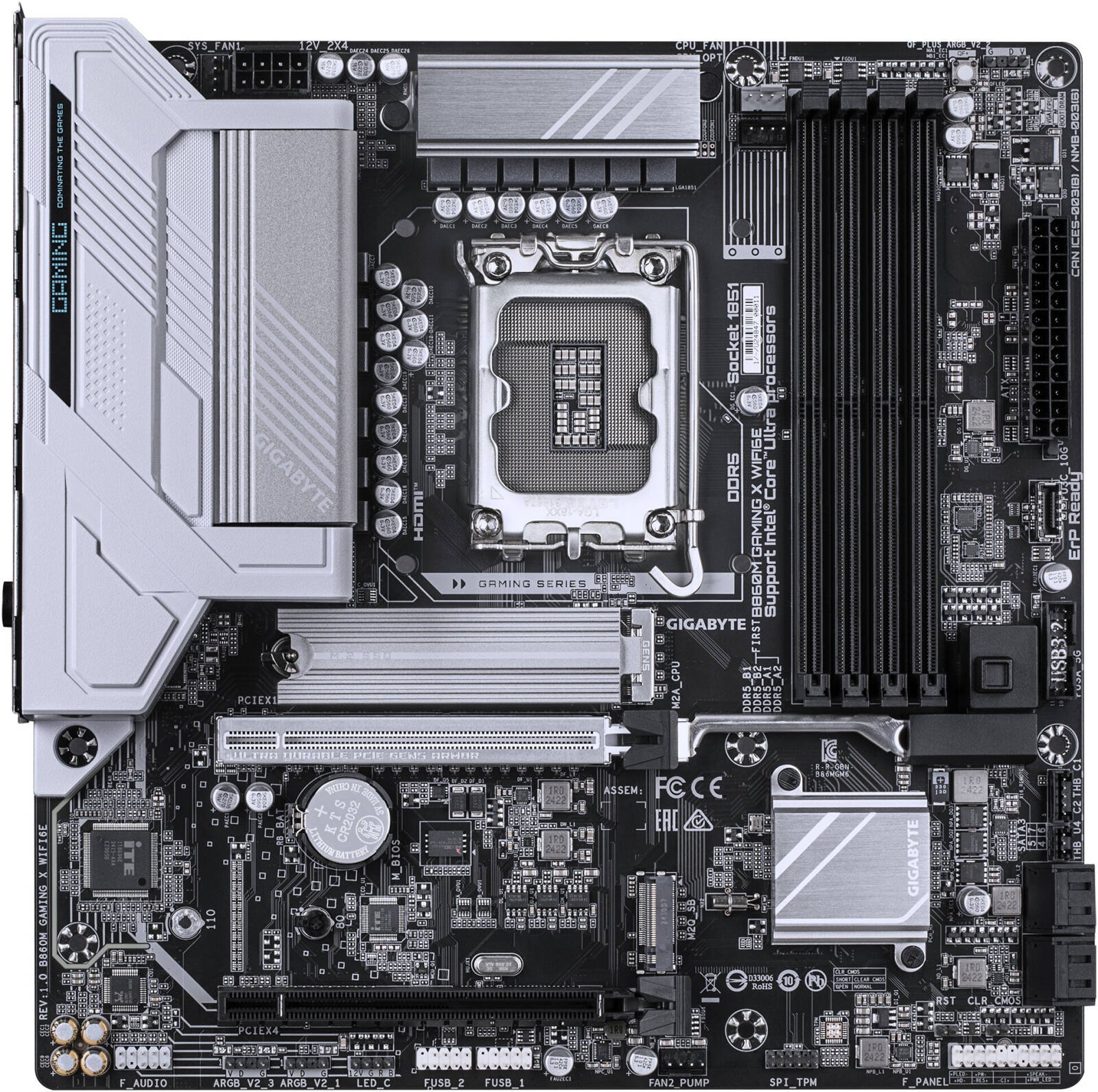

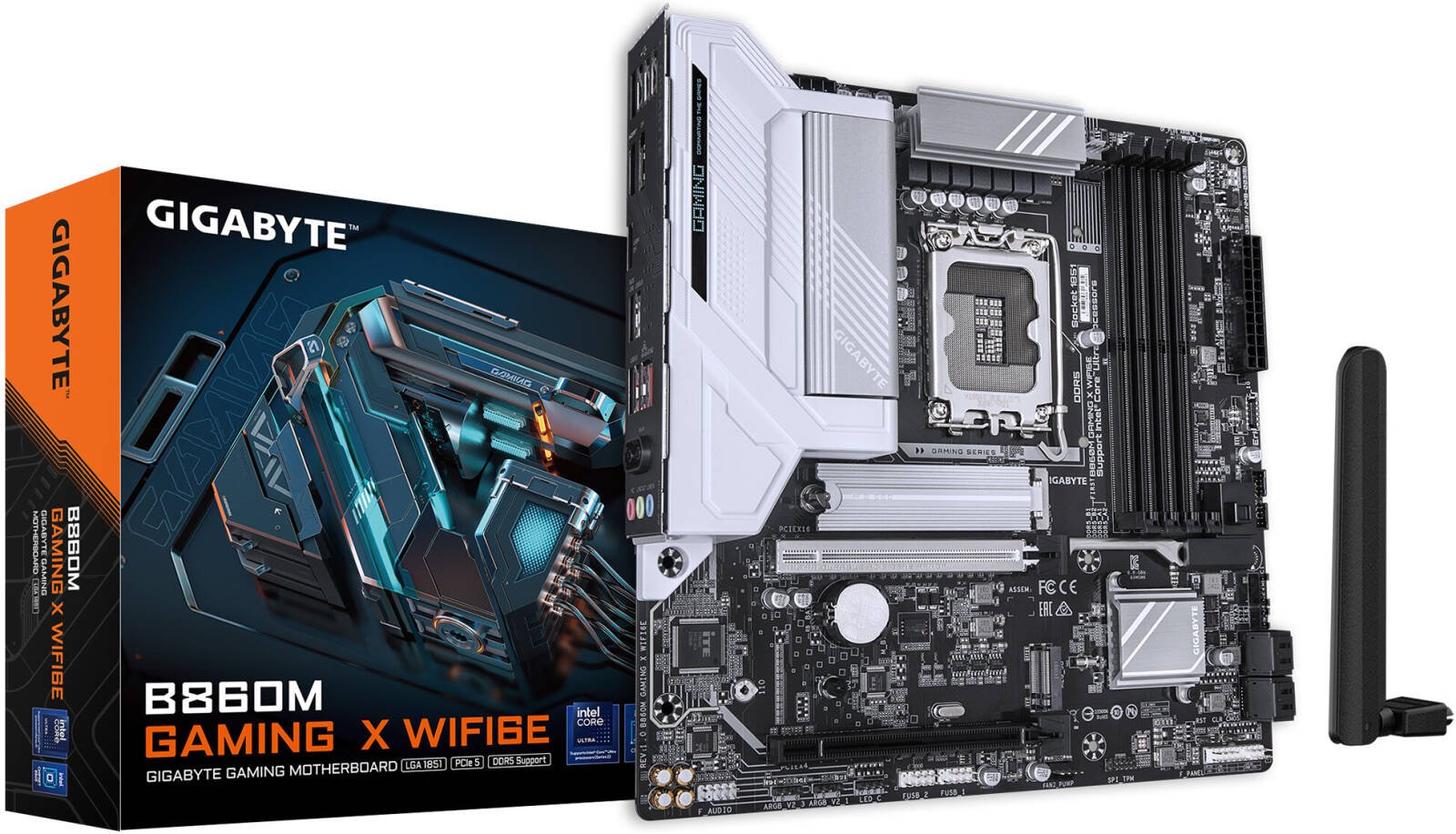

GIGABYTE B860M Gaming X WIFI6E LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots

799,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports Intel® Core™ Ultra processors (Series 2)
  • Hybrid Digital 8+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design | EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
CPU LGA1851 socket, supports Intel® Core™ Ultra Processors, L3 cache varies with CPU
Chipset Intel® B860 Express Chipset
Memory DDR5 up to 9200(O.C) MT/s, 4x DIMM up to 256 GB, ECC/Non-ECC un-buffered, XMP support, Dual channel
Graphics Intel® HD Graphics (CPU-dependent): USB4 (3840x2160@144Hz), DisplayPort (3840x2160@144Hz), HDMI (4096x2160@60Hz), Triple-display support, DP 2.1, HDMI 2.1
Audio Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out
LAN Realtek® 2.5GbE (2.5G/1G/100M)
Wi-Fi & BT Intel® Wi-Fi 6E AX211 / Realtek® RTL8852CE (WIFI a/b/g/n/ac/ax, 2.4/5/6 GHz), Bluetooth 5.3, 160 MHz support
Expansion Slots 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset)
Storage 1 x M.2 PCIe 5.0 x4/x2 (CPU), 1 x M.2 PCIe 4.0 x4/x2 (Chipset), 4 x SATA 6Gb/s, RAID 0/1/5/10
Rear USB 1 x USB4 Type-C, 3 x USB 3.2 Gen 1, 5 x USB 2.0/1.1
Internal USB 1 x USB-C Gen 2, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Internal I/O 24-pin & 8-pin power, 2 x M.2, 4 x SATA, 4 fan headers, 3 x ARGB Gen2, 1 x RGB, TPM header, USB headers, FP audio/header, 2 x Thunderbolt add-in connectors, Q-Flash Plus, Reset, Clear CMOS

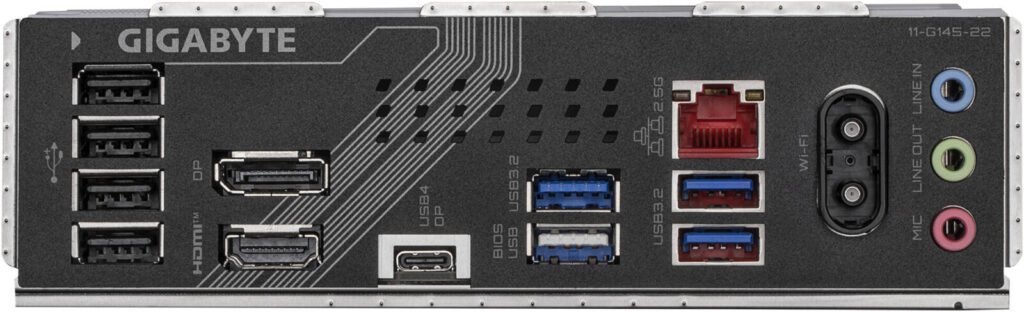

Back Panel HDMI, DisplayPort, USB4 Type-C, 3 x USB 3.2 Gen 1, 5 x USB 2.0, RJ-45, 3 x audio jacks, 2 x antenna connectors
I/O Controller iTE® Controller
Monitoring Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan control (depends on fan/pump)
BIOS AMI UEFI BIOS, 256 Mbit flash, PnP, DMI 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Software Norton Internet Security (OEM), LAN management software
Form Factor Micro ATX, 24.4 x 24.4 cm
