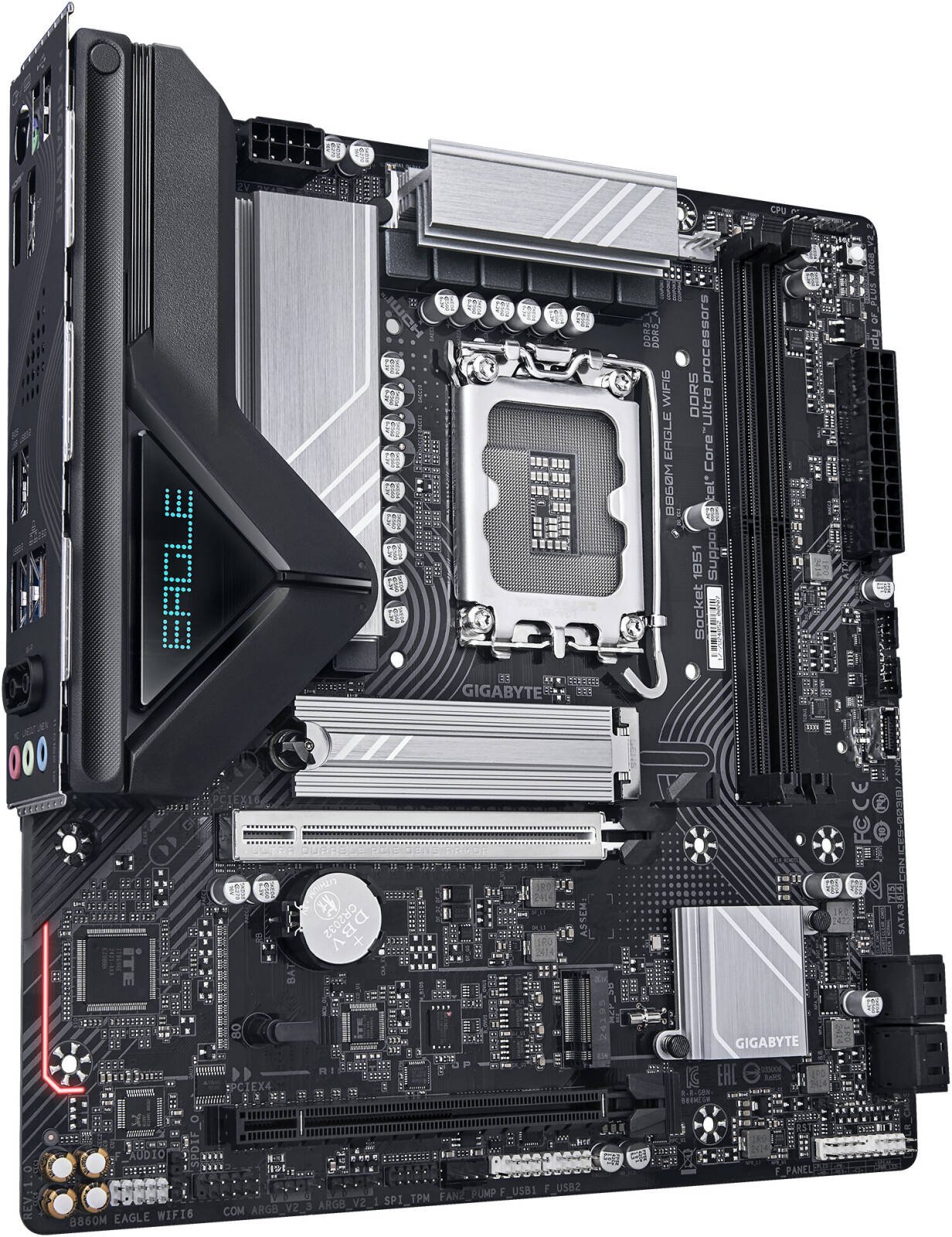

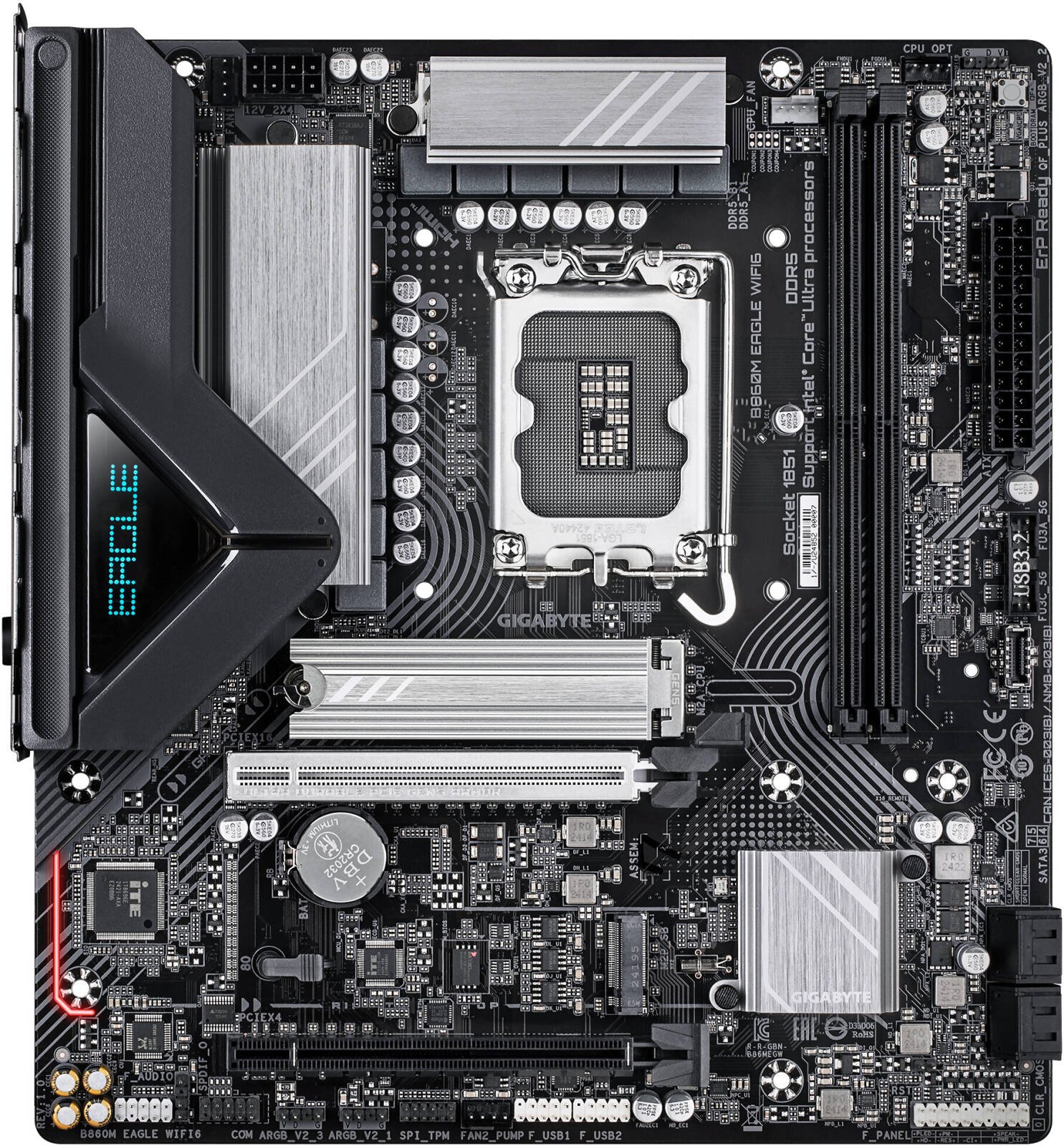

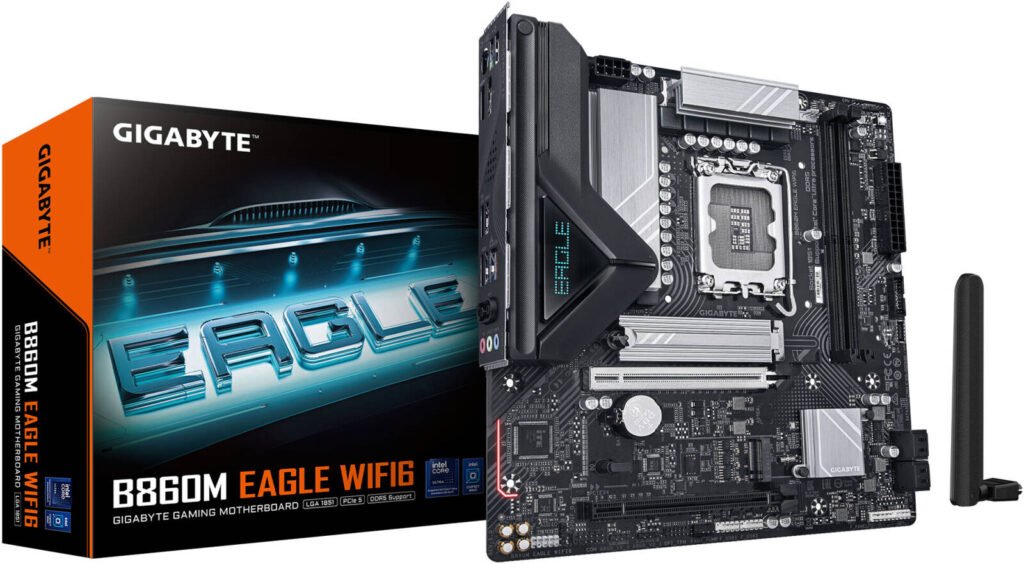

GIGABYTE B860M Eagle LGA 1851 Micro ATX Motherboard, Intel B860 Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16 Slots, 2x M.2 Slots, WiFi & BT Connectiivty
579,00 AED
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking : 2.5GbE LAN Wi-Fi 6
| CPU | LGA1851 socket, Intel® Core™ Ultra Processors, L3 cache varies |
| Chipset | Intel® B860 Express Chipset |
| Memory | DDR5 up to 9066(O.C.), 2x DIMM slots, max 128GB, ECC & non-ECC, XMP support |
| Onboard Graphics | Intel® HD Graphics, 1x HDMI 2.1 (4096x2160@60Hz), 1x DisplayPort 2.1 (3840x2160@144Hz) |
| Audio | Realtek® Audio CODEC, HD Audio, 7.1-channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE (2.5G/1G/100M) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE, Bluetooth 5.3 |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset) |
| Storage | 1x M.2 PCIe 5.0 (CPU), 1x M.2 PCIe 4.0 (Chipset), 4x SATA 6Gb/s, RAID 0/1/5/10 |
| USB Ports | 1x USB-C 3.2 Gen 1 (internal), 5x USB 3.2 Gen 1 (3 rear, 2 internal), 3x USB 2.0 (rear), 4x USB 2.0 (internal) |
| Internal I/O | 1x 24-pin ATX, 1x 8-pin ATX 12V, 2x M.2, 4x SATA, RGB headers, USB headers, TPM header, Serial port header, Q-Flash Plus button |

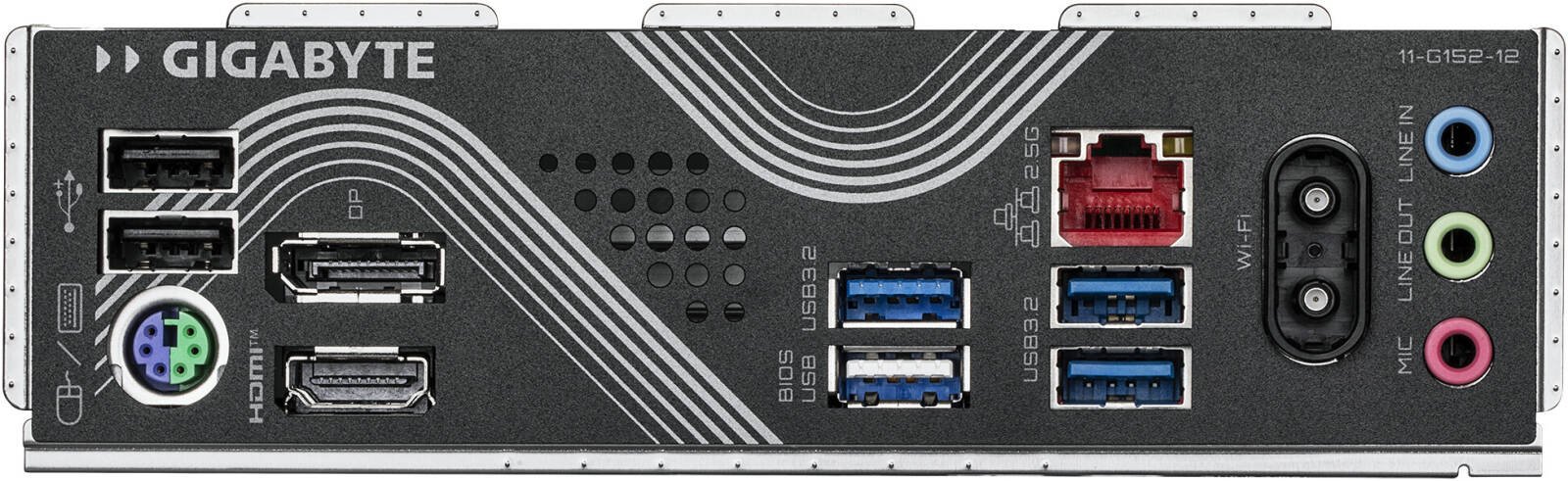

| Back Panel | 1x PS/2 keyboard/mouse, 1x HDMI, 1x DisplayPort, 3x USB 3.2 Gen 1, 3x USB 2.0, 2x antenna, 1x RJ-45, 3x audio jacks |
| BIOS | 256 Mbit flash, AMI UEFI, Q-Flash, Smart Backup |
| OS Support | Windows 11 64-bit, Windows 10 64-bit (Intel® NPU driver only on Windows 11) |
| Form Factor | Micro ATX (24.4cm x 22.5cm) |
