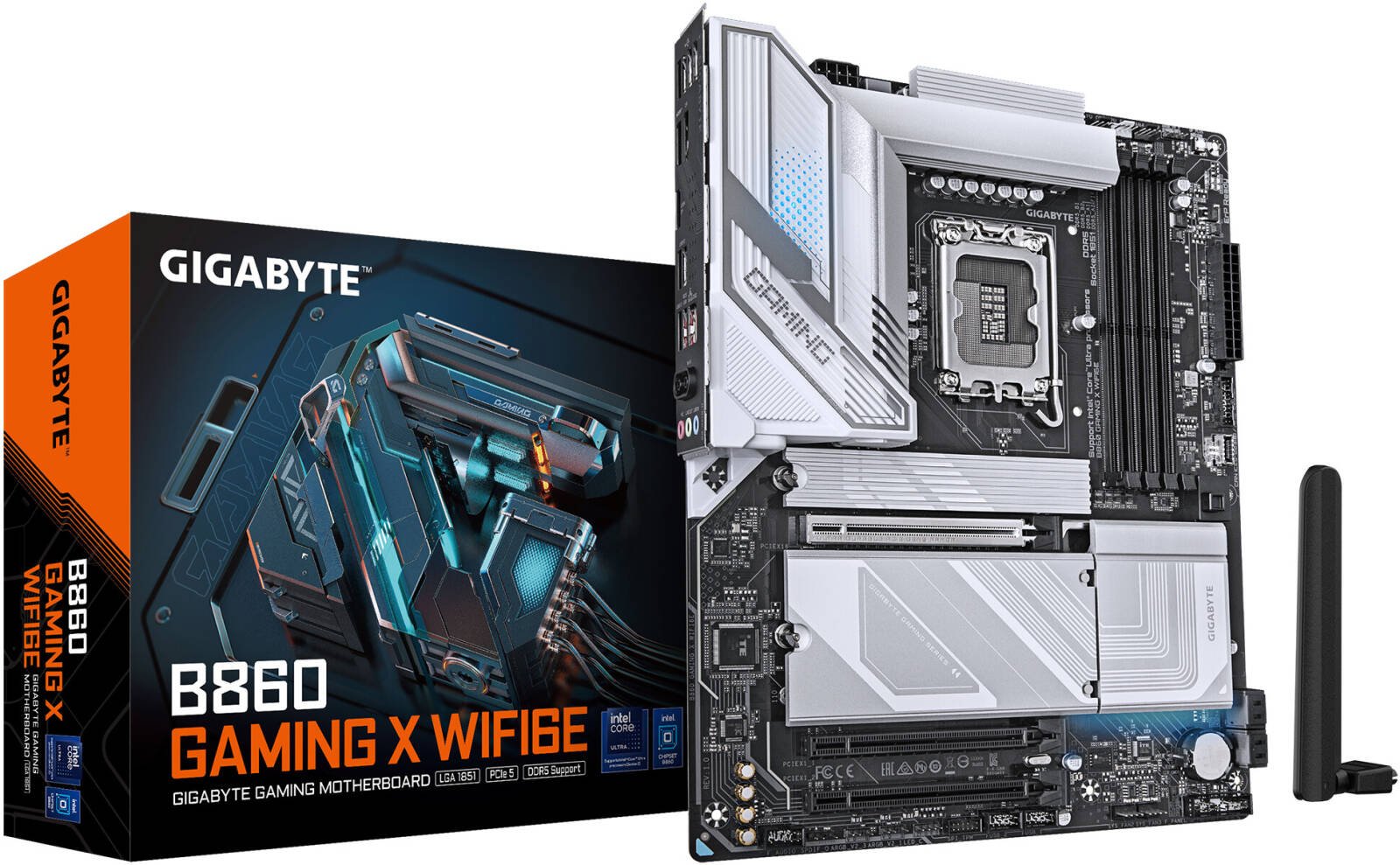

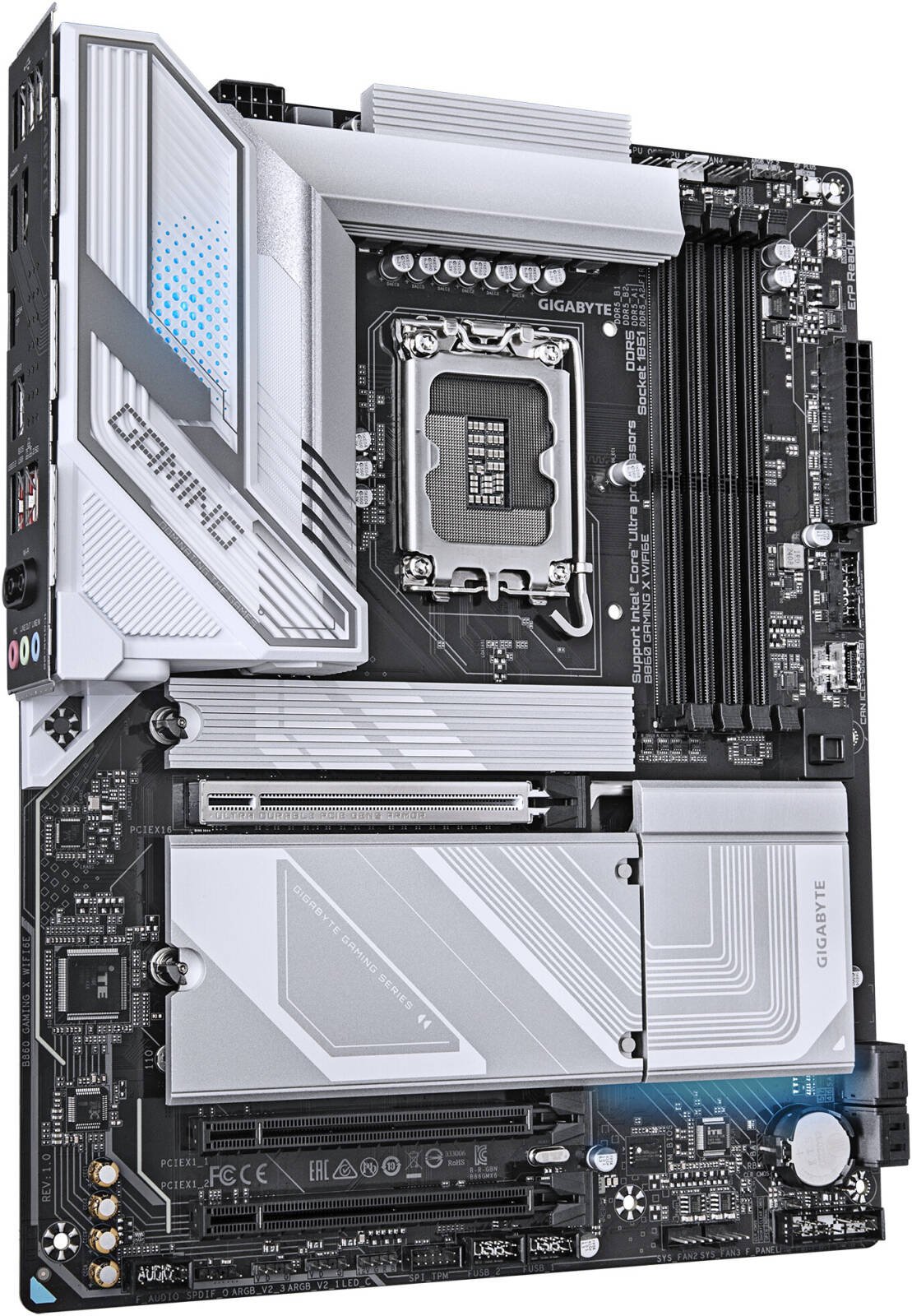

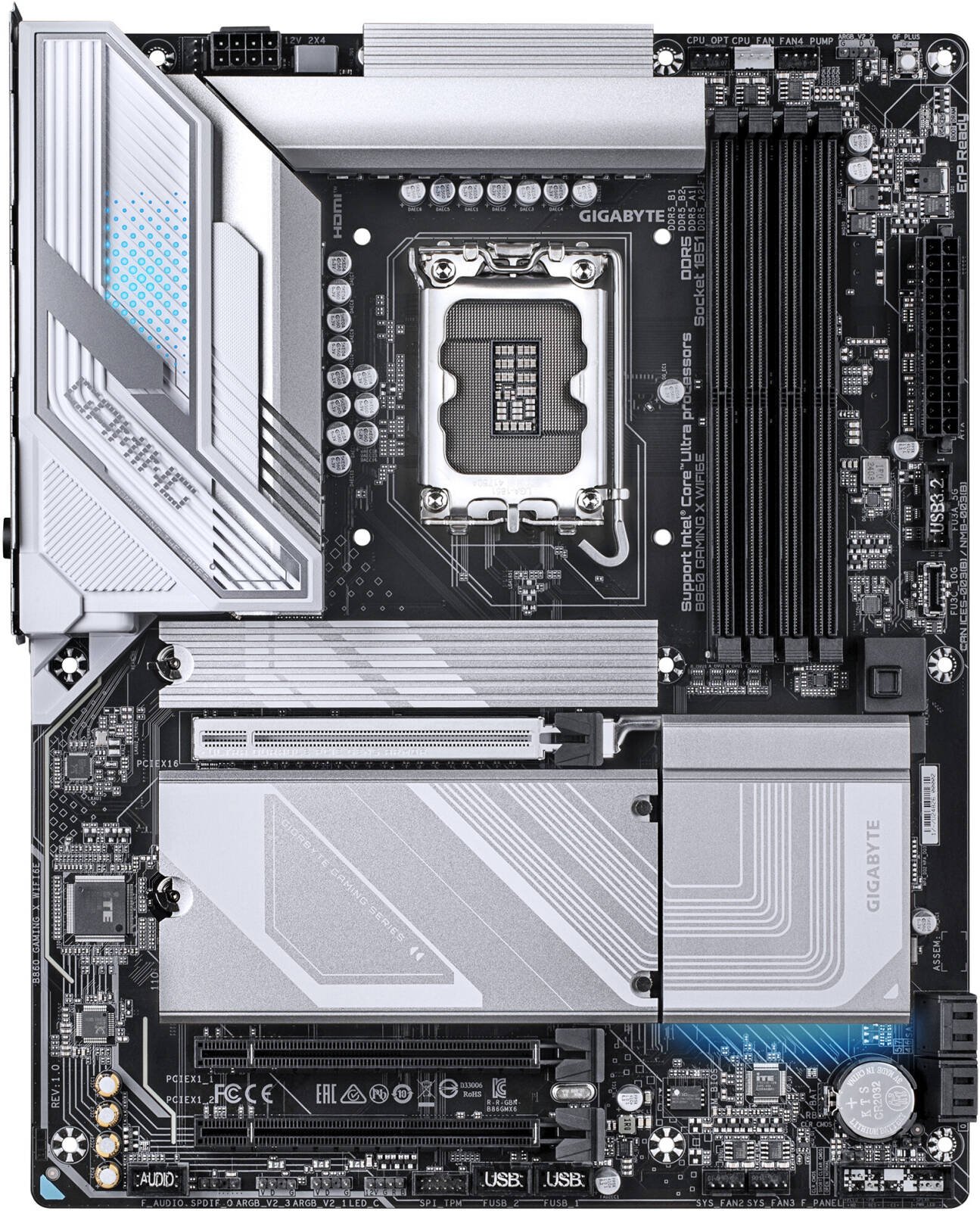

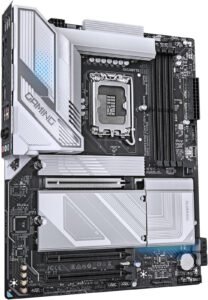

GIGABYTE B860 Gaming X WIFI6E LGA 1851 ATX Motherboard, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 6E & BT 5.3 Connectivity

949,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports Intel® Core™ Ultra processors (Series 2)
  • Twin Hybrid 12+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design | EZ-Latch Click : M.2 heatsinks with screwless design
  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
CPU LGA1851, supports Intel® Core™ Ultra Processors
Chipset Intel® B860 Express Chipset
Memory DDR5 up to 9066(O.C), 4x DIMM, max 256GB, dual channel, ECC/non-ECC, XMP support
Graphics Integrated Intel® HD Graphics
- USB4 Type-C (3840x2160@144Hz)
- HDMI 2.1 (4096x2160@60Hz)
- DisplayPort 2.1 (3840x2160@144Hz)
Audio Realtek® Audio CODEC, 7.1-channel, S/PDIF Out
LAN Realtek® 2.5GbE
Wireless Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE, BT 5.3
Expansion Slots 1x PCIe 5.0 x16, 2x PCIe 4.0 x1
Storage 3x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s, RAID 0/1/5/10
USB Ports 1x USB4 Type-C (rear), 1x USB-C 3.2 Gen2 (internal), 1x USB 3.2 Gen2 Type-A (rear), 4x USB 3.2 Gen1, 9x USB 2.0
Internal I/O 24-pin ATX, 8-pin ATX12V, 5x fan headers, 4x SATA, 3x M.2, RGB headers, USB headers, TPM header, Q-Flash button

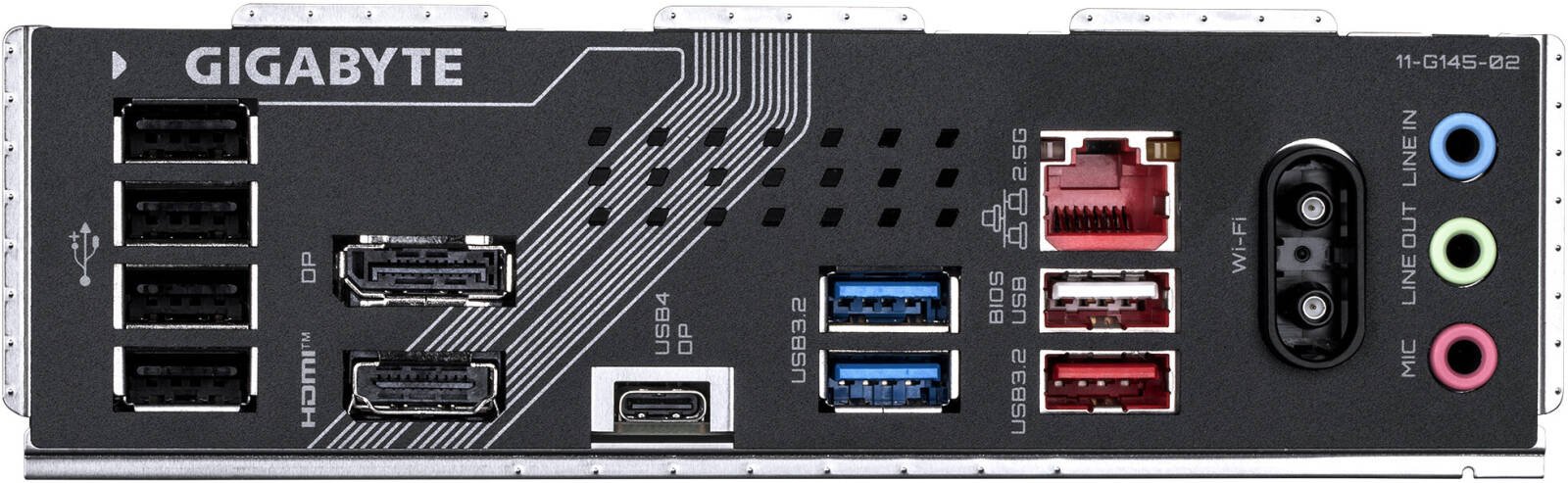

Back I/O HDMI, DP, USB4-C, USB 3.2, USB 2.0, LAN, audio jacks, antenna connectors
Monitoring Voltage, temperature, fan speed, water flow, warnings
BIOS AMI UEFI, 256Mbit flash, Q-Flash, Q-Flash Plus
Features GCC support, Smart Backup
Software Norton® Internet Security, LAN manager
OS Support Windows 11 64-bit
Form Factor ATX, 30.5 x 24.4 cm
