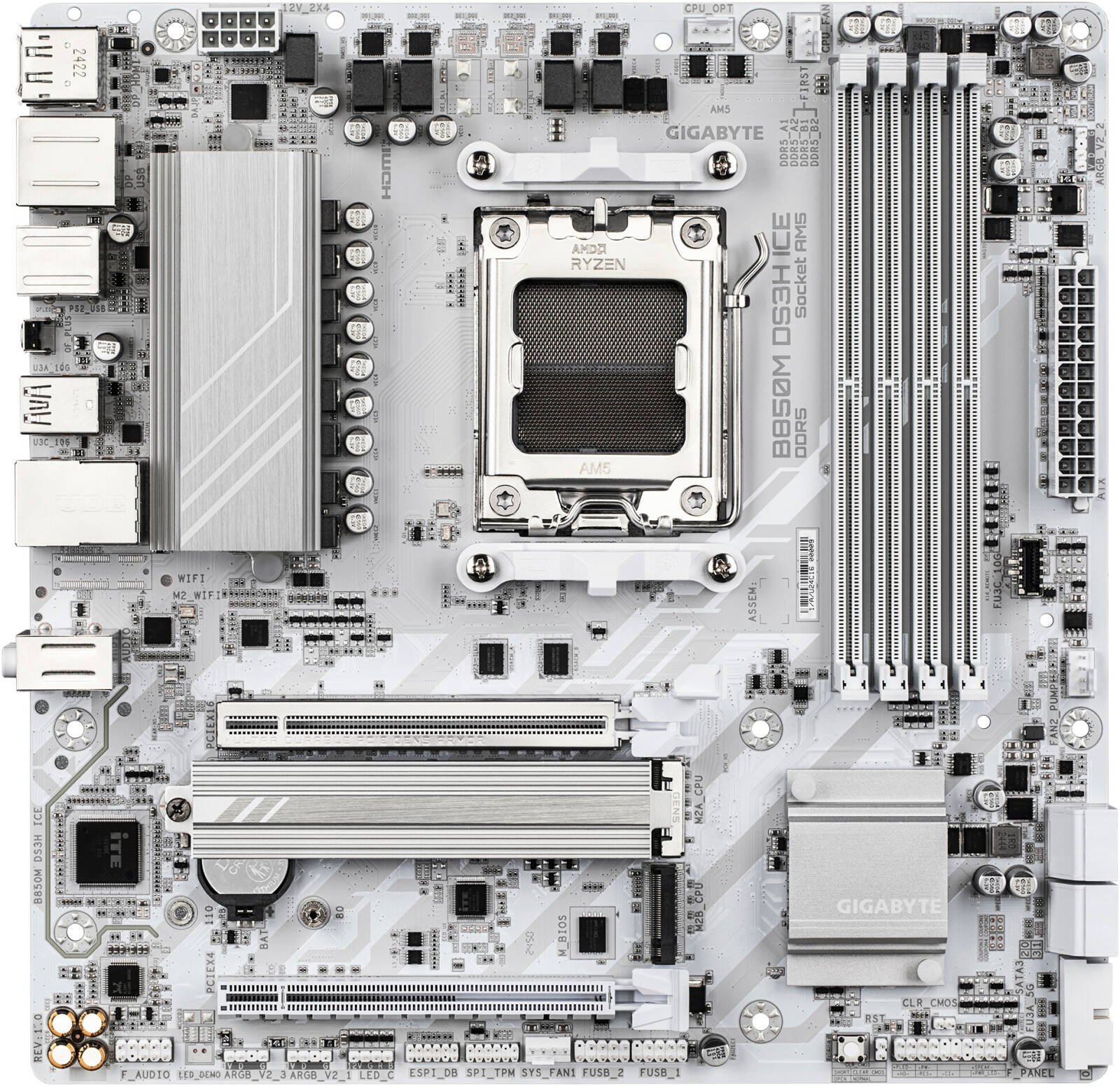

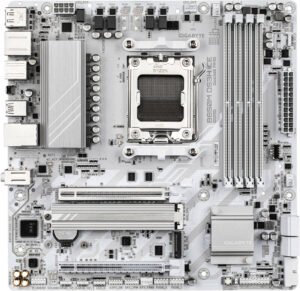

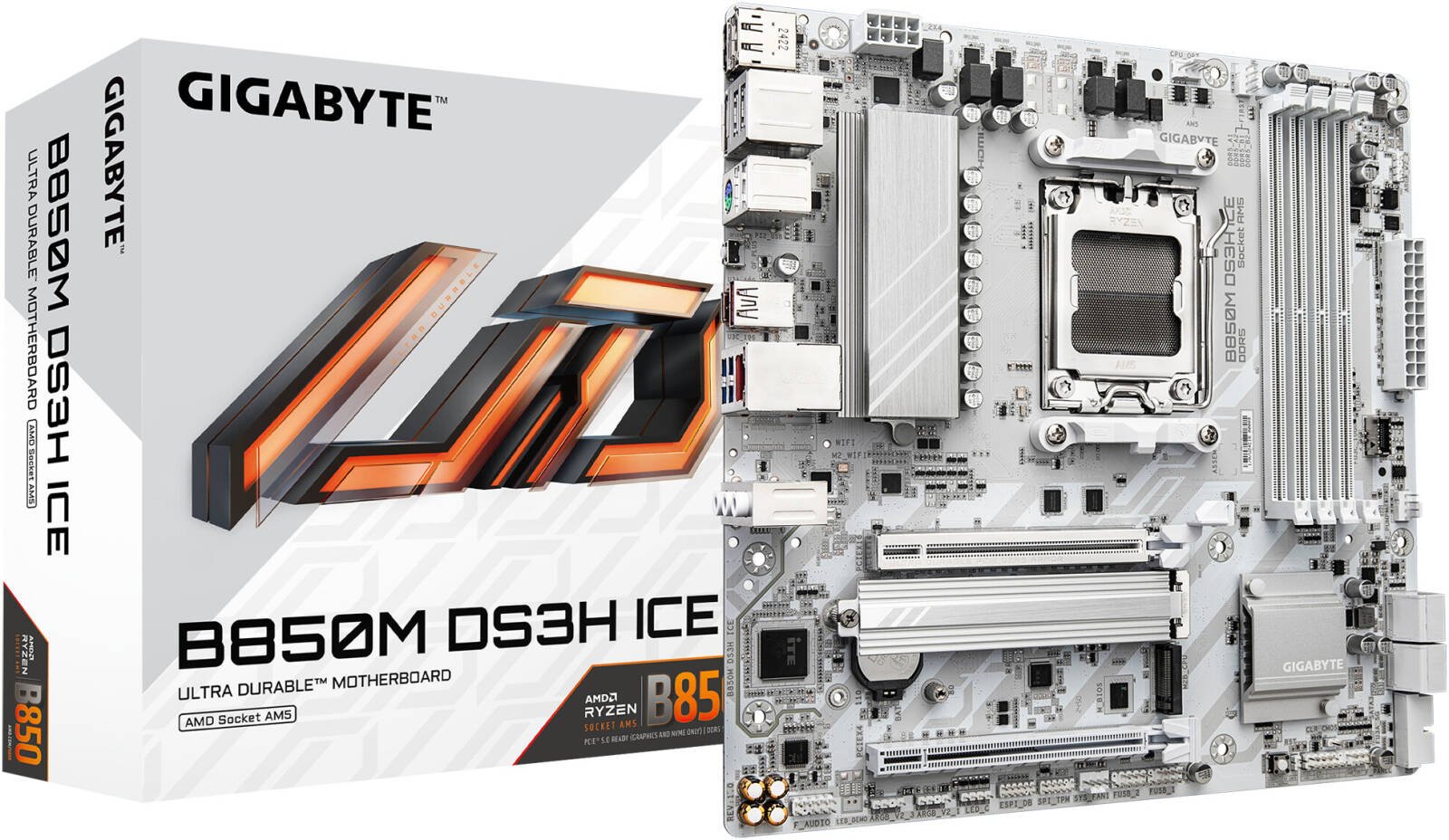

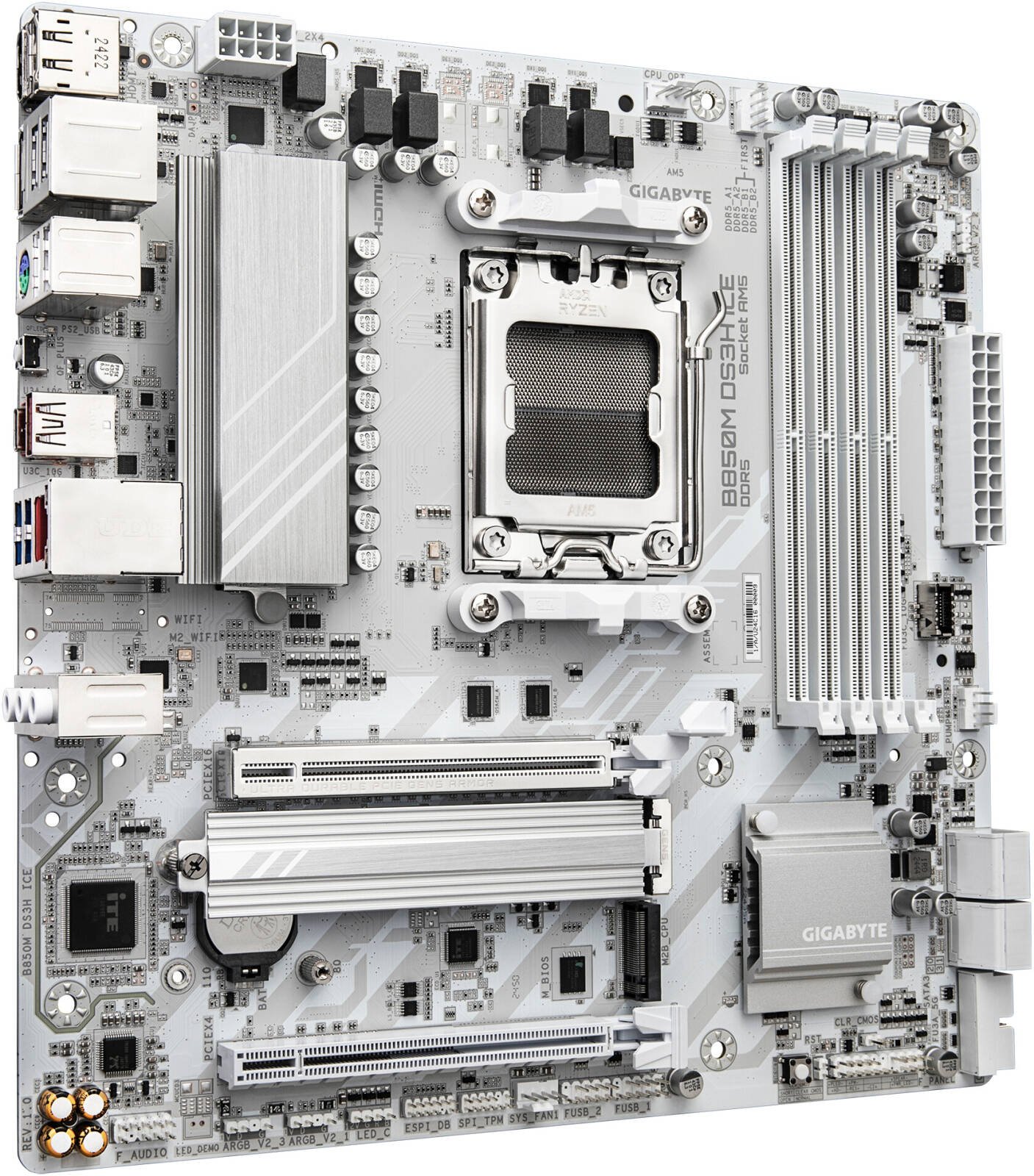

GIGABYTE B850M DS3H ICE AM5 M-ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, White

621,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • X3D Turbo Mode : Unleash new era gaming performance
  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 8+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • M.2 EZ-Latch Plus : screwless installation for M.2 SSDs
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 slot
  • Fast Networking : 2.5GbE LAN
  • Extended Connectivity : 2*DP, HDMI
CPU Support AMD Socket AM5 (Ryzen™ 9000, 8000, 7000 Series)
Chipset AMD B850
Memory DDR5 up to 8200(OC), 4x DIMMs, 256 GB max, dual channel, AMD EXPO™ & XMP support
Integrated Graphics 1x HDMI 2.1 (4096x2160@60Hz), 2x DP 1.4 (3840x2160@144Hz), up to triple display
Audio Realtek® Audio CODEC, 2/4/5.1/7.1-channel, HD Audio
LAN Realtek® 2.5GbE LAN
Expansion Slots 1x PCIe x16 (CPU - varies by processor), 1x PCIe x16 (Chipset, x4 PCIe 3.0)
Storage 2x M.2 (varied PCIe 5.0/4.0), 4x SATA 6Gb/s, NVMe RAID 0/1/5/10 (RAID 5 on Ryzen 9000), SATA RAID 0/1/10
USB Ports Rear: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB 2.0; Internal: 1x USB-C Gen 2 header, 2x USB-A 3.2 Gen 1, 4x USB 2.0
Internal I/O 1x 24-pin ATX, 1x 8-pin CPU power, 4x SATA, 2x M.2, fan & RGB headers, TPM header, reset & CMOS jumpers
Back Panel I/O 1x HDMI, 2x DP, 1x PS/2, 1x USB-C, 3x USB-A (3.2 Gen 2 & Gen 1), 4x USB 2.0, 1x LAN, 3x audio jacks, Q-Flash Plus button
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temp, fan speed, water flow, fan fail warning, fan control
BIOS 256 Mbit AMI UEFI BIOS, Q-Flash, Smart Backup
Software Norton Internet Security OEM, LAN bandwidth manager
OS Support Windows 11/10 64-bit
Form Factor Micro ATX (24.4 cm x 24.4 cm)
