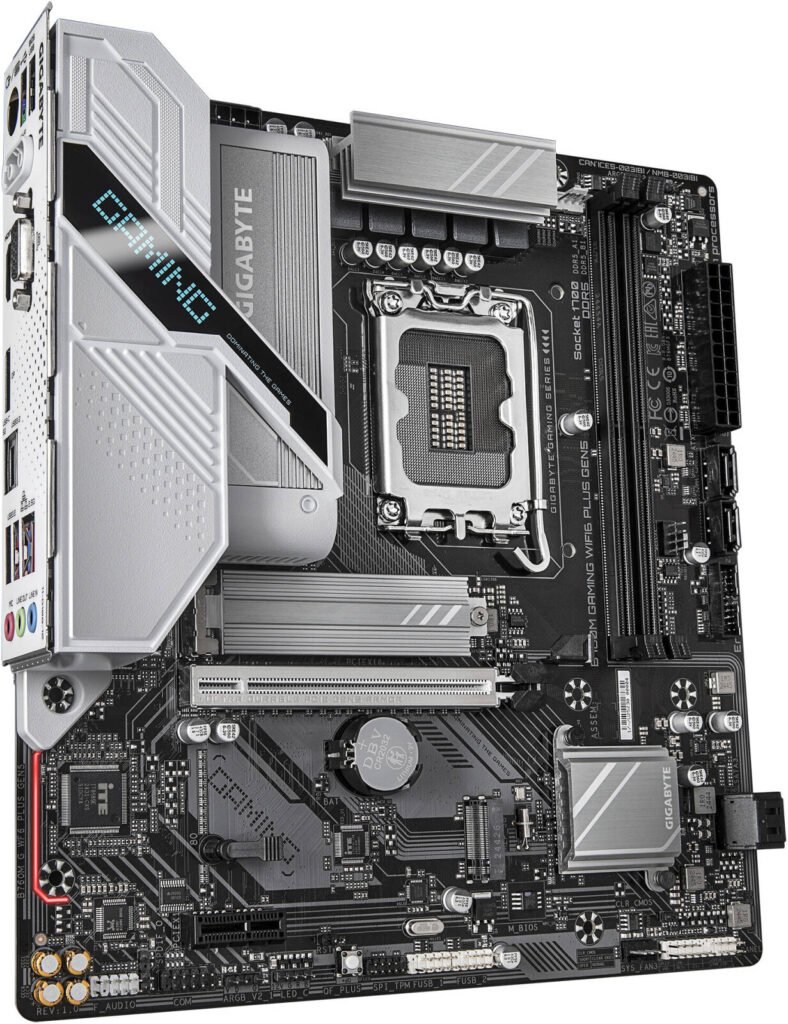

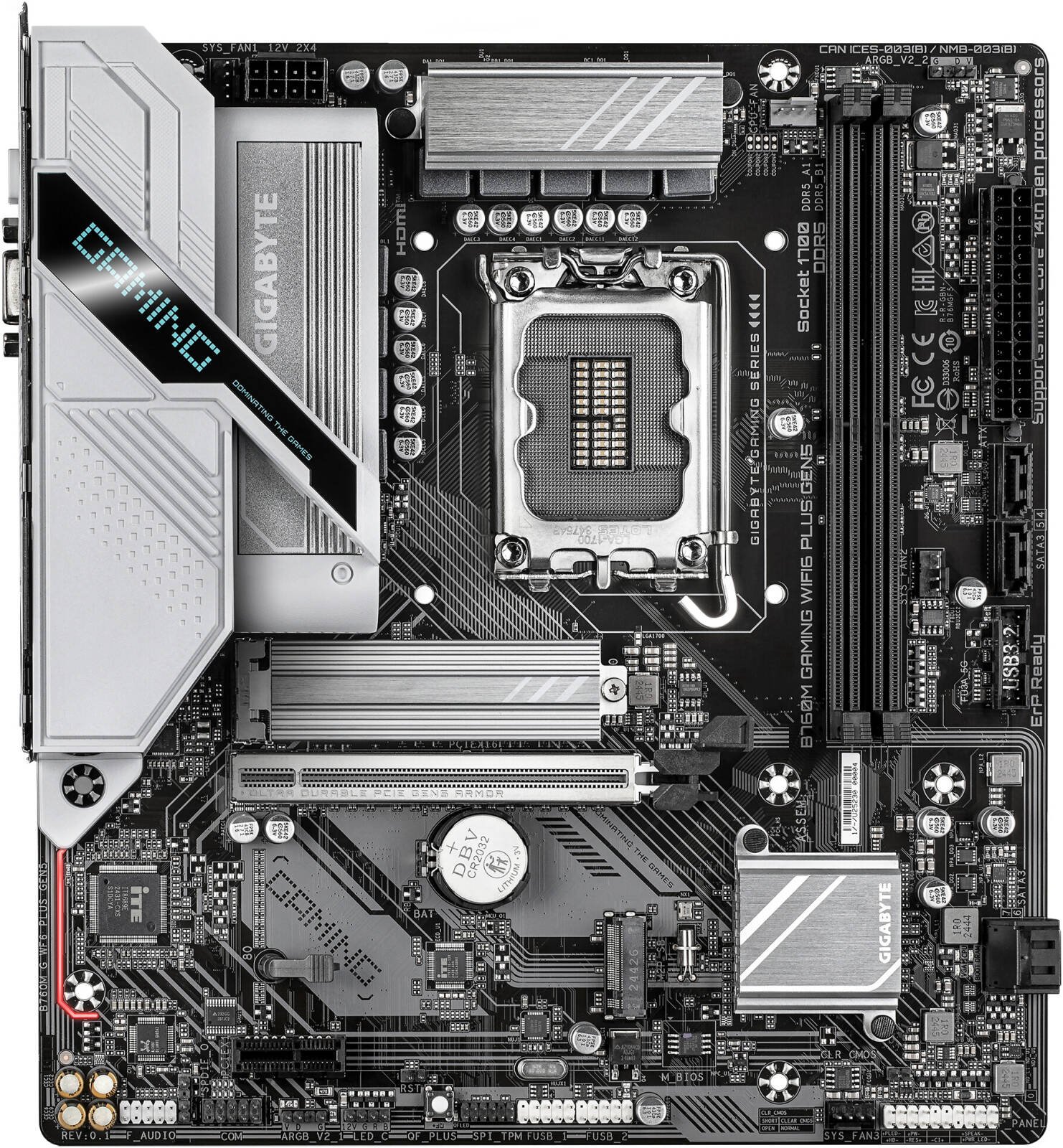

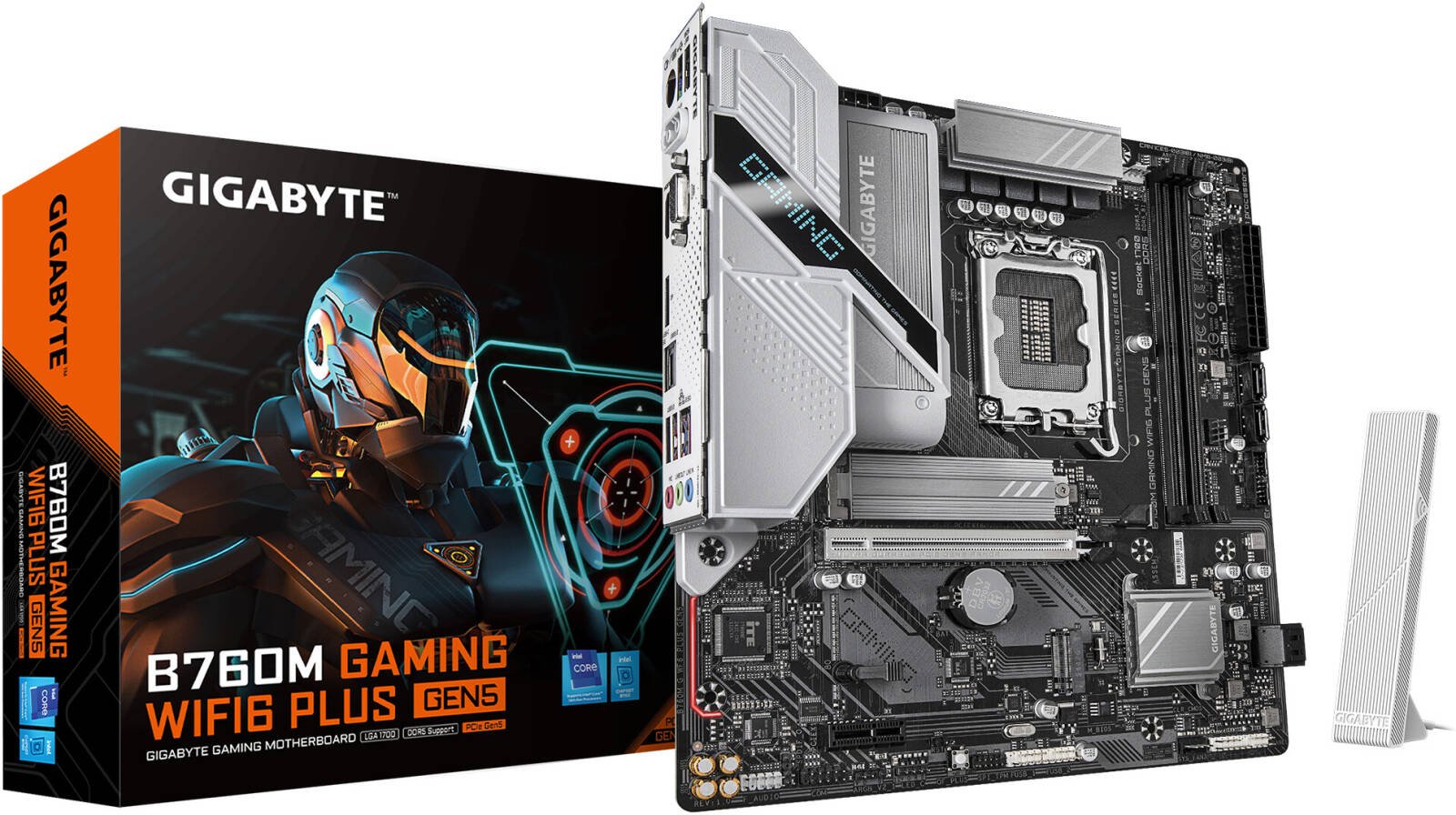

GIGABYTE B760M GAMING WIFI6 PLUS GEN5 m-ATX Intel Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Slot, 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots

609,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • PCIe Gen5 Performance : Perfect Sync to Win | Supports Intel® Core™ 14th/ 13th /12th processors
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
  • EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
  • Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
  • Dual Channel DDR5 : 2*DIMMs XMP Memory Module Support
  • Fast Networks : 2.5GbE LAN & Wi-Fi 802.11ax
  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
CPU LGA1700; Supports 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron®; L3 cache varies by CPU
Chipset Intel® B760 Express Chipset
Memory DDR5 4000–8000(O.C.) MT/s; 2×DDR5 DIMM up to 128 GB; Dual channel; ECC/Non-ECC Un-buffered DIMM; XMP support
Onboard Graphics Intel® HD Graphics; D-Sub: 1920×1200@60Hz; HDMI 2.1: 4096×2160@60Hz; DisplayPort 1.2: 4096×2304@60Hz; Triple-display support
Audio Realtek® Audio CODEC; HD Audio; 2/4/5.1/7.1-channel; S/PDIF Out
LAN Realtek® 2.5GbE (2.5G/1G/100M)
Wireless Realtek® Wi-Fi 6 RTL8851BE (2.4/5GHz, 11ax 80MHz); Bluetooth 5.3
Expansion Slots CPU: 1×PCIe 5.0 x16; Chipset: 1×PCIe 3.0 x1
Storage CPU: 1×M.2 PCIe 4.0 x4/x2 (2280); Chipset: 1×M.2 PCIe 4.0 x4/x2 (2280); 4×SATA 6Gb/s; RAID 0/1/5/10
USB Rear: 1×USB-C 3.2 Gen1, 3×USB 3.2 Gen1, 2×USB 2.0; Internal: 2×USB 3.2 Gen1, 4×USB 2.0
Internal I/O 24-pin ATX; 8-pin CPU; CPU fan; 3 system fans; 2×ARGB Gen2; 1×RGB; 2×M.2; 4×SATA; FP header; FP audio; SPDIF; USB 3.2 Gen1; 2×USB 2.0; TPM; Serial; Q-Flash Plus; Reset; Clear CMOS

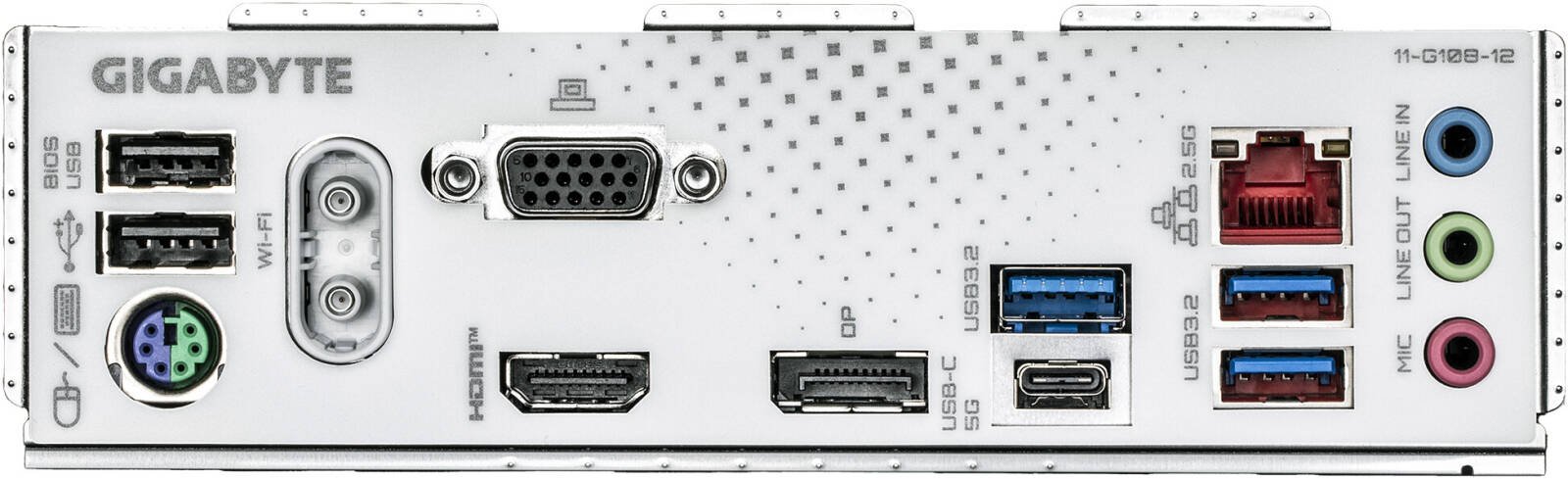

Back Panel 2×USB 2.0; PS/2; 2×antenna; D-Sub; HDMI; DisplayPort; 3×USB 3.2 Gen1; 1×USB-C 3.2 Gen1; RJ-45; 3×audio jacks
I/O Controller iTE® Controller Chip
Monitoring Voltage, temperature, fan speed, water flow; Fan fail warning; Fan control
BIOS 128 Mbit AMI UEFI; PnP 1.0a; DMI 2.7; WfM 2.0; SM BIOS 2.7; ACPI 5.0
Features GIGABYTE Control Center; Q-Flash; Q-Flash Plus; Smart Backup
Software Norton® Internet Security (OEM)
OS Support Windows 11 64-bit; Windows 10 64-bit
Form Factor Micro ATX (24.4 cm × 22.5 cm)
