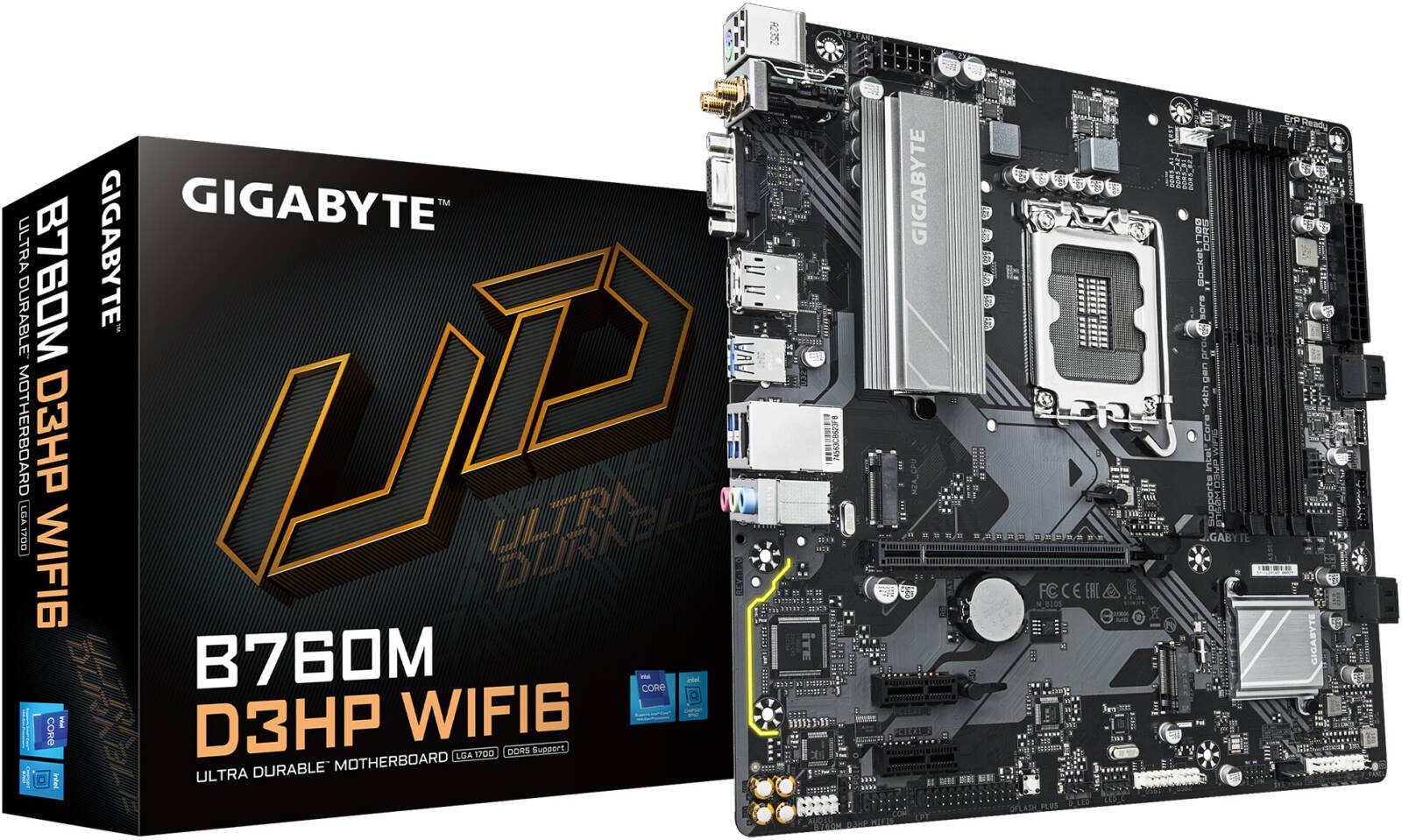

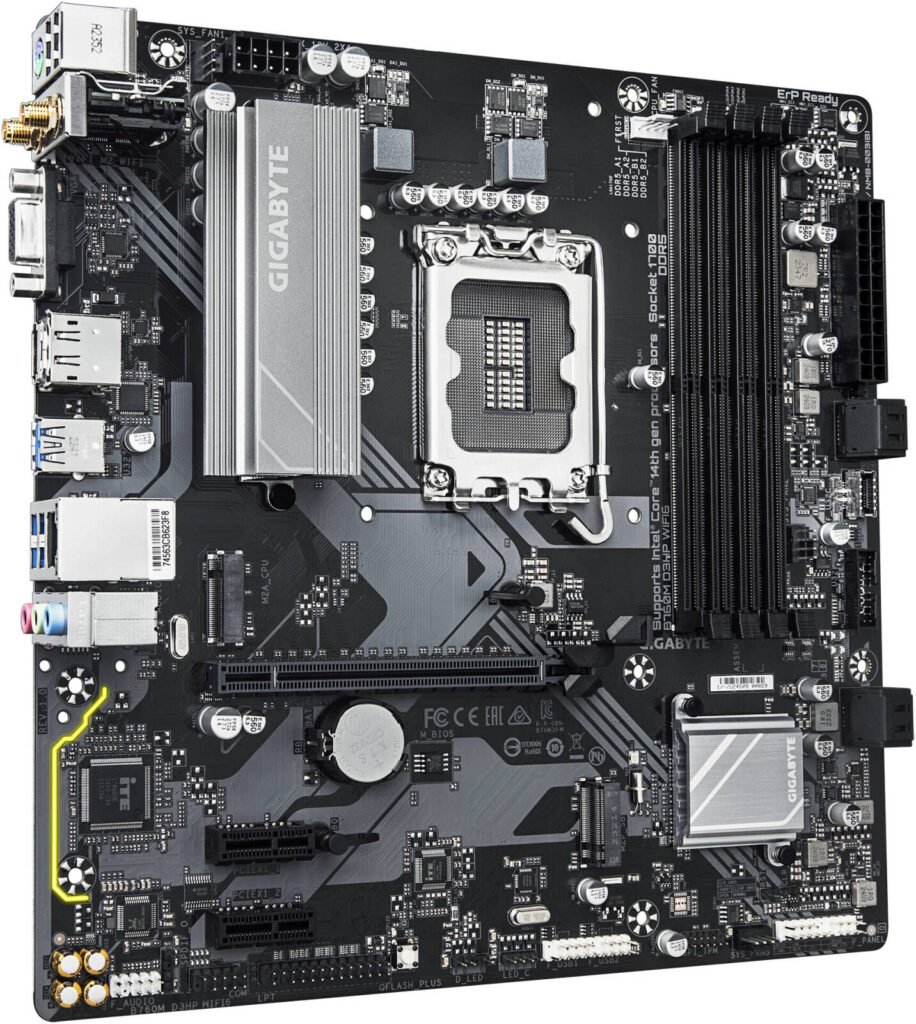

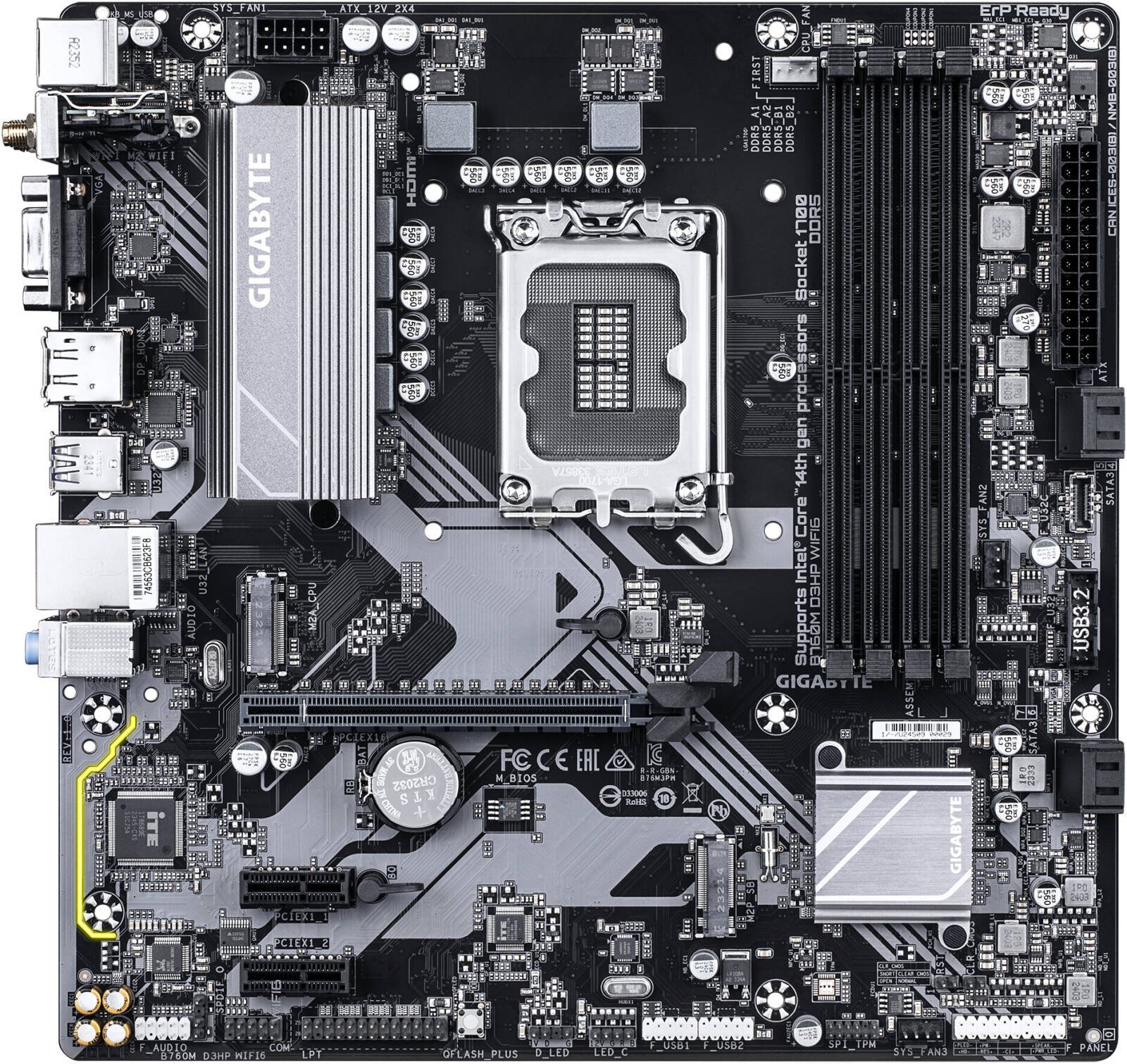

GIGABYTE B760M D3HP WIFI6 LGA1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slots, Up to 192GB Max Memory, 1x PCIe 4.0 x16 Slot, 2x M.2 PCIe 4.0 x4, Wi-Fi 6 & BT 5.3

530,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • Fast Networks: GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity: Front USB-C® 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU LGA1700 socket; Supports 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® (check GIGABYTE site for latest). L3 cache varies with CPU
Chipset Intel® B760 Express Chipset
Memory 4× DDR5 DIMM, up to 192 GB (48 GB per DIMM), Dual channel.
• i9/i7 (13th/14th Gen): DDR5 5600/5200/4800/4400 MT/s
• i5/i3 (13th Gen) & 12th Gen Core/Pentium Gold/Celeron: DDR5 4800/4400 MT/s ECC Un-buffered (non-ECC mode), Non-ECC Un-buffered, XMP support
Onboard Graphics Intel® HD Graphics (depends on CPU)
• D-Sub: up to 1920×1200@60Hz
• HDMI: up to 4096×2160@60Hz (HDMI 2.1, HDCP 2.3)
• DisplayPort: up to 4096×2304@60Hz (DP 1.2, HDCP 2.3)
• Triple-display support
Audio Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software, S/PDIF Out support
LAN Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)
Wireless Realtek® Wi-Fi 6 RTL8851BE (2.4/5 GHz, a/b/g/n/ac/ax, 11ax 80MHz), Bluetooth 5.3
Expansion Slots • CPU: 1× PCIe 4.0 x16 (GPU/NVMe SSD only)
• Chipset: 2× PCIe 3.0 x1
Storage • CPU: 1× M.2 (PCIe 4.0 x4/x2, 2280)
• Chipset: 1× M.2 (PCIe 4.0 x4/x2, 2280), 4× SATA 6Gb/s
• RAID 0/1/5/10 support (SATA only)
USB • Internal: 1× USB-C (3.2 Gen1), 2× USB 3.2 Gen1, 4× USB 2.0
• Rear: 3× USB 3.2 Gen1, 2× USB 2.0
Internal I/O 24-pin ATX, 8-pin ATX 12V, 1× CPU fan, 3× system fans, 1× ARGB header, 1× RGB header, 2× M.2, 4× SATA, front panel, audio header, USB headers, TPM header, serial & parallel headers, S/PDIF Out header, Q-Flash Plus button, reset/CMOS jumpers

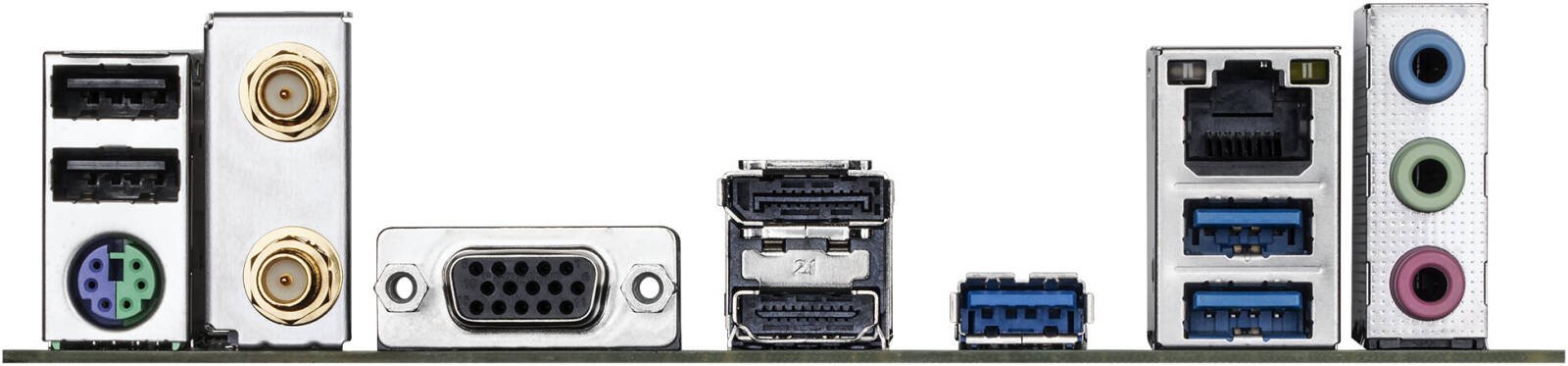

Back Panel 2× USB 2.0, 1× PS/2, 2× SMA antenna, 1× D-Sub*, 1× HDMI*, 1× DisplayPort*, 3× USB 3.2 Gen1, 1× RJ-45, 3× audio jacks (*support depends on CPU)
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, water flow rate, fan fail warning, fan control (depends on fan)
BIOS 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management
OS Support Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX, 24.4 × 24.4 cm
