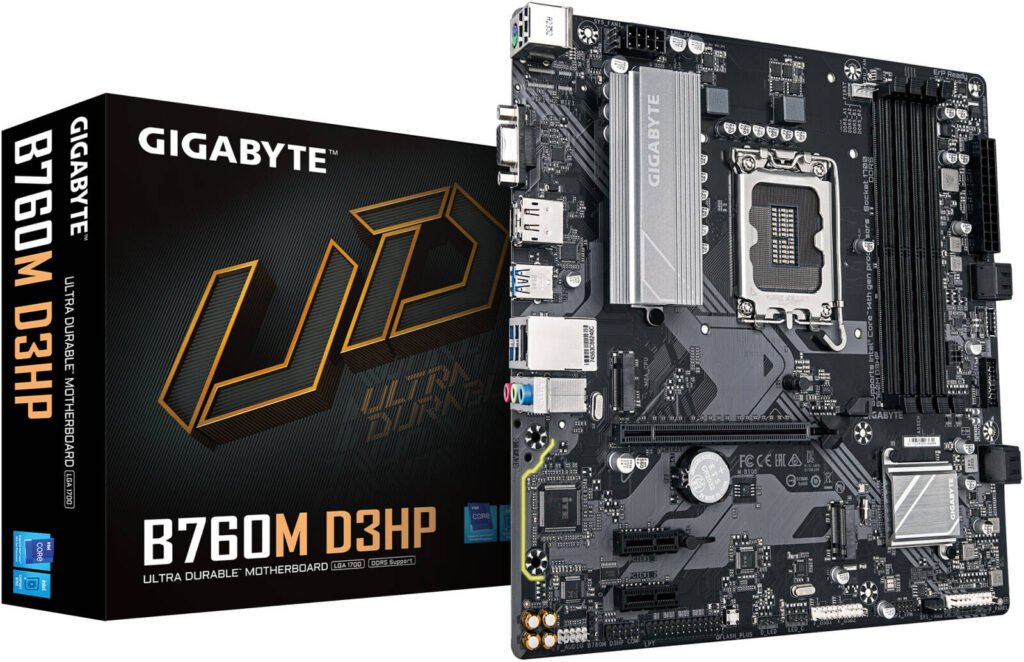

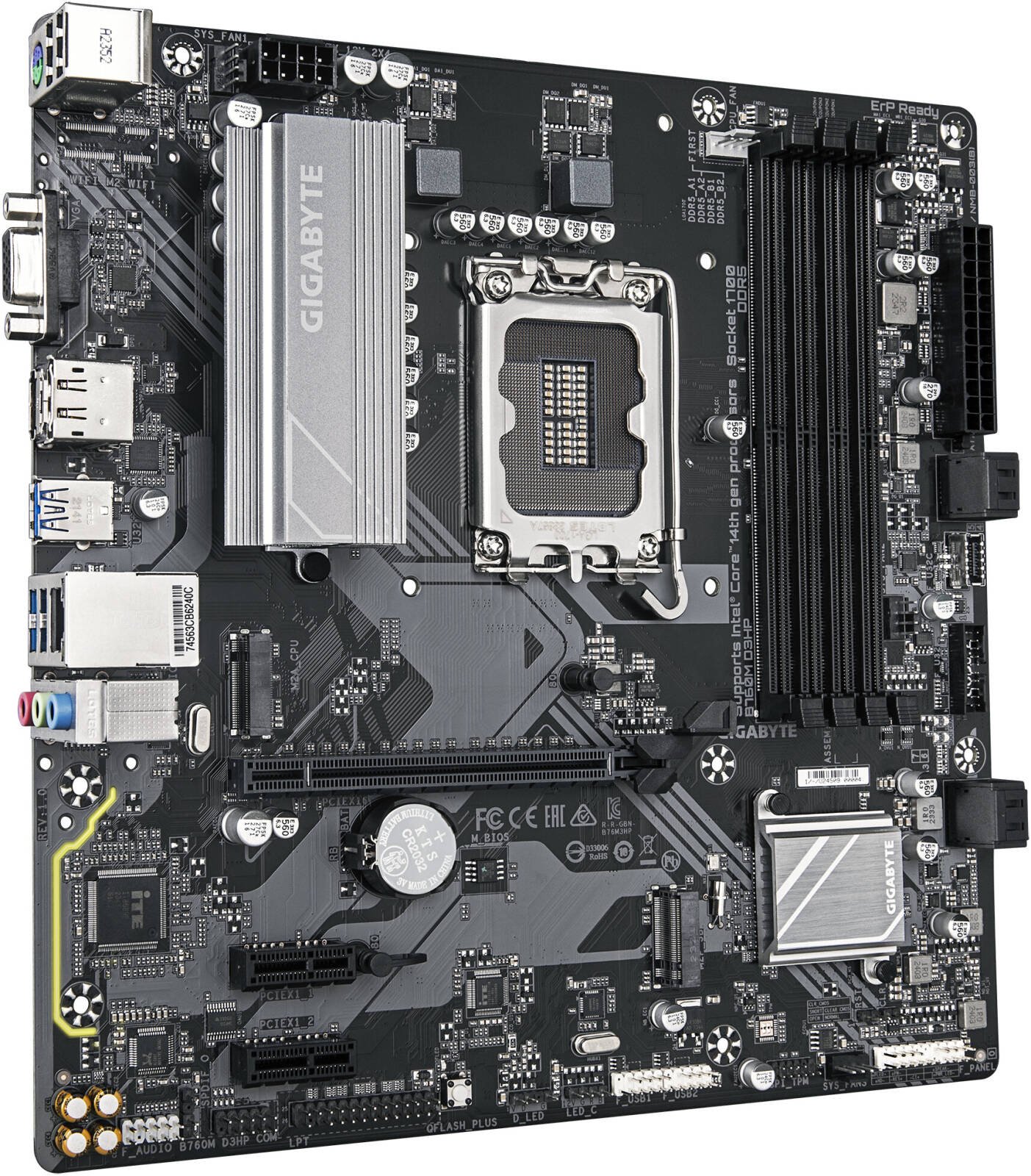

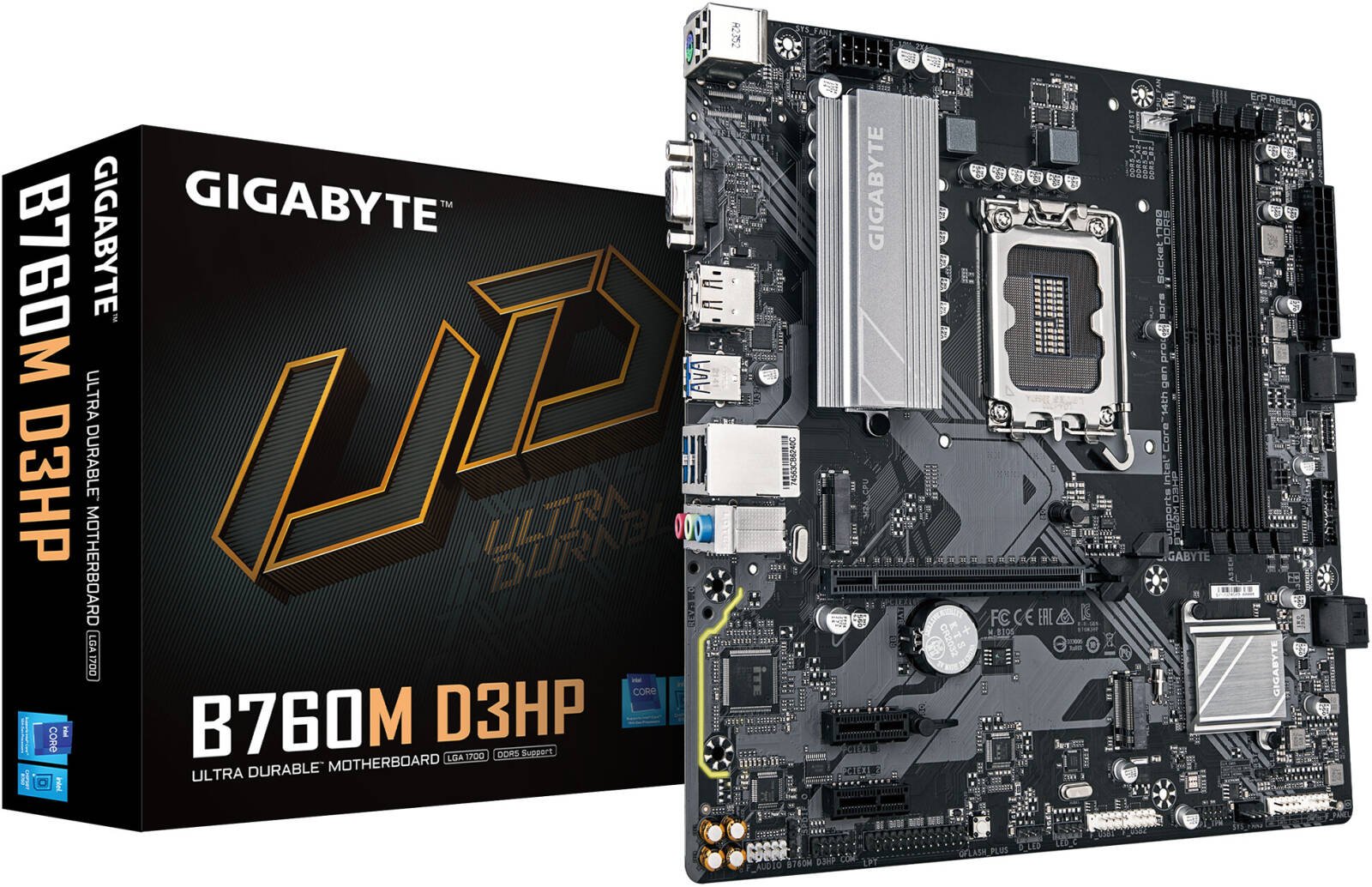

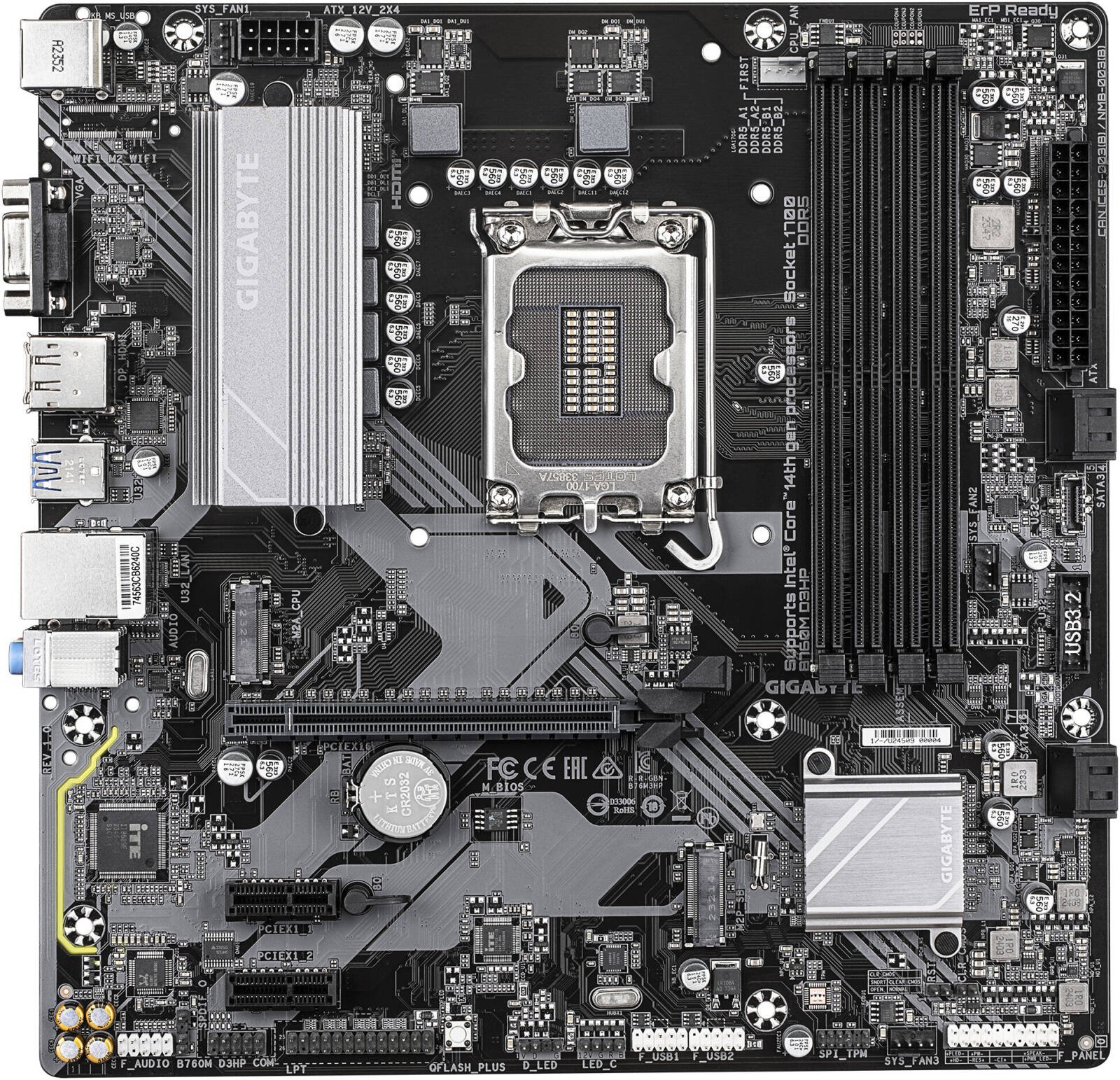

GIGABYTE B760M D3HP LGA 1700 Micro ATX Intel Motherboard, Intel B760 Express Chipset, 4x DDR5 DIMM Slots, Up To 256GB Max Memory, 2x PCIe 4.0, 4x M.2 Connectors

525,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Fast Networks：GbE LAN
  • Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI, D-Sub
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
L3 cache varies with CPU
Chipset Intel® B760 Express Chipset
Memory 14th/13th Gen Core™ i9/i7: DDR5 5600/5200/4800/4400 MT/s
13th Gen Core™ i5/i3, 12th Gen Core™, Pentium® Gold, and Celeron®: DDR5 4800/4400 MT/s
4 x DDR5 DIMM sockets (max 256GB)
ECC and non-ECC Un-buffered DIMM support
Supports XMP memory modules
Onboard Graphics Integrated Intel® HD Graphics
D-Sub (1920x1200@60Hz), HDMI (4096x2160@60Hz), DisplayPort (4096x2304@60Hz)
Supports up to triple-display
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Supports S/PDIF Out
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots CPU: 1 x PCI Express x16 (PCIe 4.0)
Chipset: 2 x PCI Express x1 (PCIe 3.0)
Storage Interface CPU: 1 x M.2 PCIe 4.0 x4/x2
Chipset: 1 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, RAID 10 support
USB Chipset: 1 x USB-C® (USB 3.2 Gen 1), 5 x USB 3.2 Gen 1, 2 x USB 2.0/1.1
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1
Internal I/O 1 x 24-pin ATX power, 1 x 8-pin ATX 12V power
1 x CPU fan, 3 x system fan headers
1 x RGB LED strip, 1 x addressable LED strip header
2 x M.2 connectors, 4 x SATA connectors
1 x USB-C®, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 headers, etc.

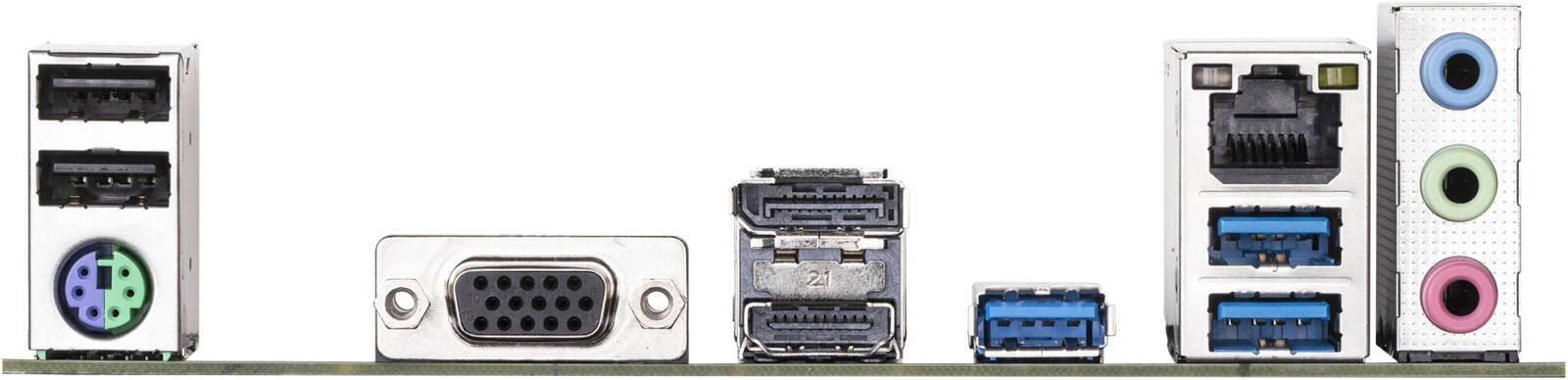

Back Panel 2 x USB 2.0/1.1, 1 x PS/2, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 3 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control
BIOS 1 x 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC)
Q-Flash and Q-Flash Plus
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX (24.4 cm x 24.4 cm)
