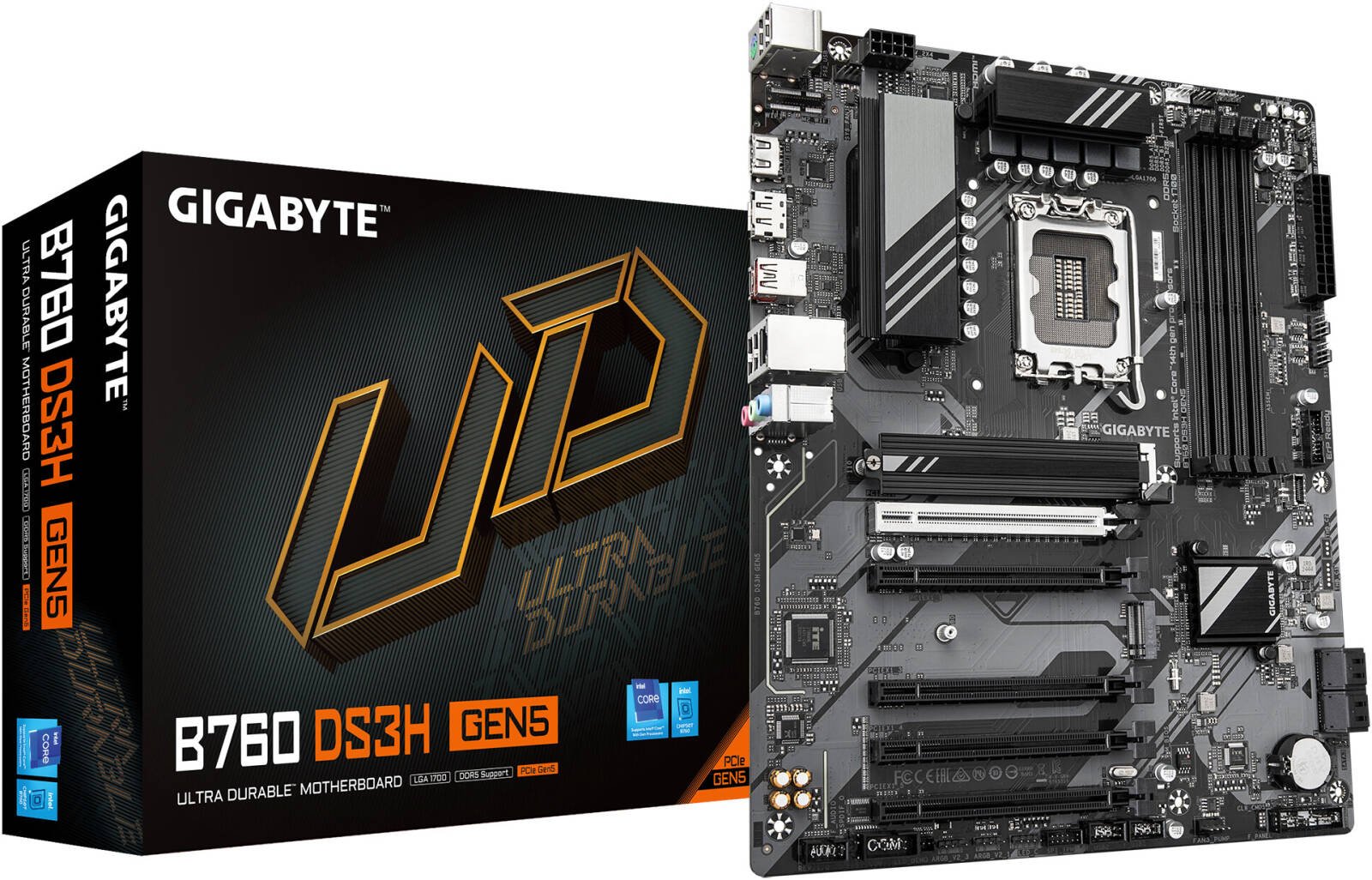

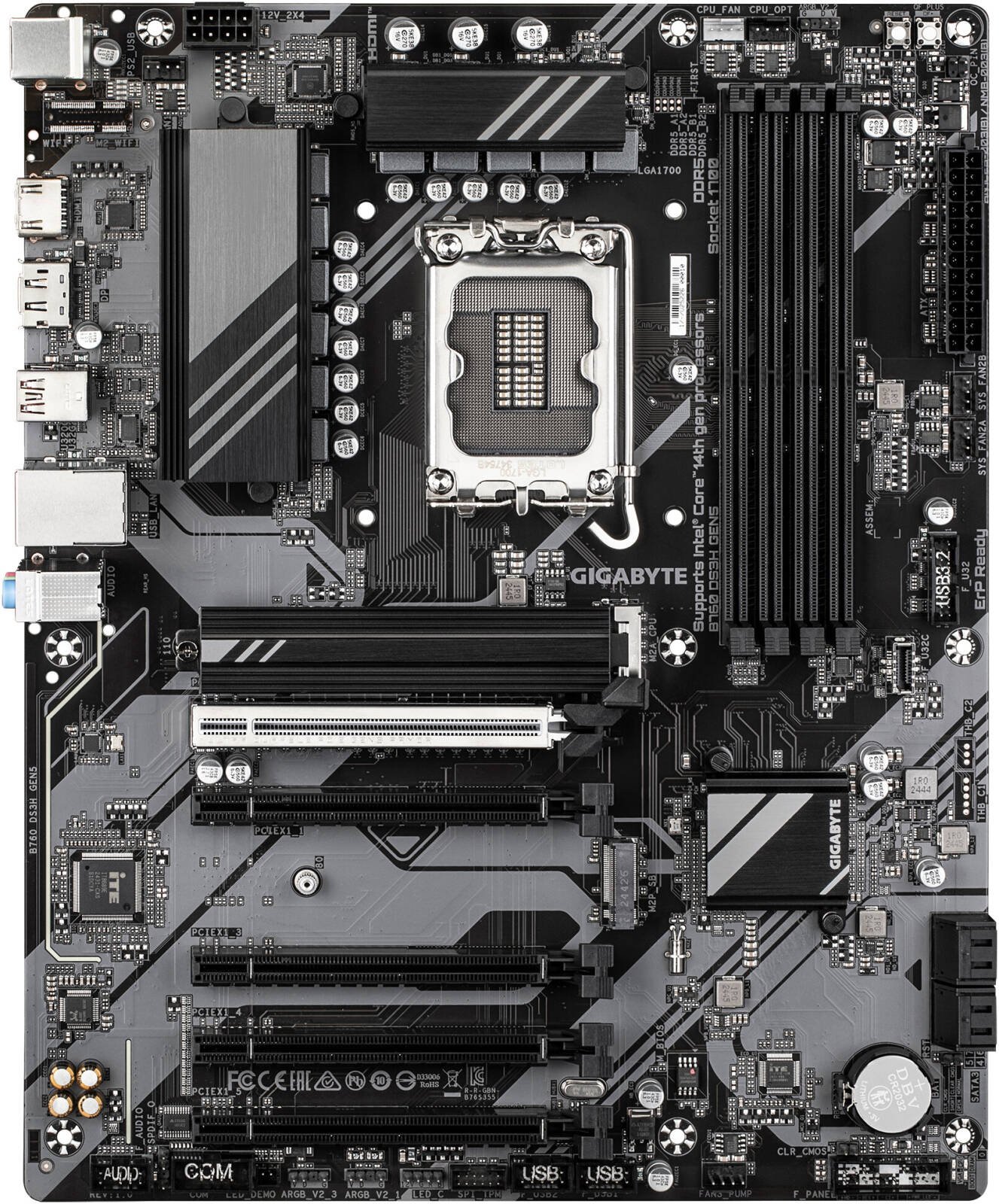

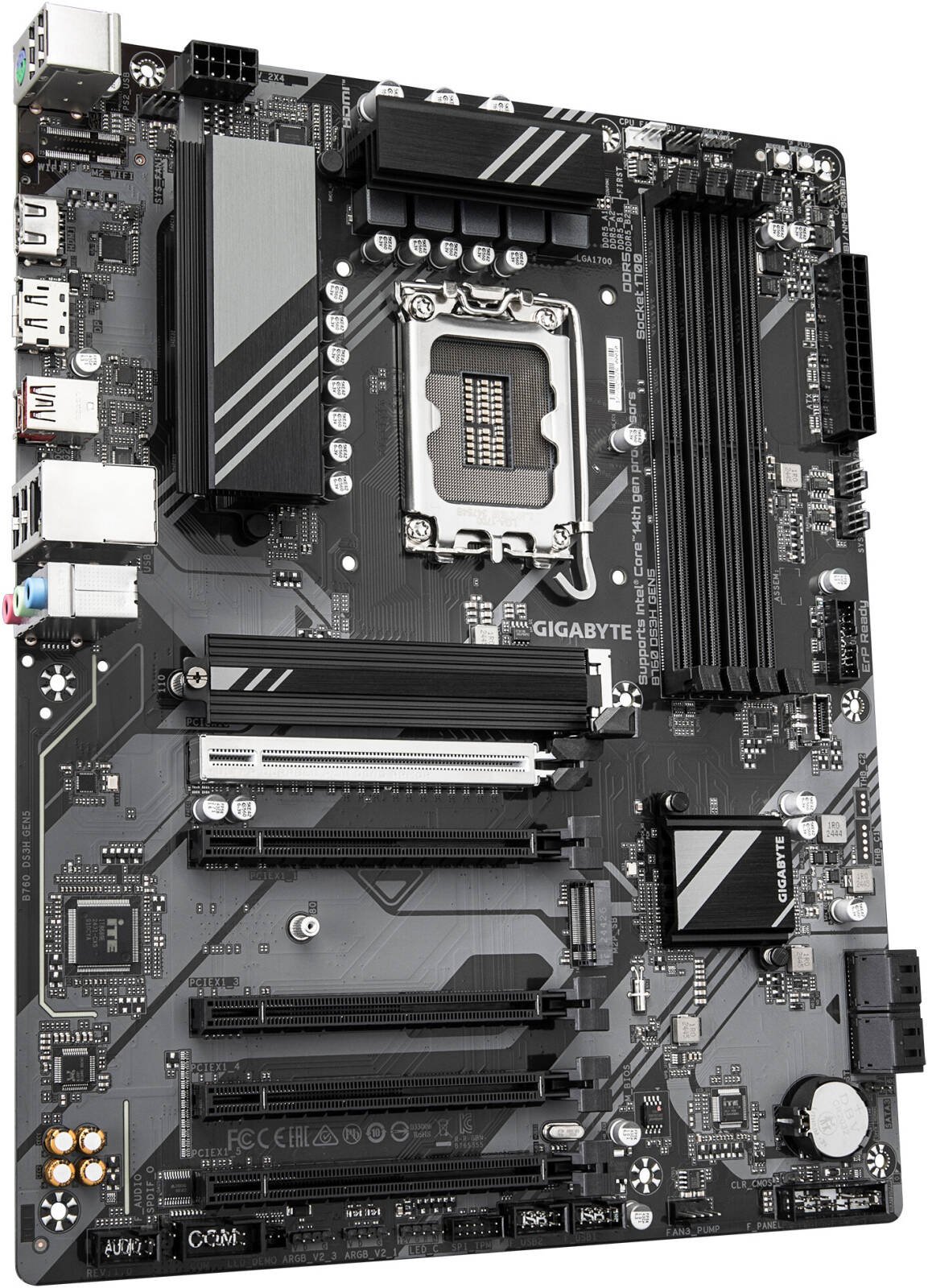

GIGABYTE B760 DS3H GEN5 LGA 1700 ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slot, 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots

549,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • PCIe Gen5 Performance : Perfect Sync to Win
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
  • PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance : Hybrid 8+2+1 Phases VRM Solution
  • Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
  • Extended Connectivity : Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU LGA1700 socket; supports Intel® 14th/13th/12th Gen Core™, Pentium® Gold, Celeron®
Chipset Intel® B760 Express Chipset
Memory Up to 256 GB DDR5
DDR5 5600/5200/4800/4400 MT/s (i9/i7)
DDR5 4800/4400 MT/s (i5/i3, others)
4× DDR5 DIMM slots, Dual-channel
Supports ECC (non-ECC mode) and XMP
Onboard Graphics Intel® HD Graphics
1× HDMI (4096×2160@60Hz, HDMI 2.1)
1× DisplayPort (4096×2304@60Hz, DP 1.2)
Audio Realtek® Audio CODEC, 2/4/5.1/7.1-ch, S/PDIF Out
LAN Realtek® GbE LAN (1 Gbps)
Expansion Slots 1× PCIe 5.0 x16 (CPU)4× PCIe 3.0 x1 (Chipset)
Storage 2× M.2 (1 CPU PCIe 4.0 x4/x2, 1 Chipset PCIe 4.0 x4/x2)
4× SATA 6Gb/s
Supports RAID 0/1/5/10
USB Ports Rear: 1× USB-C (3.2 Gen 2x2), 1× USB-A (3.2 Gen 2), 4× USB 2.0
Internal: 1× USB-C (3.2 Gen 1), 1× USB 3.2 Gen 1 header, 2× USB 2.0 headers
Internal I/O ATX 24-pin & 8-pin power
CPU/system/pump fan headers
3× ARGB Gen2 headers
1× RGB header
2× M.2, 4× SATA
Front panel, audio, S/PDIF, TPM, serial, USB headers
Q-Flash Plus, Reset, Clear CMOS

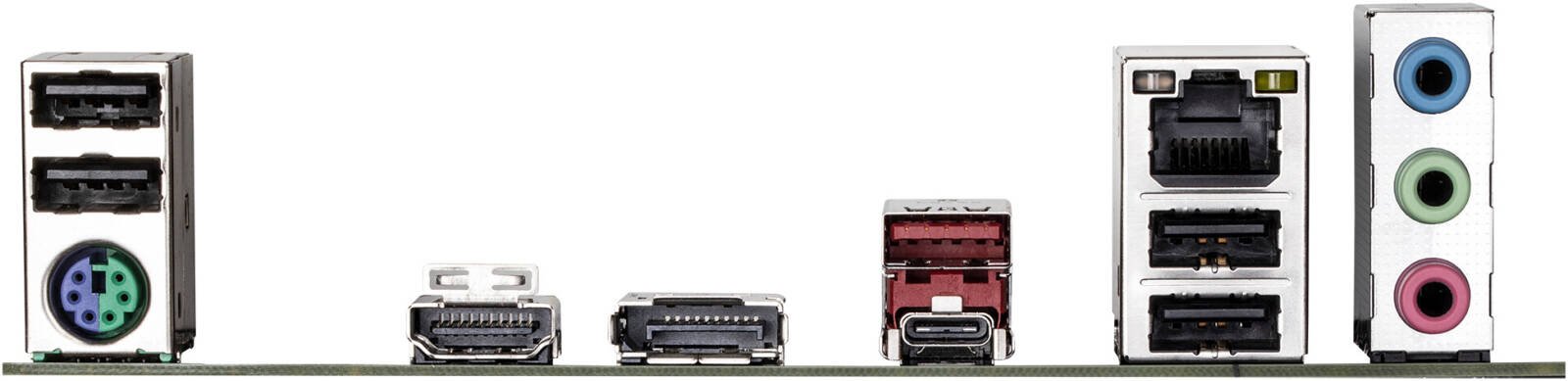

Back Panel 1× PS/2, 1× USB-C (3.2 Gen 2x2), 1× USB-A (3.2 Gen 2), 4× USB 2.0, 1× HDMI, 1× DP, 1× RJ-45, 3× audio jacks
I/O Controller iTE® I/O Controller
Monitoring Voltage, temperature, fan, pump, flow rate detection; speed control
BIOS 128 Mbit AMI UEFI BIOS; ACPI 5.0, SMBIOS 2.7, etc.
Features GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Software Norton® Internet Security OEM, LAN manager
OS Support Windows 11 & 10 64-bit
Form Factor ATX (30.5 cm × 24.4 cm)
