GIGABYTE B650M-K Micro ATX AM5 Motherboard, AMD B650 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, Realtek 2.5GbE LAN Chip, 1x PCI Express x16 slot, 2x M.2 Slots

525,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  • Unparalleled Performance：8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：DP, HDMI, USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU AMD Socket AM5; Supports AMD Ryzen™ 7000/8000/9000 Series Processors (Refer to "CPU Support List" for details)
Chipset AMD B650
Memory DDR5 (8000 OC to 4800 MT/s); 4 DIMM slots; Max 256GB; Dual-channel; Supports AMD EXPO™ and XMP
Onboard Graphics 1x DisplayPort (3840x2160@144Hz, DP 1.4), 1x HDMI 2.1 (4096x2160@60Hz, HDCP 2.3)
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel (configurable via software)
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1x PCIe x16 (CPU-integrated): PCIe 4.0 (mode depends on CPU); 1x PCIe x1 (PCIe 3.0)
Storage Interface 2x M.2 (M2A_CPU, M2B_CPU) PCIe 4.0; 4x SATA 6Gb/s; RAID 0/1/10 for NVMe and SATA devices
USB CPU: 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2 Type-A, 2x USB 2.0/1.1 Chipset: 1x USB 3.2 Gen 1 Type-C (internal), 4x USB 3.2 Gen 1, 4x USB 2.0/1.1
Internal I/O Connectors ATX 24-pin, 8-pin ATX 12V, 1x CPU fan, 2x system fan, 1x D_LED, 1x RGB LED, 2x M.2 Socket 3, 4x SATA 6Gb/s, Front panel/audio headers, USB Type-C 3.2 Gen 1 header, USB 3.2 Gen 1 header, USB 2.0/1.1 header, TPM header, Clear CMOS jumper

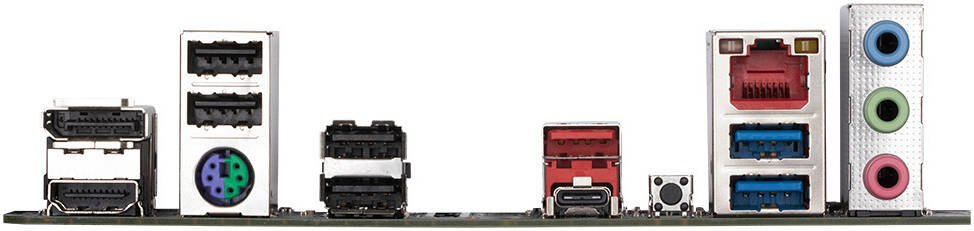

Back Panel Connectors 1x DisplayPort, 1x HDMI, 4x USB 2.0/1.1, 1x PS/2 keyboard/mouse, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x RJ-45 LAN, 2x USB 3.2 Gen 1, 3x audio jacks
H/W Monitoring Voltage/Temperature/Fan speed/Water cooling flow rate detection; Fan fail warning; Fan speed control
BIOS 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Supports Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX (24.4cm x 24.4cm)
