GIGABYTE AORUS ELITE P850W 80+ Platinum Modular PCIe 5.0 Power Supply, Intel Form Factor ATX 12V v3.0, 850W Capacity, 120mm FDB Fan, 60-50 Hz Input Frequency, Ic
599,00 AED
- High Efficiency and Certification Achieves 80 PLUS Platinum certification, ensuring 92% efficiency at typical load for reduced energy waste and heat output.
- Modern Compatibility Fully compatible with Intel ATX 12V v3.0 and backward-compatible with ATX 3.1 for next-gen and legacy hardware.
- Robust Protection Mechanisms Equipped with multiple protections: OVP, OPP, SCP, UVP, OCP, and OTP, ensuring reliable operation and safeguarding components.

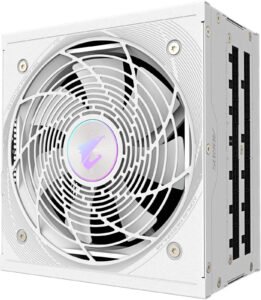

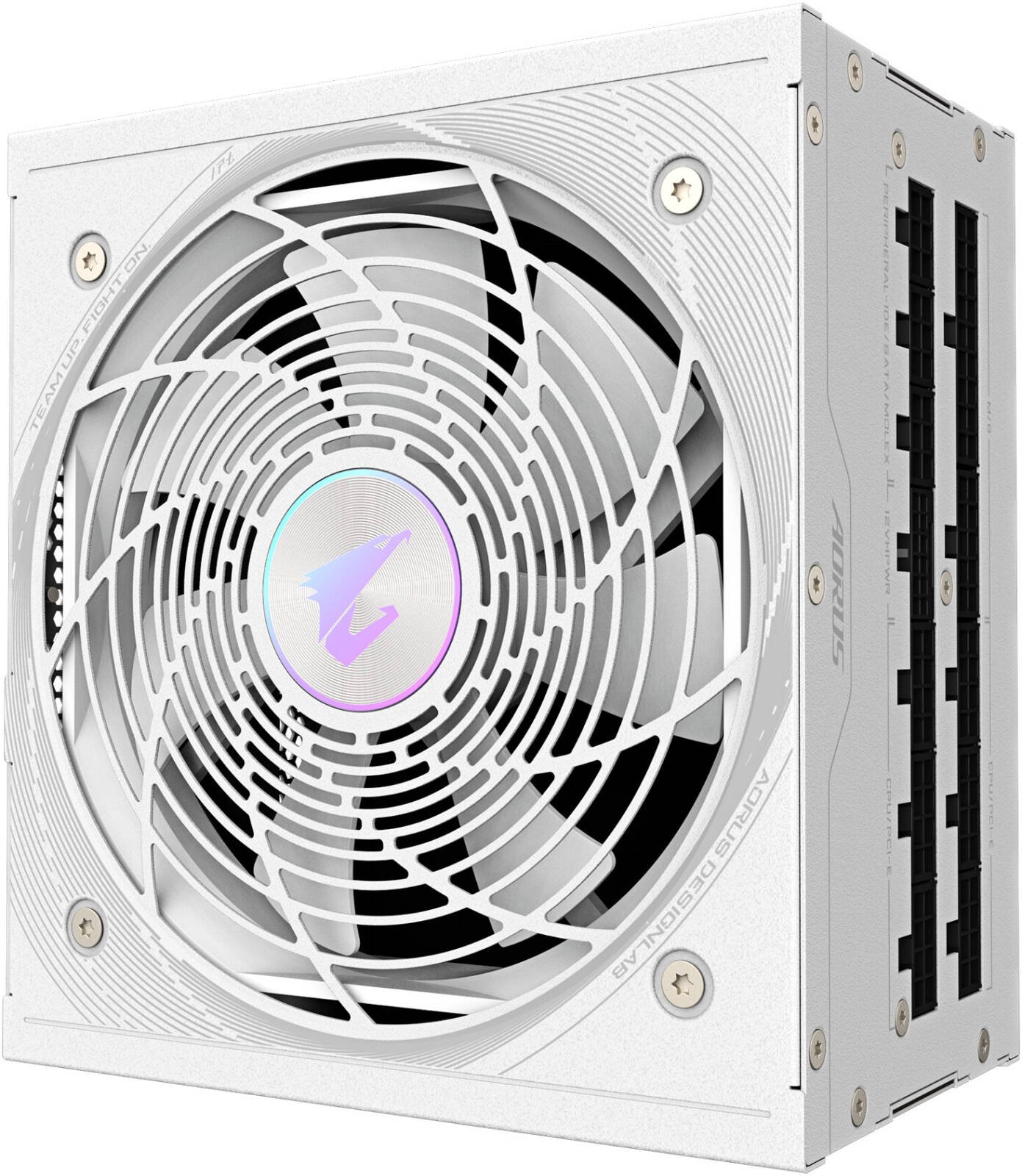

- Advanced Cooling Solution Features a 120mm Fluid Dynamic Bearing (FDB) fan for quieter operation and extended fan lifespan.
- Premium Build Quality Offers a >100,000 hours MTBF, reflecting superior longevity and durability.
- Ample Connectors and Modular Design Includes a variety of connectors, such as 8 SATA, 4 Peripheral, and multiple PCI-e options, supporting high-performance GPUs and storage configurations.

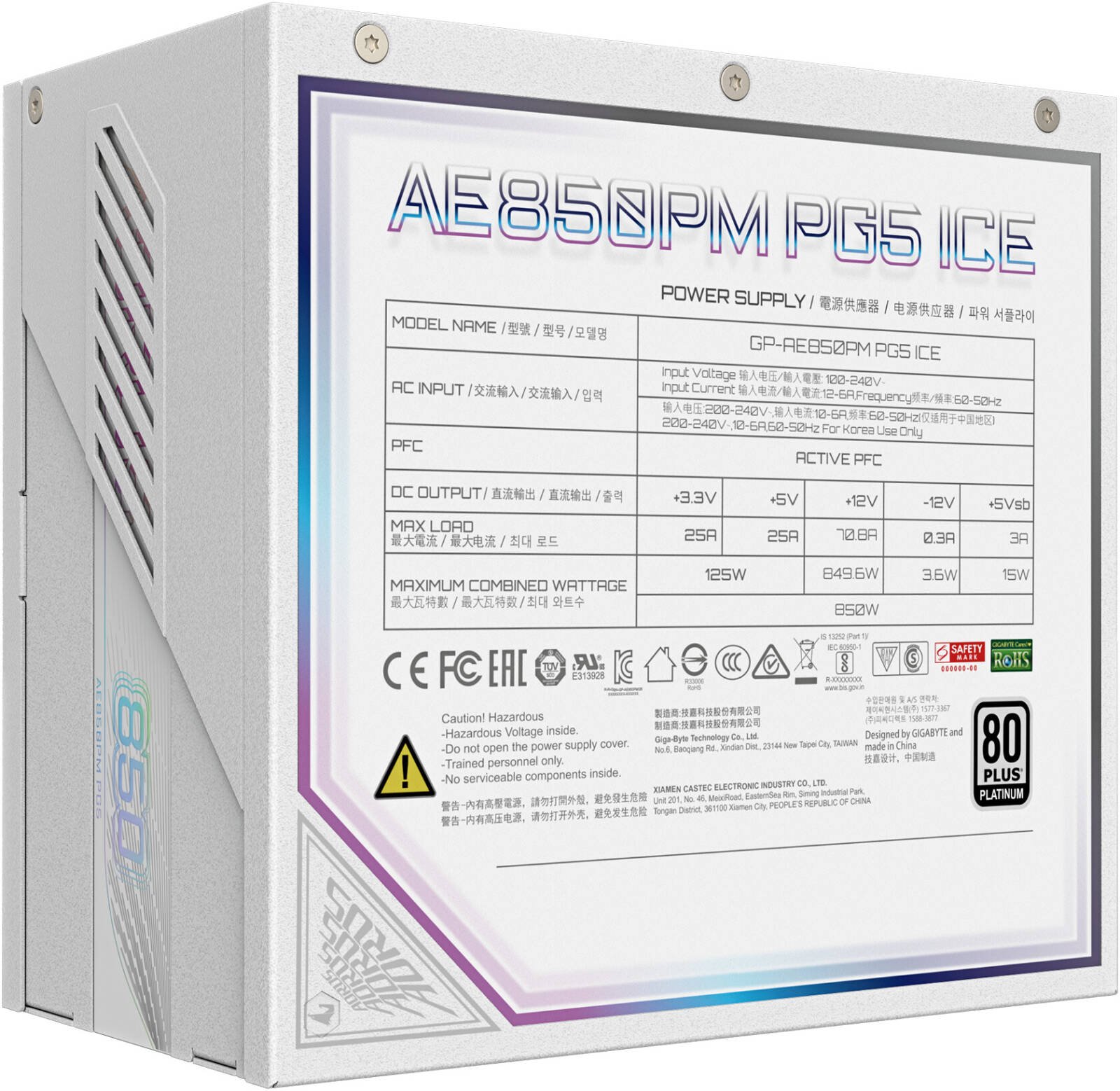

| Model | GP-AE850PM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 12-6A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) Fan |
| 80 PLUS Certification | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection) |
| Power Good Signal | 100-150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All Black |
| Connectors | - ATX/MB 20+4 Pin x1: 650mm |
| - CPU/EPS 4+4 Pin x2: 700mm | |
| - PCI-e 16 Pin x1: 700mm | |
| - PCI-e 6+2 Pin x6: 650mm+150mm x2, 750mm x2 | |
| - SATA x8: 600mm+150mm+150mm+150mm x2 | |
| - 4 Pin Peripheral x4: 500mm+150mm+150mm+150mm x1 |
