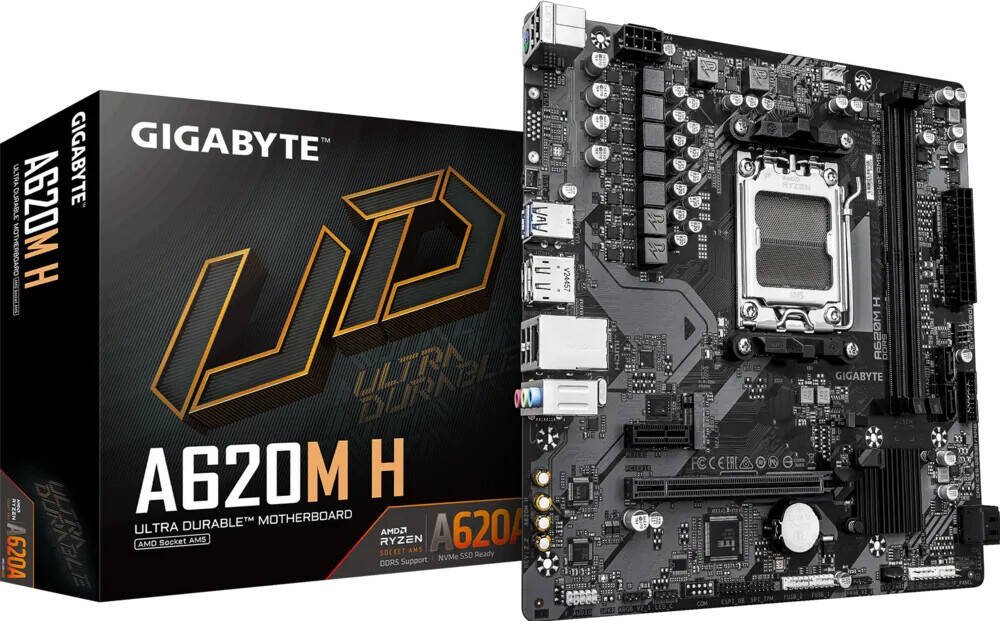

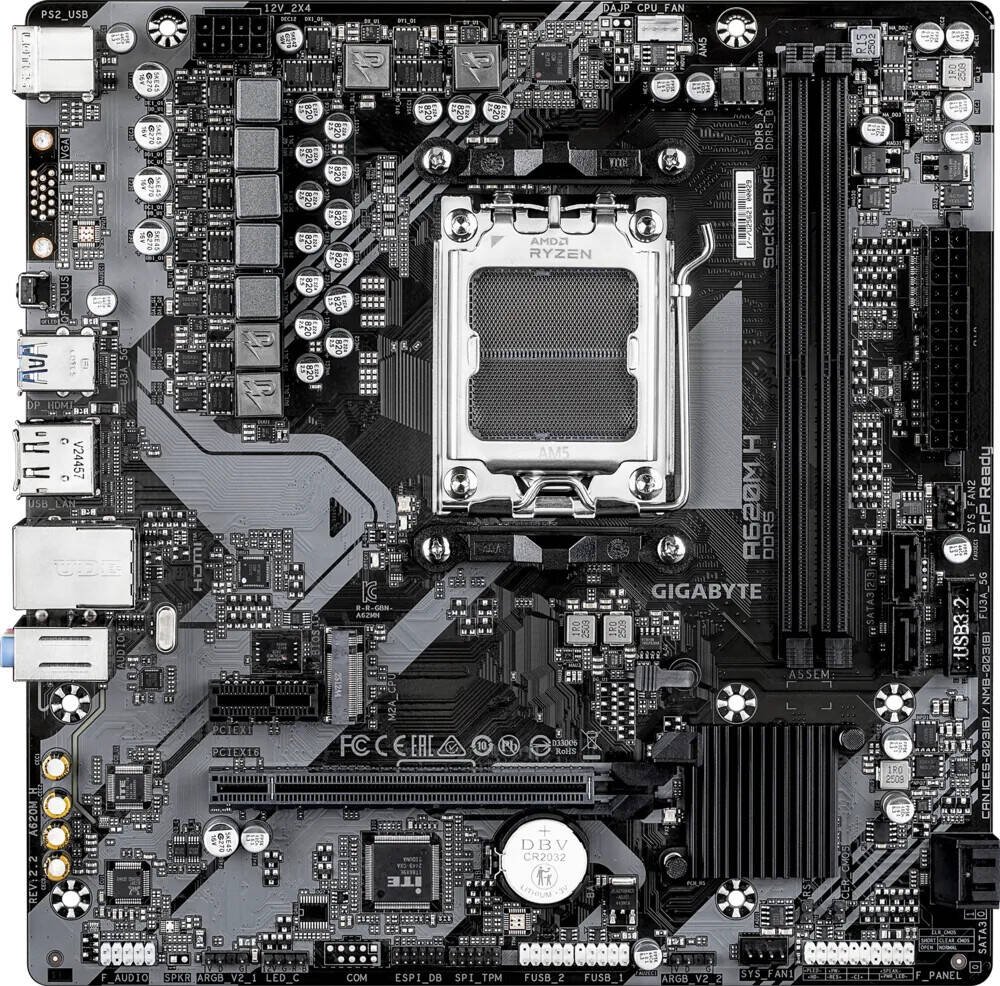

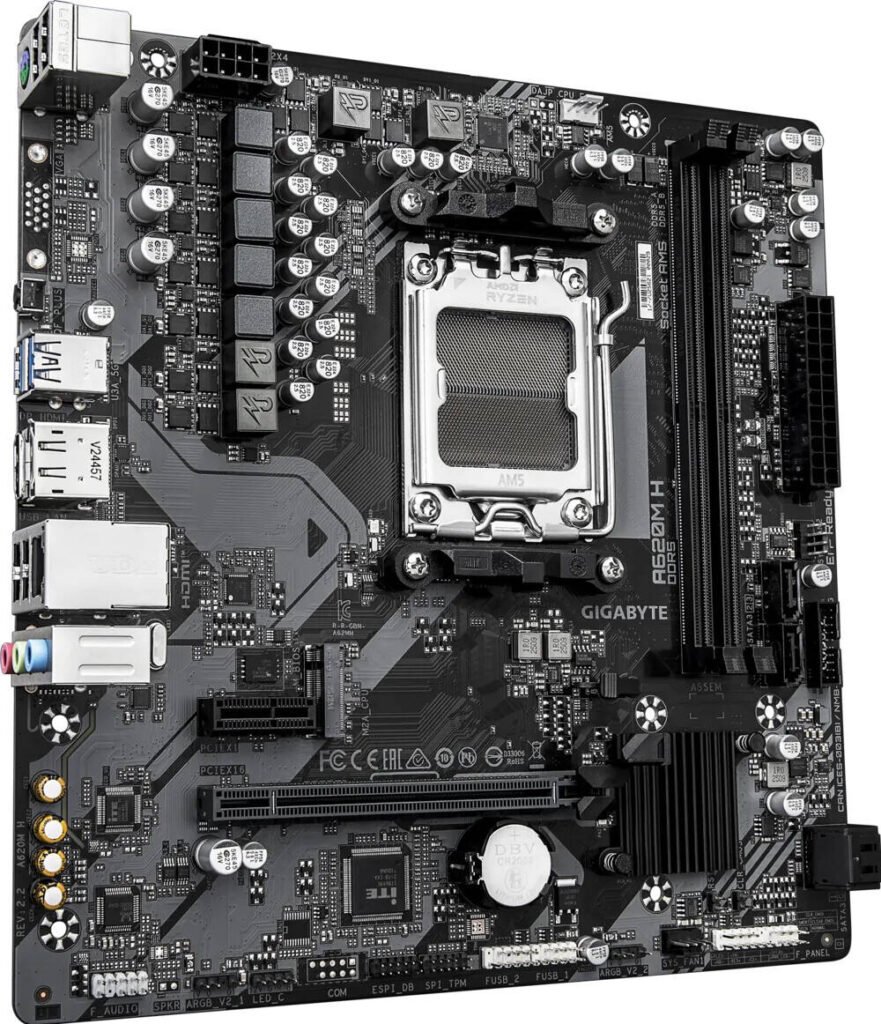

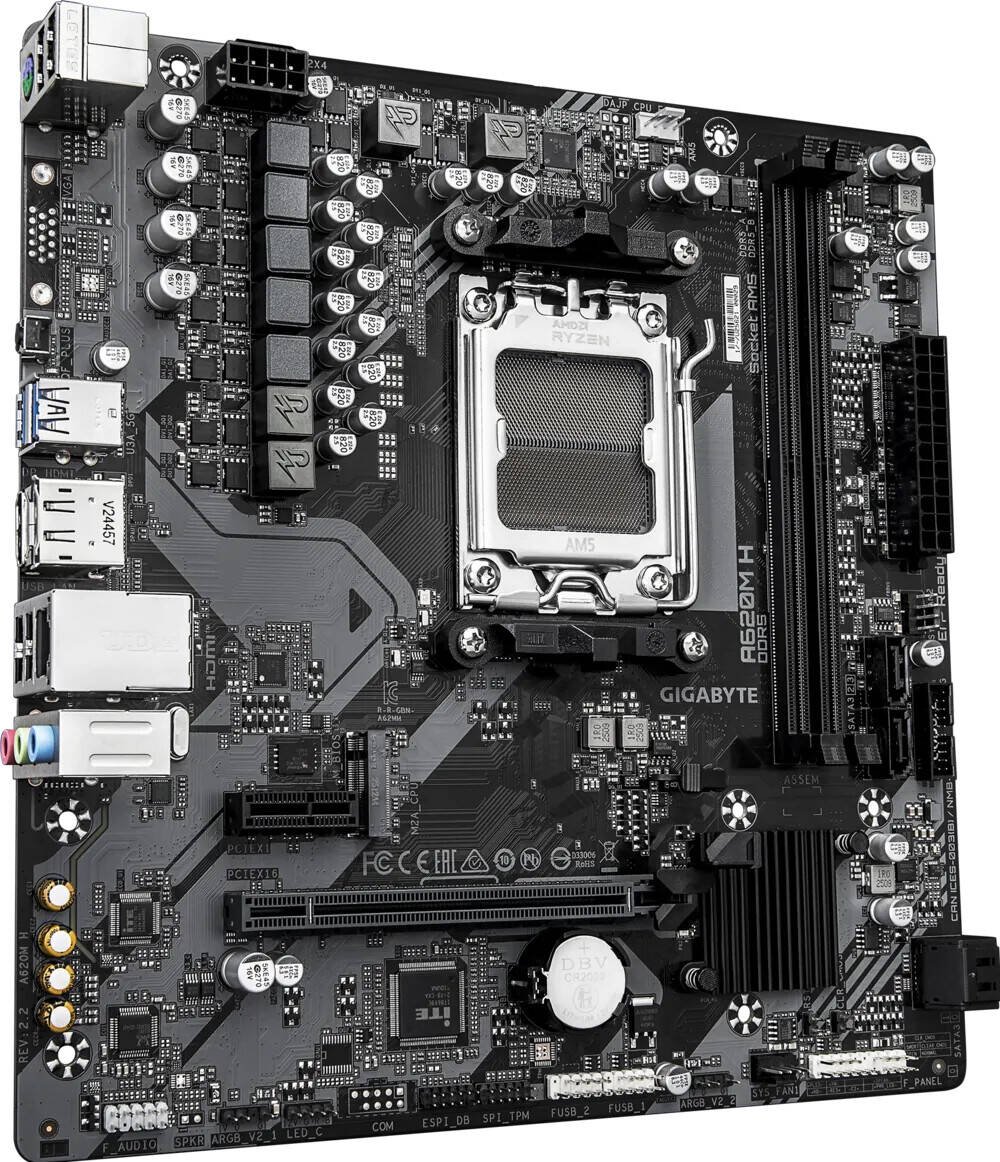

GIGABYTE A620M H Micro ATX Motherboard, AMD A620A Chipset, 2x DDR5 DIMM Slots, 128GB Max Memory, 1x PCIe 4.0 x16 Slot, 1x M.2 PCIe 3.0 Slot

367,00 AED

Send Enquiry On Whatsapp
Add to Enquiry
  • AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
  • Fast Networks：GbE LAN
  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
CPU Support AMD Socket AM5, supports AMD Ryzen™ 7000 / 8000 / 9000 Series processors (see CPU Support List)
Chipset AMD A620A
Memory 2 × DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM)Supports DDR5 7600(OC)/7200(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/sDual-channel memoryNon-ECC Un-buffered DIMMs (1Rx8/2Rx8/1Rx16)Supports AMD EXPO™ & XMP profiles
Integrated Graphics AMD Radeon™ Graphics (depends on CPU)1 × DisplayPort 1.4: max 3840×2160@144 Hz1 × HDMI 2.1: max 4096×2160@60 Hz, HDCP 2.3
Audio Realtek® Audio CODECHigh Definition Audio, 2/4/5.1/7.1-channel support
LAN Realtek® GbE LAN, 1 Gbps/100 Mbps/10 Mbps
Expansion Slots 1 × PCIe x16 (CPU) – PCIe 4.0 x16/x8/x4 depending on CPU series1 × PCIe x1 (chipset) – PCIe 3.0 x1
Storage Interface 1 × M.2 (Socket 3, M key, 2280/2580)4 × SATA 6Gb/sRAID 0/1/10 support for SATA & NVMe
USB Ports CPU: 2 × USB 3.2 Gen1, 1 × USB 2.0/1.1 (back)Chipset: 2 × USB 3.2 Gen1 (internal), 7 × USB 2.0/1.1 (3 back + 4 internal)
Internal I/O Connectors 24-pin ATX, 8-pin CPU, 1 CPU fan, 2 system fan headers, 3 RGB/LED headers, 1 M.2 socket, 4 SATA, front panel & audio headers, USB 3.2 Gen1 & 2 × USB 2.0 headers, TPM header, reset & Clear CMOS jumper

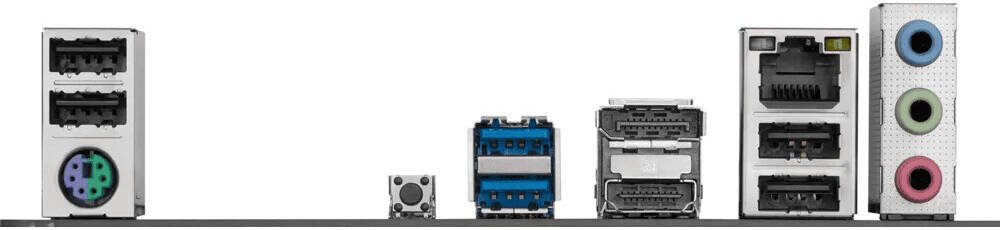

Back Panel Connectors 4 × USB 2.0, 2 × USB 3.2 Gen1, 1 × PS/2, 1 × Q-Flash Plus button, 1 × DisplayPort*, 1 × HDMI*, 1 × RJ-45, 3 × audio jacks
I/O Controller iTE® I/O Controller Chip
Hardware Monitoring Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control (depends on installed fan)
BIOS 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software Norton® Internet Security (OEM version)
Operating System Support Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX, 23.0 × 22.5 cm
